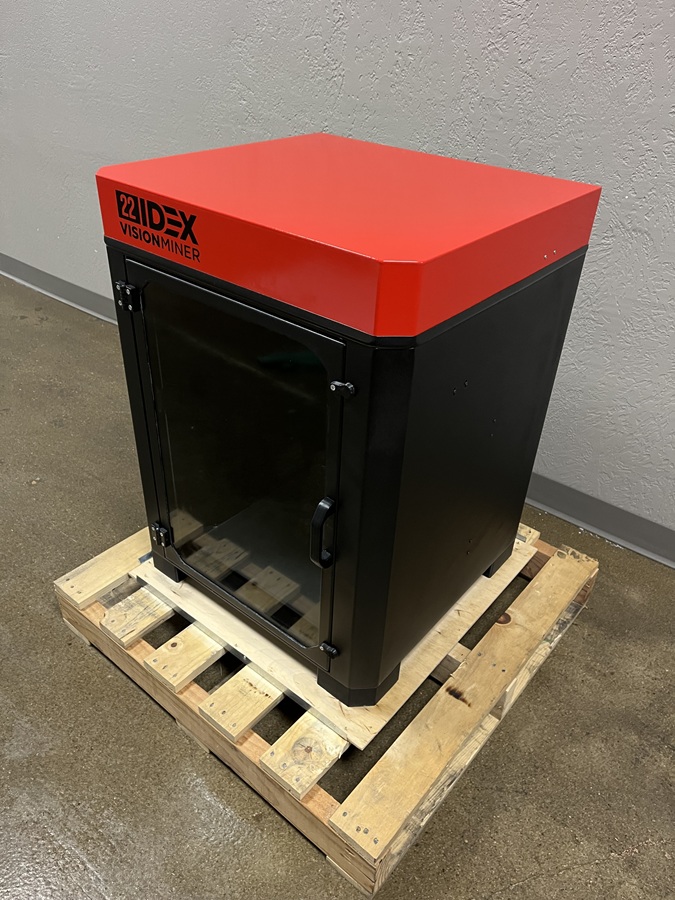

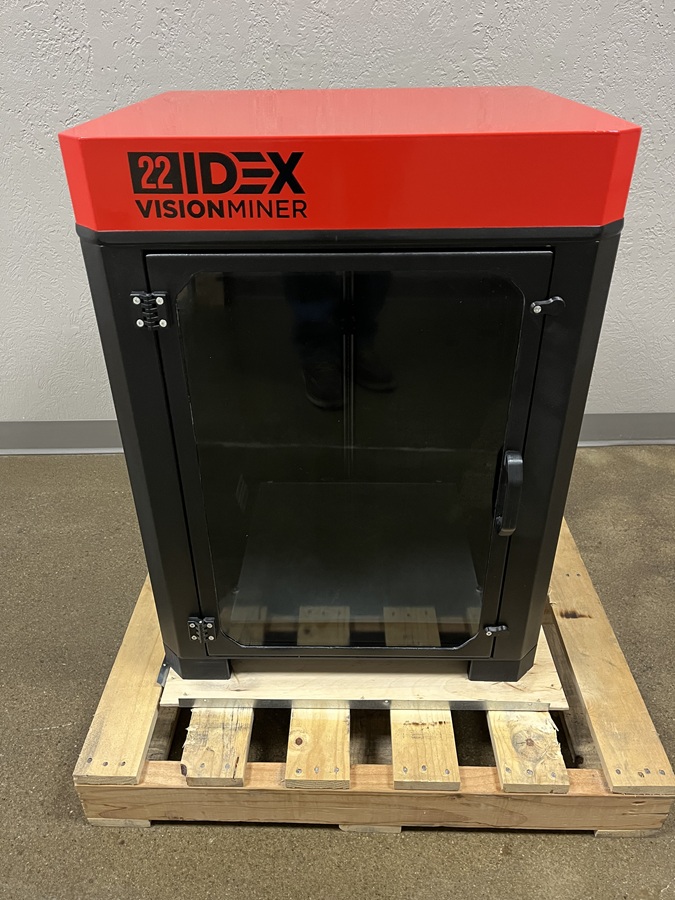

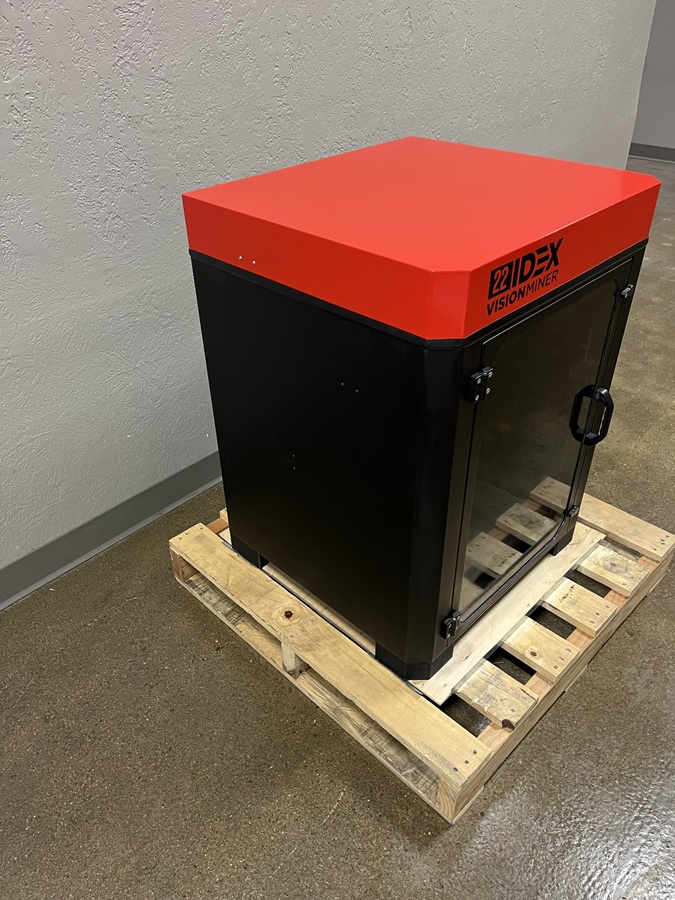

Vision Miner 3D Printer 22 IDEX

Detailed Description:

Vision Miner 3D Printer 22 IDEX

Print Technology

FFF & IDEX (2 Independent Print Heads)

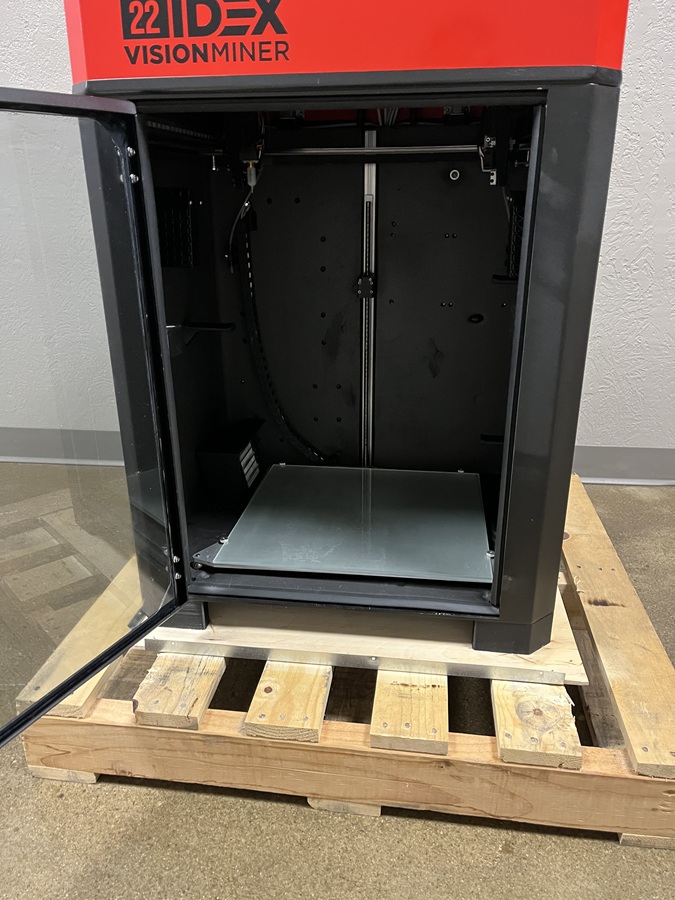

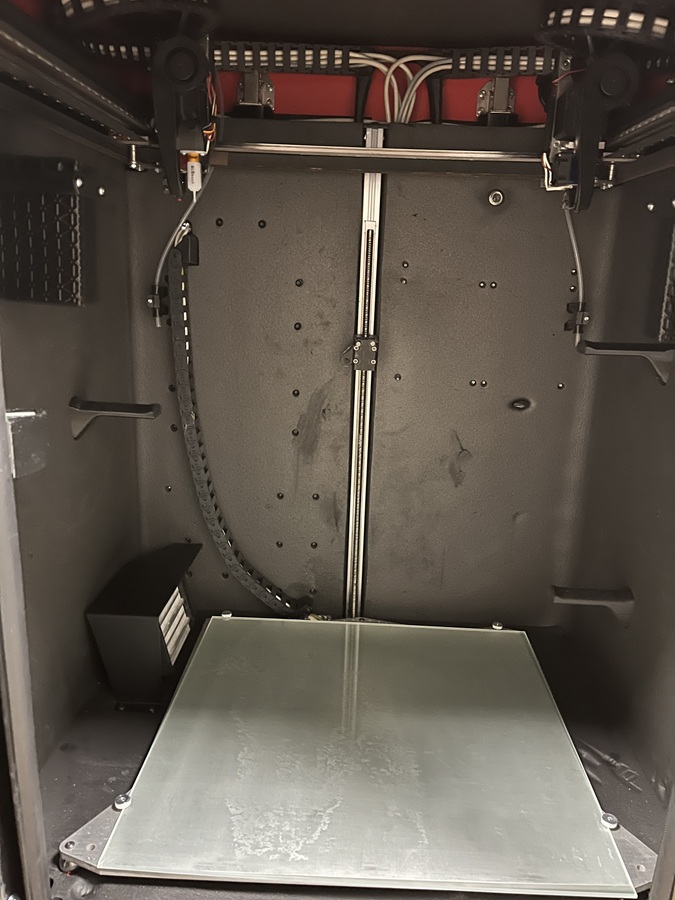

Build Volume

350 x 350 x 450 mm

Temperature Specifications

• Nozzle Temperature: 500°C
• Build plate Temperature: 200°C
• Chamber Temperature: 90°C (Active Heating)

Speed & Resolution

• Max Print Speed: 500 mm/s
• Regular Print Speed: 300 mm/s
• Resolution XYZ: 10 µm
• Layer Resolution: 7 µm

Mechanical Specifications

• Construction: All Metal Insulated Frame
• Motion System: High Temp Motion System featuring HIWIN linear guideways & Ultra Wide Kevlar Belts
• Bed Leveling: Triple Z-Motor Auto Bed leveling (True Bed Leveling)
• Non-Planar Printing: In Development (will be available as a free software update)

General Specifications

• Filament Storage: Built-in automatic filament drying system
• Filament: 1.75mm (Open Source)
• Air Filtration: Optional HEPA and Active Carbon Filter
• External Fume Extraction: Optionally integrated inlet and outlet for external fume extraction hook up (purchased separately)
• Nozzles: 2 Hardened Steel 0.4mm Nozzles
• Nozzle Cleaning: 2 Integrated Nozzle Wiping Pads

Dimensions & Mass

• External Dimensions: 56cm x 58cm x 74cm (L*W*H)
• Net Weight: 70 kg

Power & Environment

• Power Supply Input: 220V or 110V (optional)
• Operating Temperature: 18 to 30°C
• Storage Temperature: -10 to 45°C
