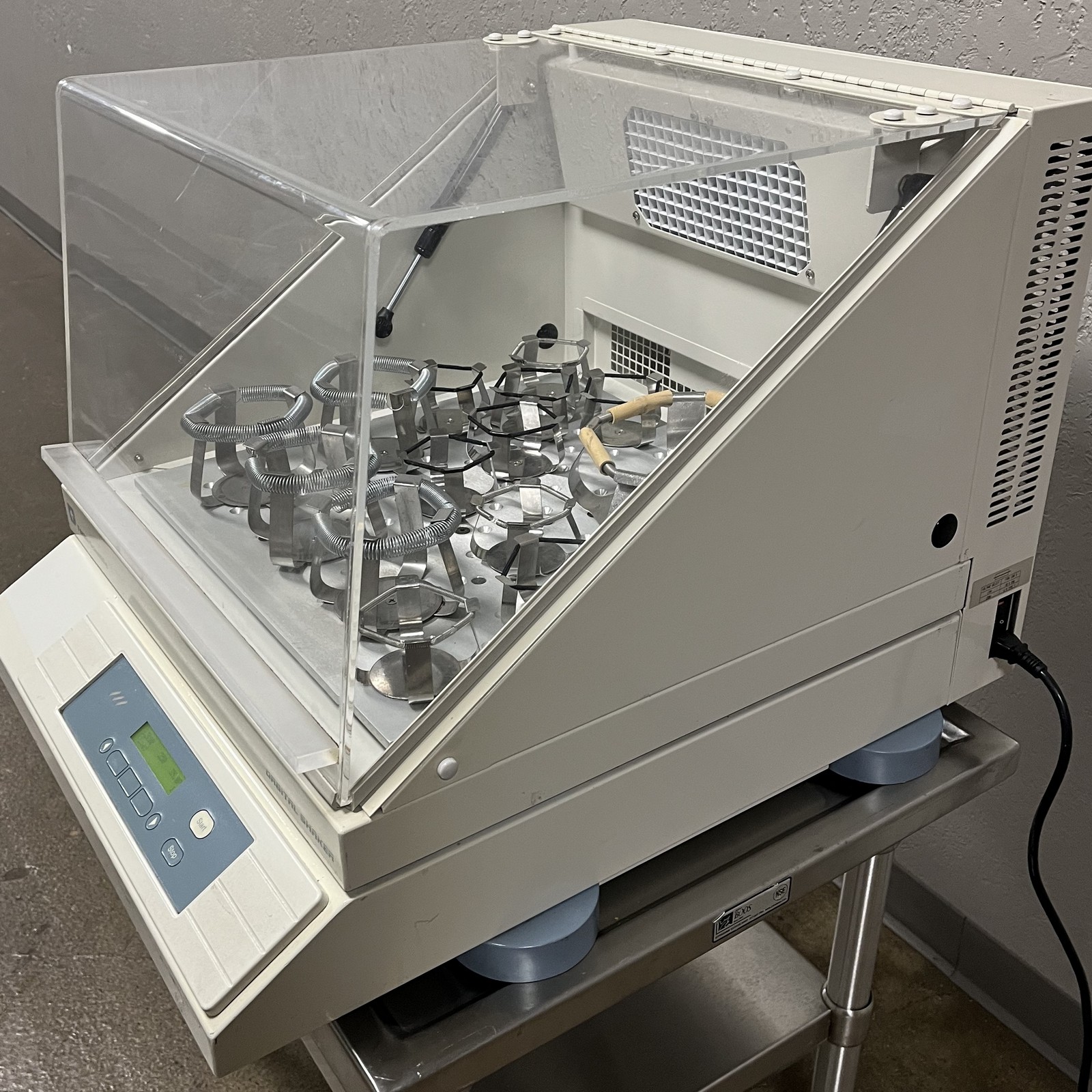

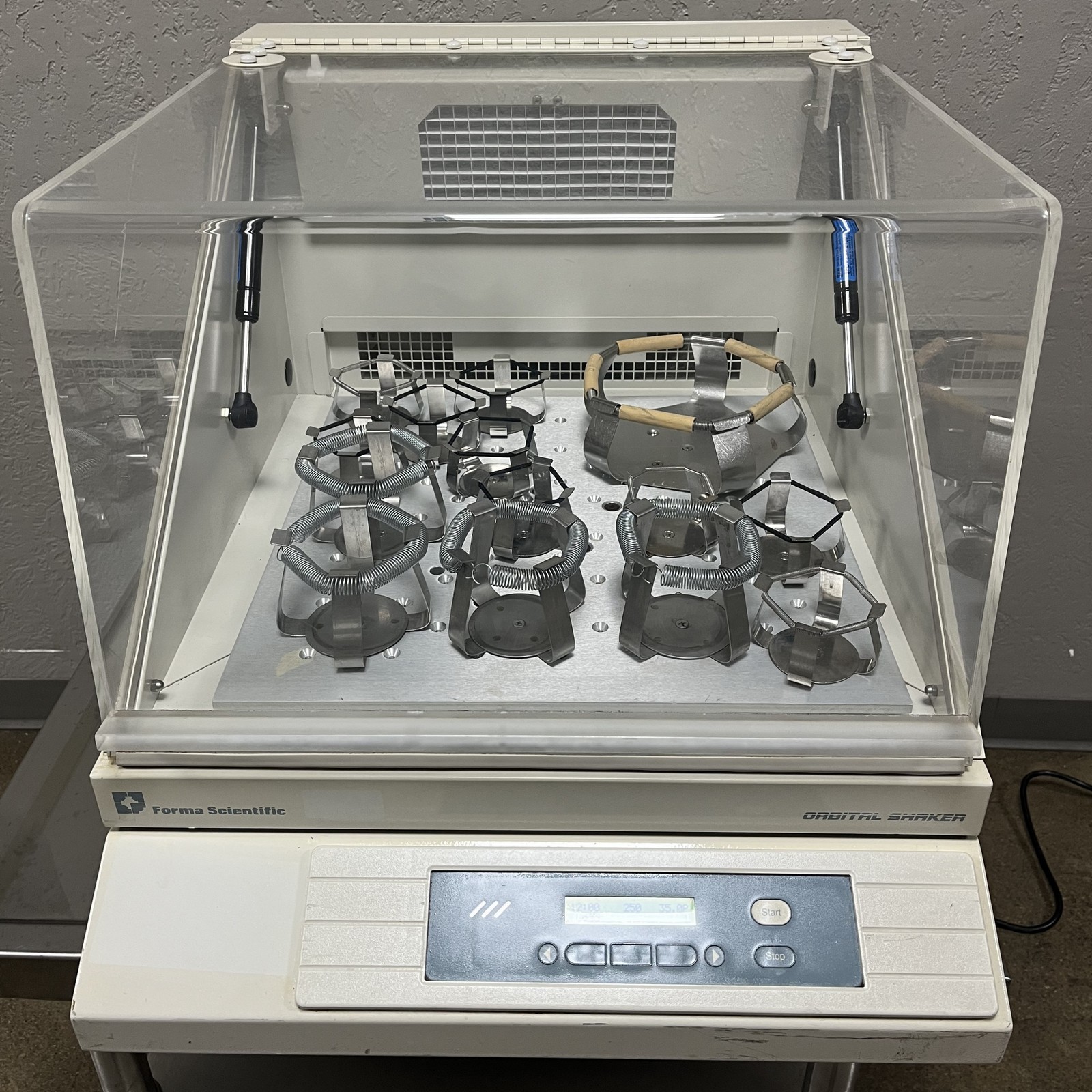

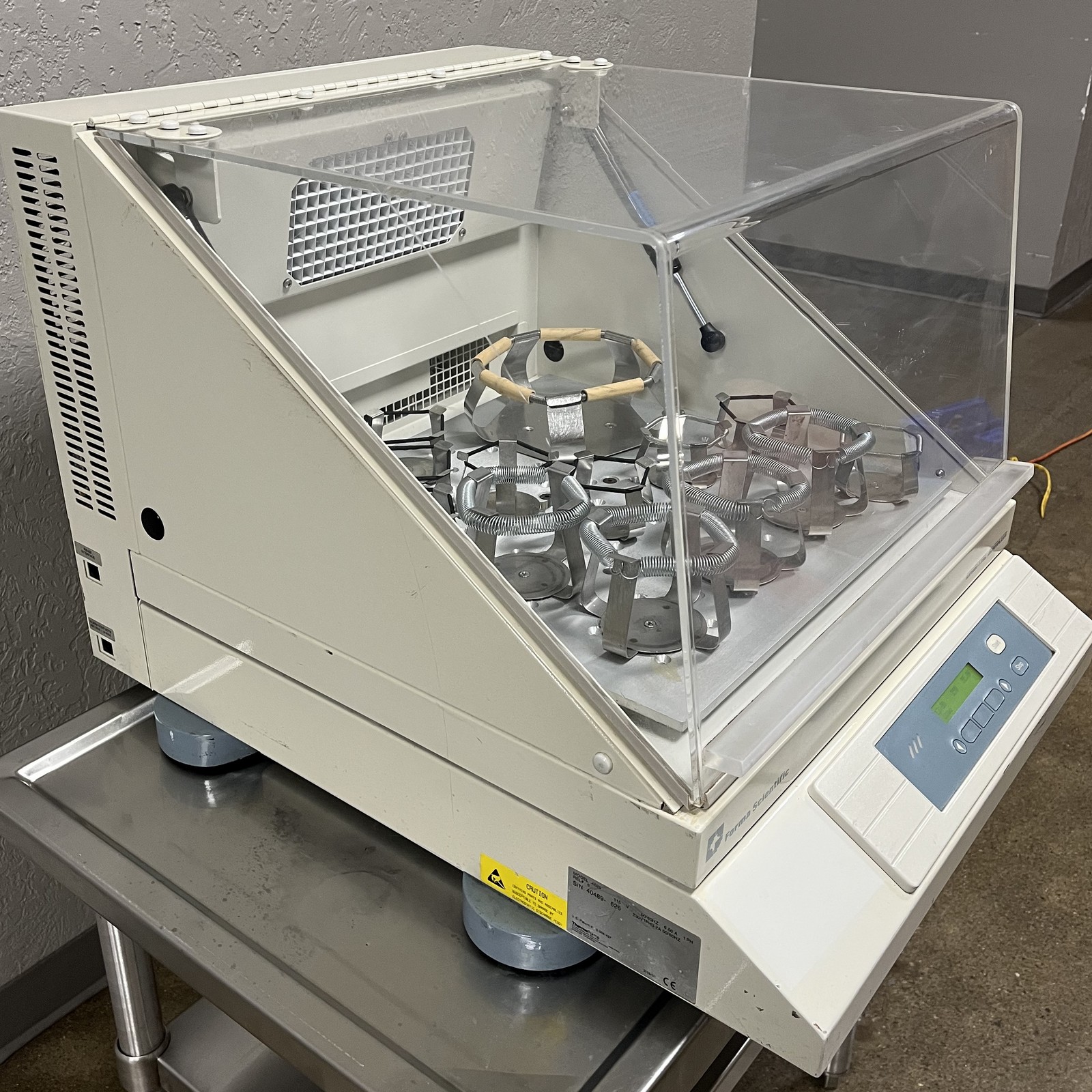

Thermo Forma Scientific 4520 Incubator Orbital Shaker – 18" Platform – 25–525 RPM
Equipment Details
Manufacturer: Thermo / Forma Scientific
Model: 4520
Type: Incubator Orbital Shaker
The Thermo Forma 4520 is a benchtop incubated orbital shaker designed for cell culture and microbiology applications, providing precise temperature control and stable shaking motion.
Key Specifications
Feature Specification
Speed Range 25 – 525 RPM
Orbit 1 in (2.5 cm)
Temperature Range 5°C above ambient to 80°C
Temperature Control ±0.1°C

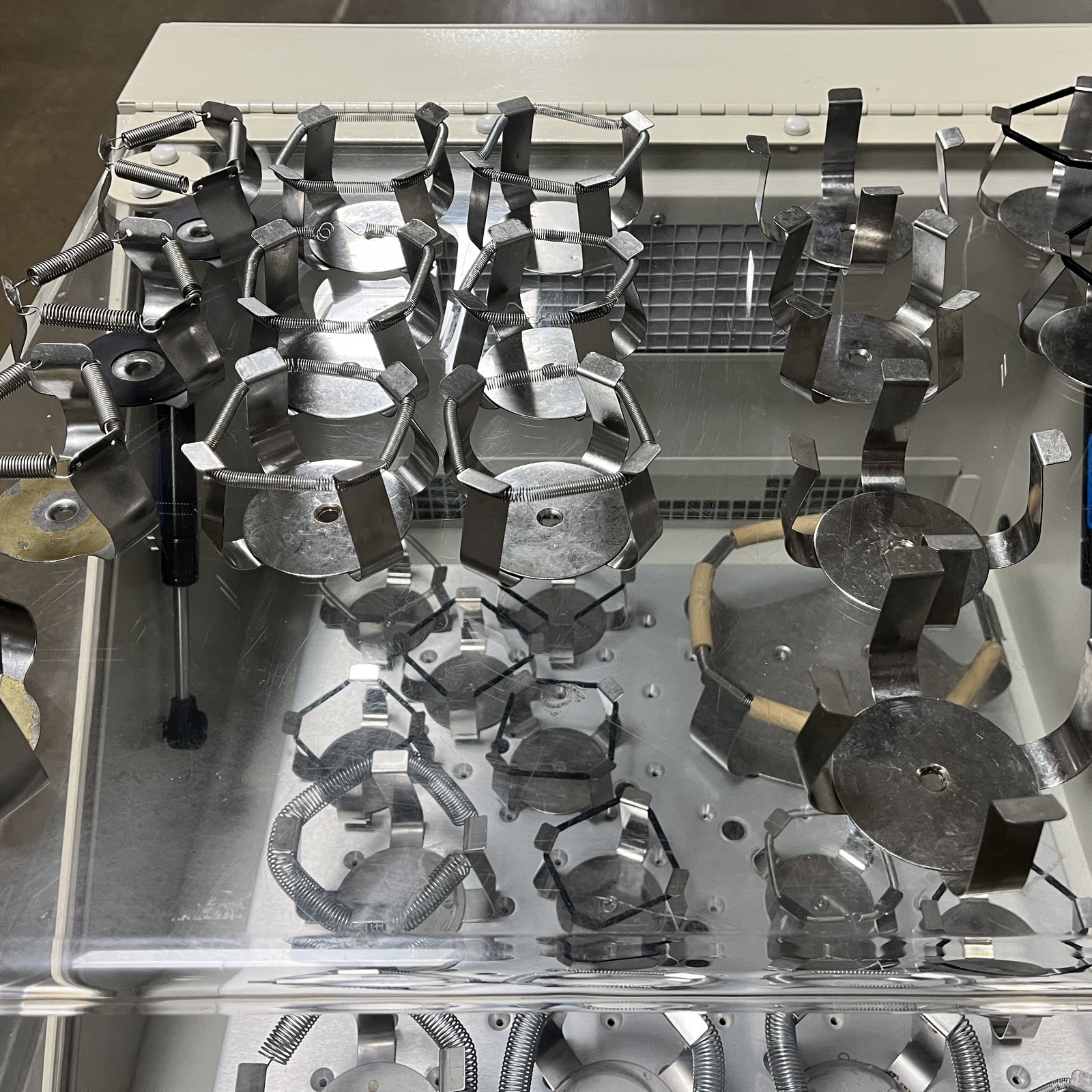

Platform Size 18" × 18"
Timer Continuous or up to ~200 hours
Temperature Uniformity ±0.3°C
Alarms Audible/visual over- or under-temperature
Features

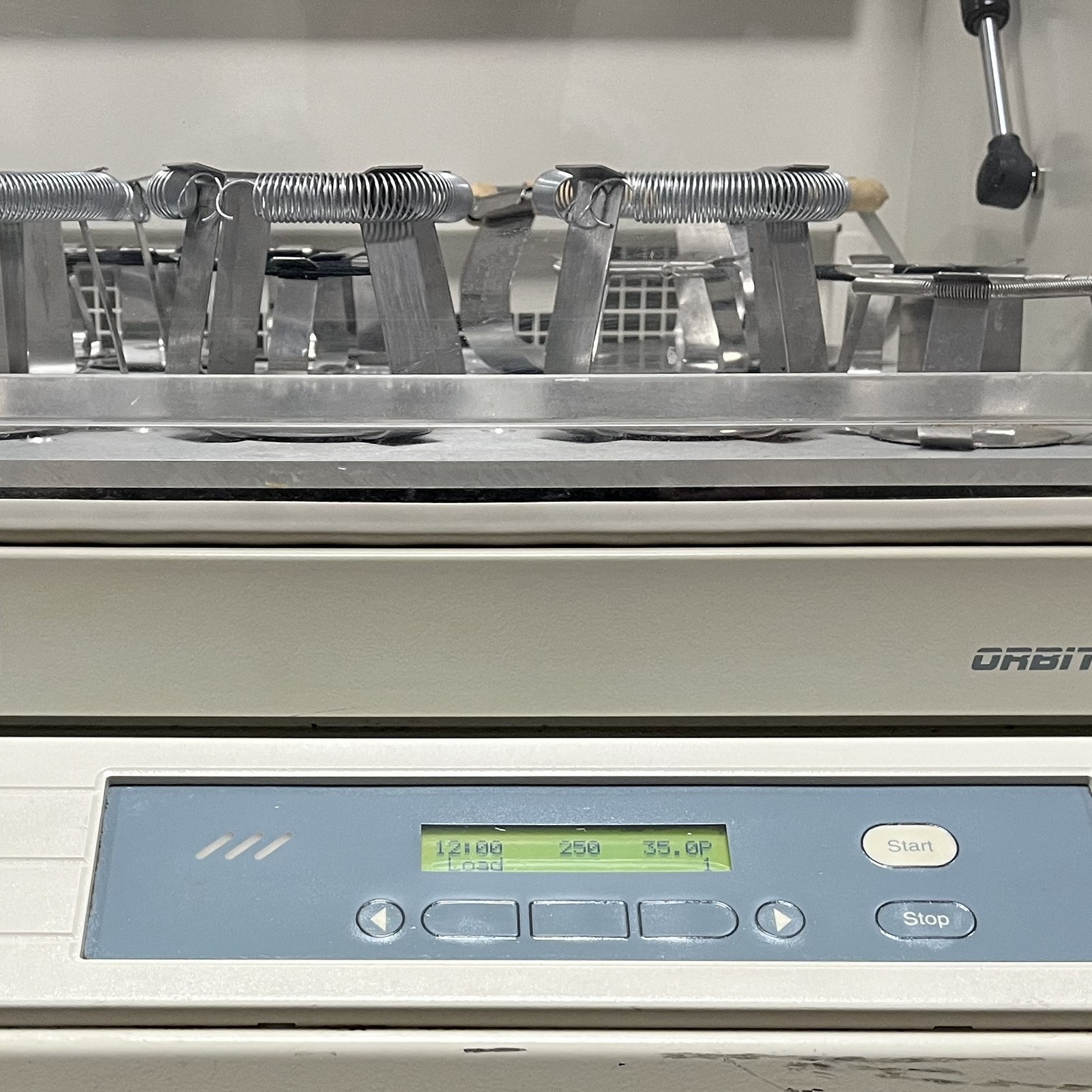

Microprocessor controlled speed and temperature
Triple counter-balanced drive mechanism for smooth operation
Double-wall insulated chamber
Clear acrylic lid with reinforced hinges
Audible and visual alarms for temperature deviations
Twin blowers for chamber temperature uniformity
