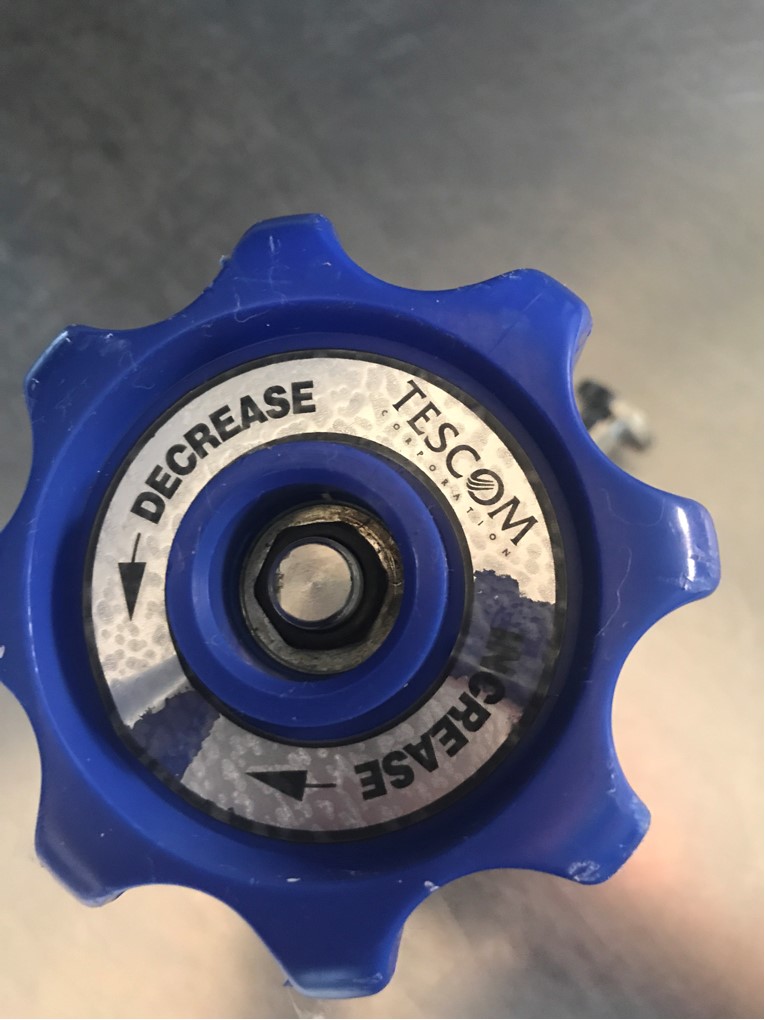

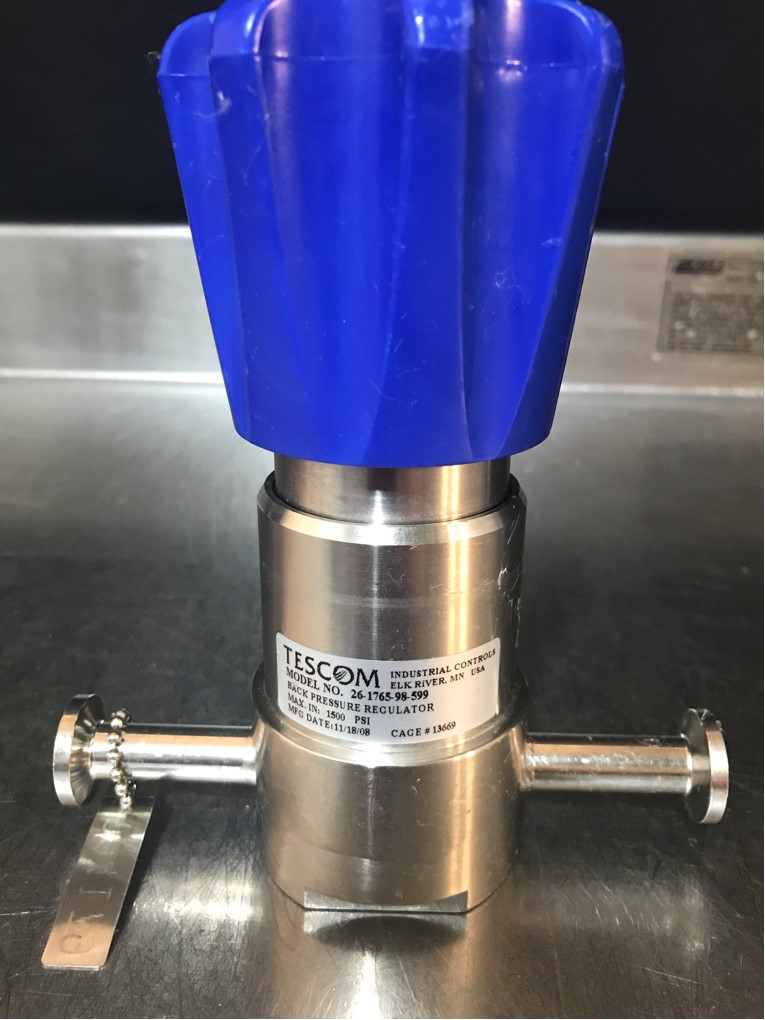

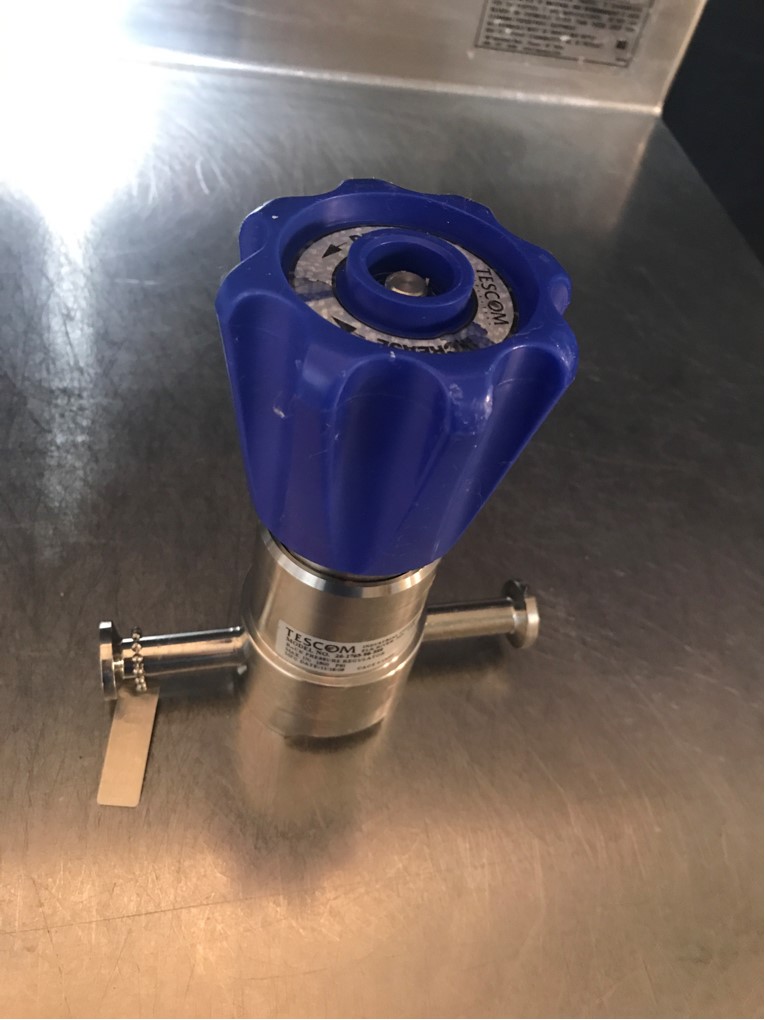

Tescom Industrial Back Pressure Regulator 26-1765-98-599

Detailed Description:

Tescom Industrial Back Pressure Regulator

Model: 26-1765-98-599

Max in: 1500 PSI

Manufactured in 2008

Maximum Inlet Pressure: 10,000 psig / 689 bar

Outlet Pressure Ranges:  5-500, 5-800, 10-1500,15-2500, 25-4000, 50-6000, and 200-10,000 psig
0.35-34.5, 0.35-55.2, 0.69-103, 1.03-172, 1.72-276, 3.45-414,and 13.8-689 bar

Body Material: 316 Stainless Steel

Seat Material: CTFE (26-17X1 through 26-17X4), Teflon® (26-17X5 through 26-17X7)

O-Rings: Buna-N

Back-up Rings- Teflon®

Seal: CTFE

Trim: 300 Series Stainless Steel

Port Size & Type: 1/8, 1/4, 3/8, 1/2
SAE, NPTF, MS33649, High Pressure, Medium Pressure
1/2, 1
Flange

Operating Temperature: -40°F to 165°F / -40°C to 74°C

Flow Capacity

Cv = 0.10 (26-17X1 through 26-17X4)
Cv = 0.14 (26-17X5 through 26-17X7)

Weight

5 lbs / 2.2 kg
