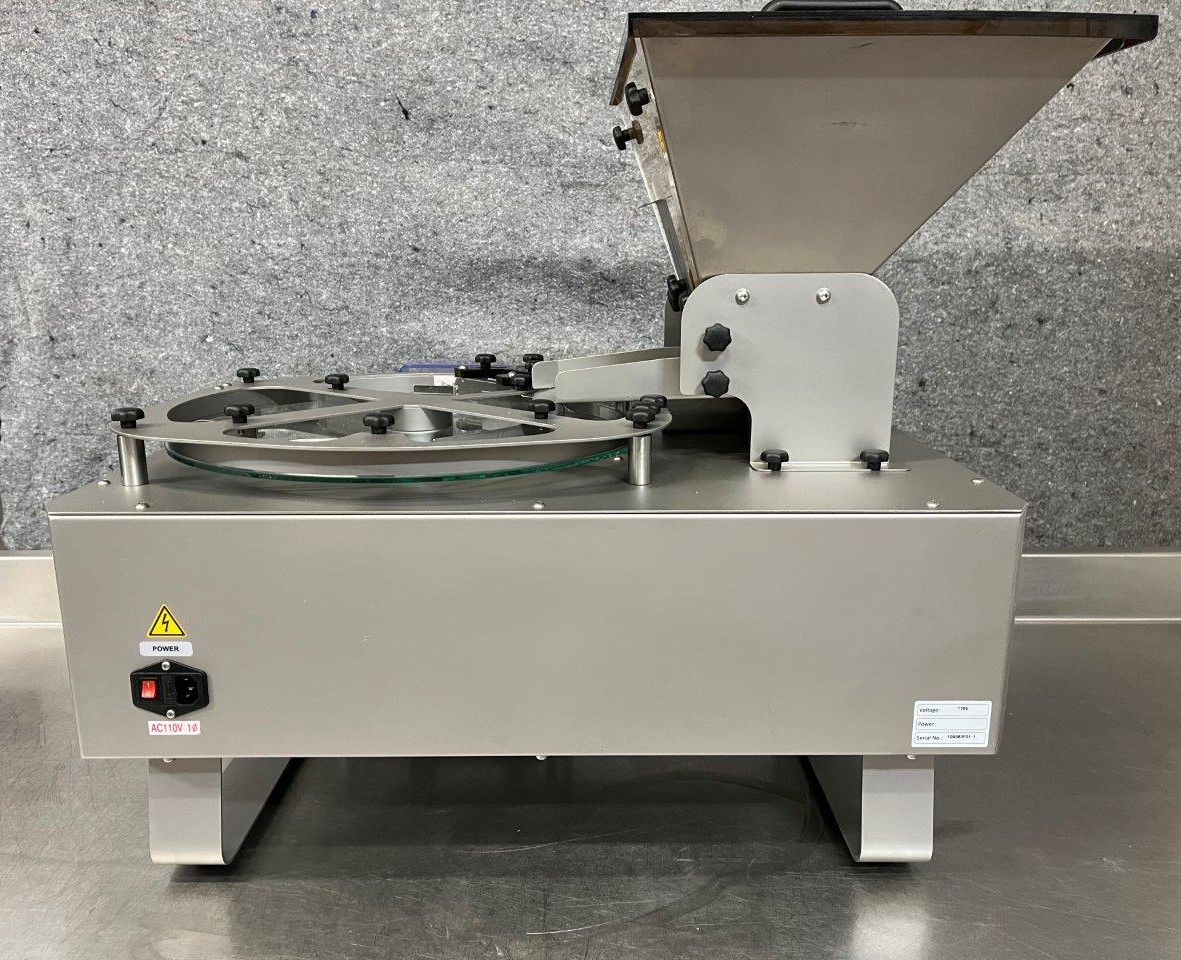

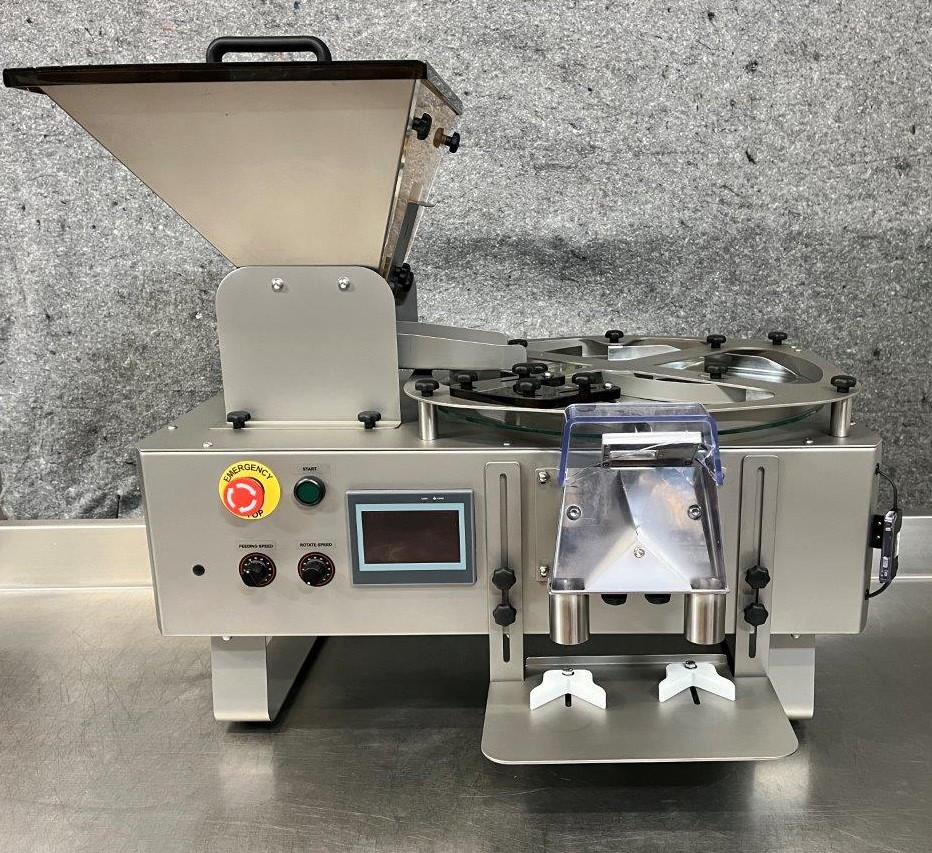

TC-1000 Capsule Pill & Tablet Counter Bottling Machine
TC-1000 is applicable for various tablets, pills and coated capsules. It can be filled in plastic bags and bottles to meet different industries needs.
Features:
1. Counting speed is adjustable.
2. Containers positioned by pneumatic cylinder to ensure precise orientation.
3. Dust accumulating device for smooth and efficient counting.
4. Dual chutes for feeding continually.
5. Vibration hopper makes smooth counting process.
6. No adjustment is required as changing tablets.
7. Adopted Japan Keyence high accuracy photoelectric sensor.
8. Controlled by PLC system with LED touch screen.
9. Memory parameters for fast changeover.
10. Made of stainless steel and aluminum alloy, meets c GMP standard.
Specification:Bottle size:
Diameter: 48mm~100mm / height: 116mm
Capsule size: diameter >6mm, height > 3mm
Tablet size: 2mm~30mm
Accuracy: ± 1 tablet
Counting speed: 600~1000 pcs/min
Voltage : 110V
Dimension: (L) 750mm (W) 550mm (H) 750mm
More Information
Accuracy ± 1 tablet
Output 600~1000 pcs/min
Power Supply Voltage: 110V, 50/60Hz Amperage: 2A Power: 100W
