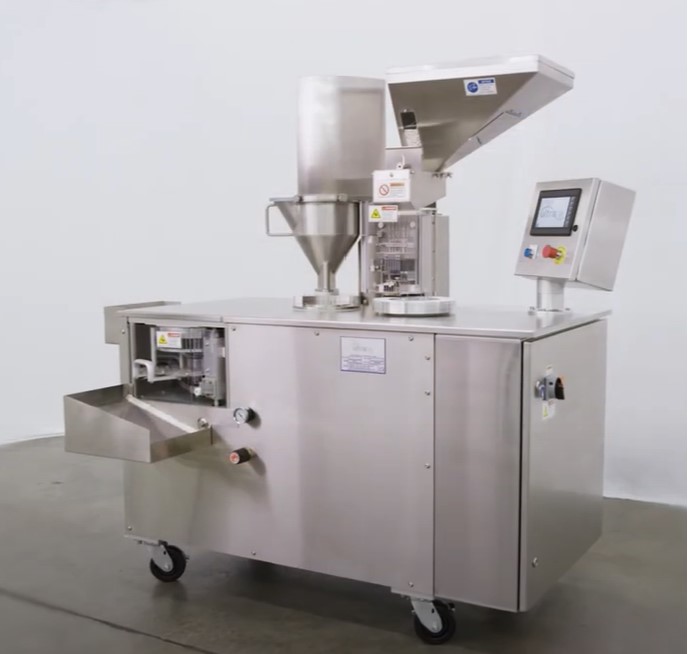

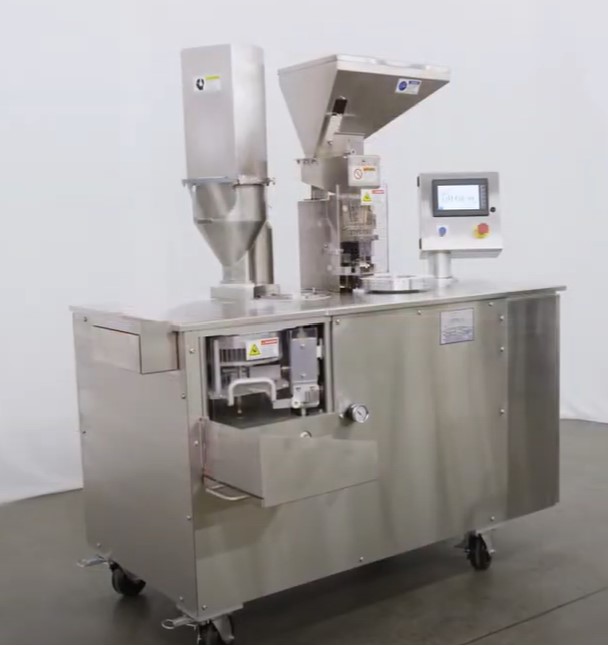

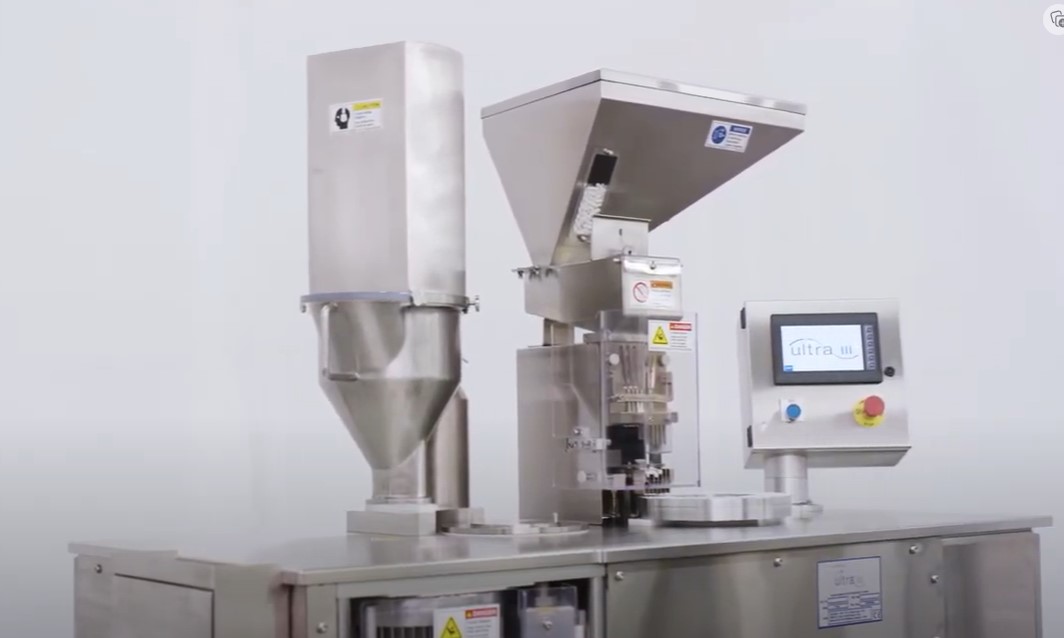

Capsugel ULTRA III Semi-Automatic Capsule Filler - RECONDITIONED
Capsule Change Parts: Come with one set SIZE options are 000, 00, 0 or 1
Additional Machine Details Provided by Capsugel Brochure:
cGMP-compliant and semi-automatic capsule filling machine
Enables to streamline your production process and facilitate speed
to market
Allow customization to enhance efficiency and reduce
operator fatigue
Optional features:

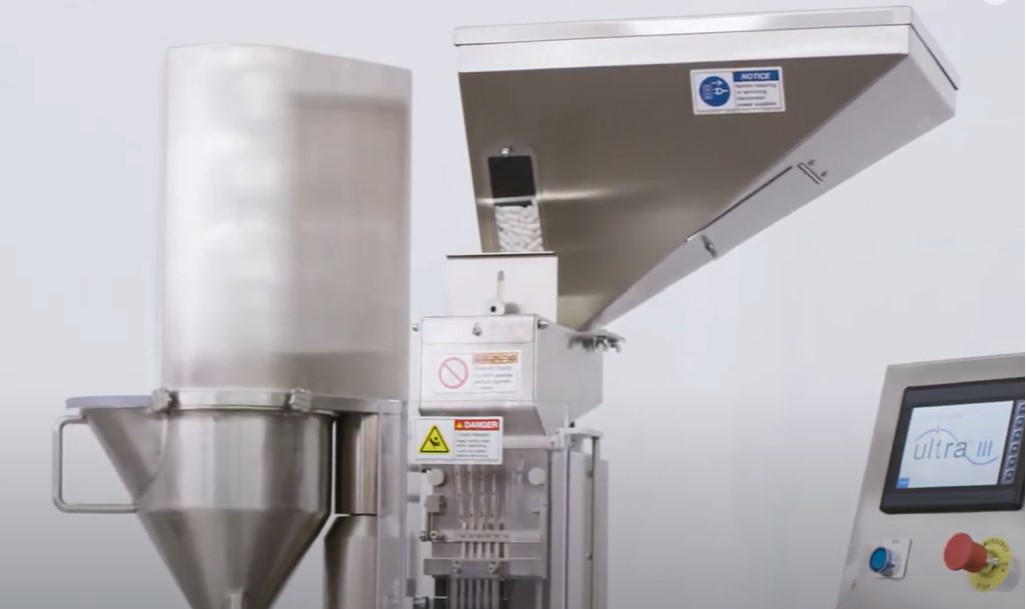

Automatic hopper swing, Automatic ring spinner, Capsule

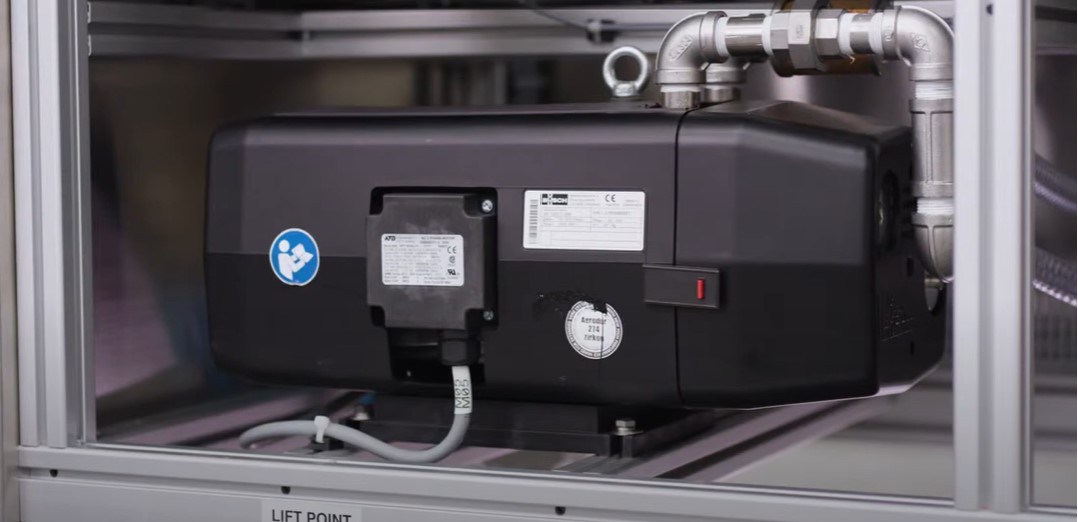

de-duster chute, Vacuum pump
Support your production performance optimization and develop
machine-specific action plans
Technical service team
Features and Beneits
Enables programming for specific formulations
Human Machine Interface (HMI) Touch screen
Powder can be recuperated during production
Stainless steel tabletop
cGMP-compliant
Ensure cleanliness and protect product integrity

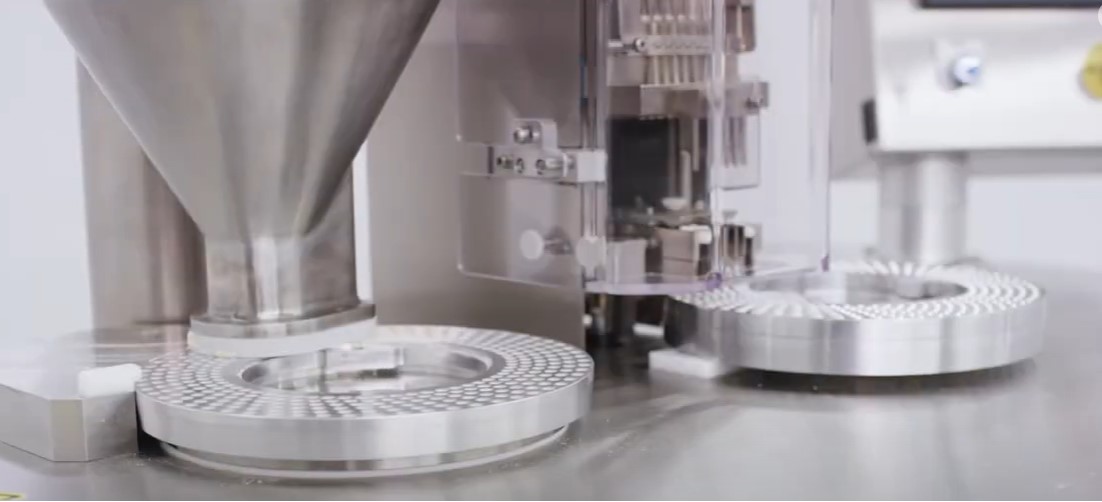

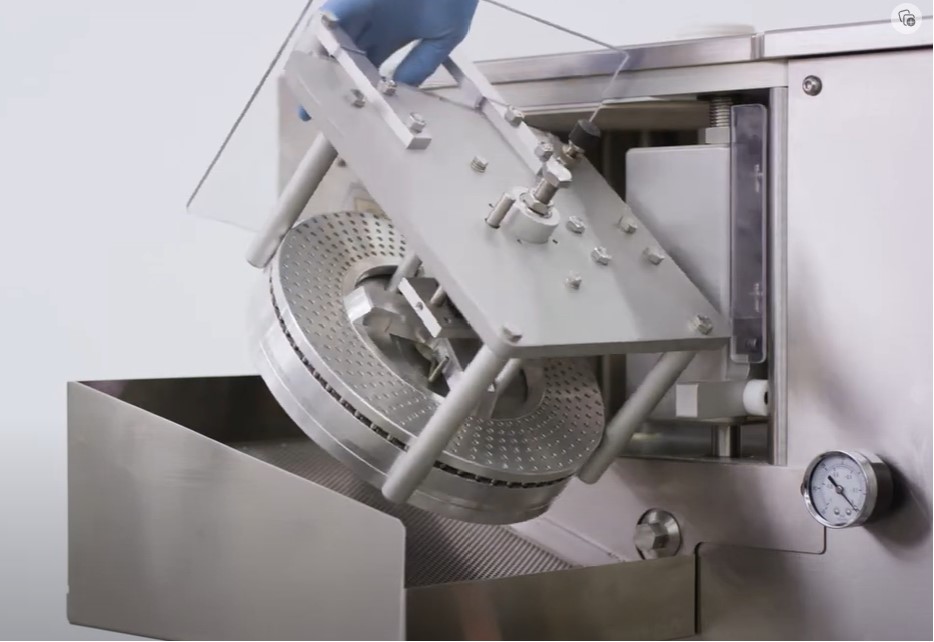

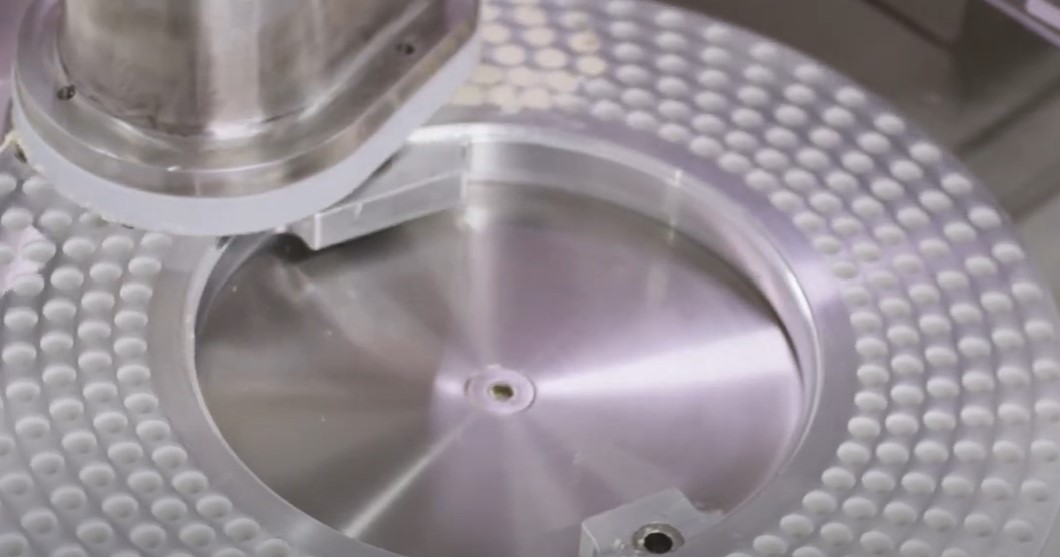

Stainless steel ring carrier, rotary table, powder hopper and table top
Removable powder hopper for cleaning
Large recovery station
GMP & Safety
The Ultra III™’s highly advanced technology and components
ensure cleanliness and protect product integrity.
- Stainless steel ring carrier, rotary table, powder hopper, and table top
- Digital displays on touch screen enable highly repeatable and
consistent speed and timer settings
- Removable powder hopper for cleaning
- Large recovery station
The unique safety features of the Ultra III™ protect operators and
mechanics in the encapsulation process.

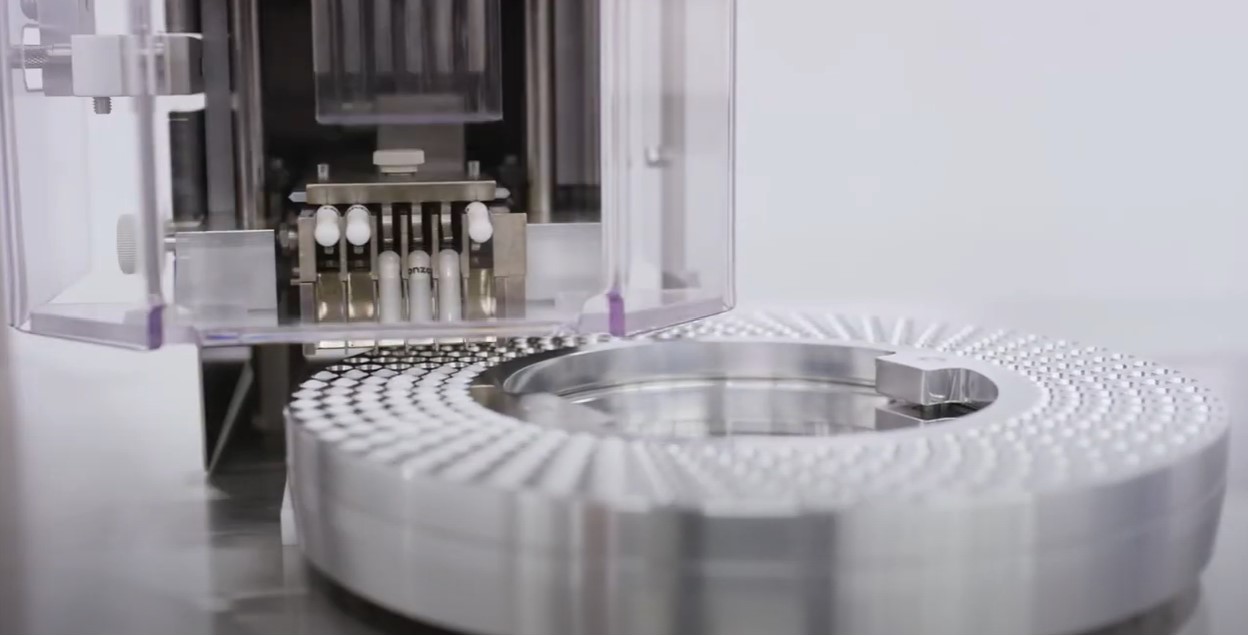

- No pinch points in closing station
- Safety interlocks on recti er
- Access panels
- Pneumatic closing station for integration of capsule finishing
equipment
- Guards and proximity switch on closing station
- Rectifier guard interlocks
- Hopper Detection Safety Switch
- CE Approved
* Rates depend on operator’s skill level and density and type of material
being filled
Size Dimensions
152cm x 89cm x 191cm high
Weight
610kg (1,345 lbs)
Electrical Power Requirements
(208 – 230 Volts, 3 Phase, 50/60 Hz on 20 amp service, Wye or
Delta Power)
Other
All orders include choice of auger (Spade, One-Way, Two-Way, or
Three-Way)
PRODUCTION CAPACITY*
Capsule Size Speed Product per Hour
5 16,000 – 28,000
4 - 3 21,000 – 33,000
2 - 1 21,000 - 28,000
0 - 0el 16,000 – 24,000
00 - 00el** 9,000 – 16,000
000** 4,500 – 8,000
