Straightforward design
Applying labels to the top of products is built into the PL-211’s top apply design. This includes trays, boxes, chipboard containers, bags and even caps on bottles.
Simple to use
The built-in operating instructions and troubleshooting guide offered on the operator interface make it easy to use the PL-211. Hand wheels provide for simple adjustments, enable quick set-up and easy changeover.
Easy to maintain
In strict compliance with Good Manufacturing Practices (GMP) standards, the PL-211 is made of 304 stainless steel and anodized aluminum, and carefully treated to guard against the effects of harsher environments. This durability translates into a solid choice for labeling machine longevity.
Label Type
Top
Wrap Around Clamshell Optional
Speed
Maximum Dispensing Speed : 131.2’/min (40m/min)
Maximum Conveyor Speed : 131.2’/min (40m/min)
Dimensions
Dimensions L-W-H : 50.5” x 29.5” x 62” (1283mm x 750 mm x 1575 mm)
Maximum Label Size : 6” x 11.8” (152mm x 300mm)
Maximum Container Width : 8.5” (216mm)
Maximum Container Height : 7.5” (Flat 191mm)
Conveyor Width : 6.25” (159mm) *optional widths available
Conveyor Height : 29.5-39.5” (749-1003mm)
Spool Diameter : 14” (356mm)
Inner Core : 3” (76mm)
Power
Voltage : 110/220 VAC 50/60 HZ 1 Phase
Power in KW : .700
Drive : Stepper Motor
Net Weight : Approx 265 lbs (120 kgs)

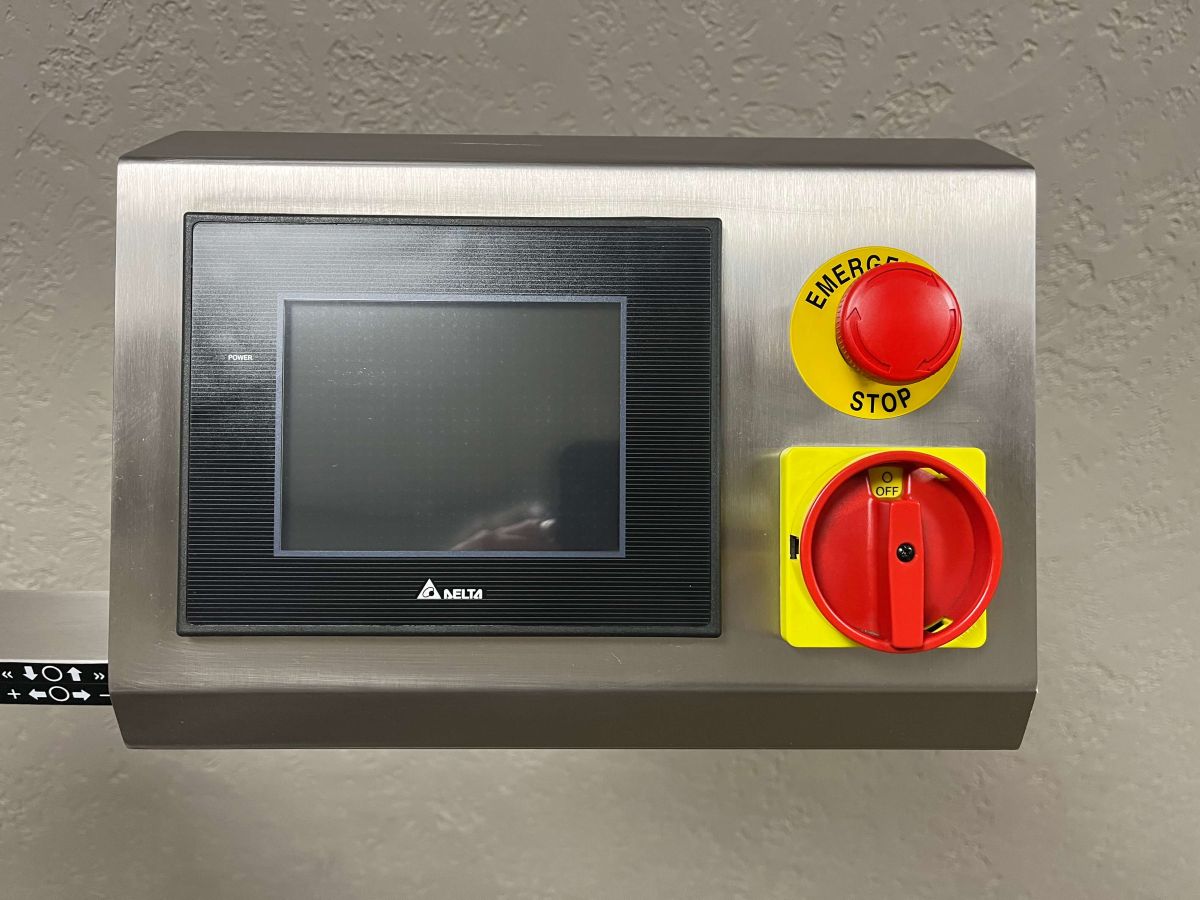

Controls : Delta Color Touch Screen
