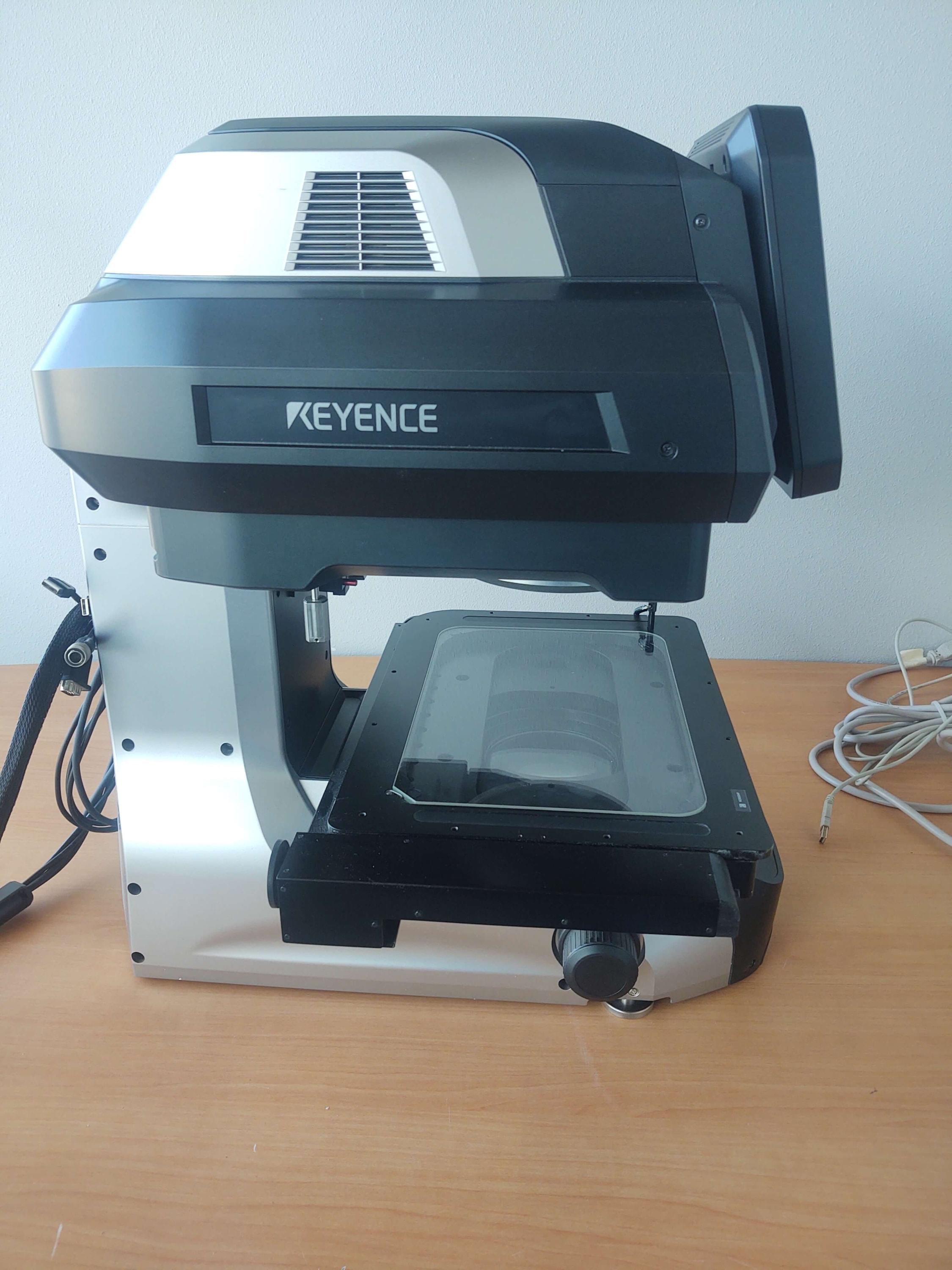

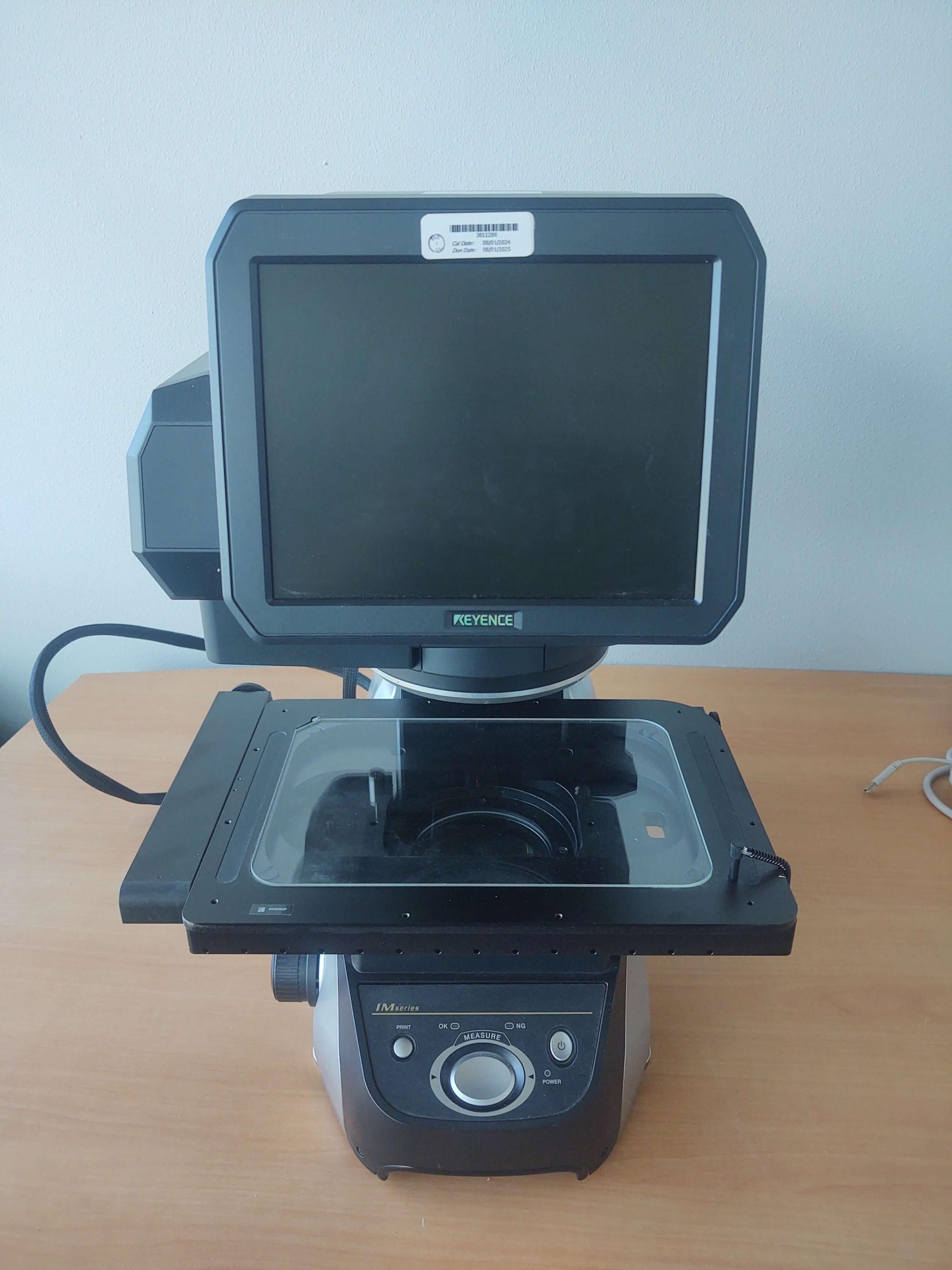

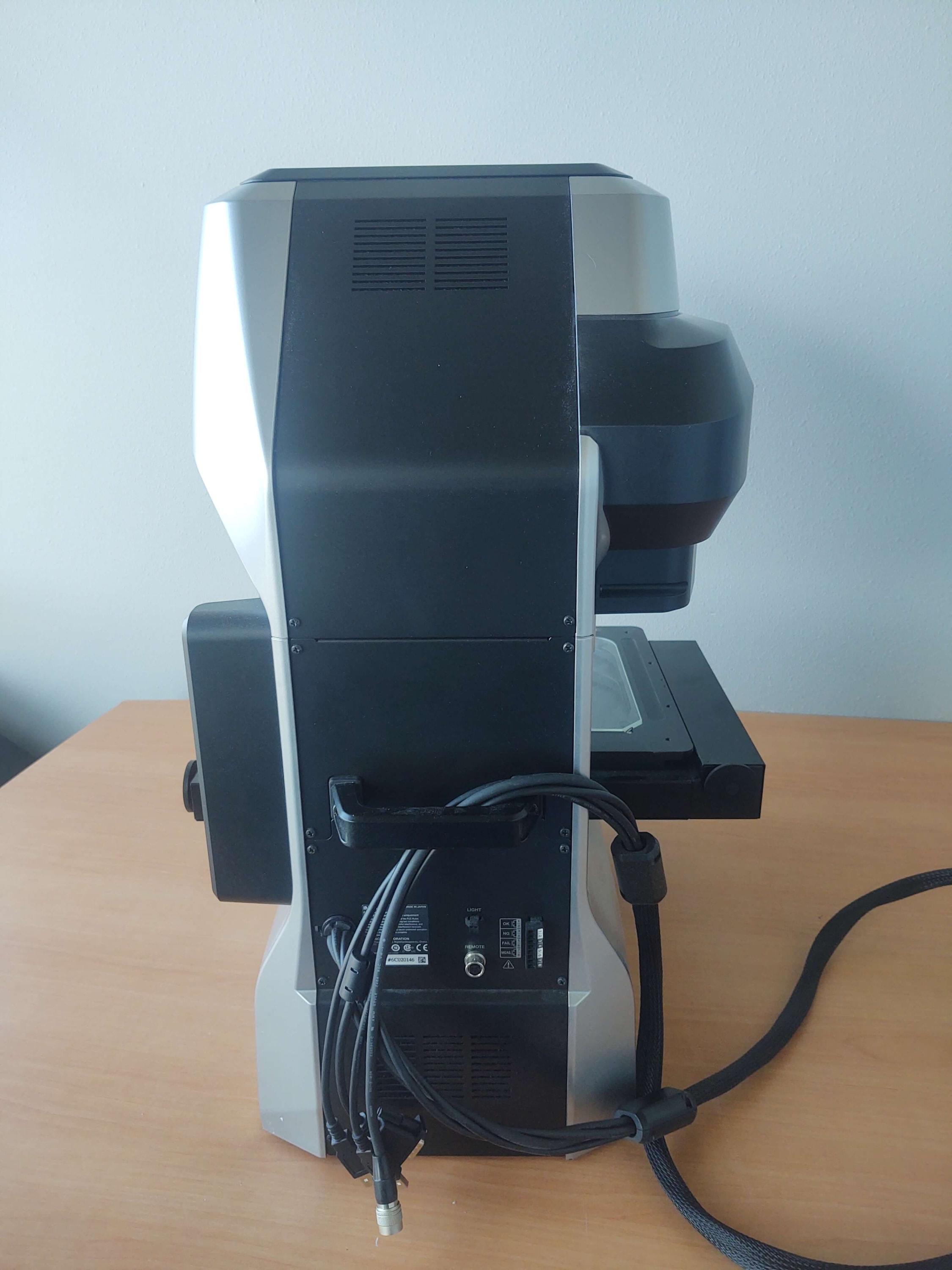

Keyence IM-7030T Measurement Head

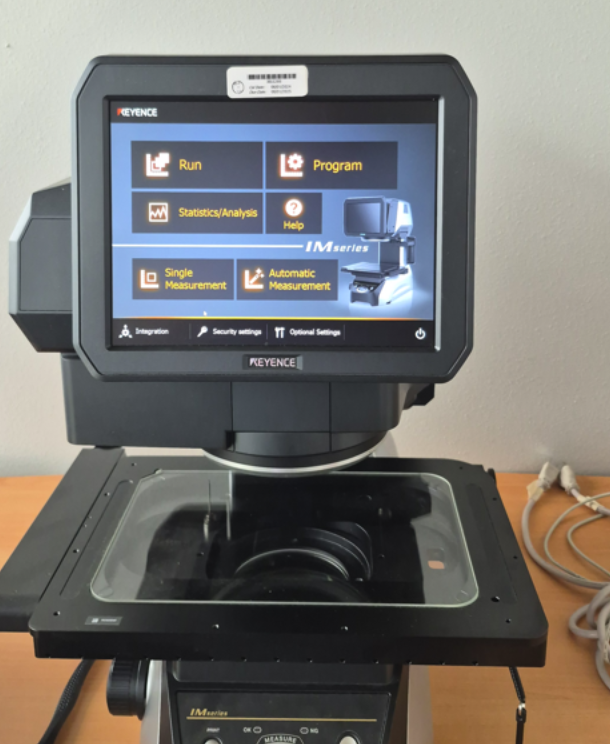

The Keyence IM-7030T Measurement Head is a highly advanced and precise optical comparator that offers exceptional measurement capabilities. This measurement head is designed to be easily integrated with existing optical comparators, enhancing their functionality and accuracy. With its high-resolution camera and advanced image processing algorithms, it can accurately measure dimensions, angles, shapes, and surface conditions of various parts and components. The IM-7030T is also equipped with various measurement tools and features, such as edge detection, pattern recognition, and automatic data analysis, making it suitable for a wide range of applications in industries like automotive, electronics, and medical. Its user-friendly interface and intuitive software make it easy to operate and obtain accurate and reliable measurements, ensuring quality control and efficiency in production processes. Overall, the Keyence IM-7030T Measurement Head is a powerful tool that greatly enhances the capabilities of optical comparators, enabling precise and efficient measurement of various parts and components.
Specifications
– Model: IM-7030T
– Measurement Range: 300 mm x 200 mm
– Resolution: 0.1 μm
– Accuracy: ± (1.0 + L/50) μm
– Repeatability: 0.3 μm
– Magnification: 20x, 50x, 100x, 200x (selectable)
– Field of View: 6 mm x 4.5 mm, 3 mm x 2.25 mm, 1.5 mm x 1.125 mm, 0.75 mm x 0.5625 mm (depending on the selected magnification)
– Illumination: Surface and profile illumination (LED)
– Telecentric lens: Yes
– Digital Communication: USB 3.0
– Software Compatibility: IM-T Series software
– Operating Temperature: 0°C to 40°C
– Dimensions: 192 mm x 220 mm x 165 mm
– Weight: 3.9 kg
