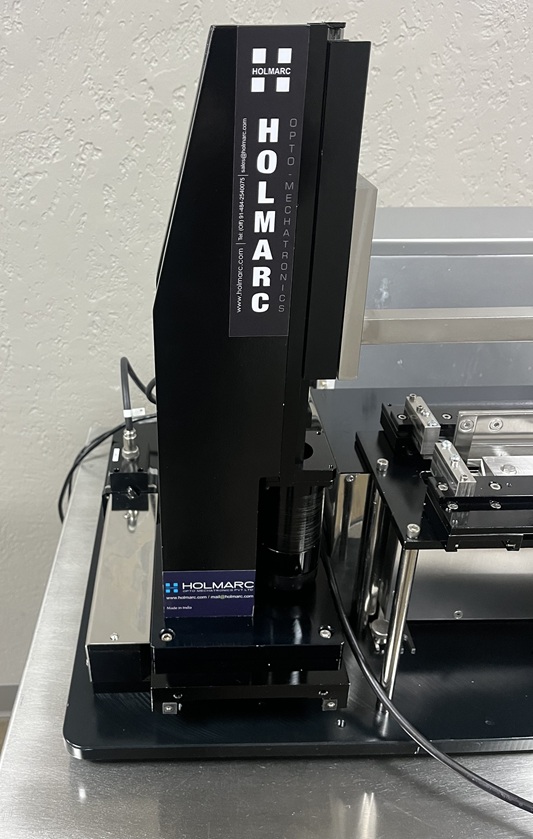

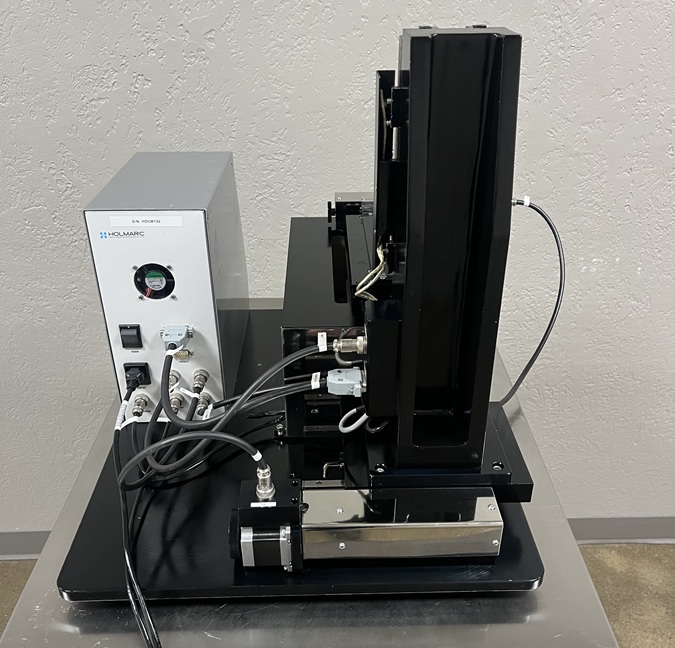

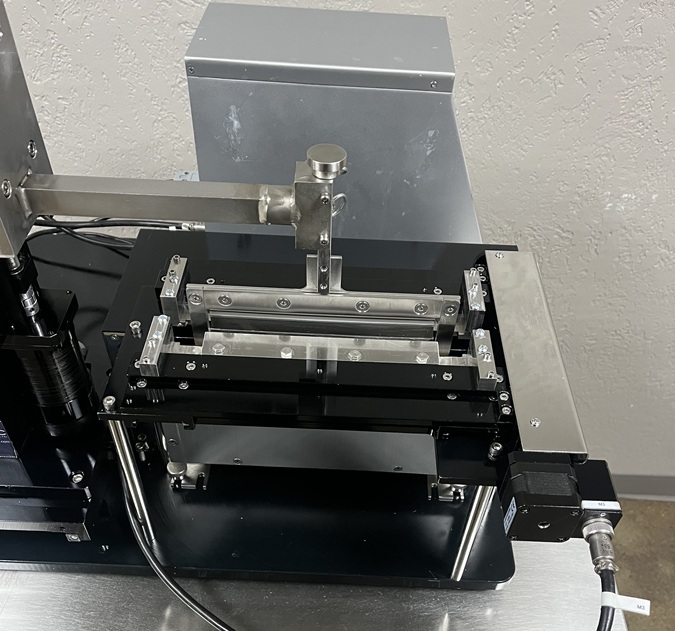

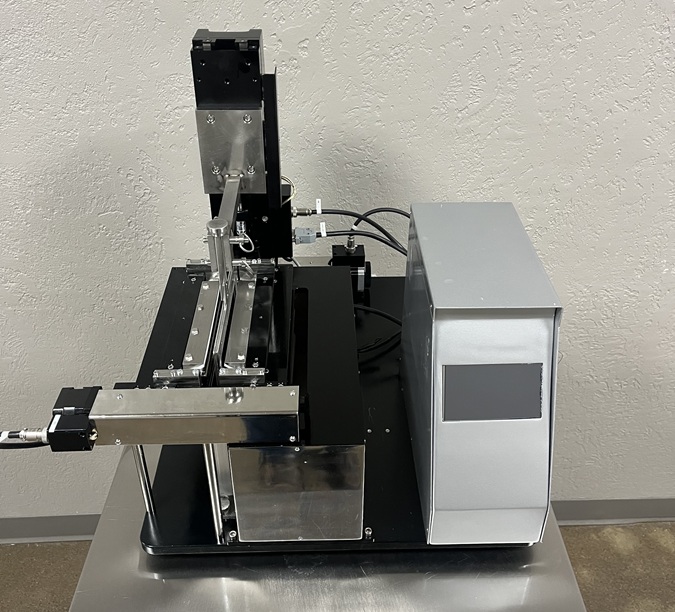

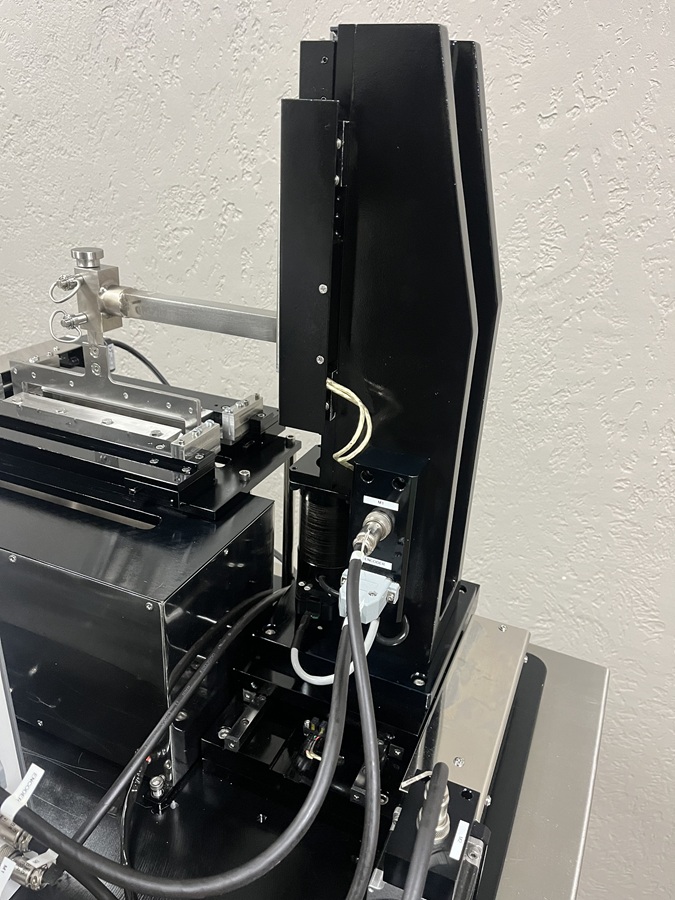

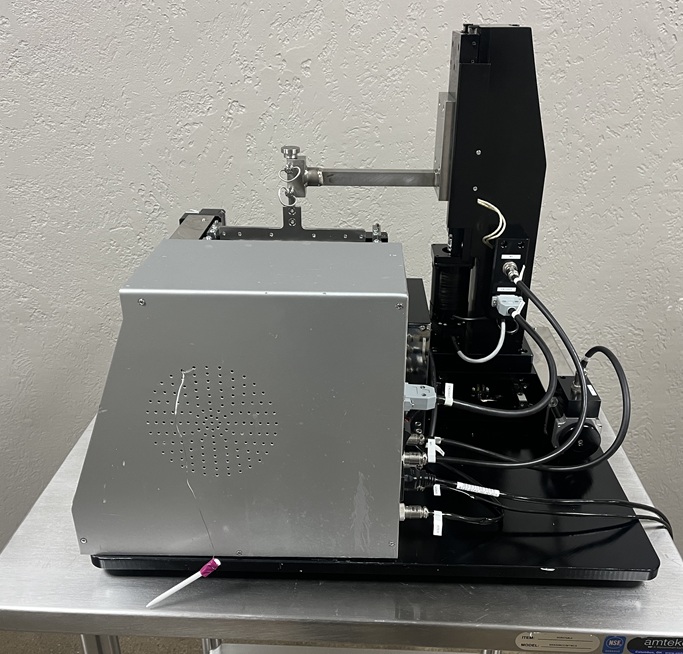

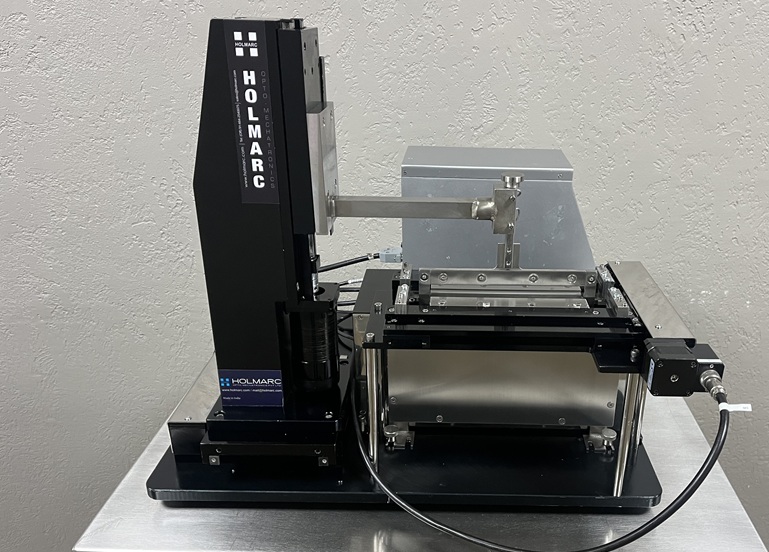

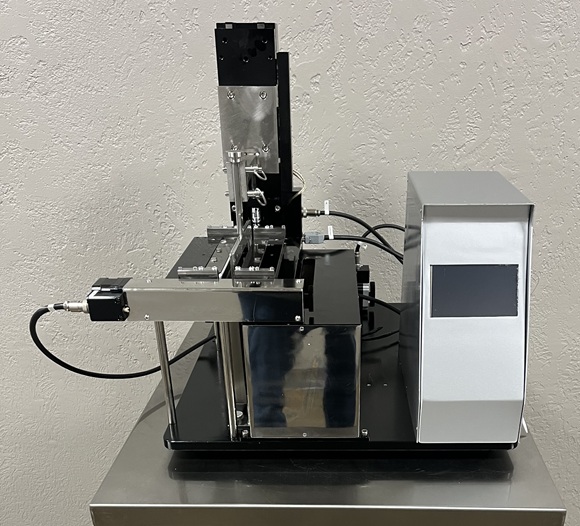

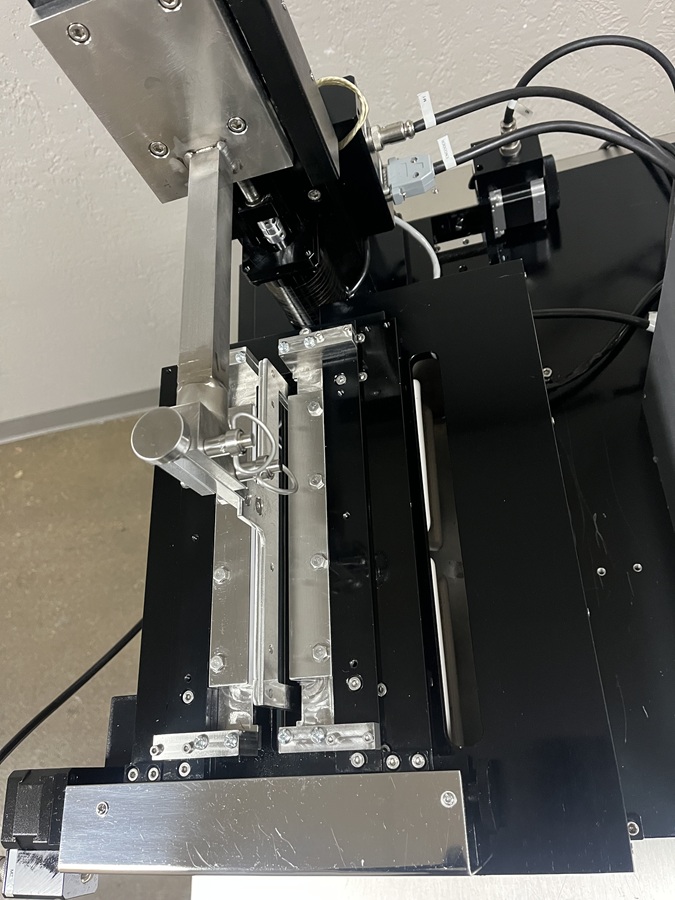

This instrument for dip coating has a substrate squeezer to drain the excess liquid off the sample. The sample is passed through a user adjustable gap, between two rollers made of PTFE, during withdrawal from the liquid.
Specifications:
| Actuator | : | Servo motor |
| Drive mechanism | : | Lead screw |
| Speed control | : | Available |
| Power input | : | 230V, 50Hz |
| Stroke length max. | : | 150 mm |
| Drawing speed min. | : | 18 micron / sec |
| Drawing speed max. | : | 9000 micron / sec |
| Dimensions (appx.) | : | 500 x 600 x 605 mm (W x D x H) |
| Program memory | : | Unlimited |

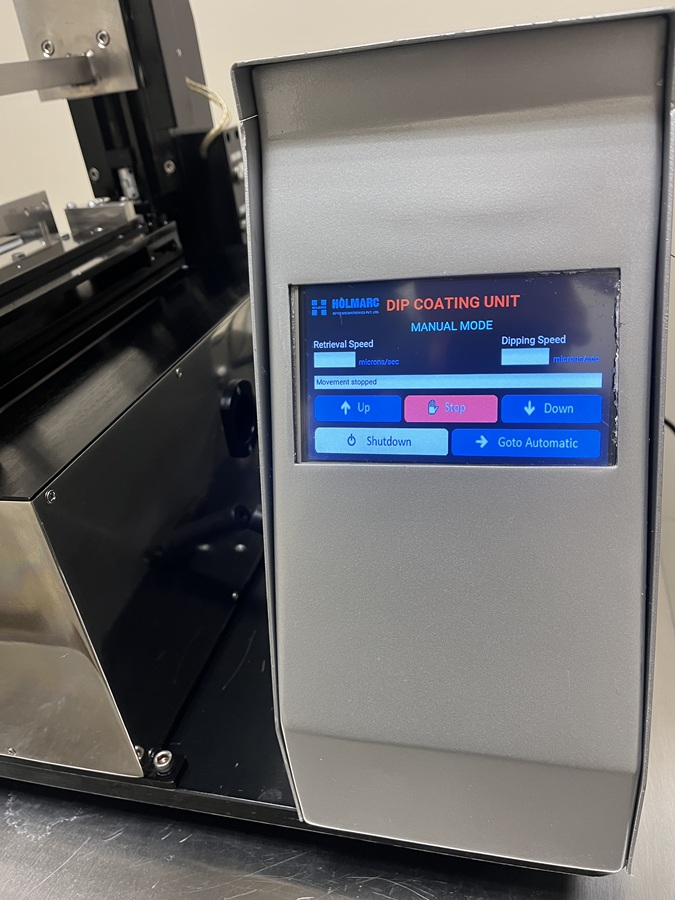

| User interface | : | 5 inch touch screen display |
| Max. power consumption | : | 600 Watts |
| Max. Temperature | : | 200° Celsius |
| Max. Substrate size | : | 75 mm x 25 mm |
| Weight (appx.) | : | 45 Kg |
