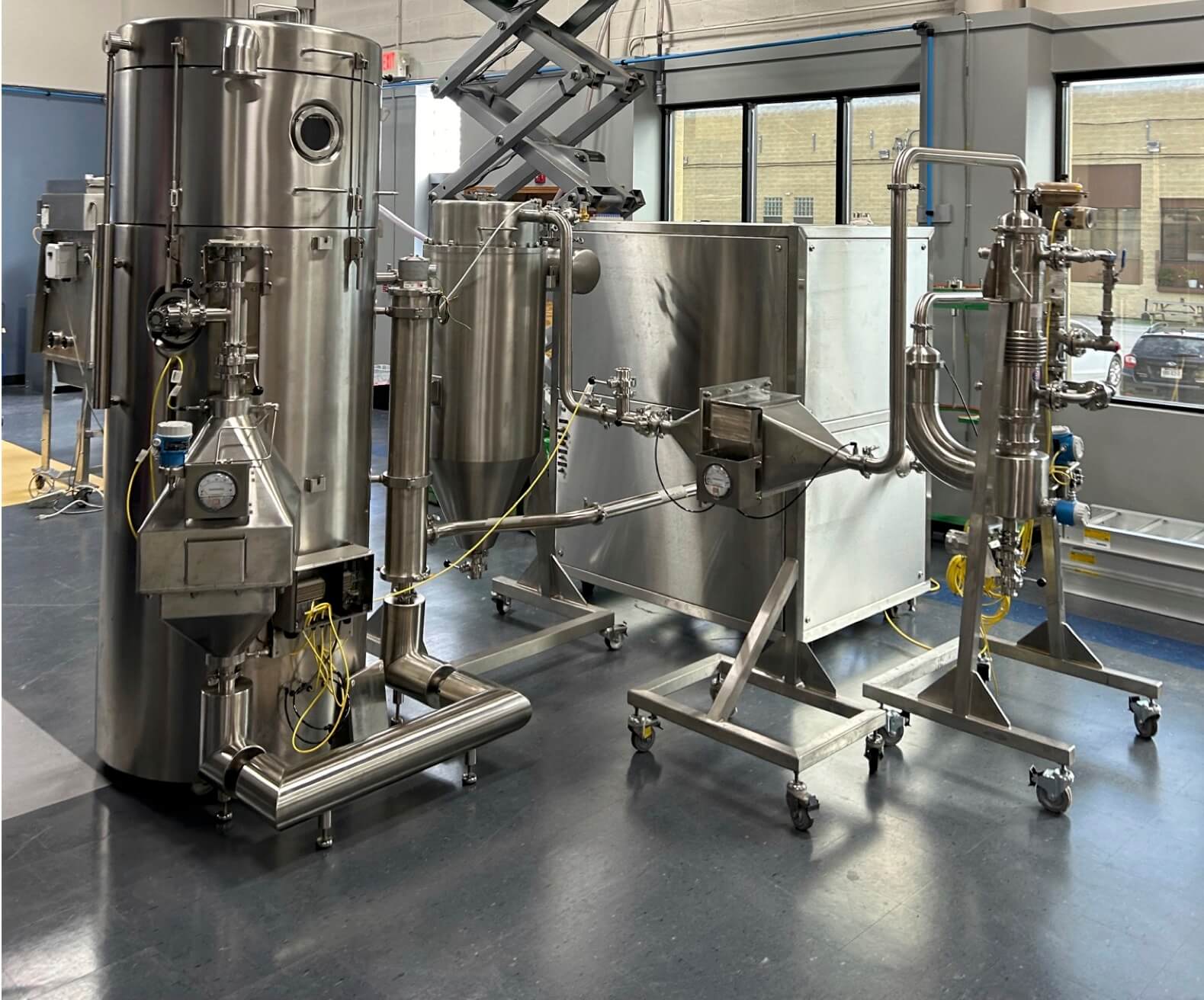

GEA Mobile Minor R&D Spray Dryer
Manufacturer Details

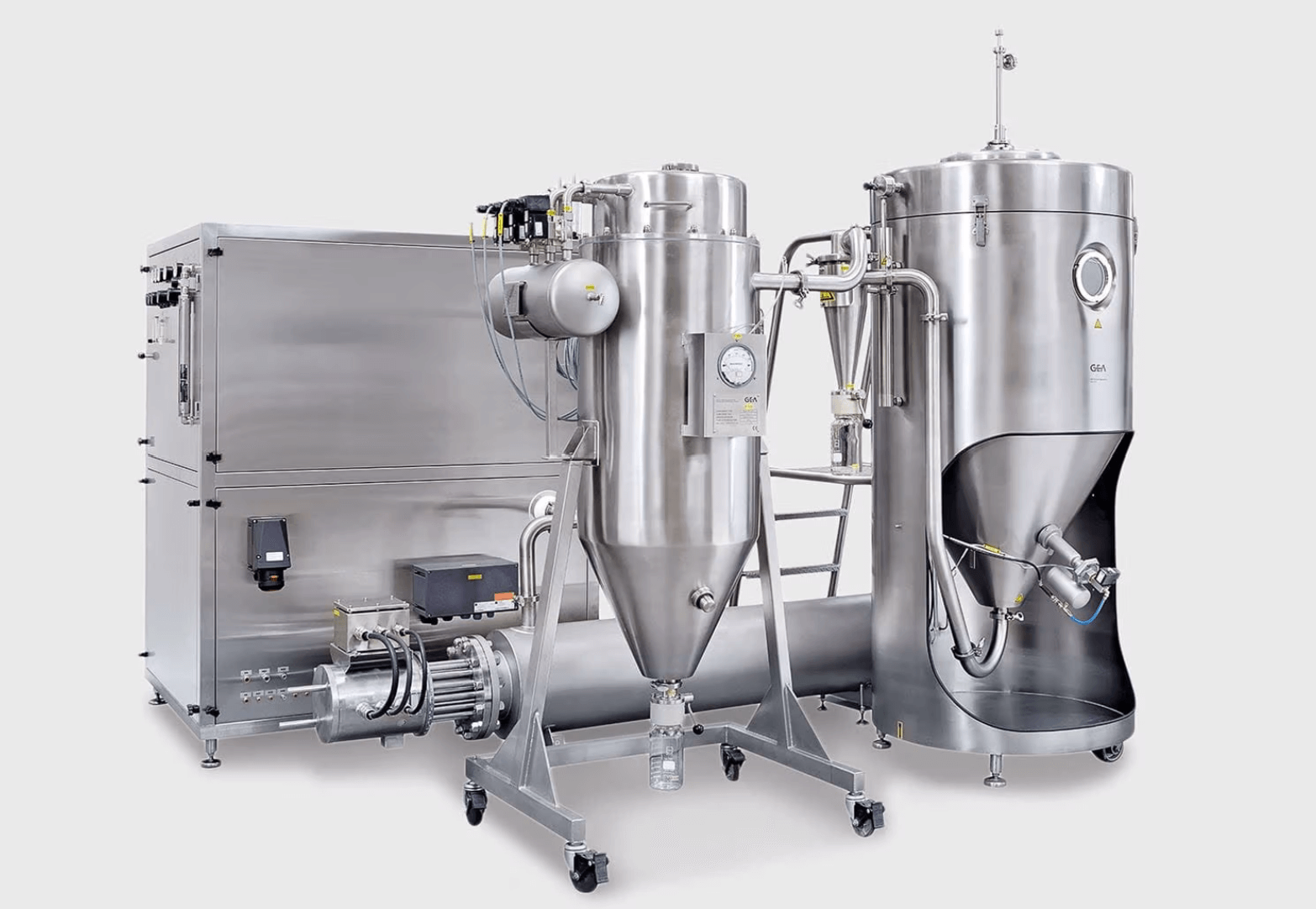

In the MOBILE MINOR®, small quantities of solutions, suspensions or emulsions can be dried into representative powder samples, facilitating the retrieval of the process data required for scaling-up to industrial production. It is a flexible and easy-to-handle spray dryer which has become standard equipment in the R&D departments of many leading manufacturers, independent research institutes and universities worldwide.
The MOBILE MINOR® is available in different versions designed to cater for different requirements including the drying of aqueous and/or solvent based feedstock. As different atomization techniques give different droplet sizes and drying characteristics, the MOBILE MINOR® is available in three different atomization techniques:
Rotary atomization
Atomization by a co-current two-fluid nozzle
Atomization by two-fluid nozzle in fountain mode
In addition, a number of options are available for powder collection, explosion protection, cleaning, data logging and other technical features.
Key figures
Nominal main process gas flow (kg/h) 100
Water evaporation capacity (kg/h) 0.5 - 6
Typical mean particle size (μm) 5 - 80
Space requirements, LxWxH (m) 2.5 x 2 x 2.3
System Includes:
One set of typical spares

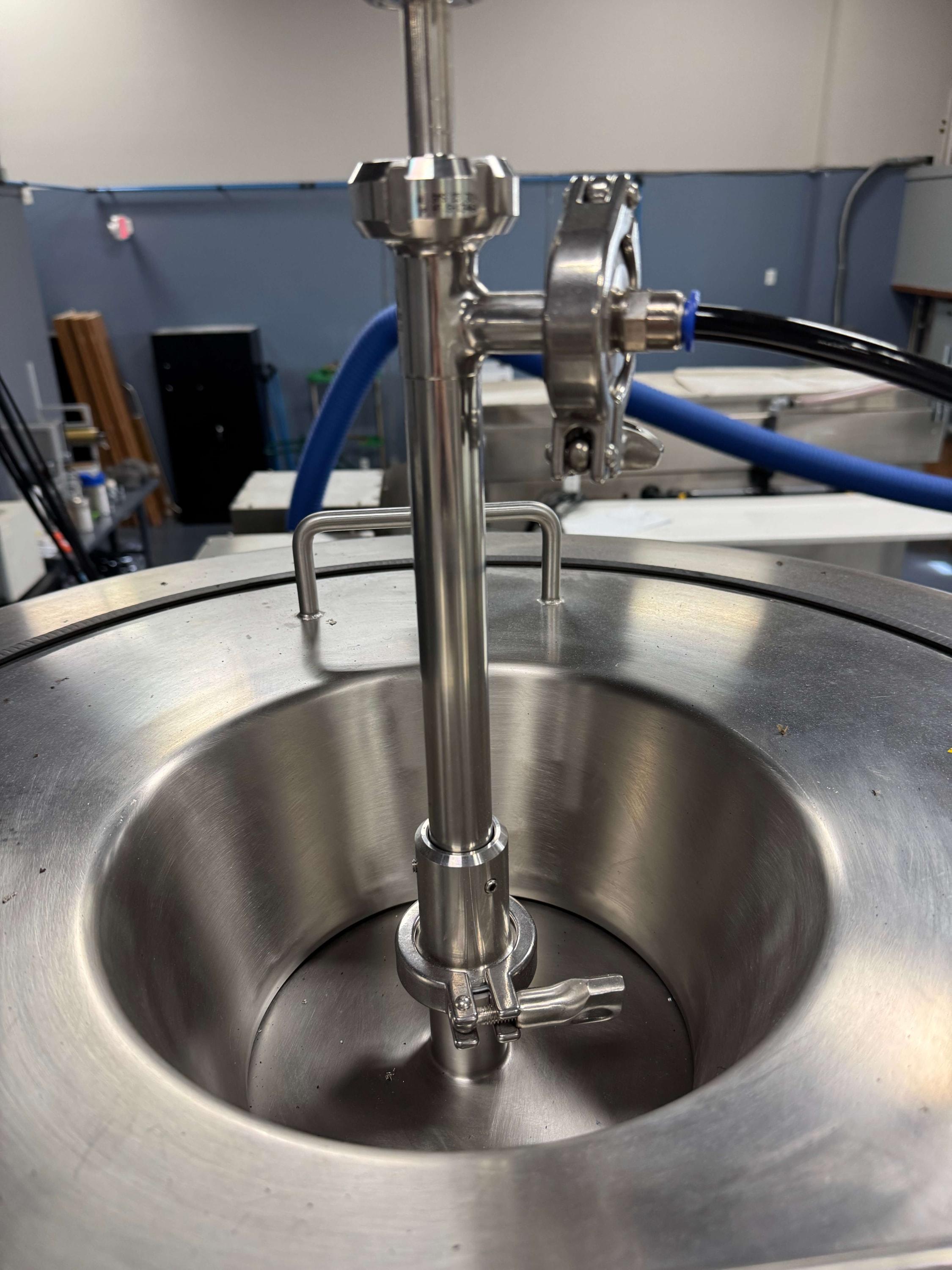

Two-fluid nozzles atomization system, co-current mode

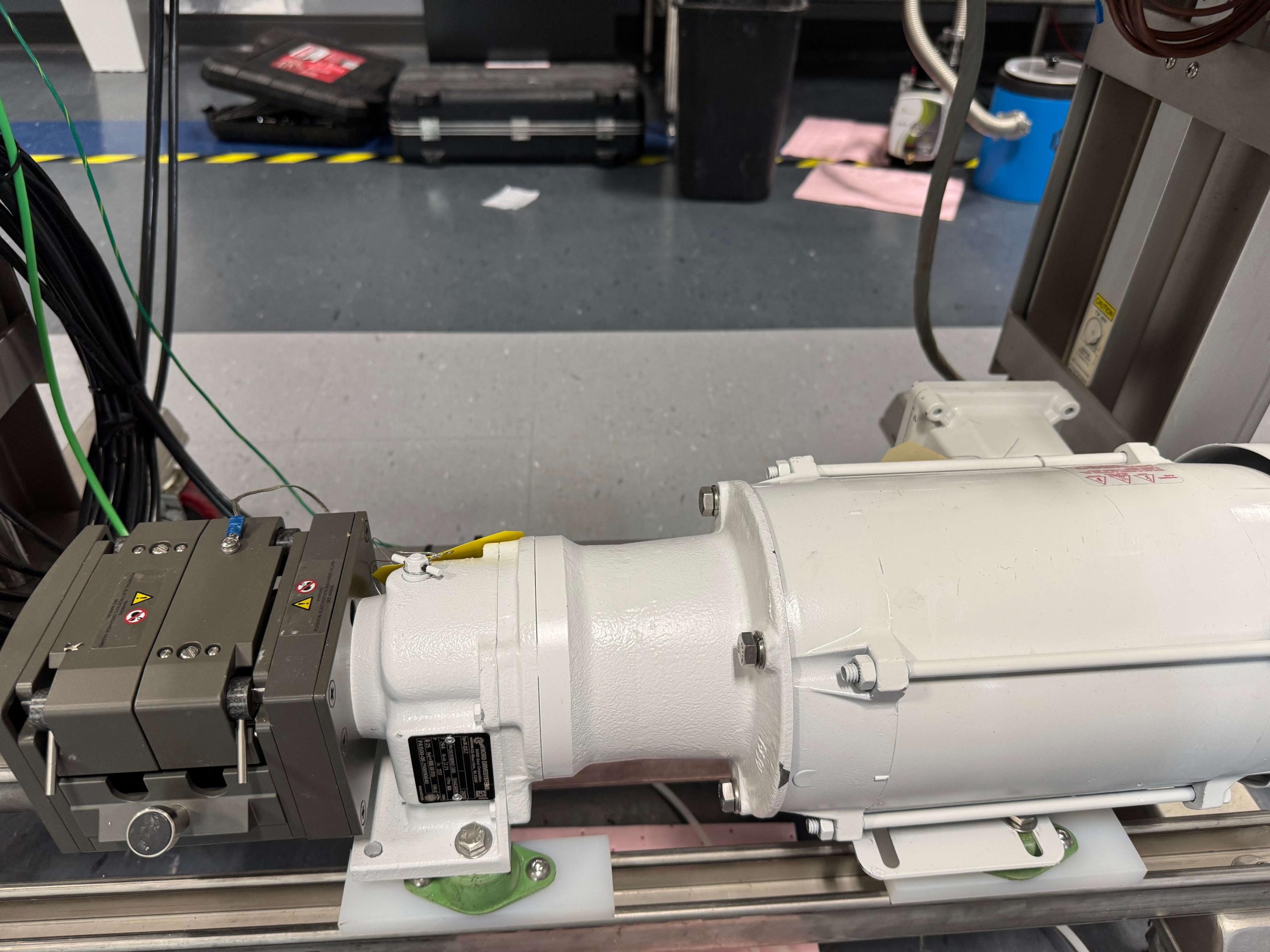

Peristaltic feed pump, hazardous area installation, auto speed control
Powder collection container 316 SS 2500 mL
Chamber extension (long)
Pneumatic hammer system

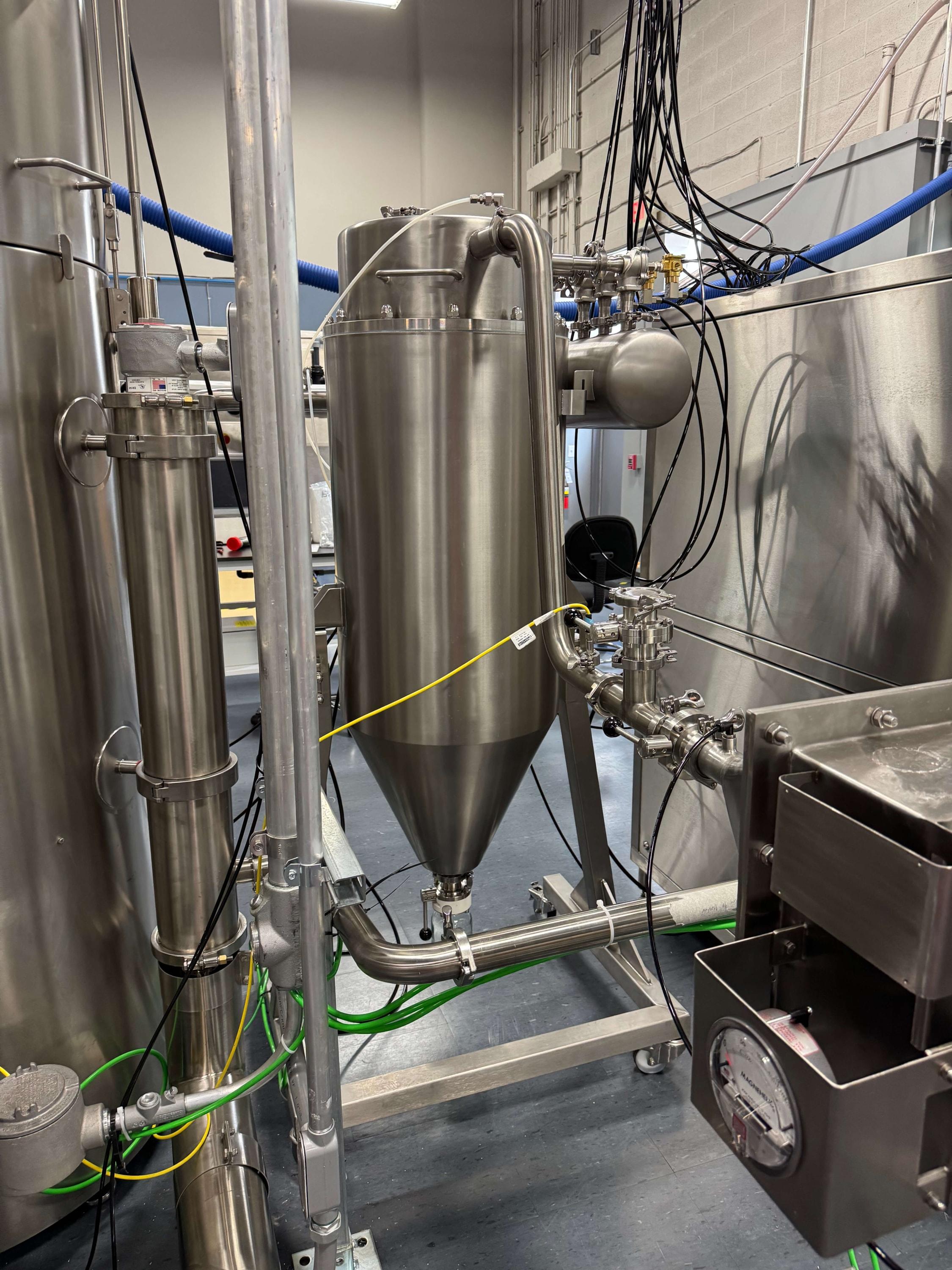

Cyclone extra efficient CEE-135
Low velocity gas disperser kit
Bag filter
HEPA filter for inlet hot process gas
HEPA police filter for outlet process gas
Vaporized hydrogen peroxide valves

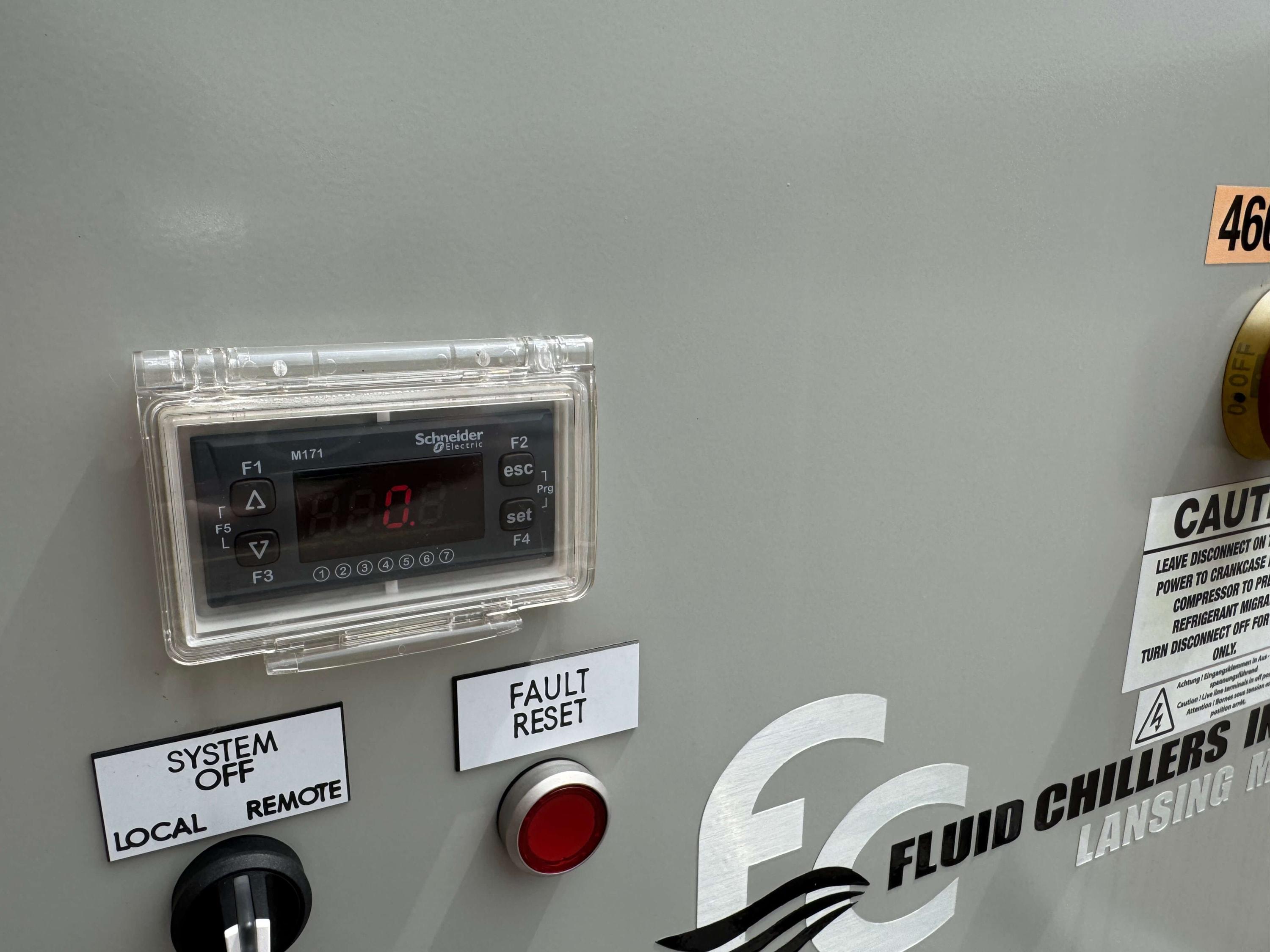

Fluid Chiller AIR5000 Chiller,
Quincy Tank Mounted Oil Free Scroll Compressor, 20.8 CFM @ 116 PIS, 208-230-460 Volt, 3 Phase, 60 Volt, 70 Gallon Tank Mount, with compressed air dryer
