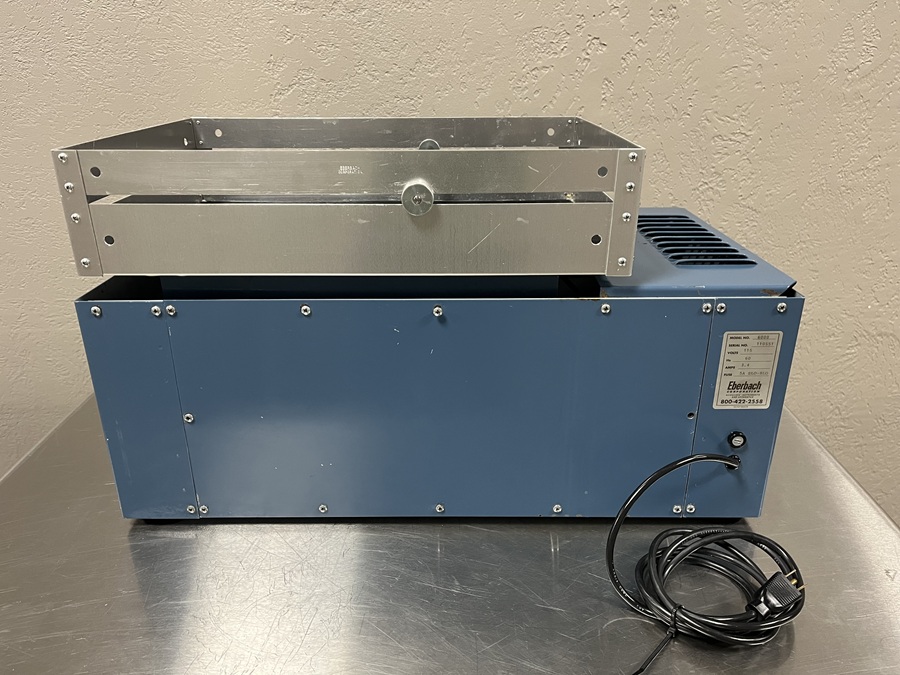

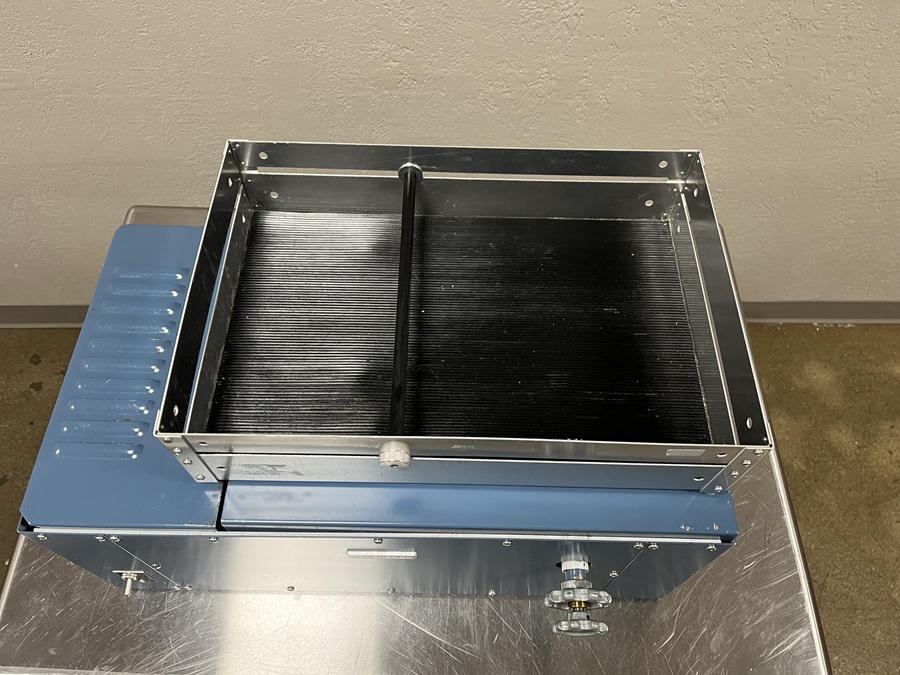

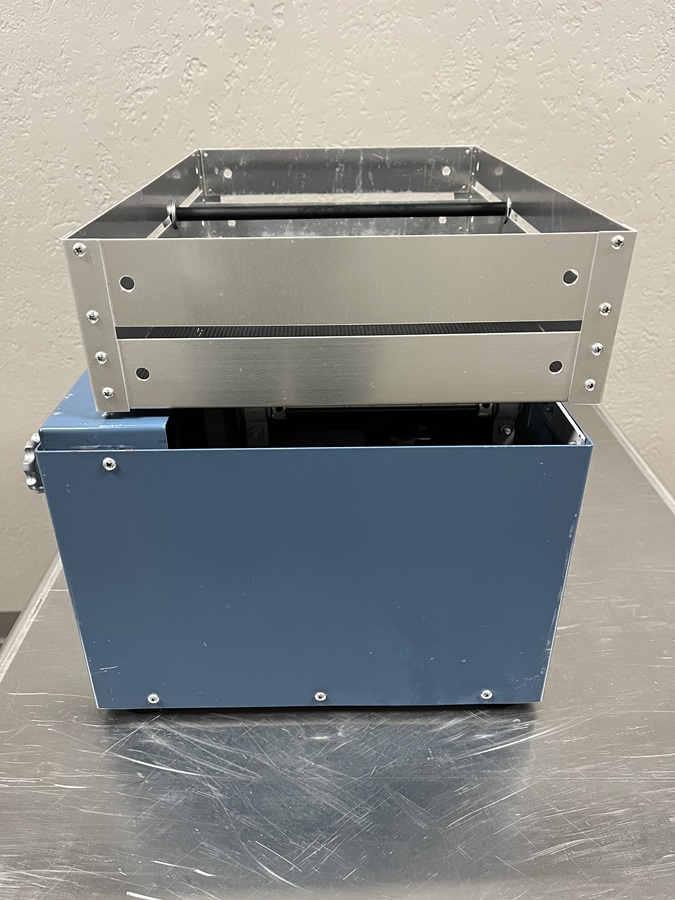

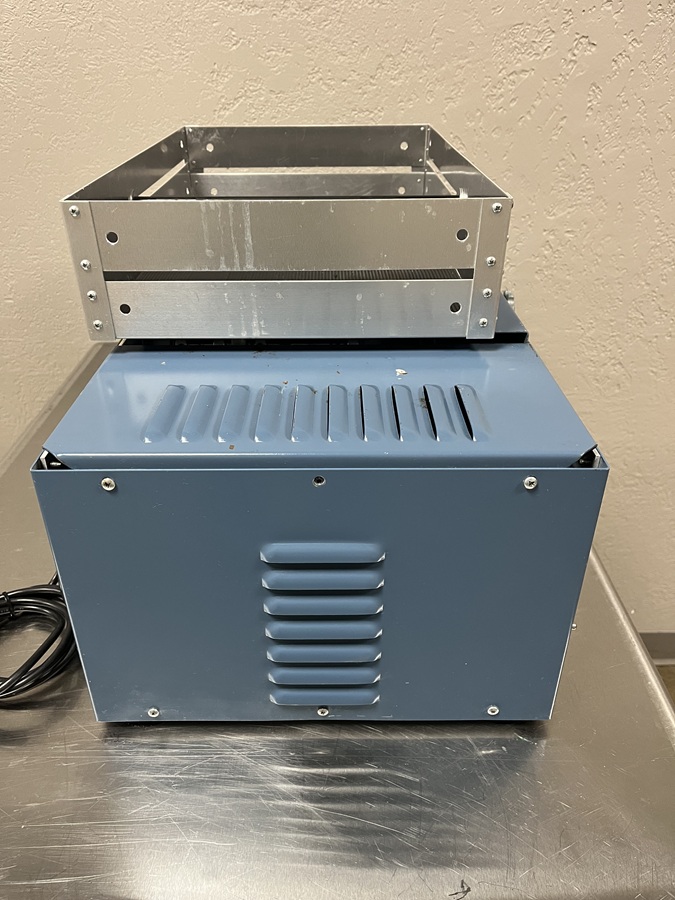

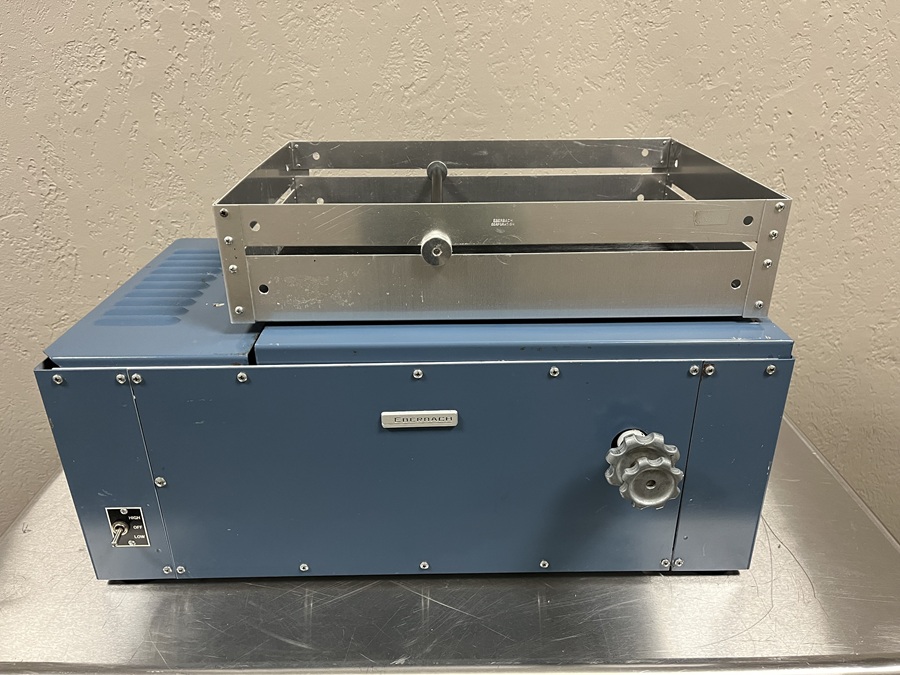

Eberbach 6000 Reciprocal Shaker
Eberbach’s 6000 Variable-Speed Mid-Range Reciprocal Shaker is designed for your general-purpose shaking needs. Like all Eberbach Shakers, the 6000 is designed for ease of use and maintenance. This heavy-duty unit operates in a space of 33-1/2” x 20” and is powered by a 1/6 hp GE split phase motor which drives the platform through a mechanical transmission utilizing a variable pitch pulley system incorporating a V-belt drive. Speed control is continuously variable between a range of 60-260 osc/minute (upper and lower speed limits may vary by 5%). However, at a given setting the speed is constant, and is not affected by normal line voltage fluctuations. The horizontal stroke is fixed at 1-1/2”, and the unit has a max load-carrying capacity of 50 lbs.
Specifications
Speed:
60 - 260 osc/min*
Stroke: 1.5 in
Maximum Capacity: 50 lbs
Controls: Manual

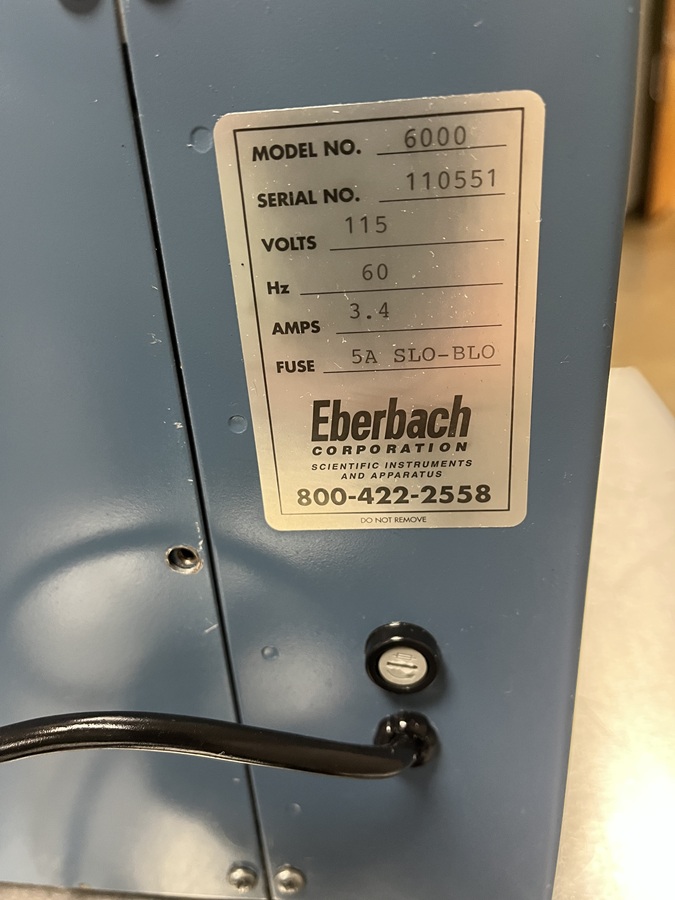

Electrical: 115V or 230V @ 50/60hz
