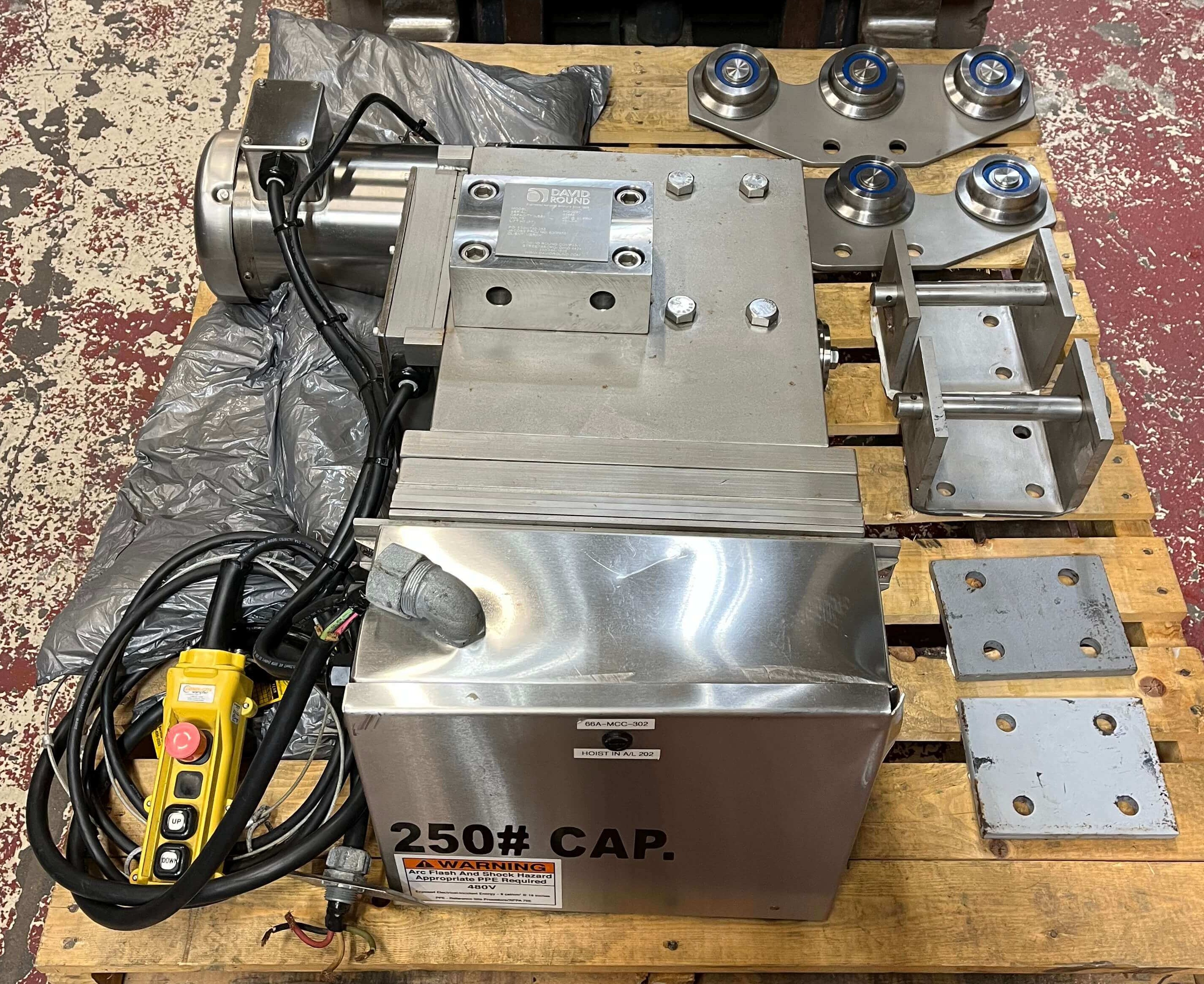

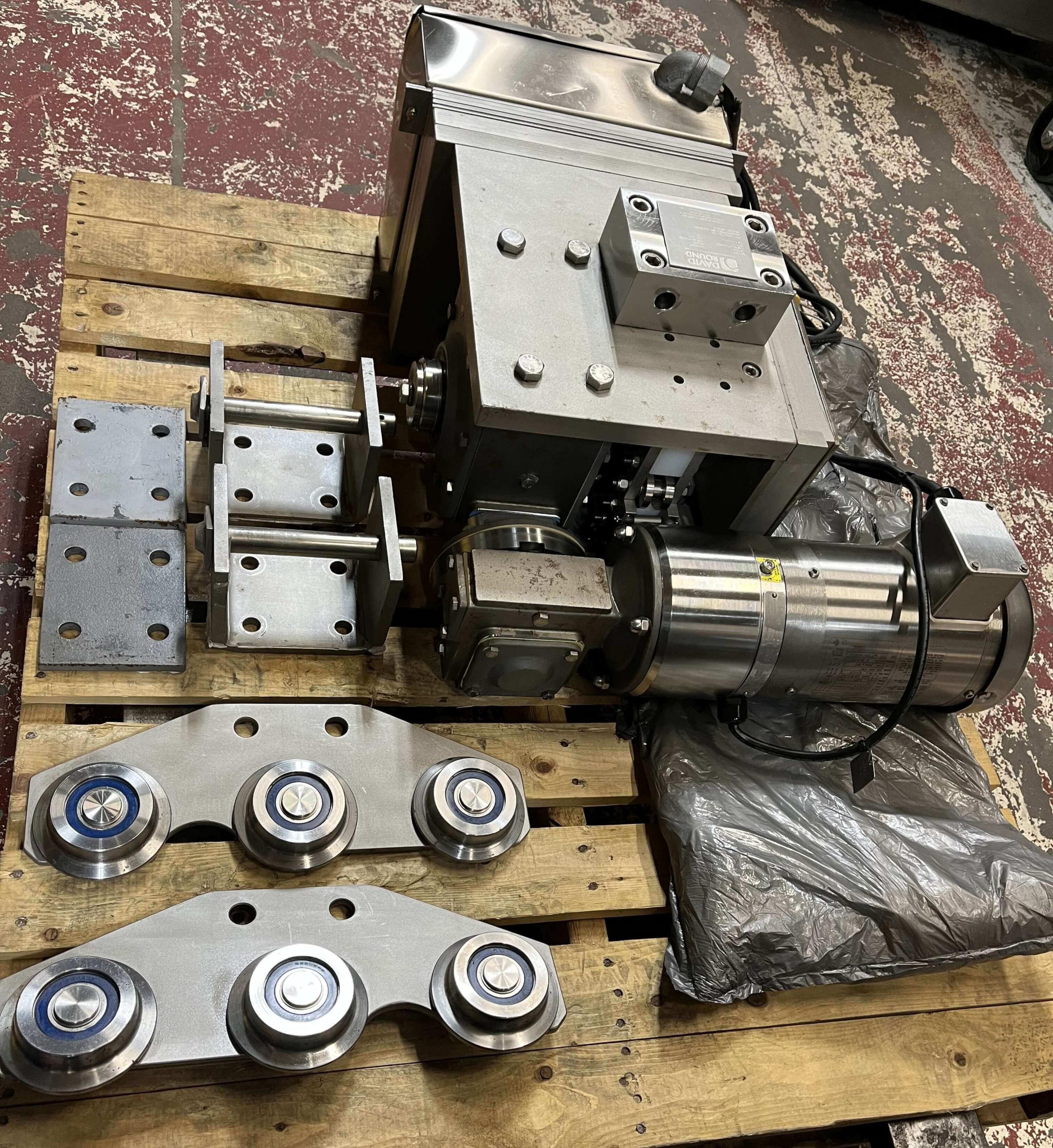

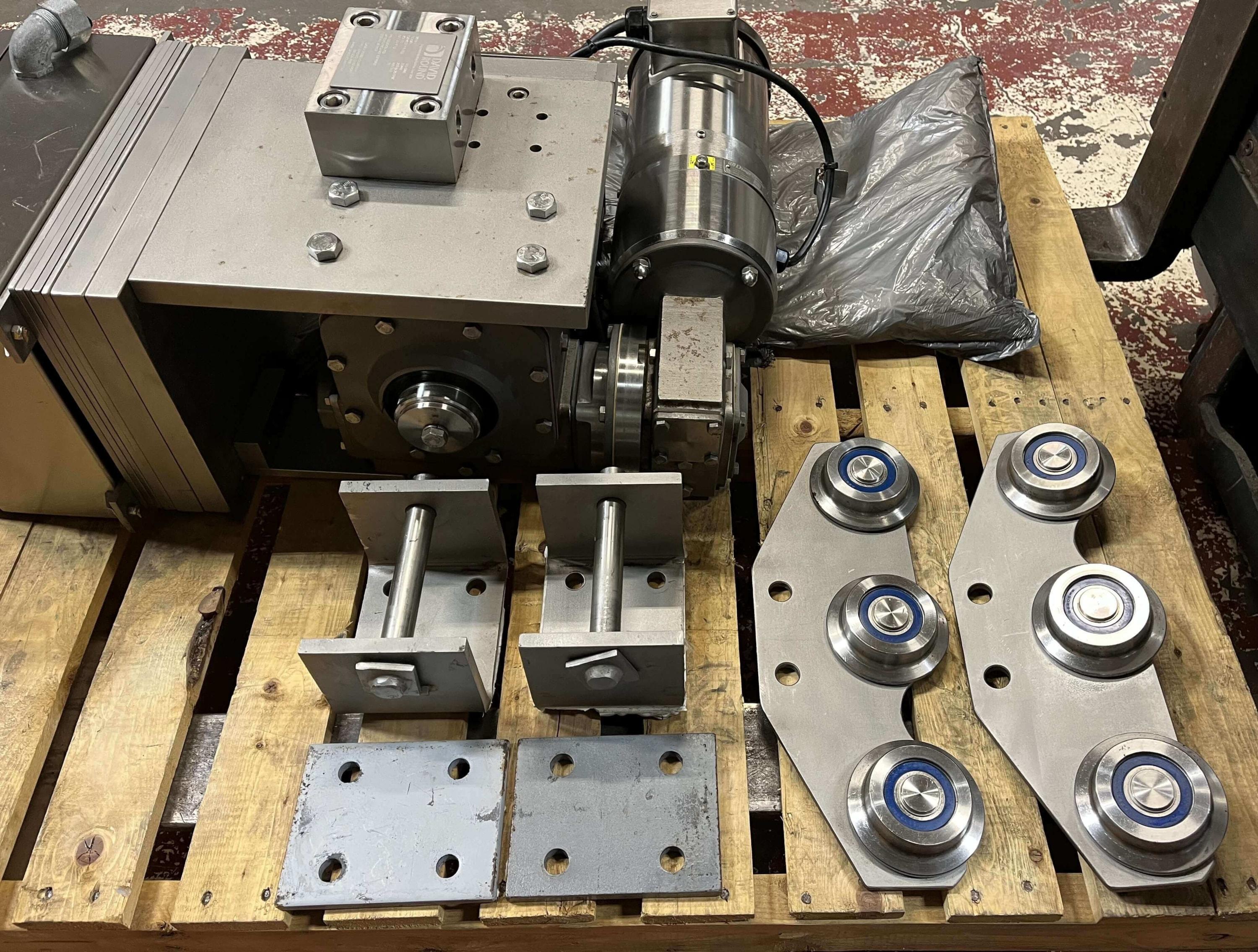

David Round Stainless Steel Hoist Model HO-0280

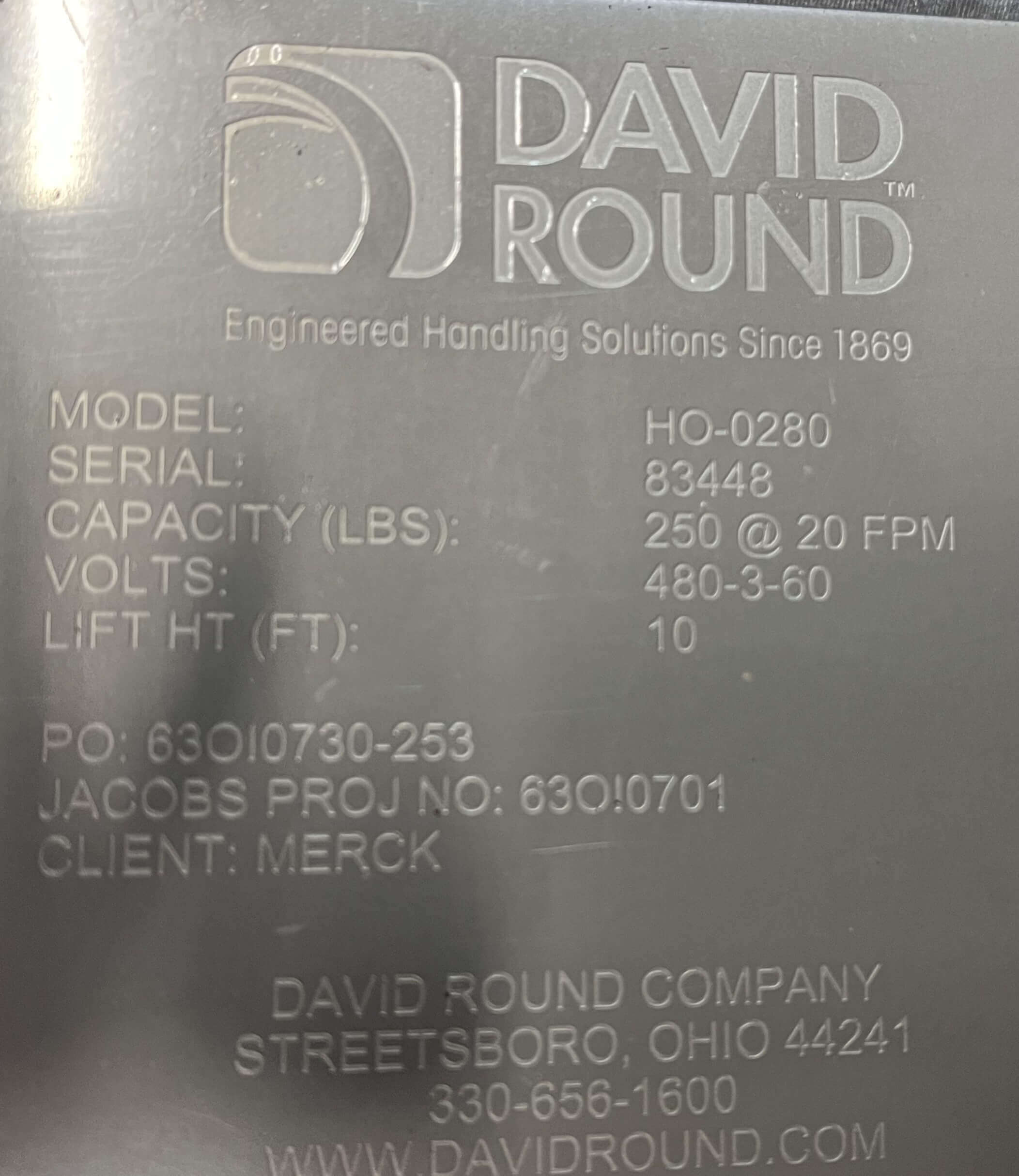

Manufactuer: David Round
Model: HO-0280
Serial Number: 83448
Weight Capacity: 250lbs at 20 FPM
Electrical: 3 Phase 460 Volts 60 Hz
Lifting Height: 10 Feet
Manufacturer Details
These clean room hoists meet the processing needs of pharmaceutical processors and high tech manufacturers. David Round strap hoists are designed for operation inside controlled environments. Various models and trolley options accommodate loads up to 4,000 pounds.
Lube-Free Lifting Strap
The lubrication-free, urethane-coated lifting strap eliminates contamination potential
associated with chain or wire rope hoists: no metal-on-metal abrasion to create particulate.
Crack & Crevice Free Construction
The easy-to-clean open design of David Round strap hoists features stainless steel surfaces polished in addition to flush mounting faces, ground welds and plugged fasteners to reduce the likelihood of contamination build-up.
Standard Features
Polished stainless steel external components
Fully sealed stainless steel gearing with food-grade bath lubrication
Clean room grade stainless steel motor and motor brake
Lubrication-free urethane-coated lifting strap
Stainless steel load hook with latch
Stainless steel NEMA 4X electrical enclosure
Single speed reversing contactor with thermal overload relay and transformer
Upper limit switches (paddle style)
NEMA 4X 2-button plastic pendant
Lug Mounted
