CPE Systems, Inc. C+114MD Centrifugal Pump Assembly
Manufacturer Details
The C+114MD is the original C-series centrifugal pump re-imagined. It has kept the original casing design and popular external mechanical seal options, however, it features a collar that clamps down on the drive shaft over a full 360 degrees removing the minor wobble that can occur from set screwed shafts. The impeller pin was also replaced with a threaded impeller nut that fully secures the impeller in place; there are two specialized gaskets to seal the shaft and to still allow a CIP procedure to clean behind the impeller. The collar and bolted impeller reduce rattling sounds at lower speeds.

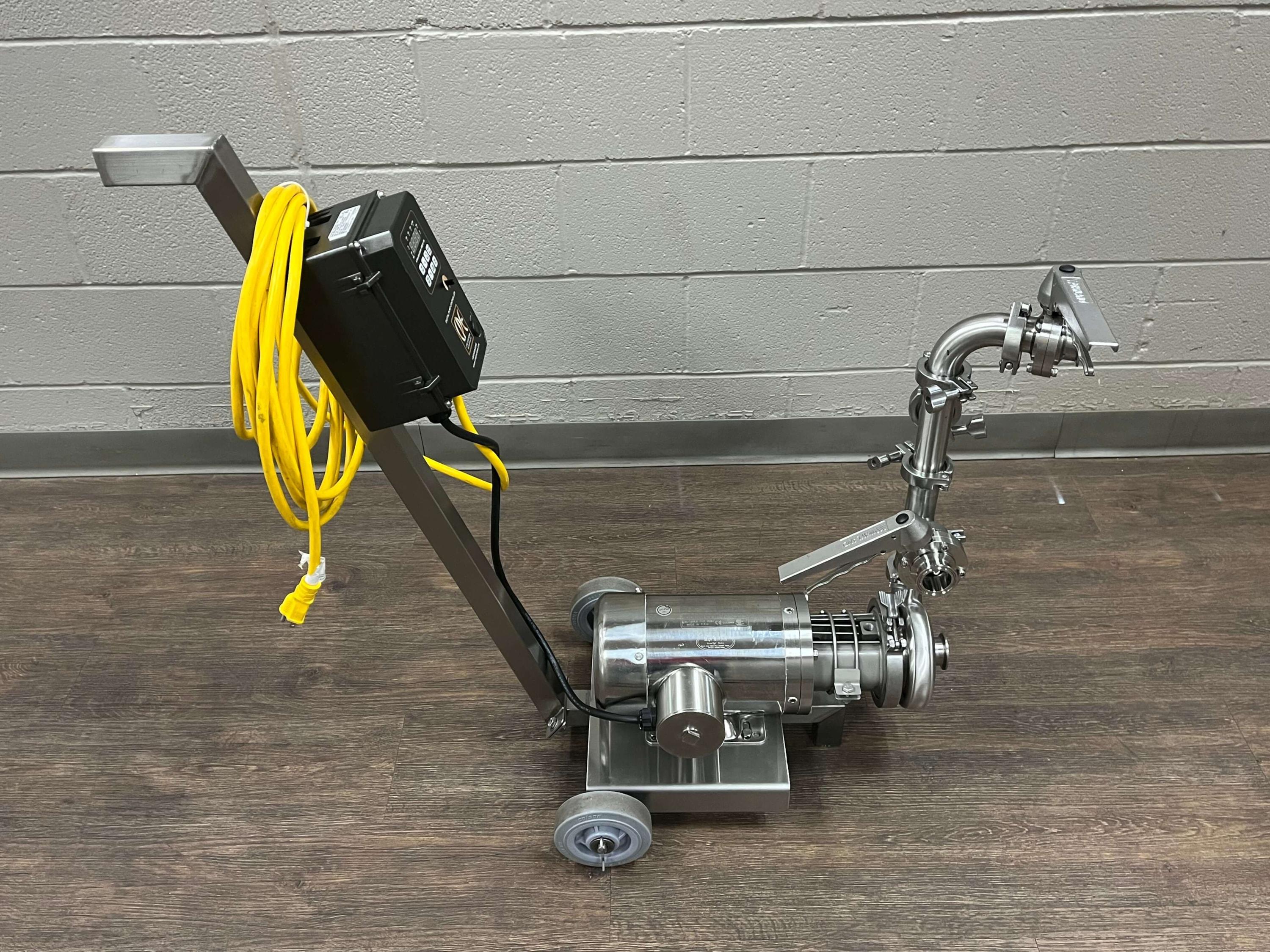

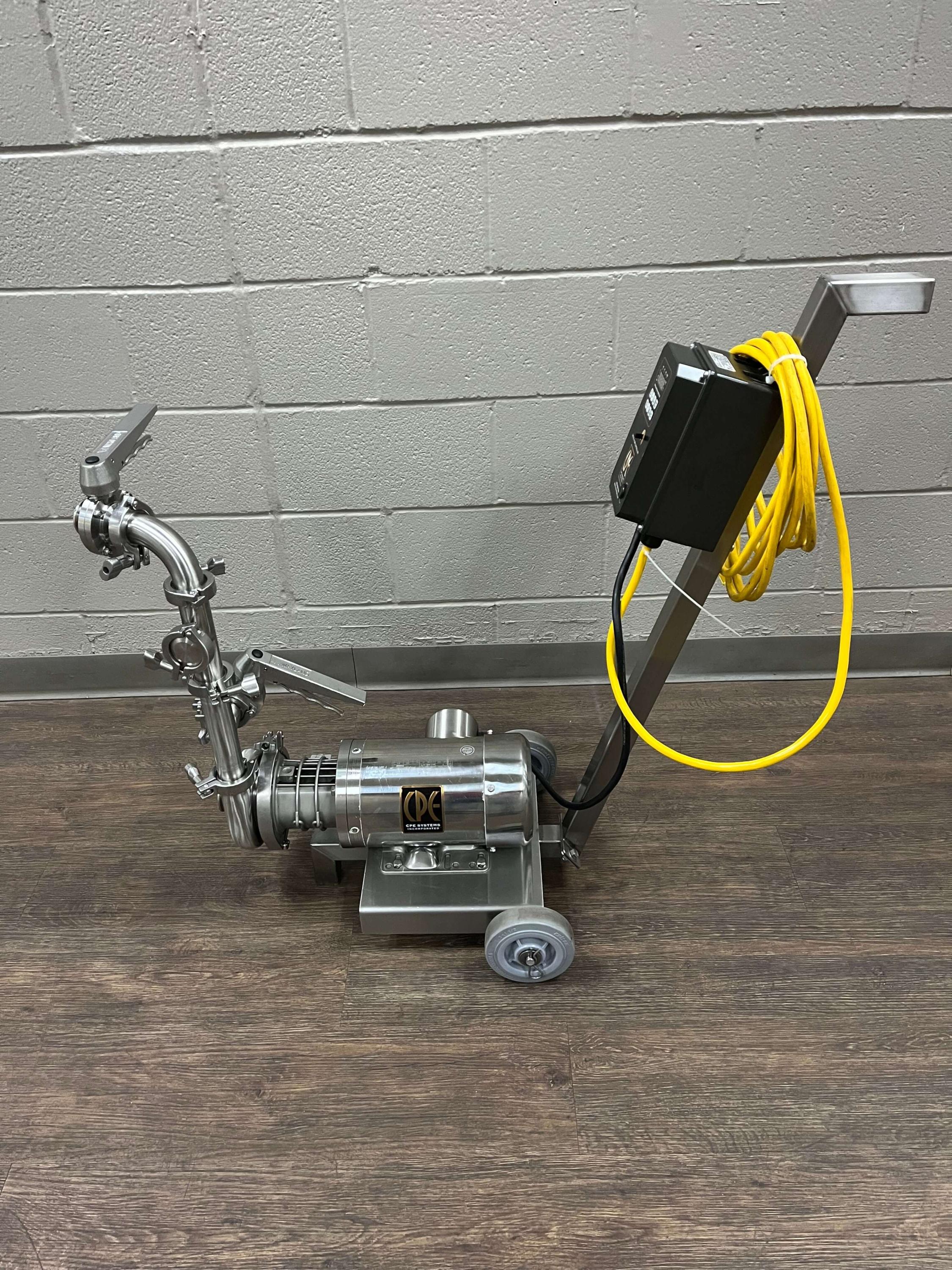

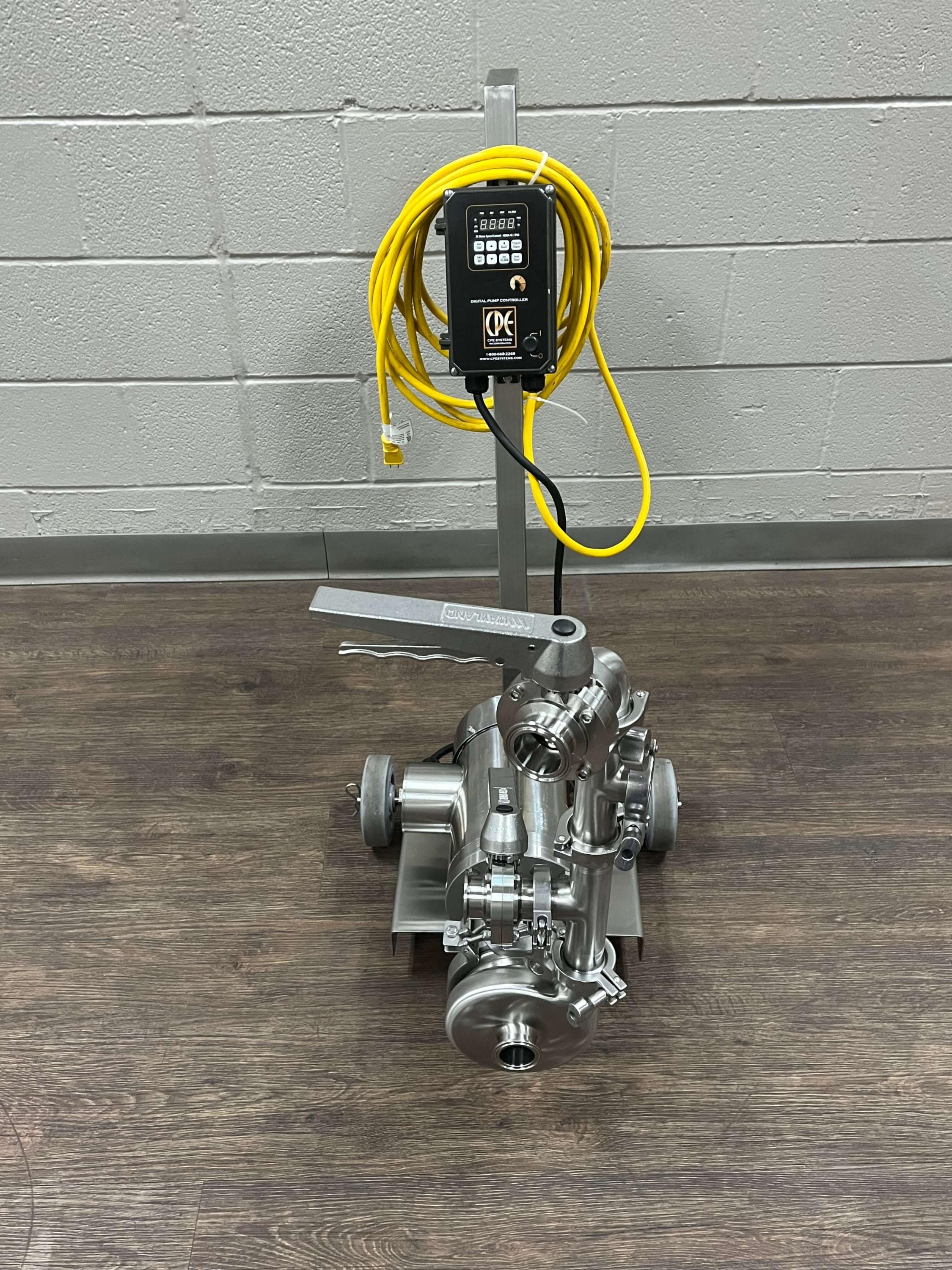

The C+114 pump head is attached to our stainless steel washdown motor, mounted on a Canadian-made stainless steel cart and fitted with a NEMA 4X variable speed control (VFD).
Features:
1 1/2" X 1 1/2" Tri-clamp connections

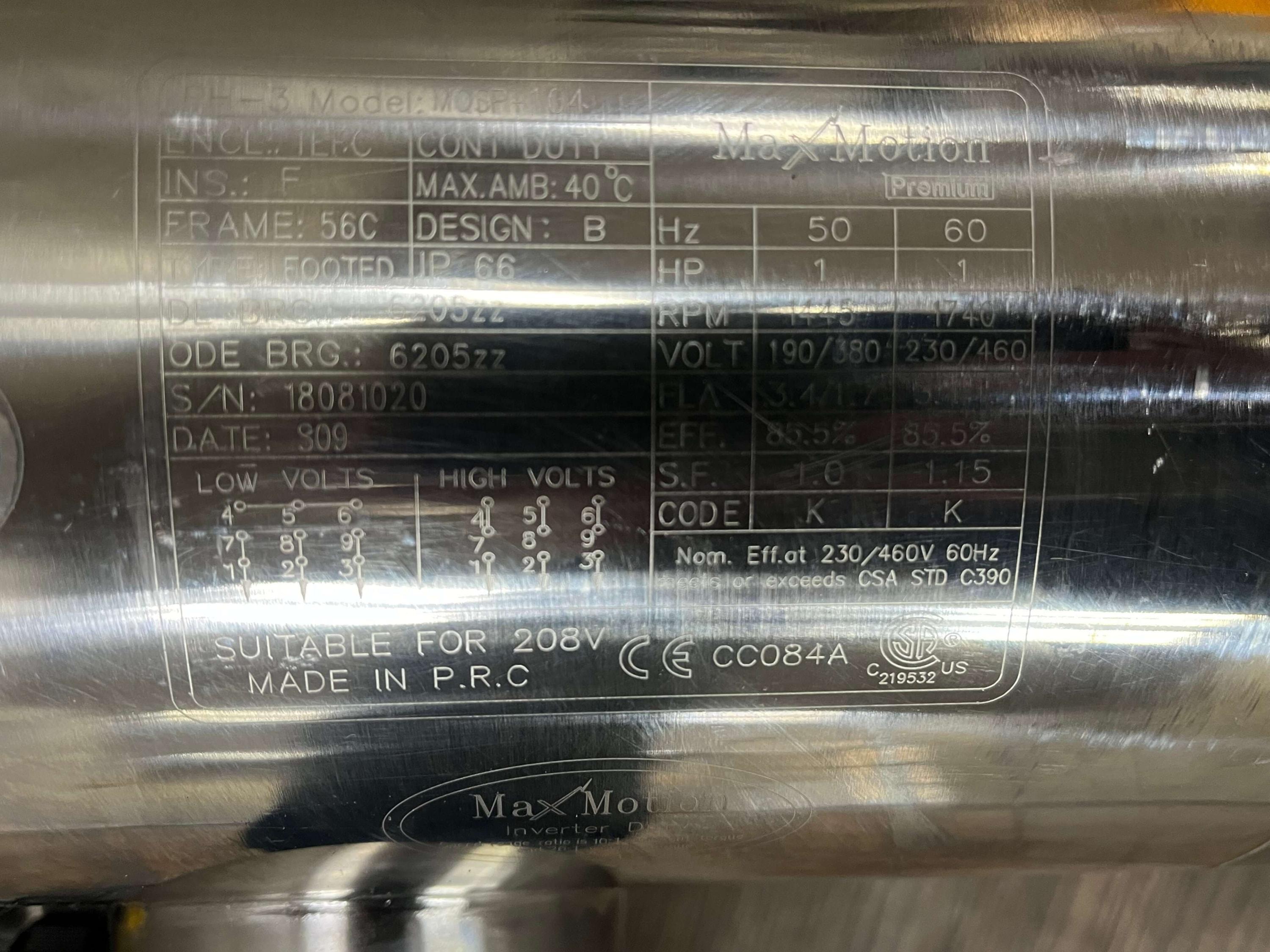

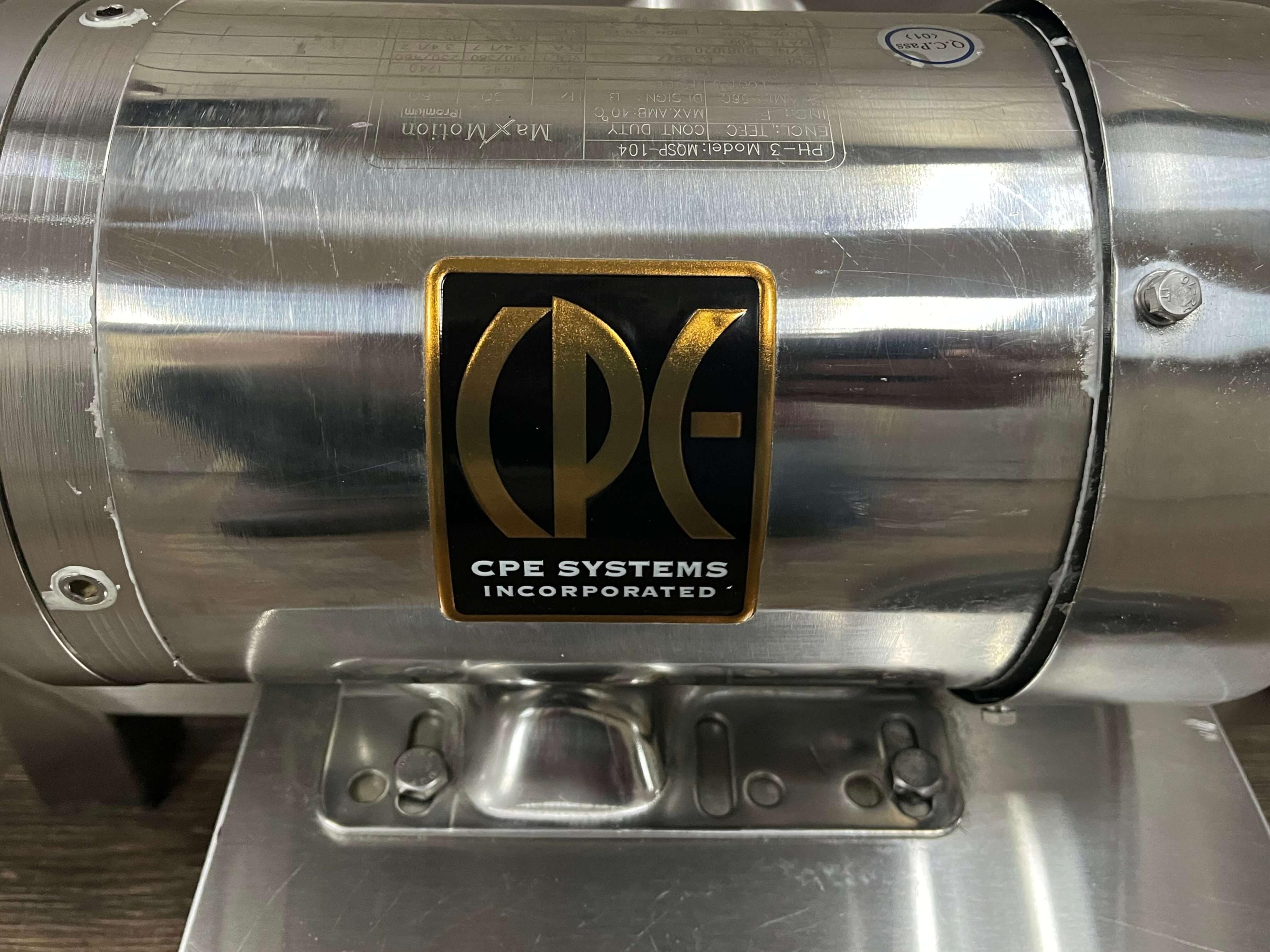

Stainless steel washdown motor
316L stainless steel construction (wetted parts)
304 stainless steel adapter
External mechanical seal

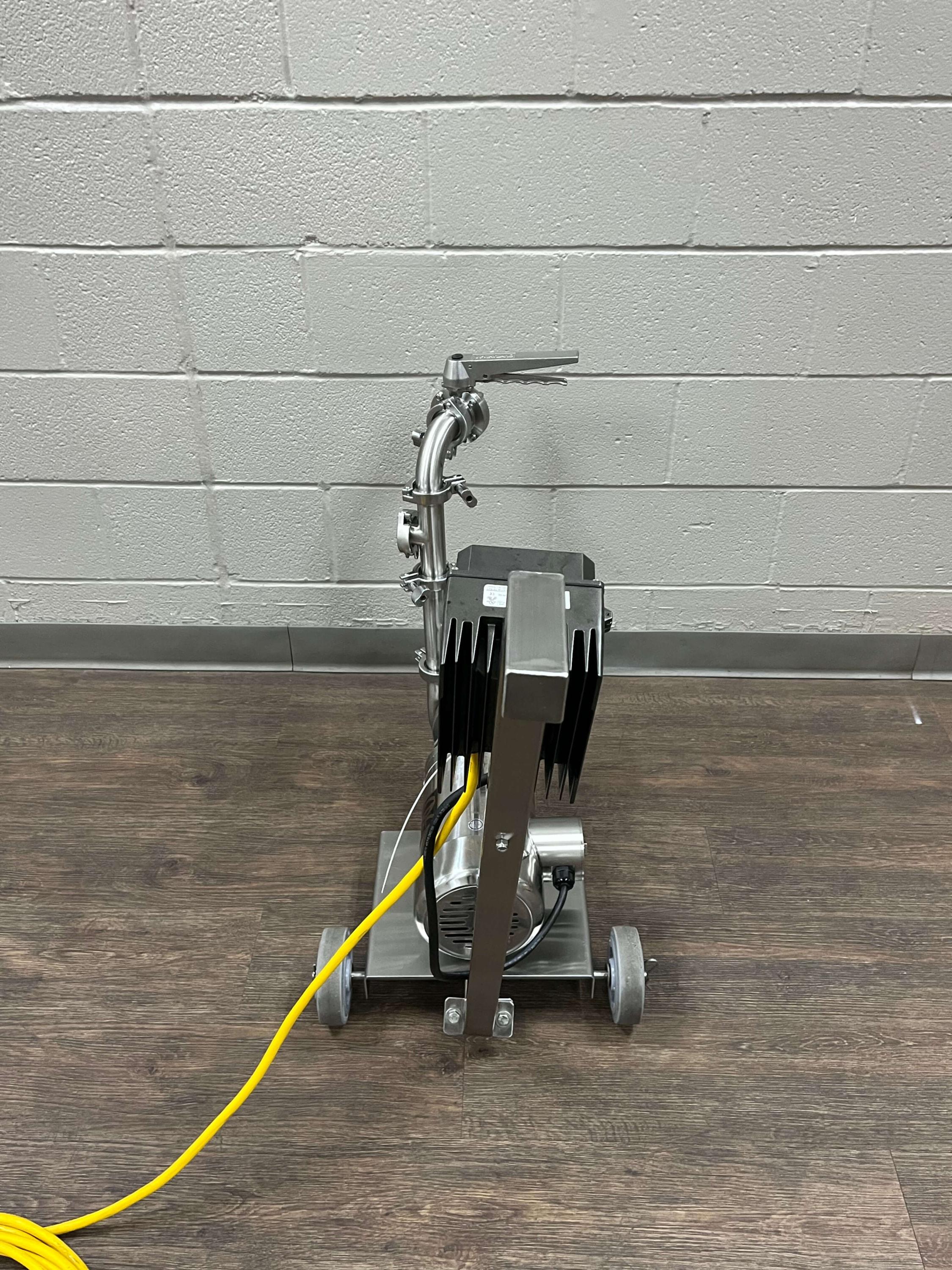

Canadian-made stainless steel cart

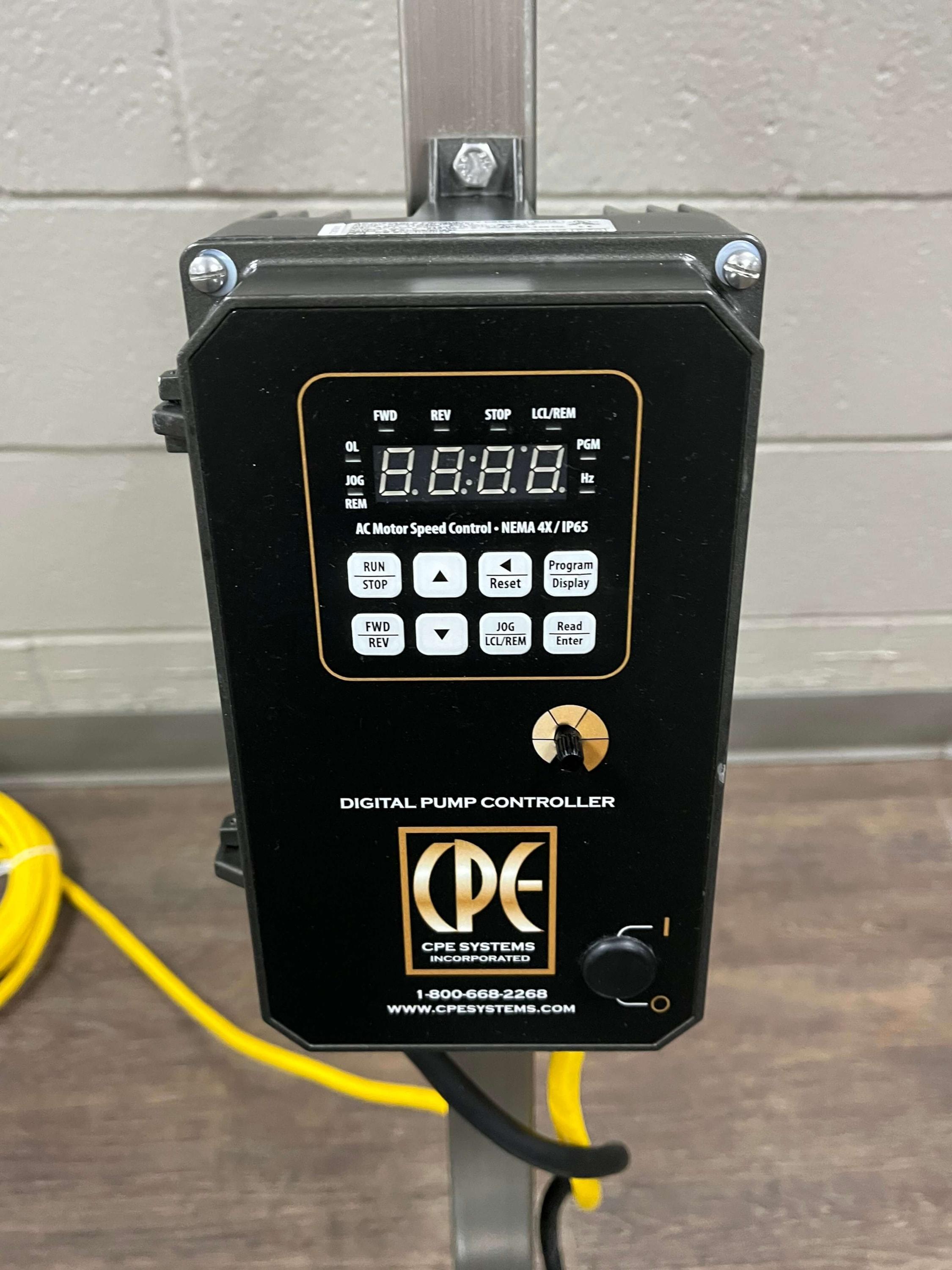

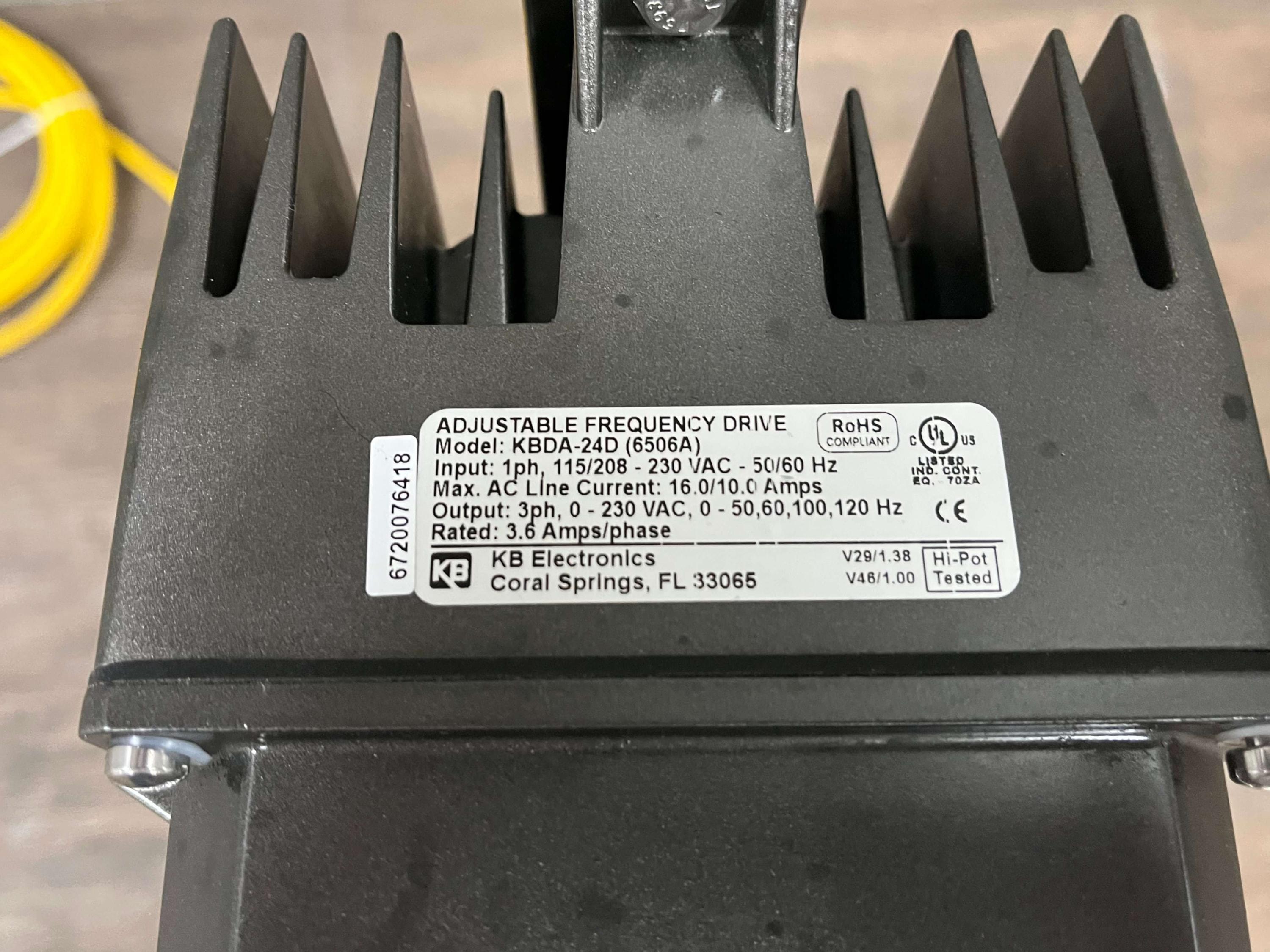

NEMA 4X VFD with a potentiometer
SEAL OPTIONS:
"D" Single mechanical external seal
"DG" Single mechanical external seal with replaceable silicone carbide seat
"F" Single mechanical external seal with water cascade
Horsepower
1 HP: The capacity of this pump is 75 GPM and it will put out 65 ft of head pressure, ideal for microbreweries (5 - 10 BBL) and estate wineries.
