Detailed Description:

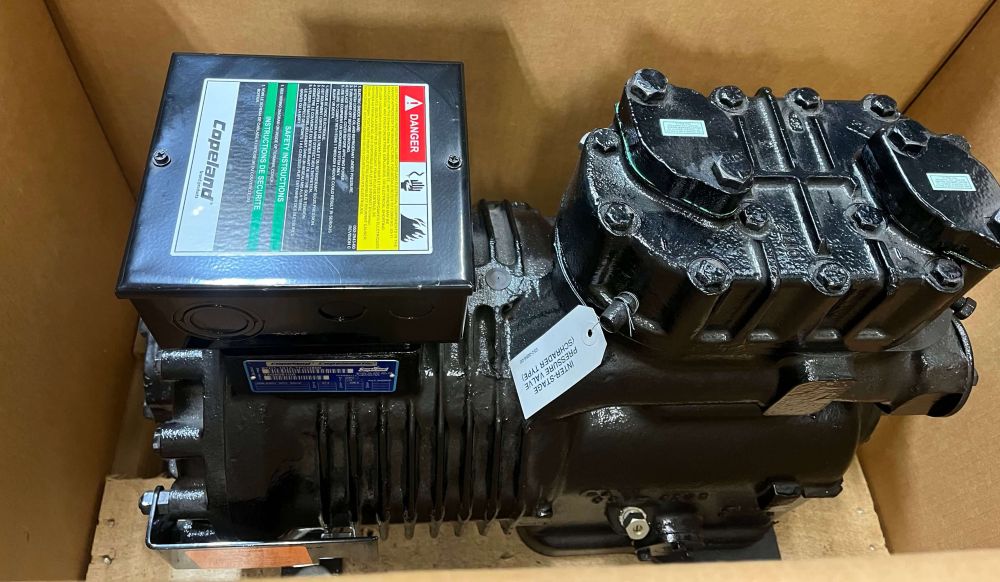

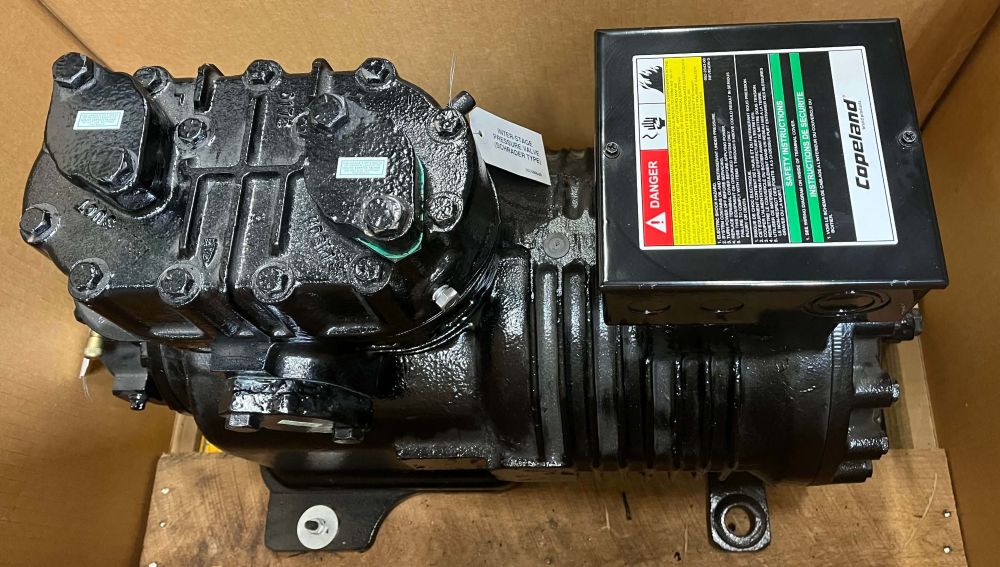

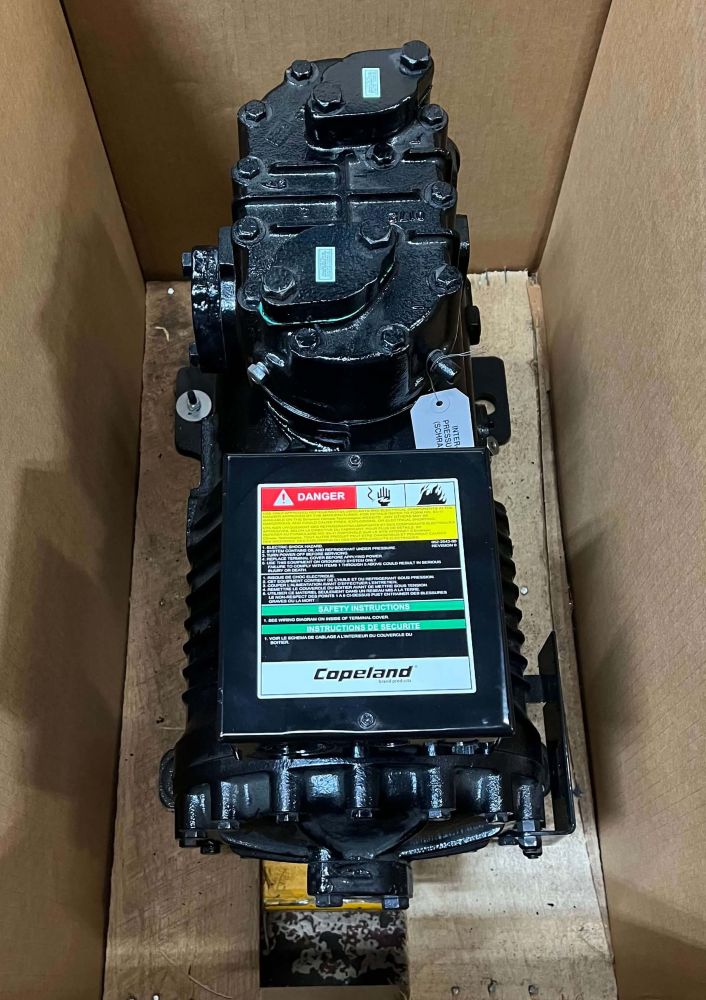

Copeland Copelametic Low Temp Compressor
The Copeland Copelametic 9TH1 is a semi-hermetic, two-stage compressor designed for low-temperature applications. It's part of the 9T series, specifically engineered to handle low evaporating temperatures, typically between 0°F and -80°F. These compressors are suitable for refrigerants like R-22, R-502, R-404A, and R-507. The 9TH1, like other two-stage Copelametics, features a first (low) stage and a second (high) stage, with the low stage having twice the displacement of the high stage.
Key Features and Specifications:
- Two-Stage Design: The 9TH1, like other two-stage Copelametics, has a low and high stage for efficient operation at low temperatures.
- Low-Temperature Applications: Specifically designed for systems requiring evaporating temperatures between 0°F and -80°F.
- Semi-Hermetic: The compressor is a semi-hermetic design.
- Refrigerant Compatibility: Suitable for R-22, R-502, R-404A, and R-507.

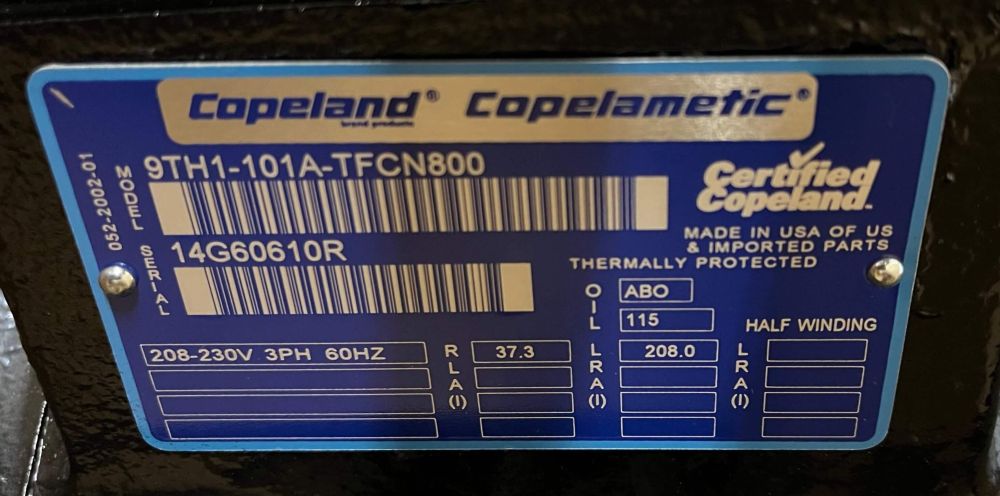

- Motor: Typically a 3-phase motor.
- Oil Charge: May have an initial oil charge of 115 oz and a recharge of 105 oz.
- Weight: The 9TH1 compressor weighs around 328 lbs.
- Mounting Height and Length: Mounting height is 18.63 inches and mounting length is 25.72 inches.
- Liquid Line Size: Liquid line size is 1-1/8 sweat stub.
- Capacity: Capacity ratings vary depending on the evaporating temperature and refrigerant used.
