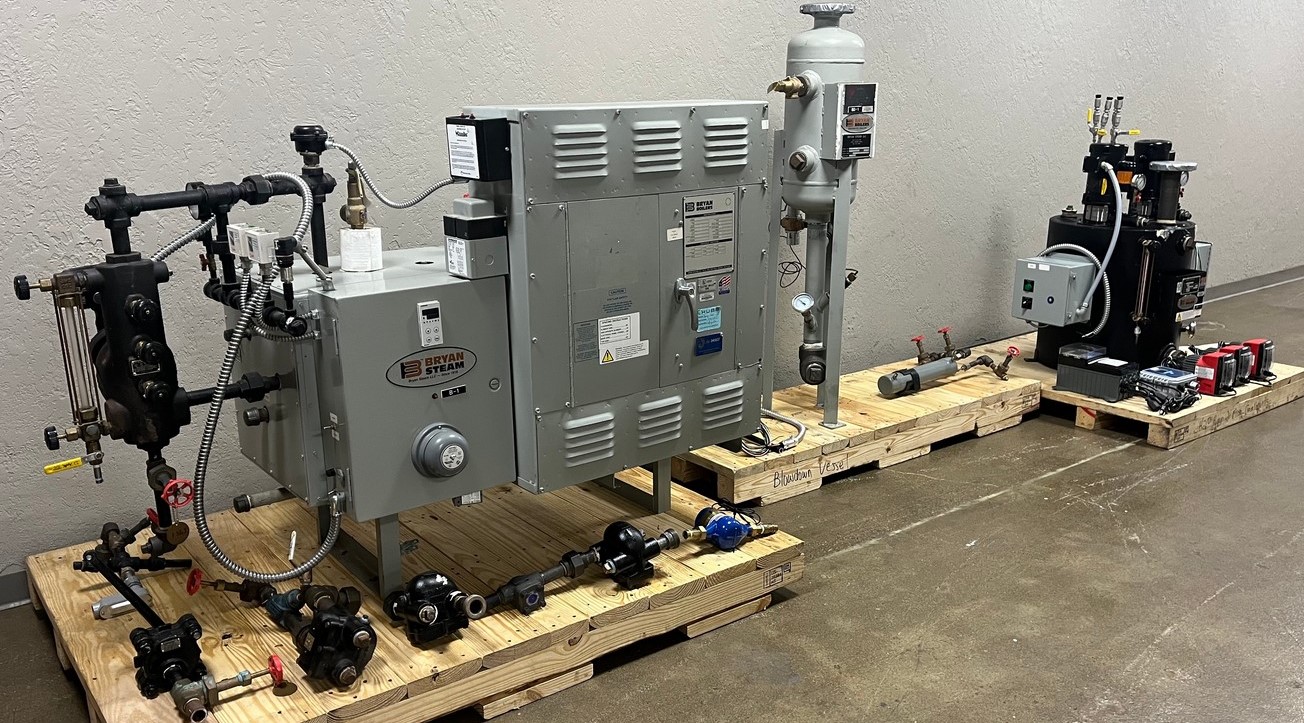

Bryan Steam Electric Boiler System – BE60Q4T4 Boiler + BDS-1030 Feed System + CFS-80-20-40-D Condensate Feed System
Manufacturer: Bryan Boilers / Bryan Steam
System Type: Electric Steam Boiler Package
Configuration: Boiler + Feed System + Feed Water Pump Tank
System Includes
• Bryan Boilers BE60Q4T4 Electric Steam Boiler
• Bryan Steam BDS-1030 Boiler Feed System
• Bryan Steam CFS-80-20-40-D Condensate Feed System
This package provides a complete electric steam generation system, ideal for industrial facilities requiring clean, reliable steam production.

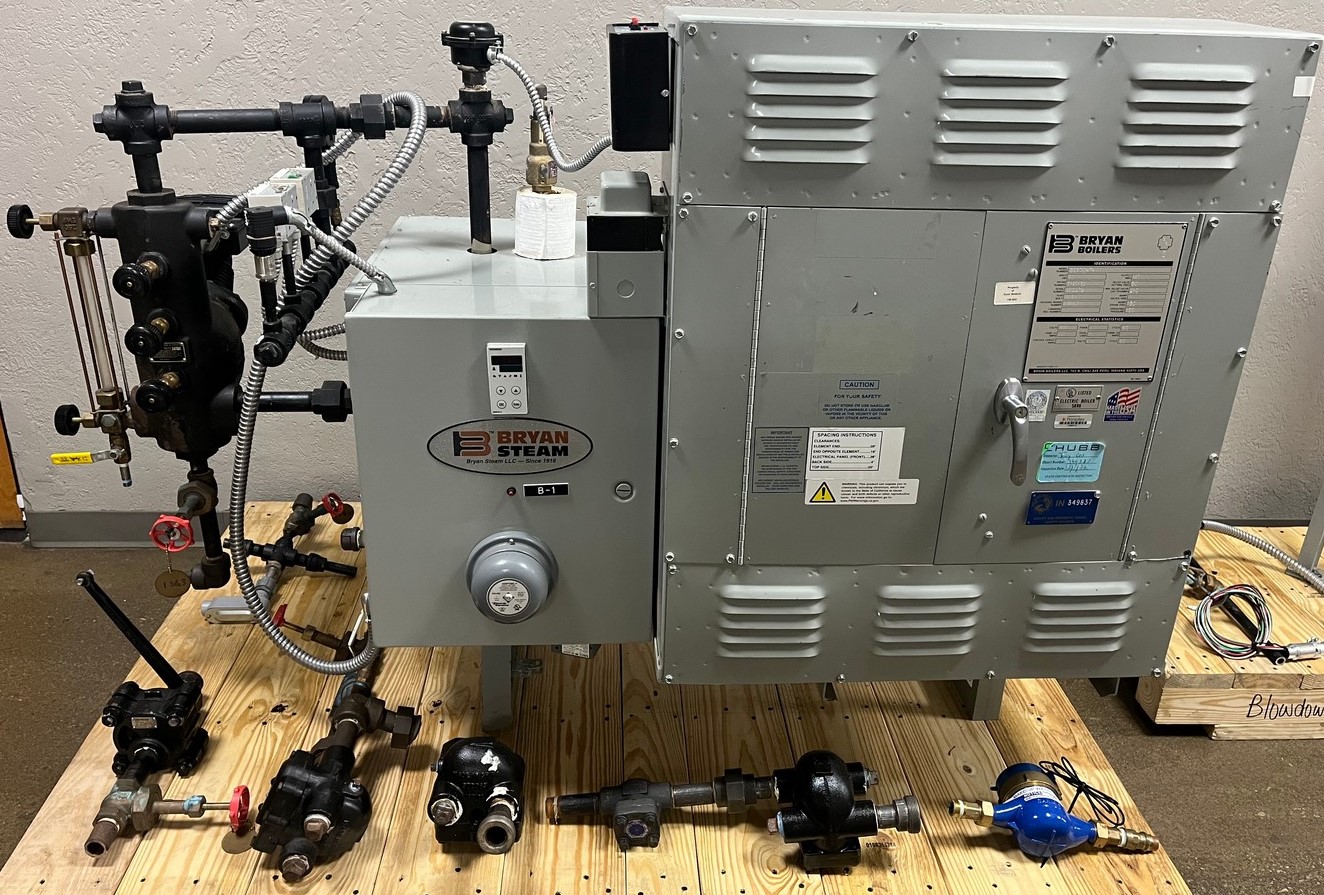

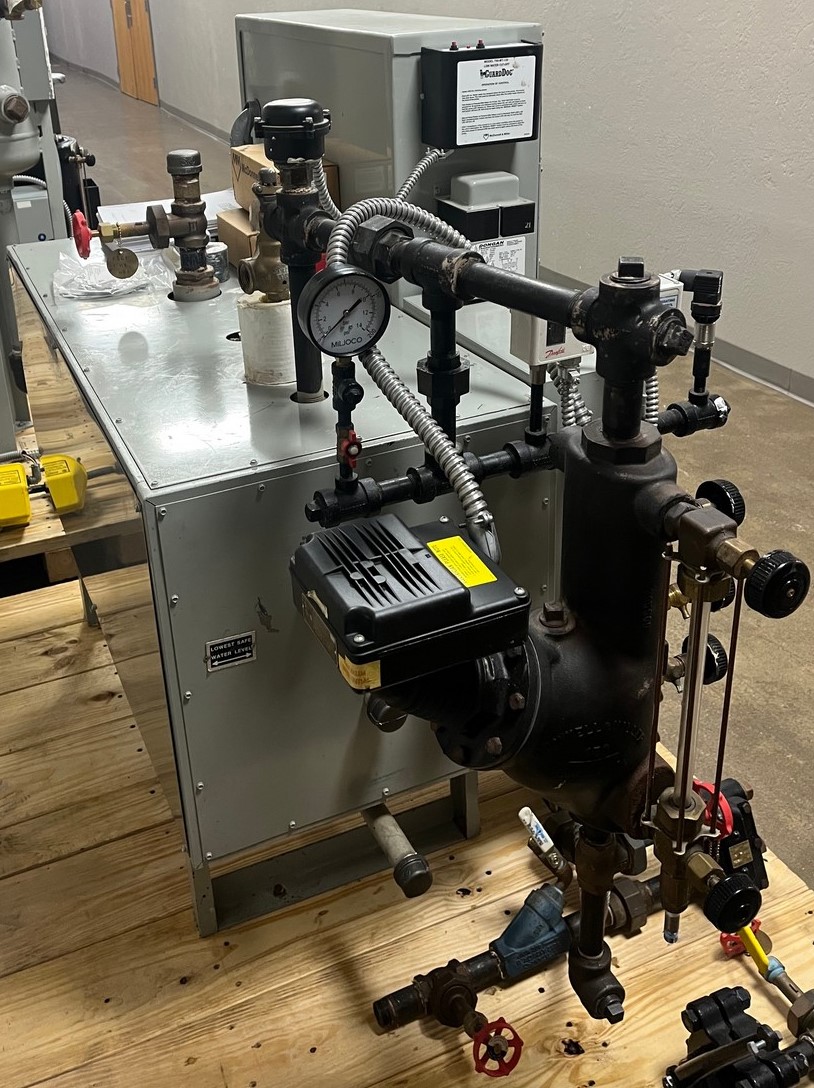

Boiler Specifications

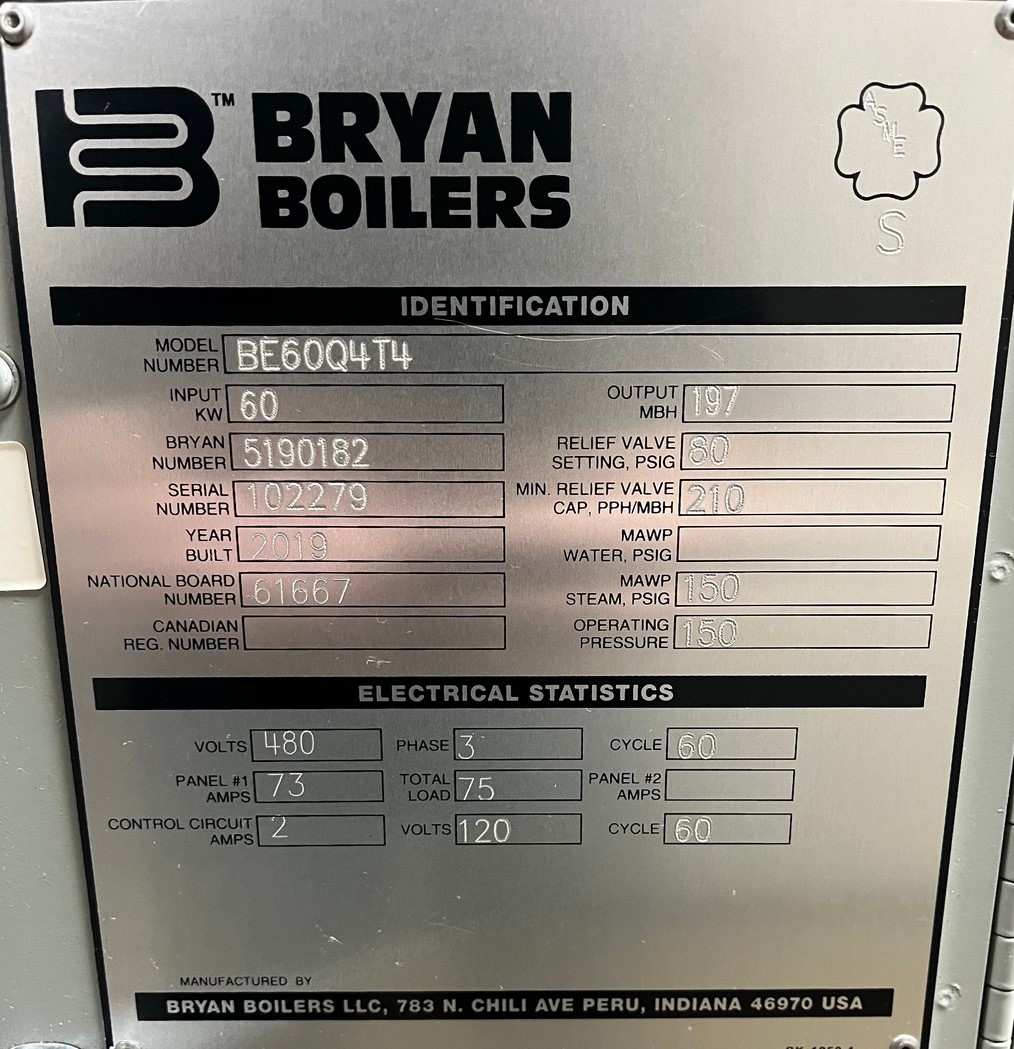

Model: BE60Q4T4
Manufacturer: Bryan Boilers
Boiler Type: Electric Steam Boiler
Electric resistance heating elements
ASME pressure vessel construction
Low-pressure steam system (typically 15 PSI)

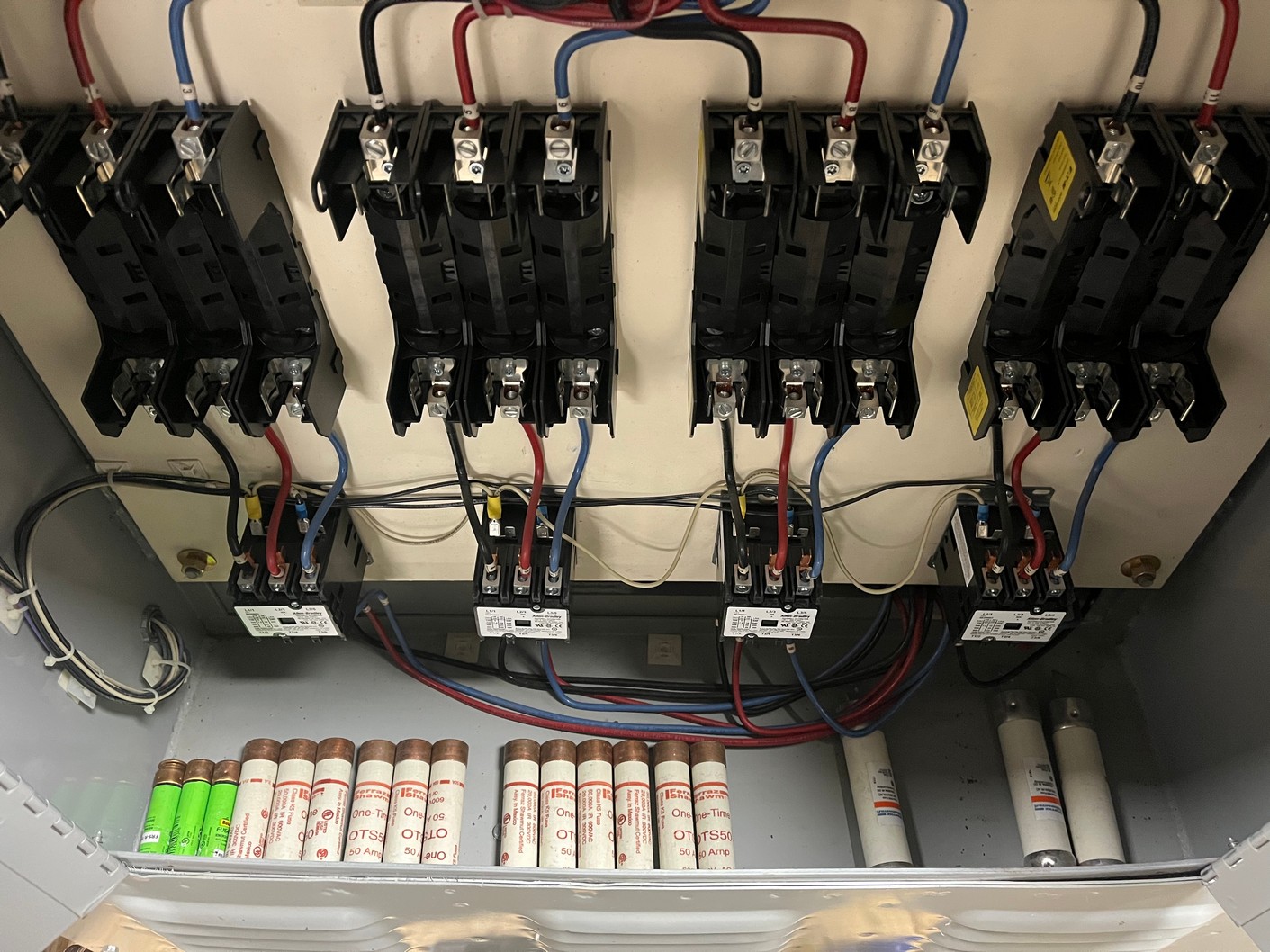

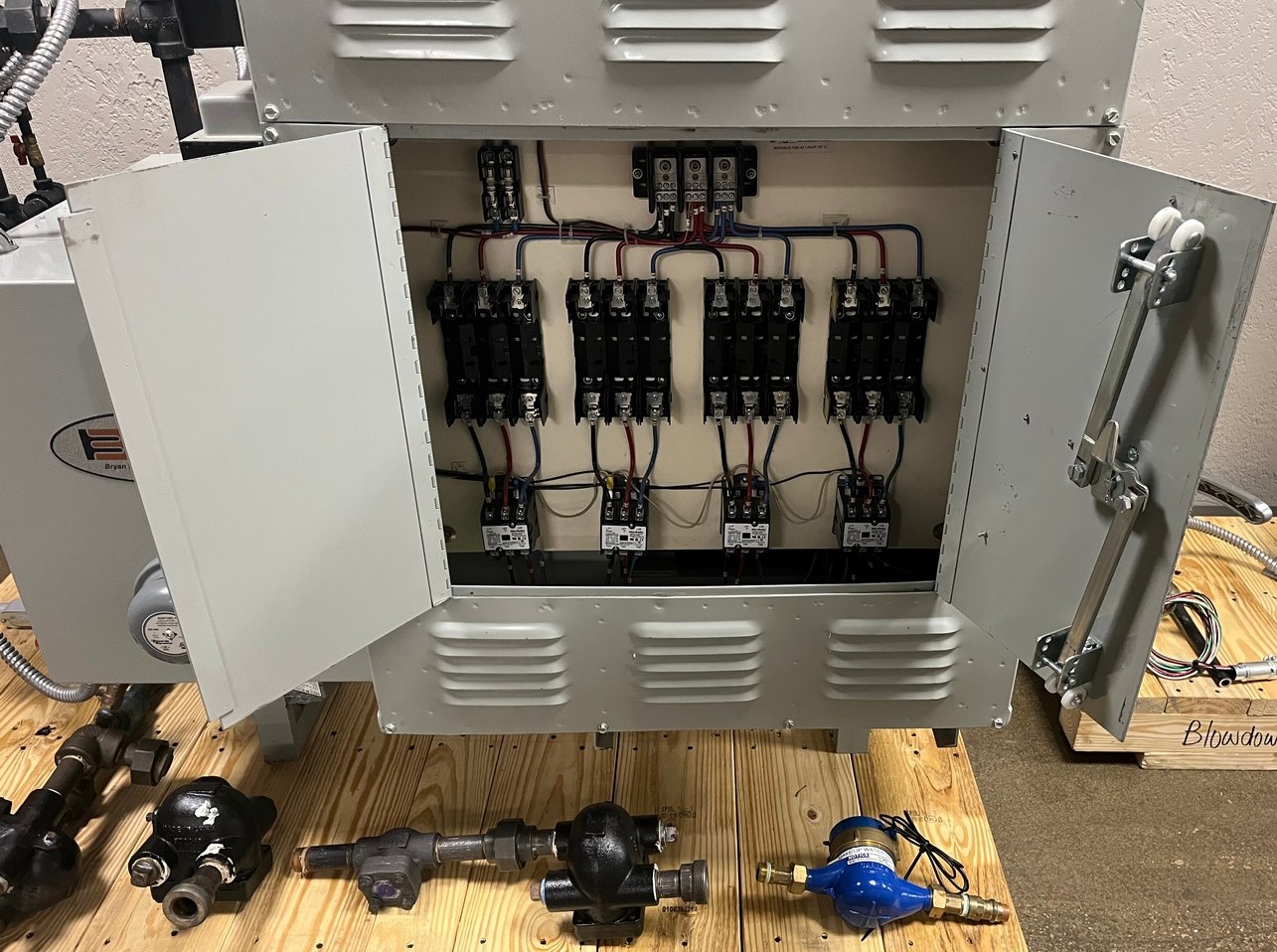

Automatic controls and safety systems
Compact industrial footprint
Bryan electric boilers are commonly used in pharmaceutical, laboratory, food processing, and industrial manufacturing applications where clean steam generation is required.

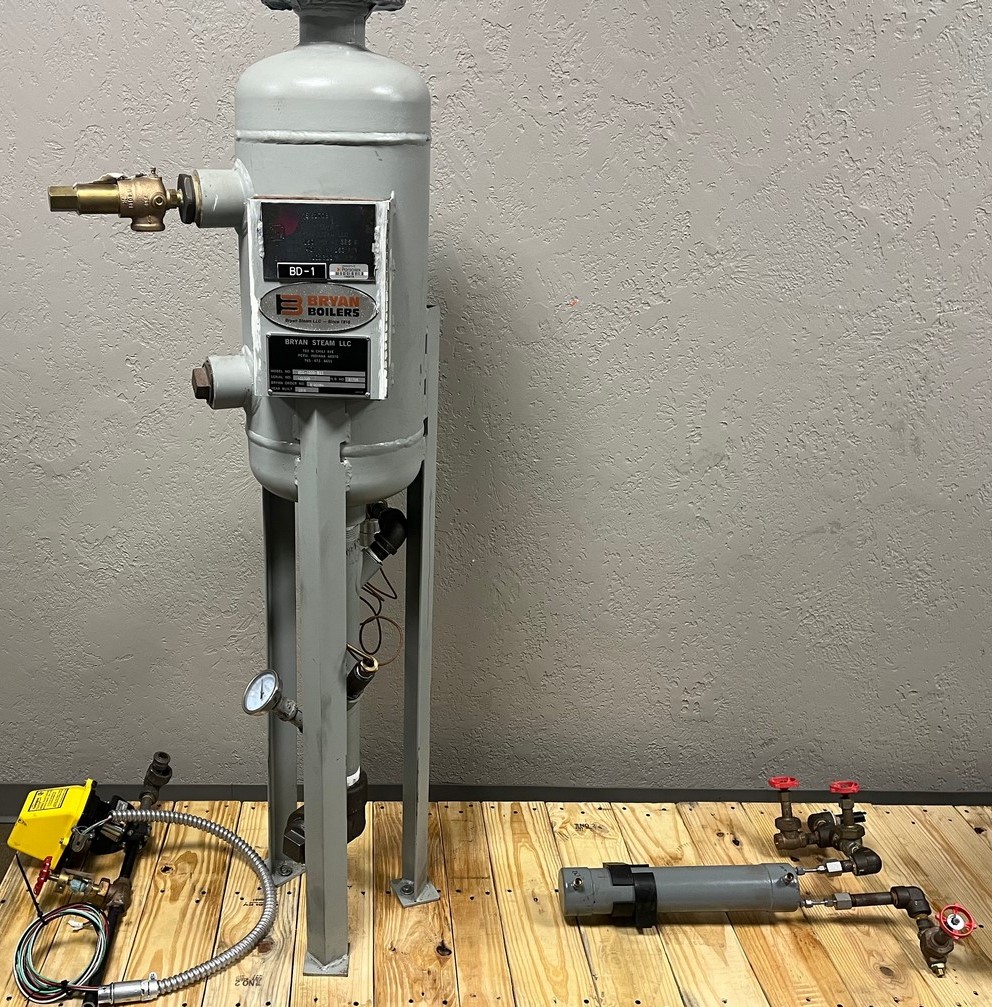

Boiler Feed System

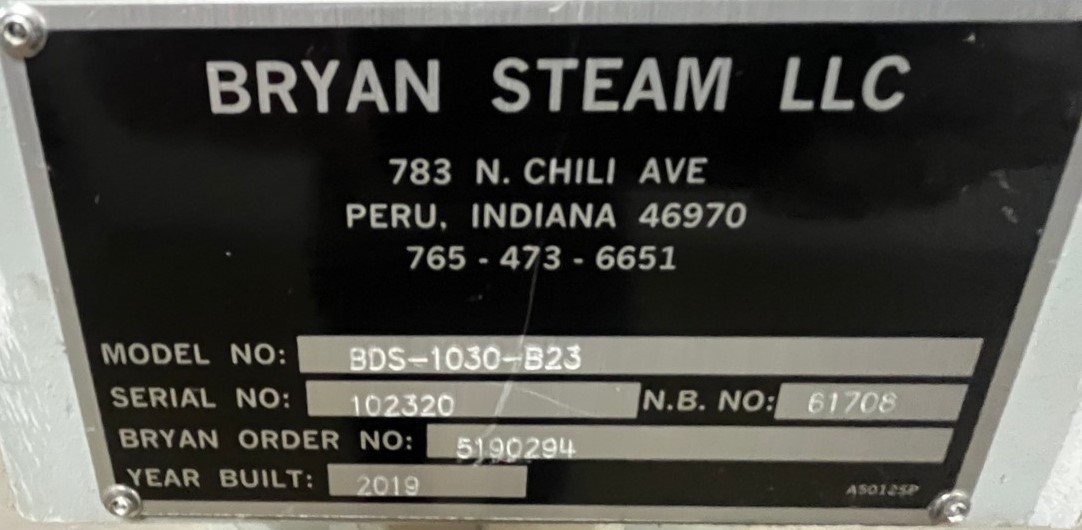

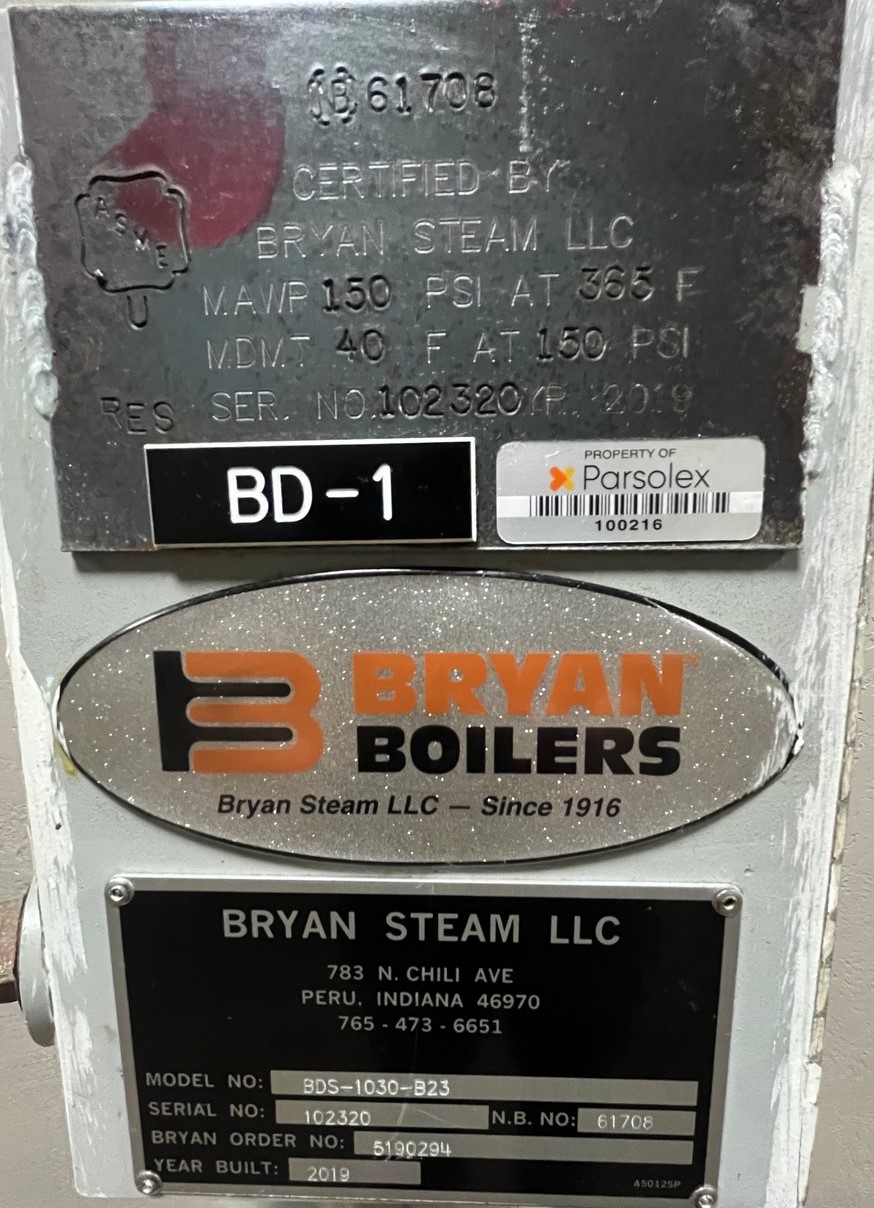

Model: BDS-1030 B23
The BDS-1030 system provides automatic feedwater supply to the boiler, maintaining proper water levels and supporting continuous operation.
Features include:
Condensate return collection
Feedwater storage tank
Automatic level controls
Boiler feed pump system

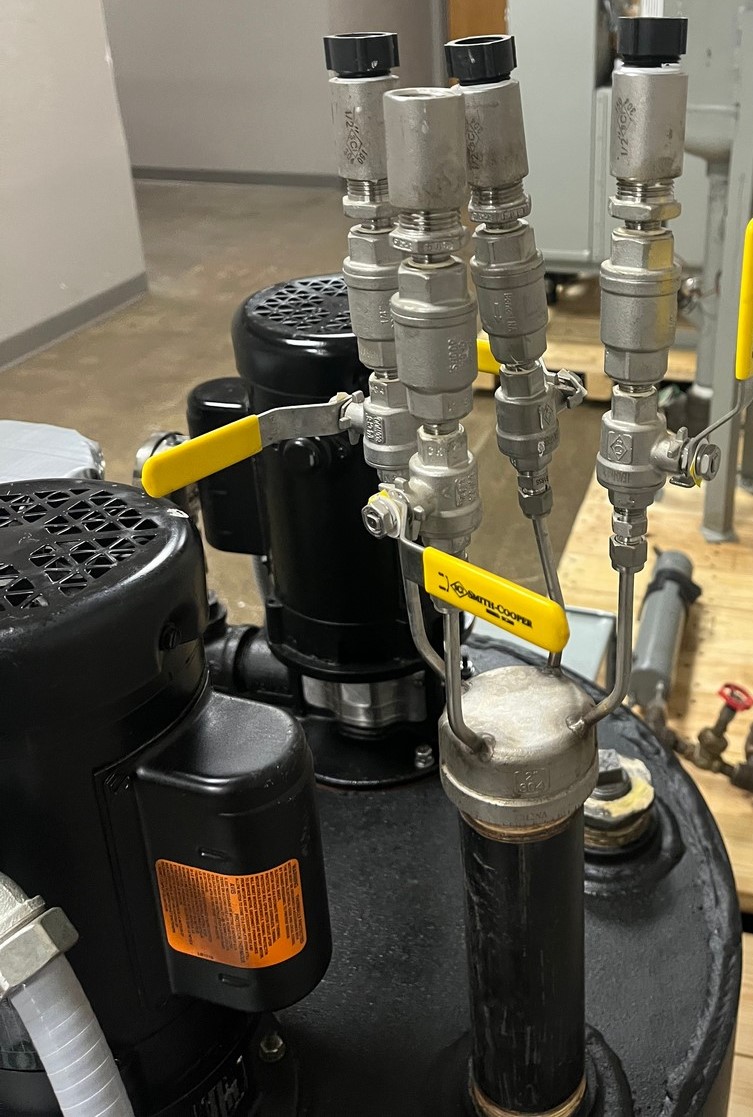

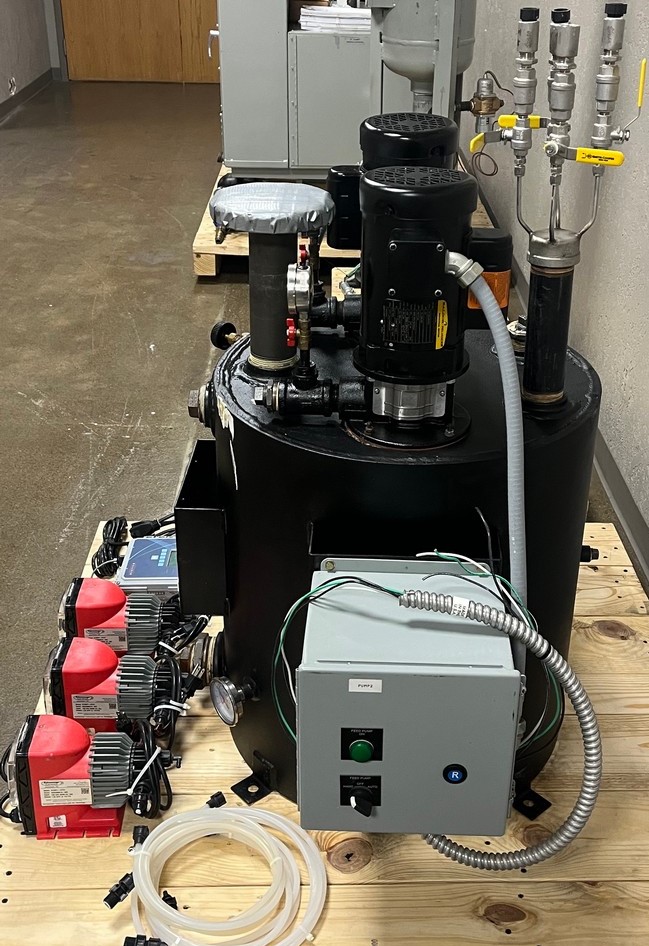

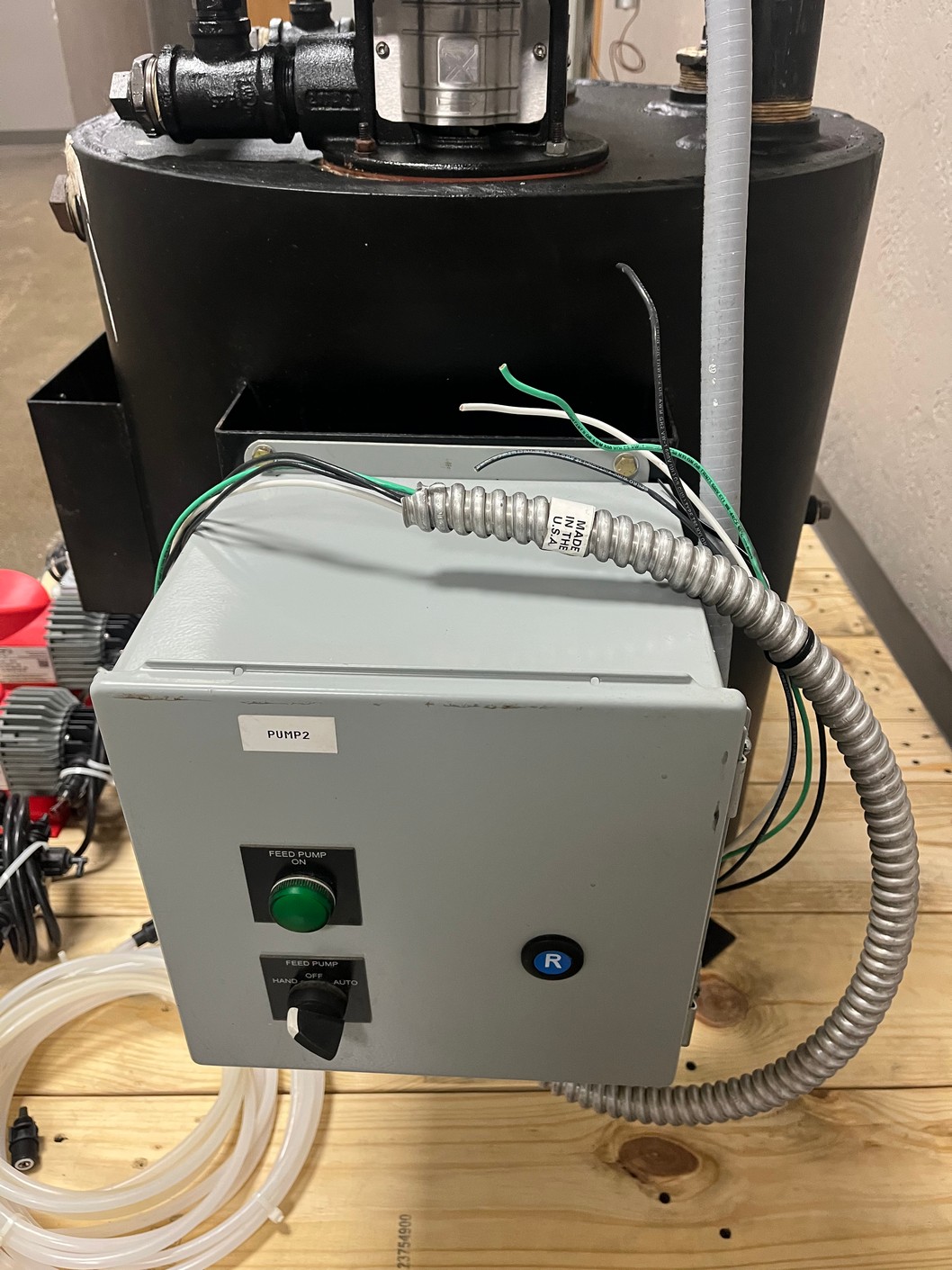

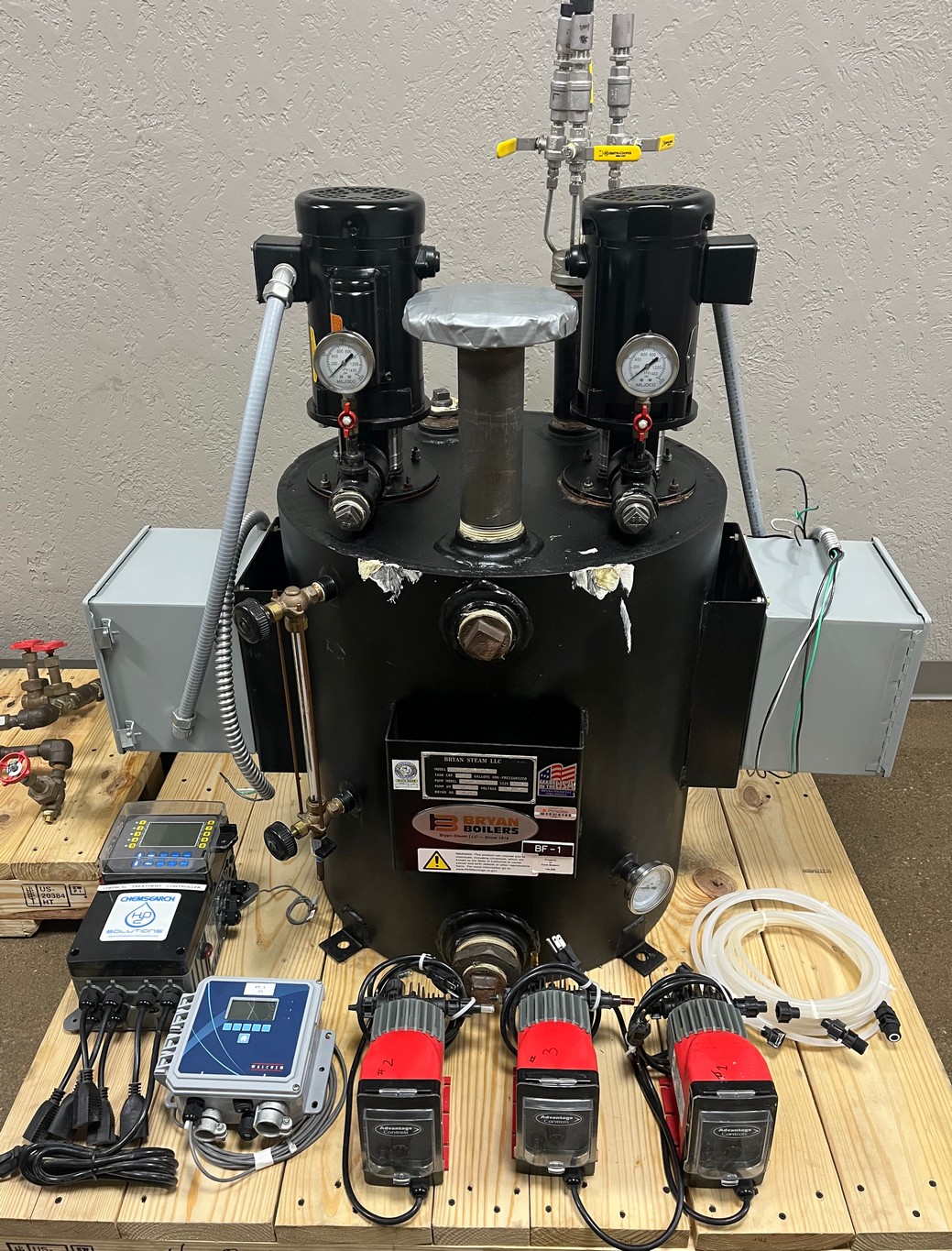

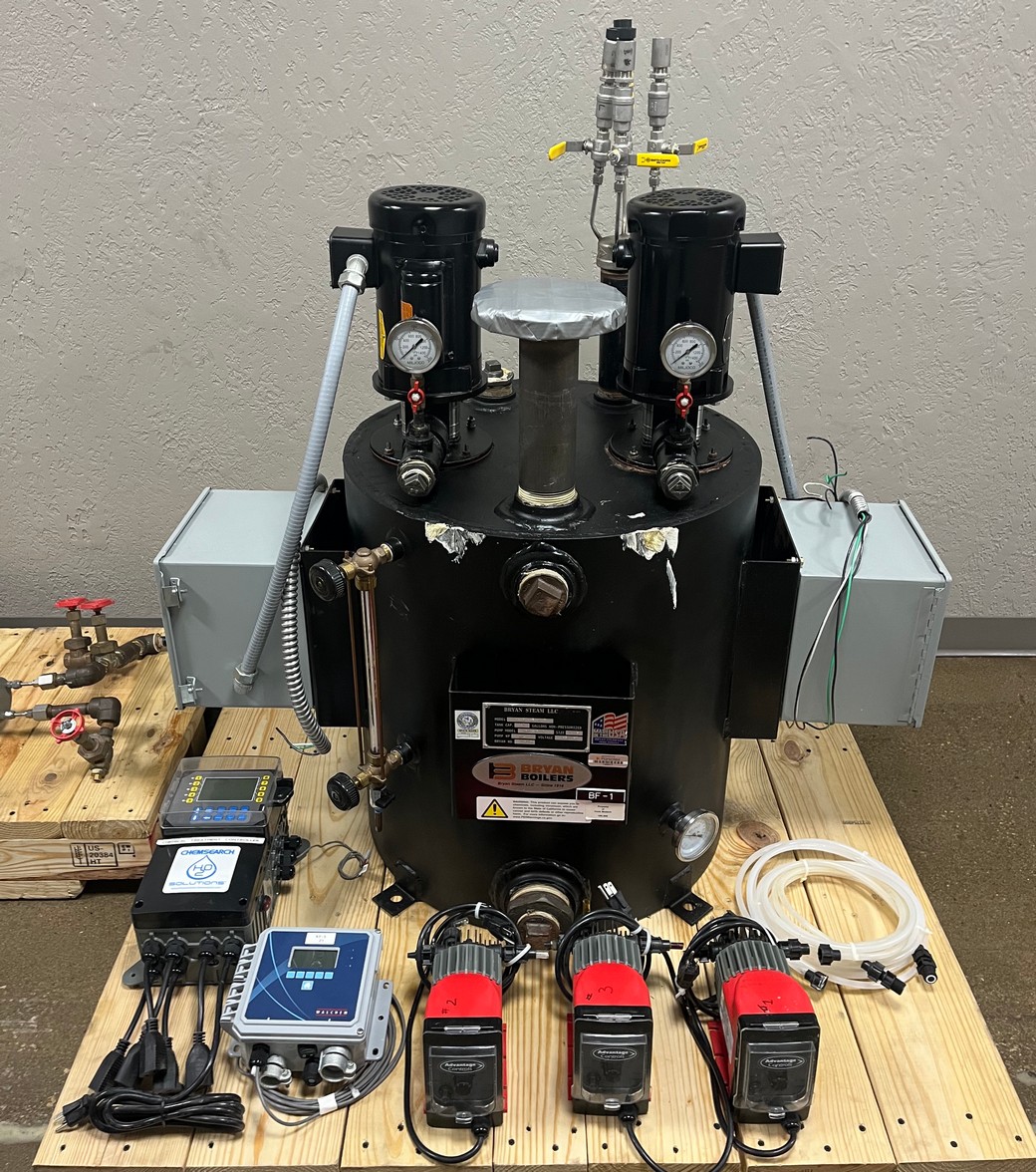

Condensate / Feed Water Pump System

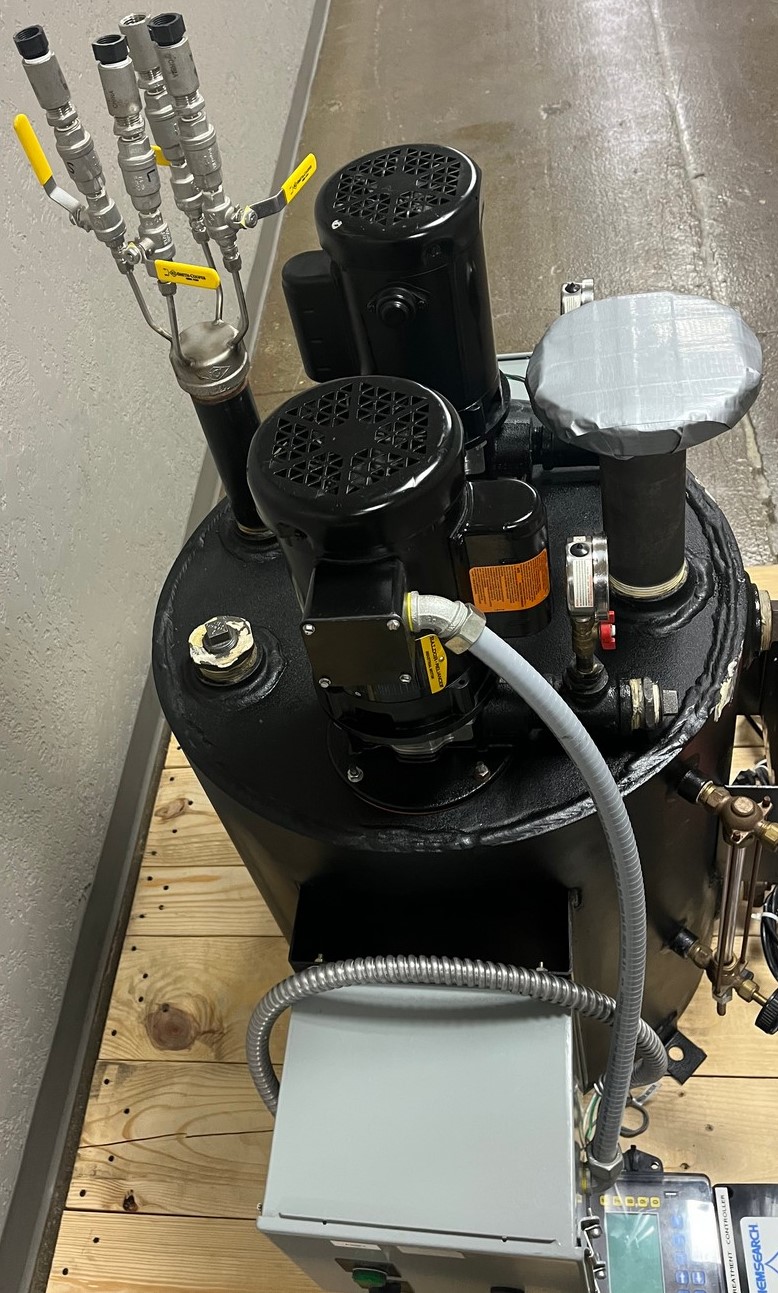

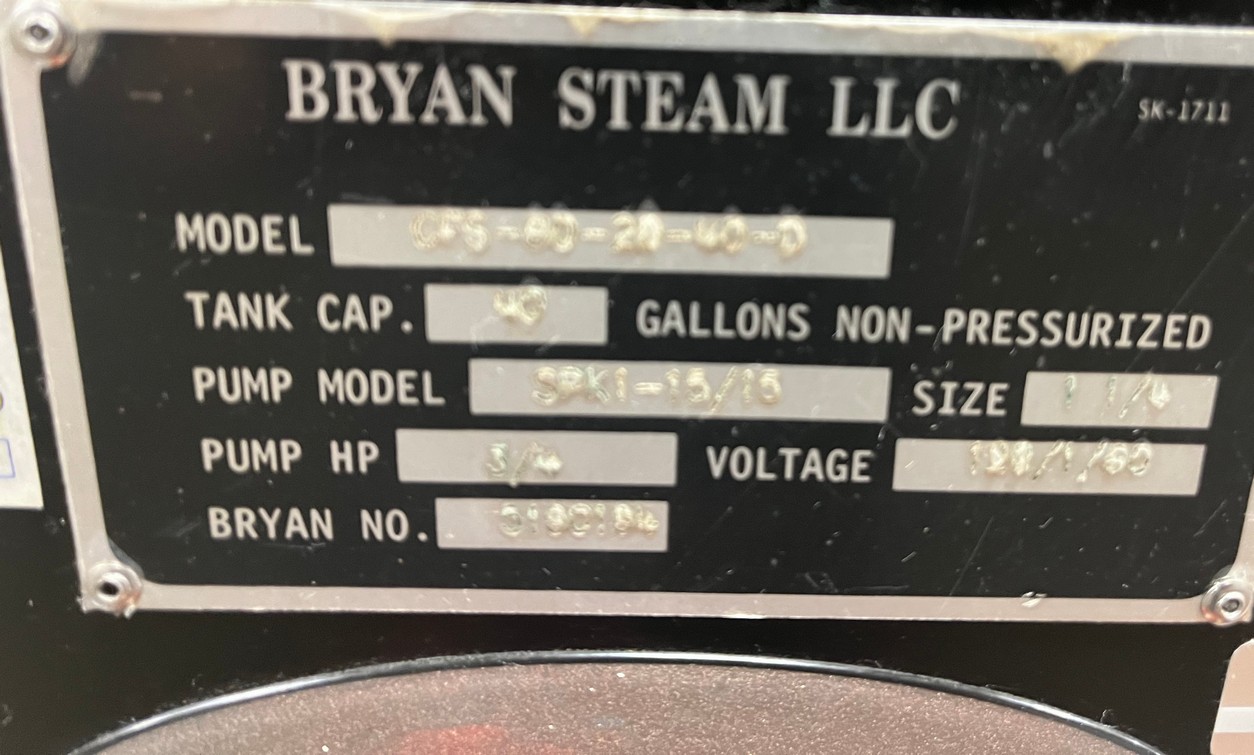

Model: CFS-80-20-40-D
Typical configuration:
Tank capacity: approximately 40 gallons

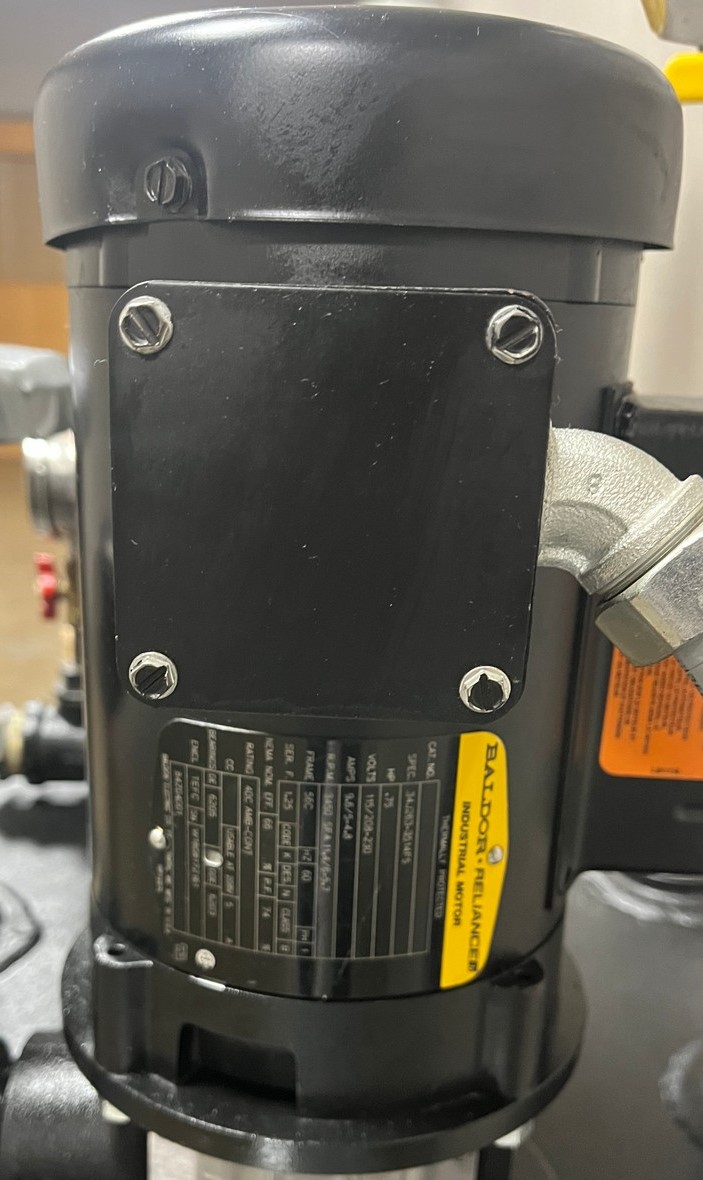

Pump configuration: duplex boiler feed pumps
Designed for: condensate return and boiler feed service
Automatic float or electronic level controls
Heavy-duty steel receiver tank
This system collects condensate from the steam system and pumps it back to the boiler, improving efficiency and maintaining proper boiler water levels.
System Benefits
Complete electric steam boiler package
Reliable automatic feedwater management
Suitable for industrial and laboratories
