Automatic Front & Back of Oval Product Labeling System - MANUFACTURER DETAILS
The Auto Labe Model 680-1 REV H is our premier labeling system for labeling the front and back of oval and other elliptical and conical-shaped bottles as well as square and rectangular products. The 680S is designed for the most demanding production lines and can be seamlessly integrated with zero down-time applicators.
Features
Two adjustable stepper driven label applicators
Powered wipe down rollers
Product metering
Orientation belts or feed screw assembly
Top hold-down belt
Control panel with color HMI touchscreen
Dual product alignment belt assembly with on-center adjustment
Component speed following and
Memory settings for quick recall of presets
Options
Coding and marking options
Wrap station for round products
Vision systems and reject stations
Web monitoring kits
Warning towers and outputs

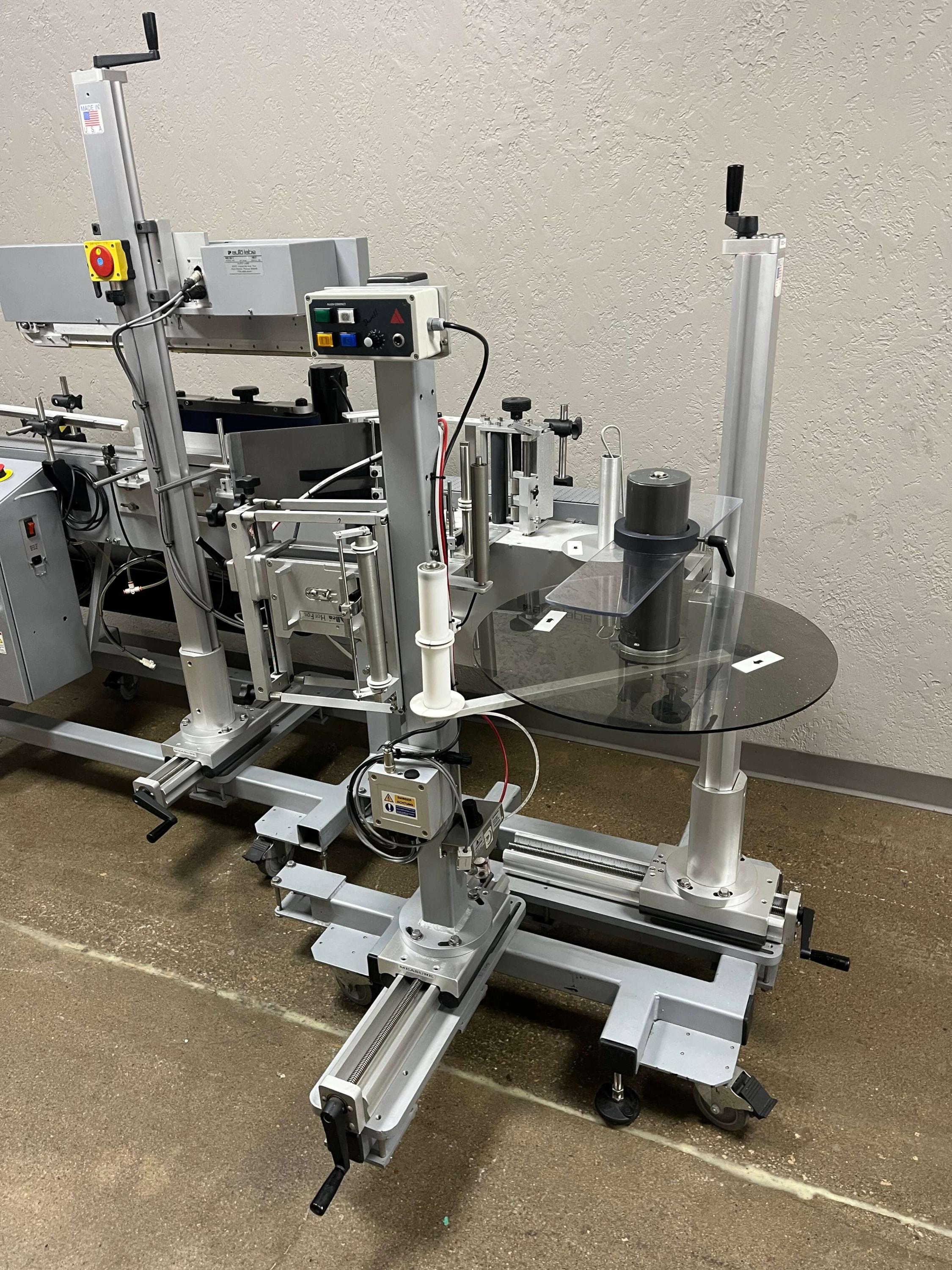

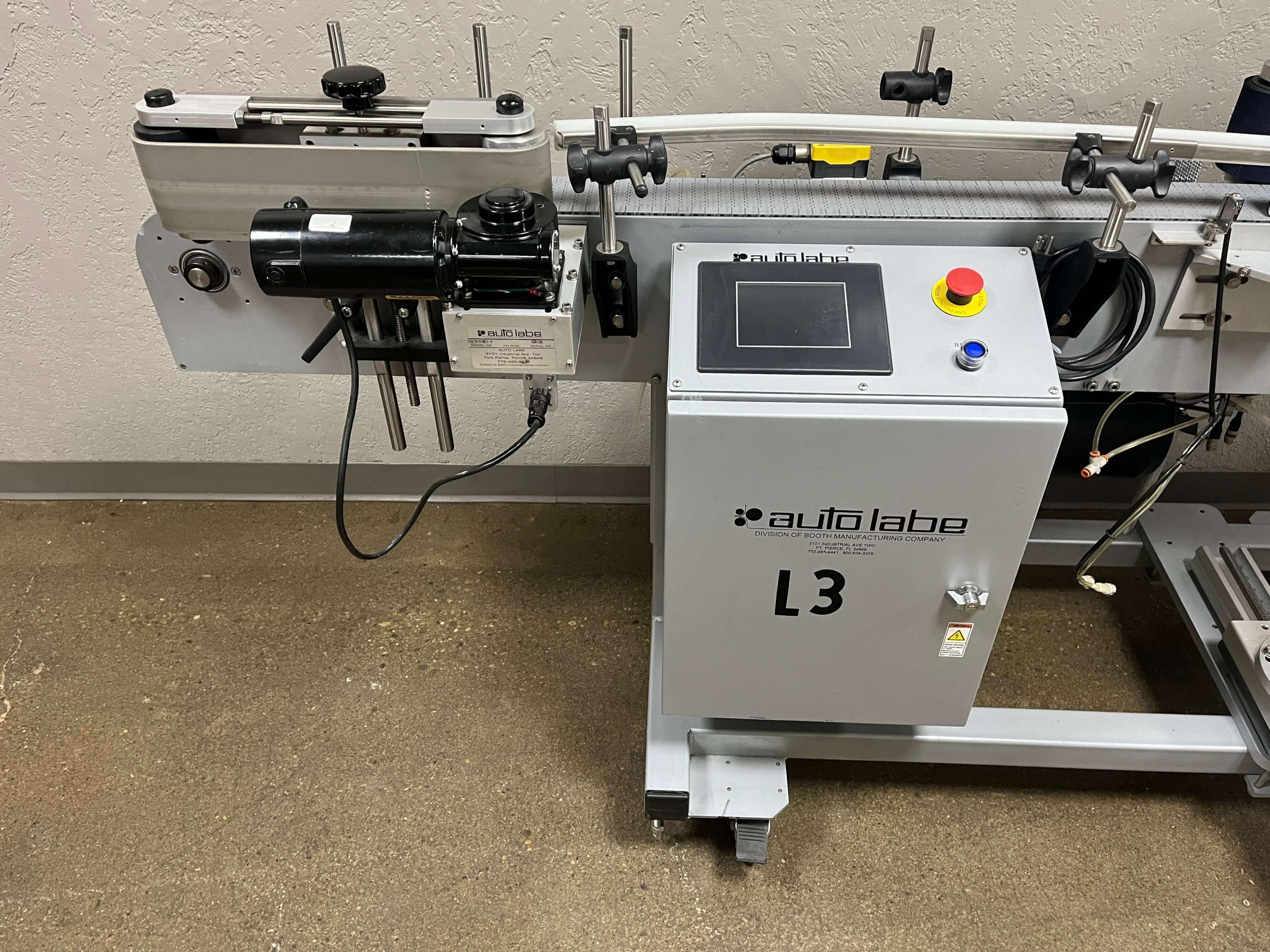

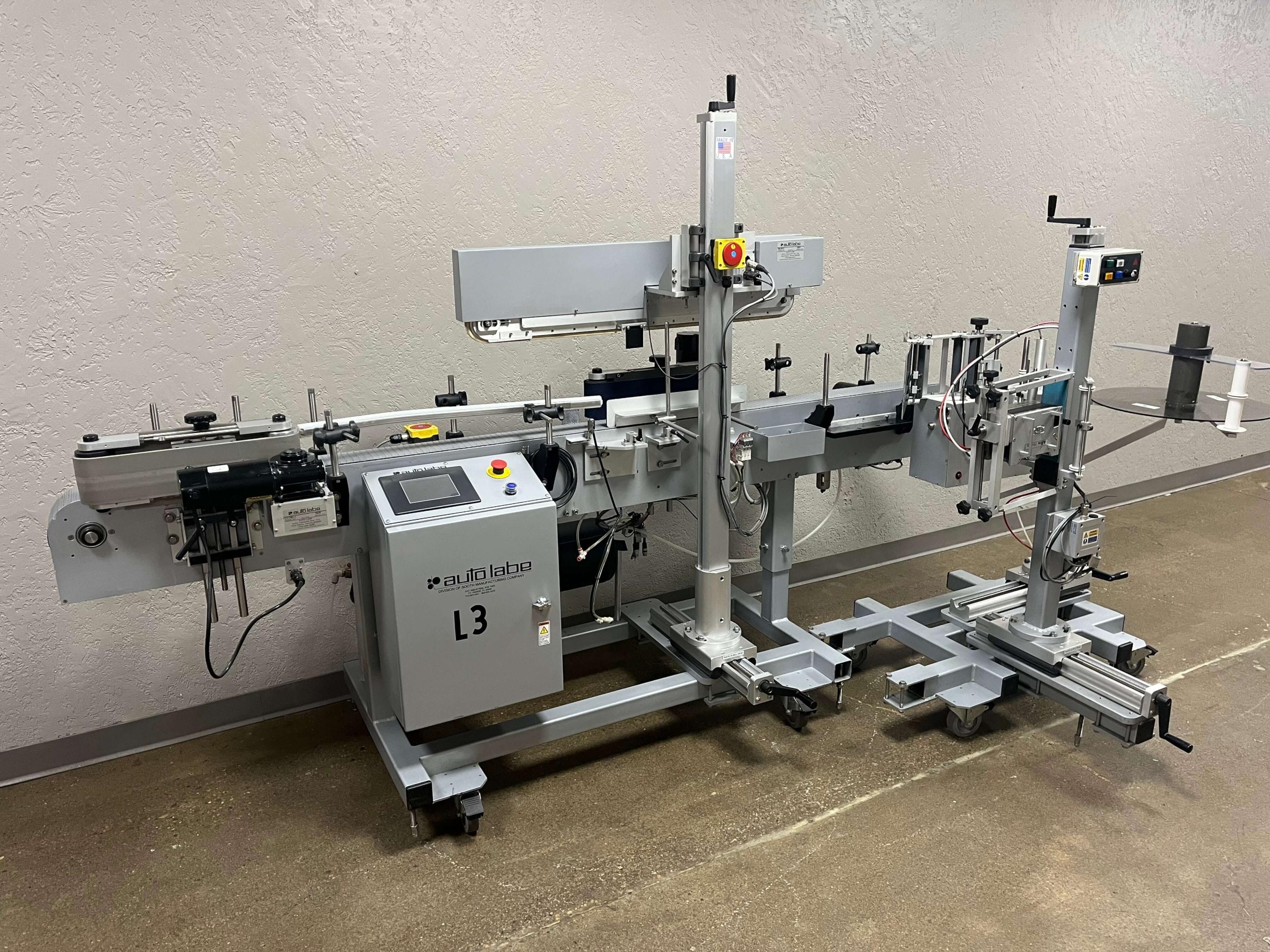

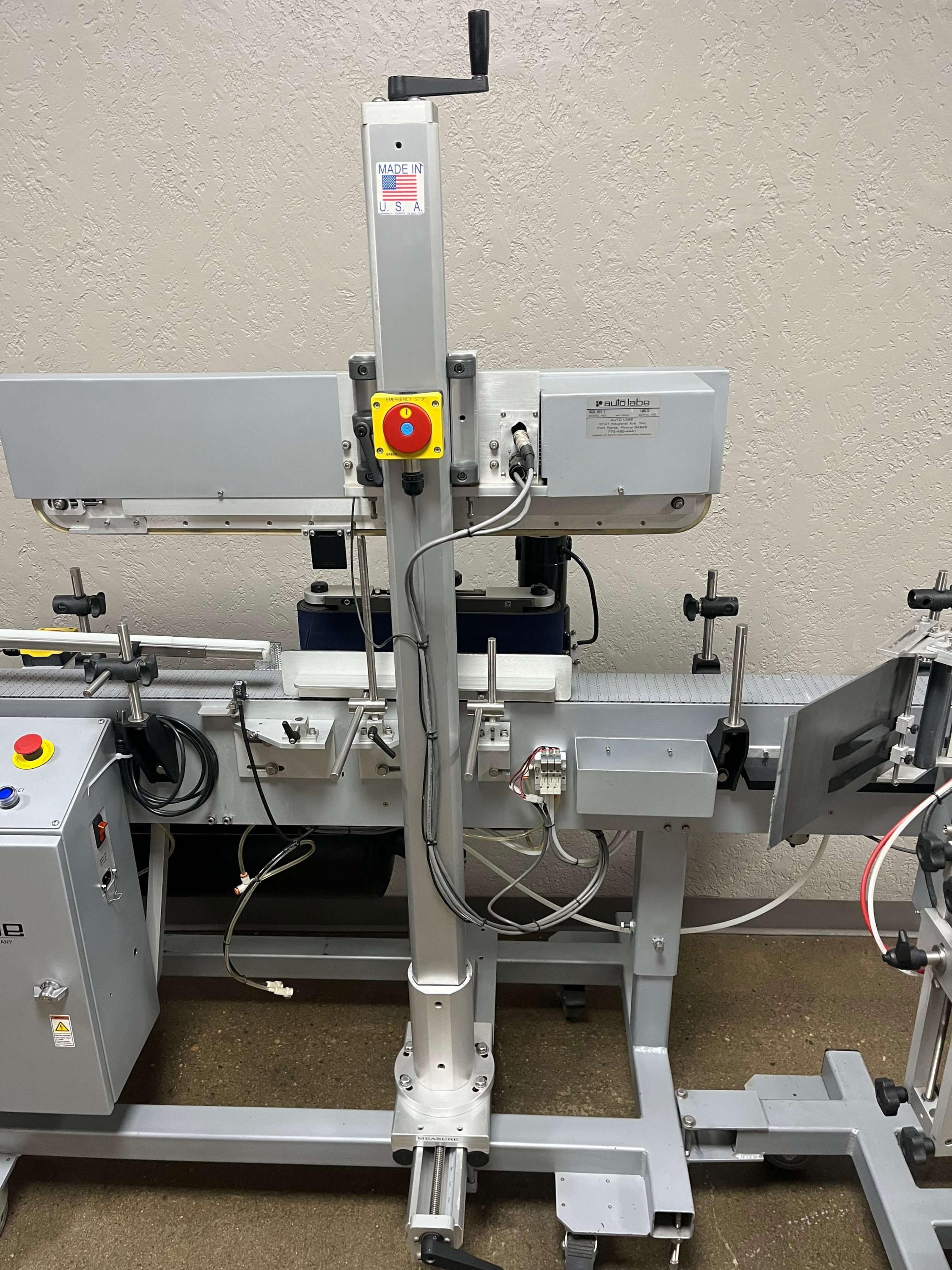

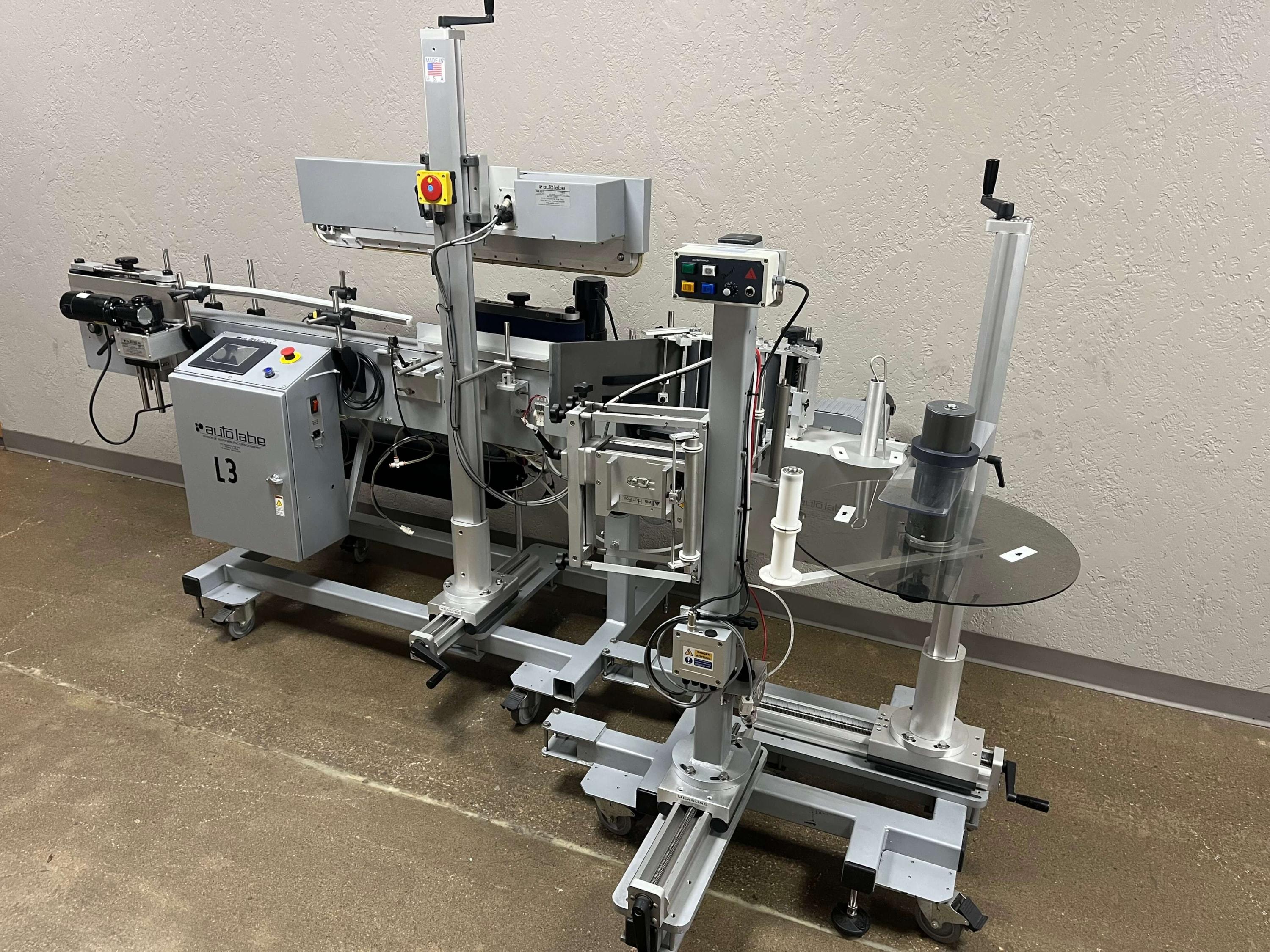

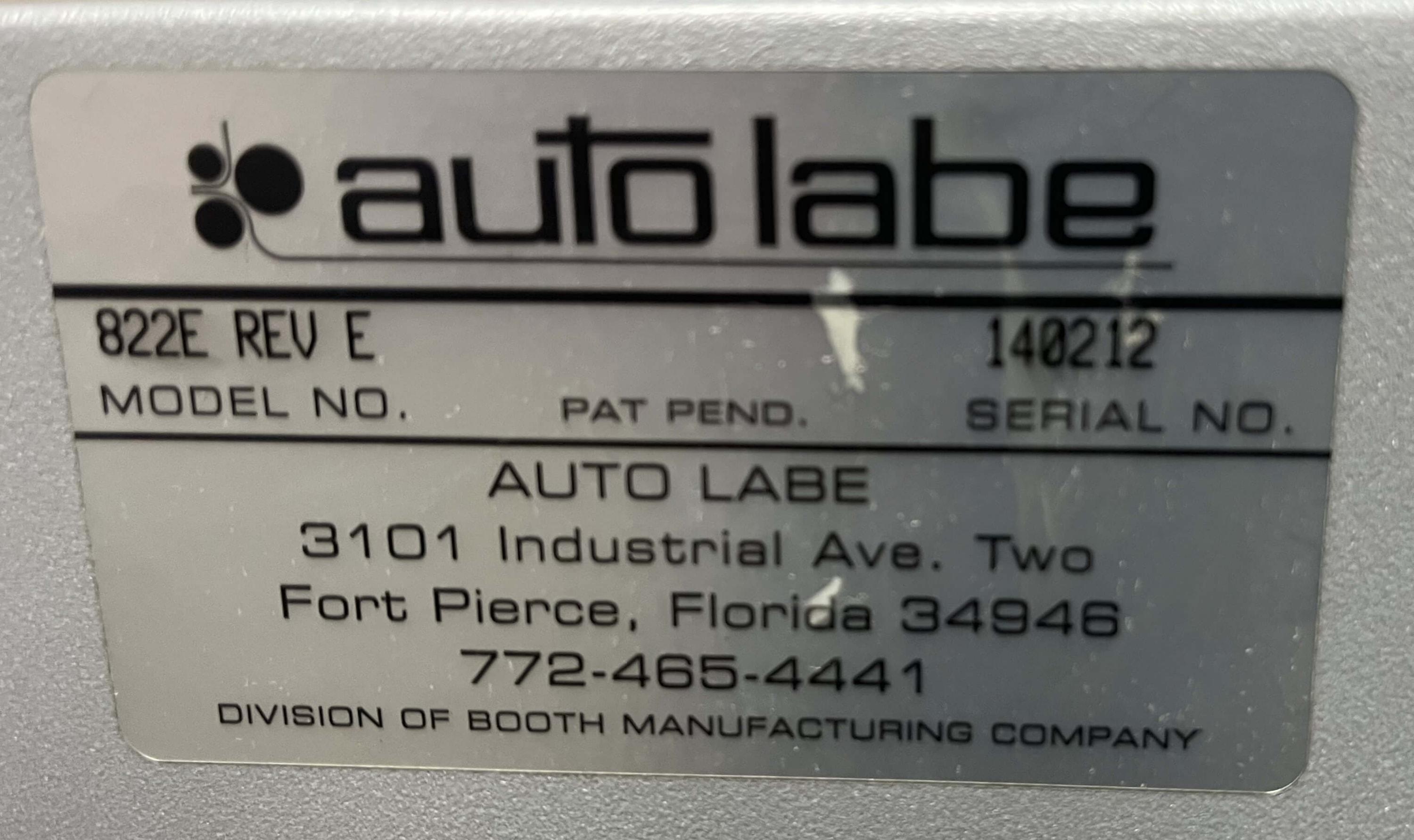

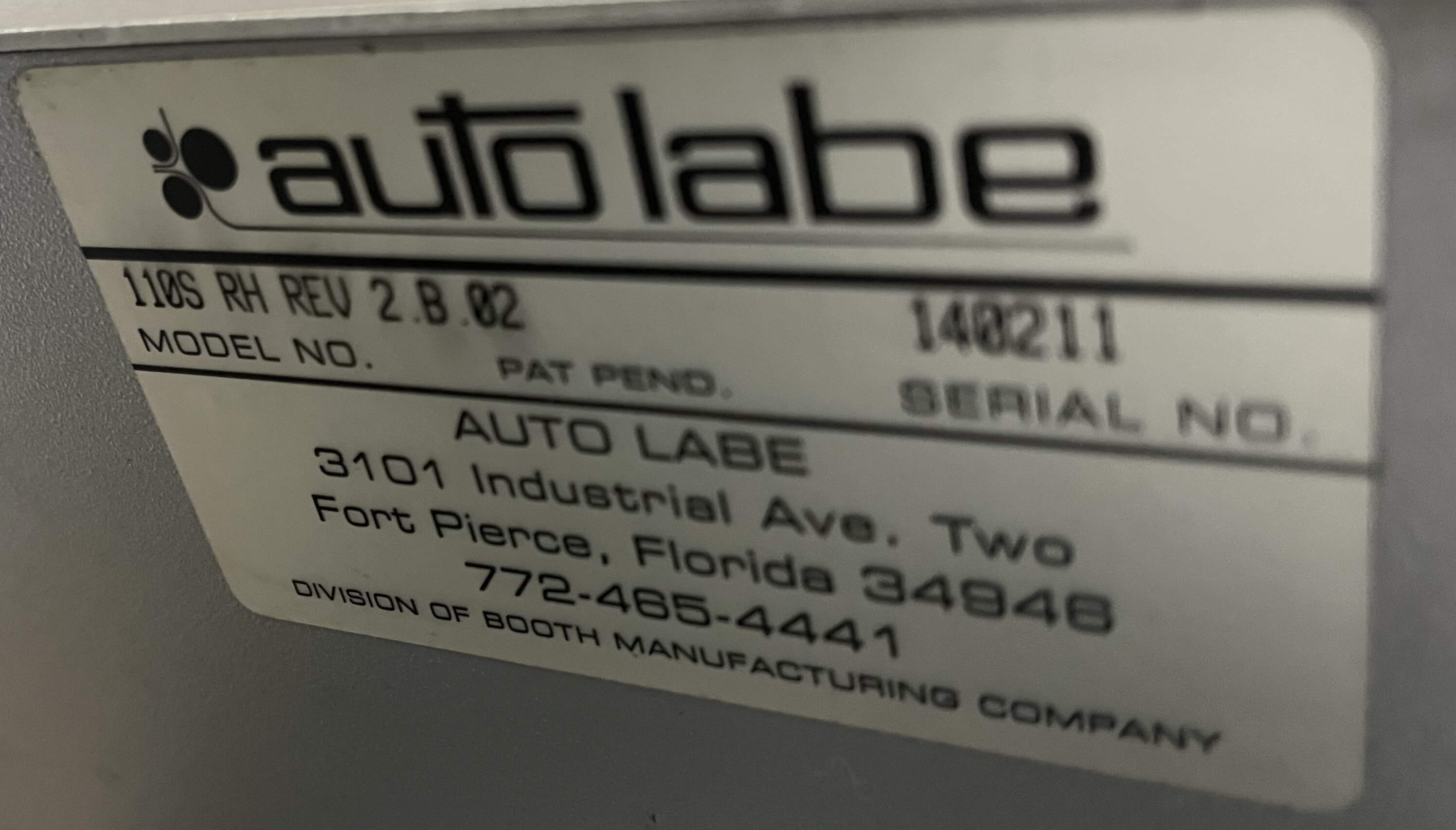

Auto Labe 110S RH with 822 E REV
Wraparound Pressure Sensitive Labeler Unit with:
Production output rate:
Up to 300 pieces per minute
Speed: Up to 12 inches per second
Label size:
Minimum: 1 length x 0.5 width (inches)
Maximum: 39 length x 6 width (inches)

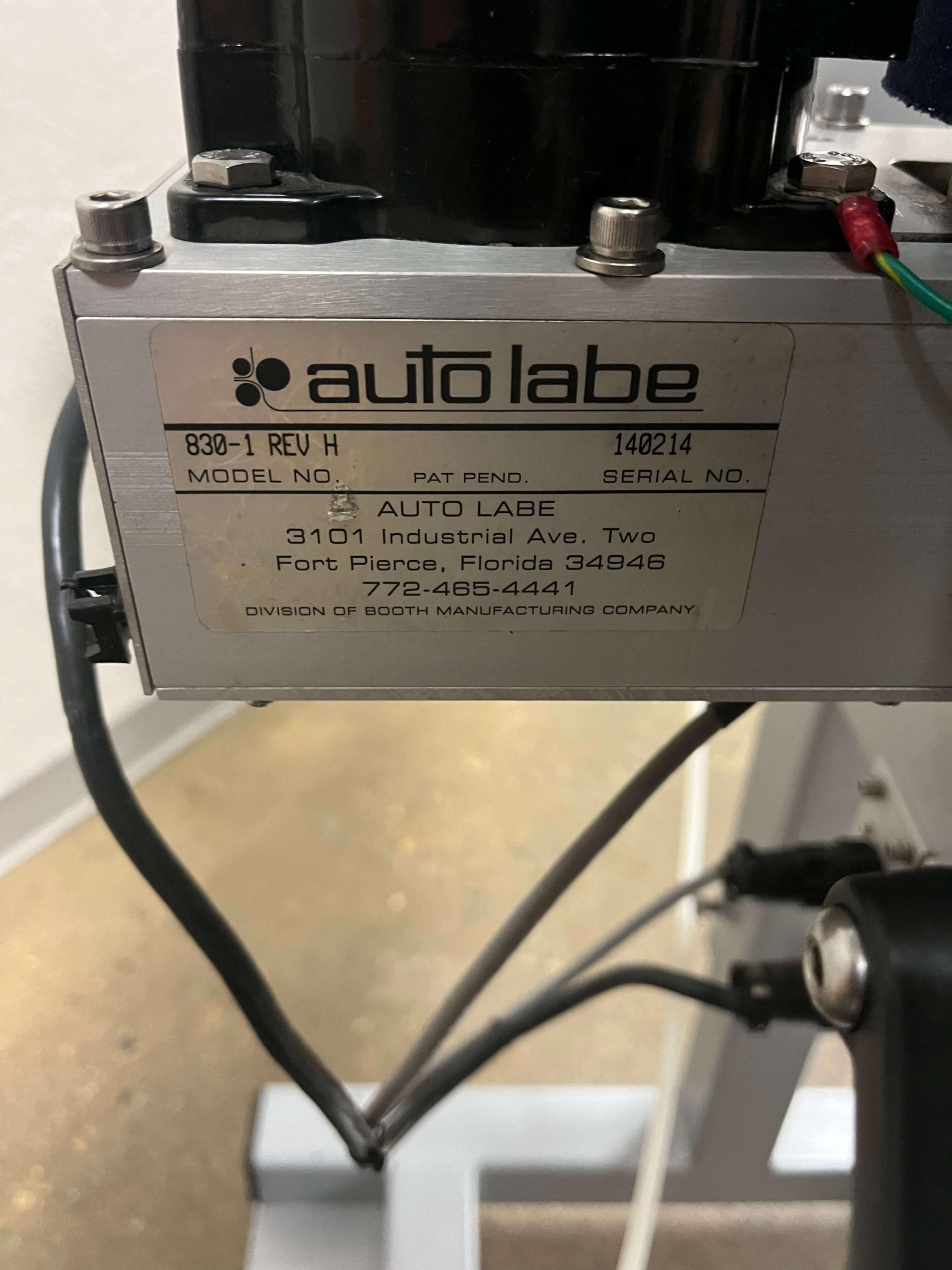

Includes: Autolabe 830 wraparound
Media size:
12 inch roll
3 inch inside diameter core

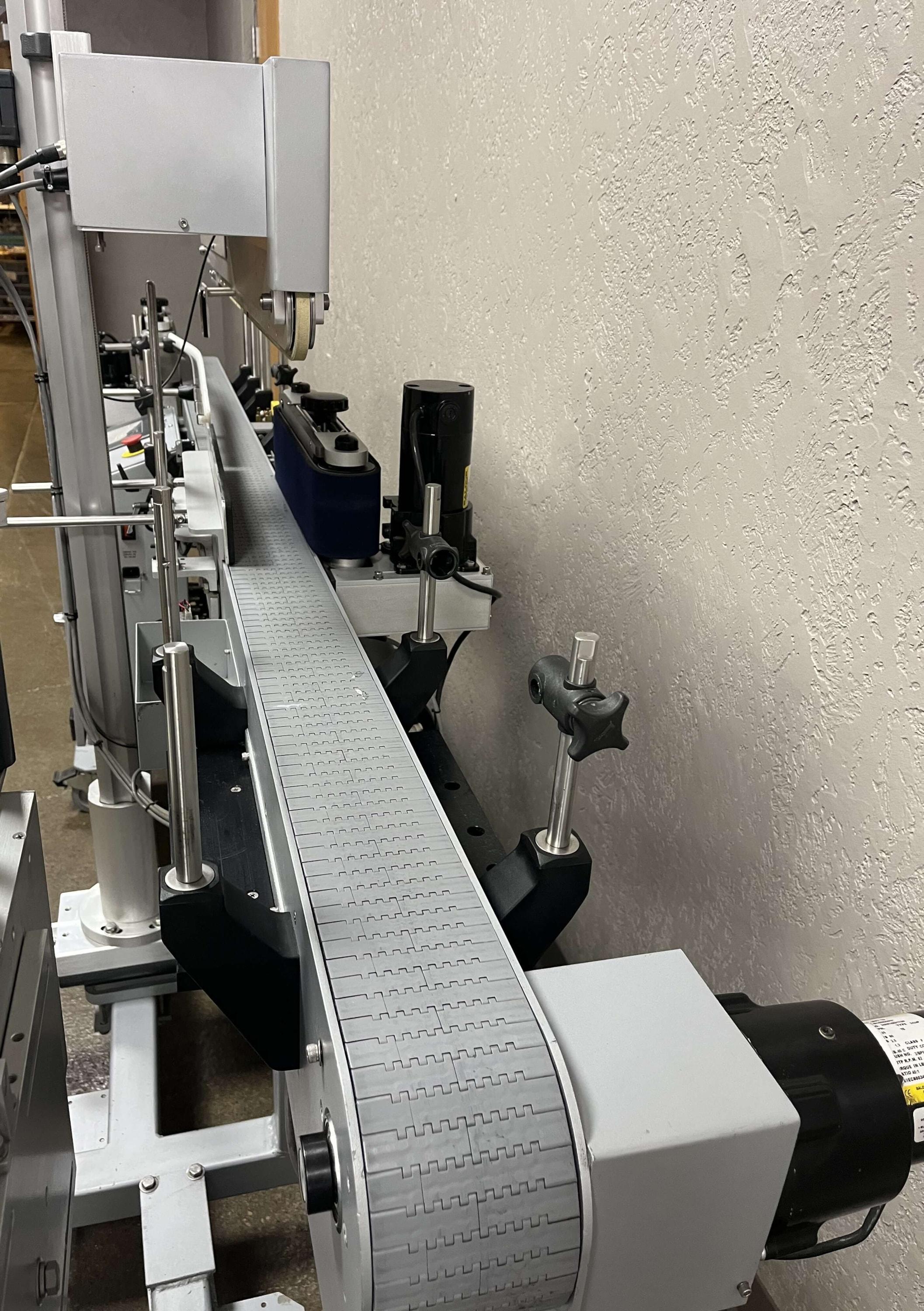

Conveyor dimensions:
72 length x 6 width (inches)

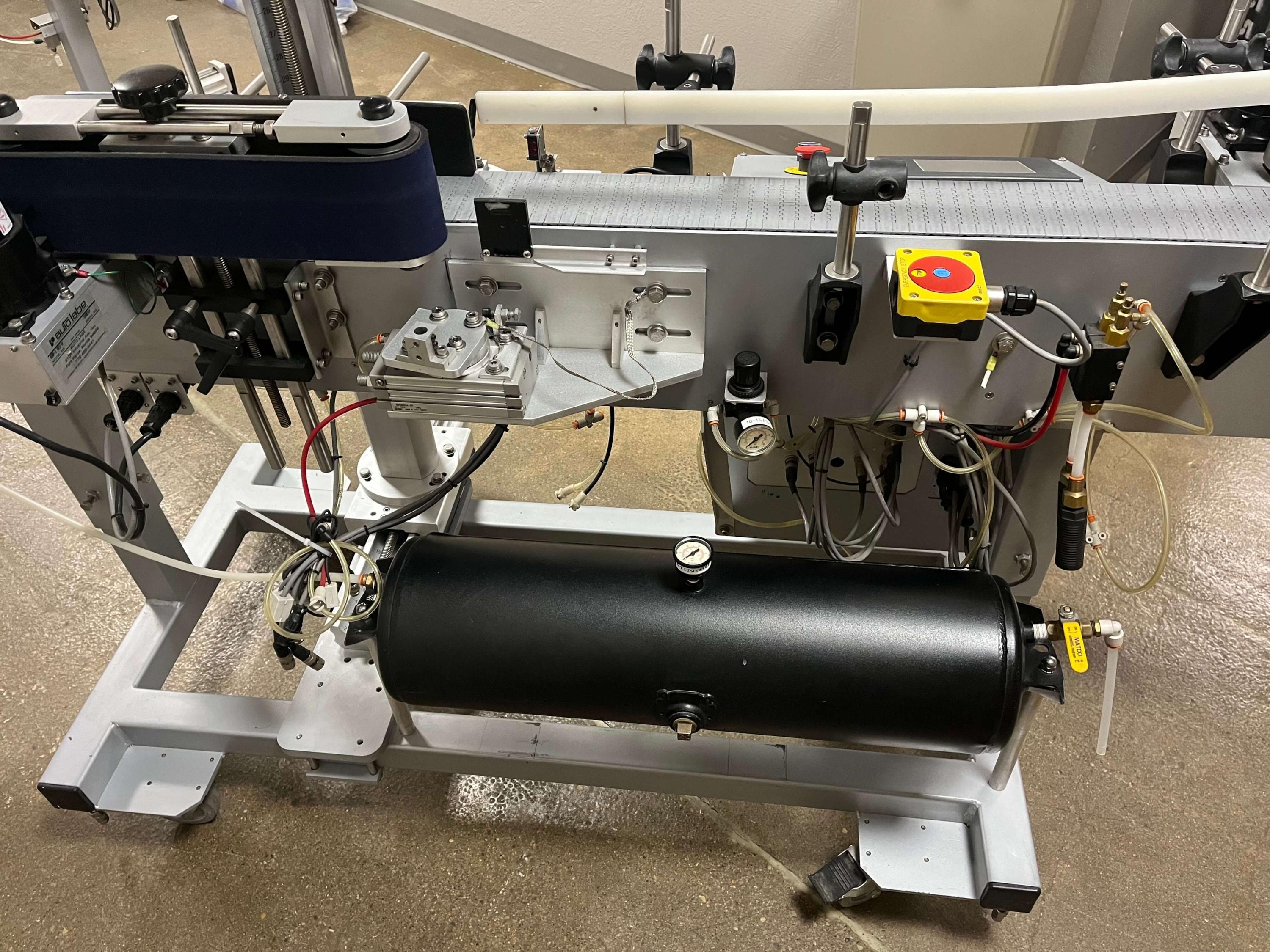

Pneumatic requirements:
90 pounds per square inch at 3 cubic feet per minute
Power supply: 120 voltage / 1 phase / 60 hertz / 10 amperage

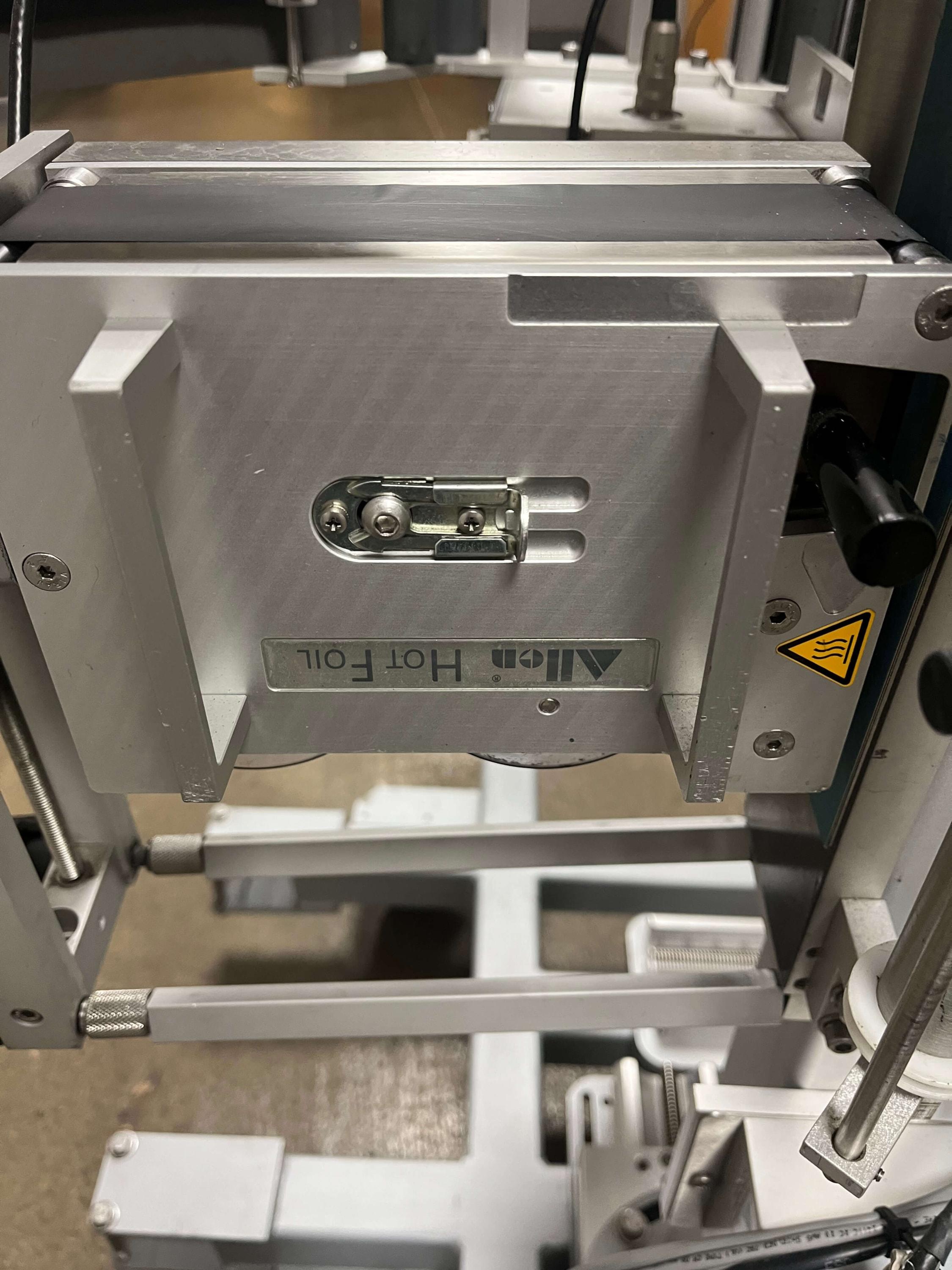

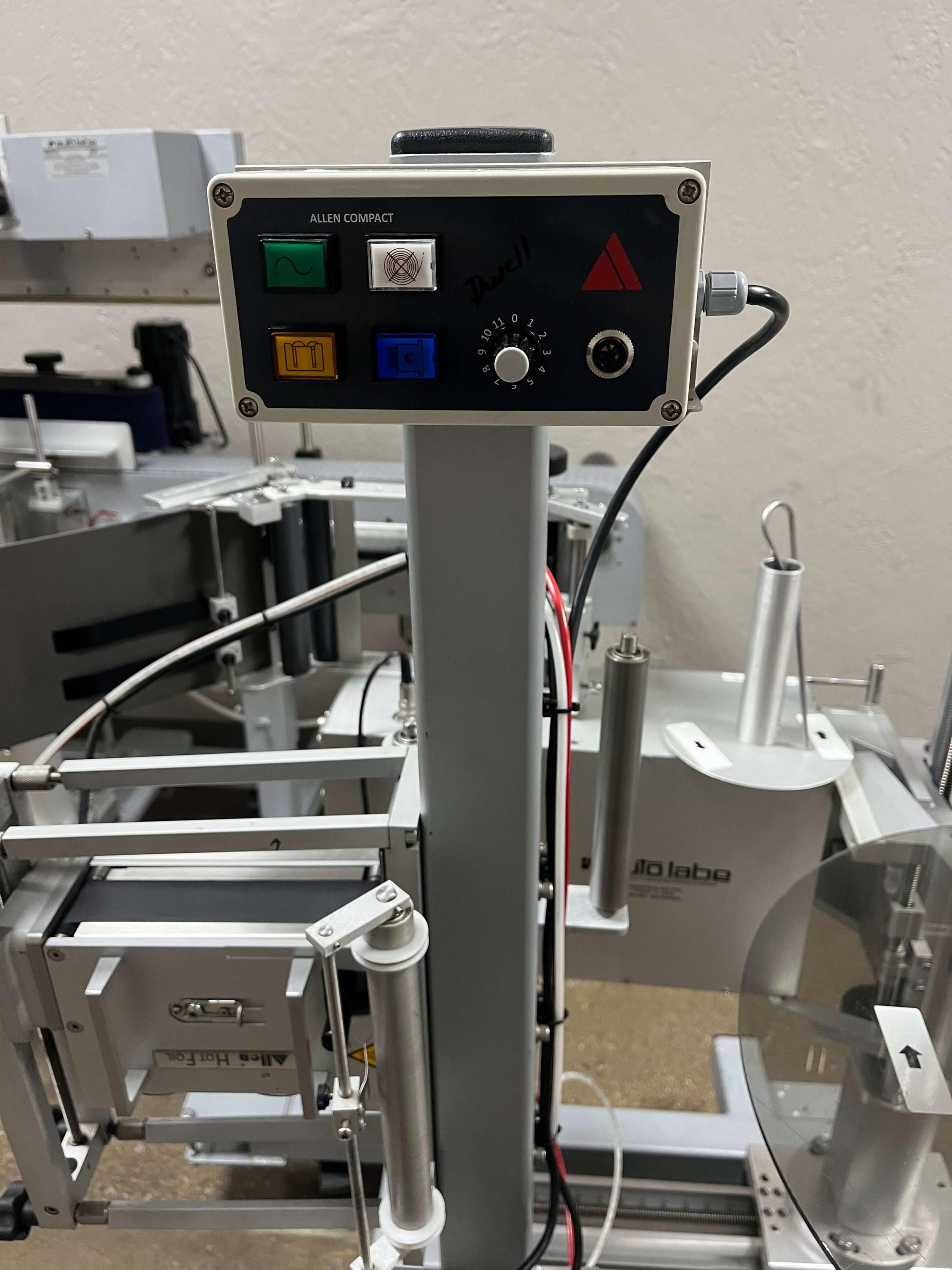

Hot Foil Coding attachment typically used for overprinting text (batch & lot code information, expiry and use by dates, price marking) as well as simple graphics in any color, on to flexible packaging materials. Speeds of up to 700 cycles per minute can be achieved. Prints are clear, dry, non-toxic, and of a quality that cannot be matched by any other on-line printing process.
Features
Capable of more than 700 prints per min
600′ foil roll capacity
Fully variable temperature control
Digital control unit with fault display
Clear, dry, & non-toxic print
Robust alloy air motor
