Atlas Copco ZT90 Oil-Free Rotary Screw Air Compressor System – BD300+ Desiccant Dryer – 1,065 Gallon Receiver Tank
Manufacturer: Atlas Copco
Year Built: 2019
System Includes

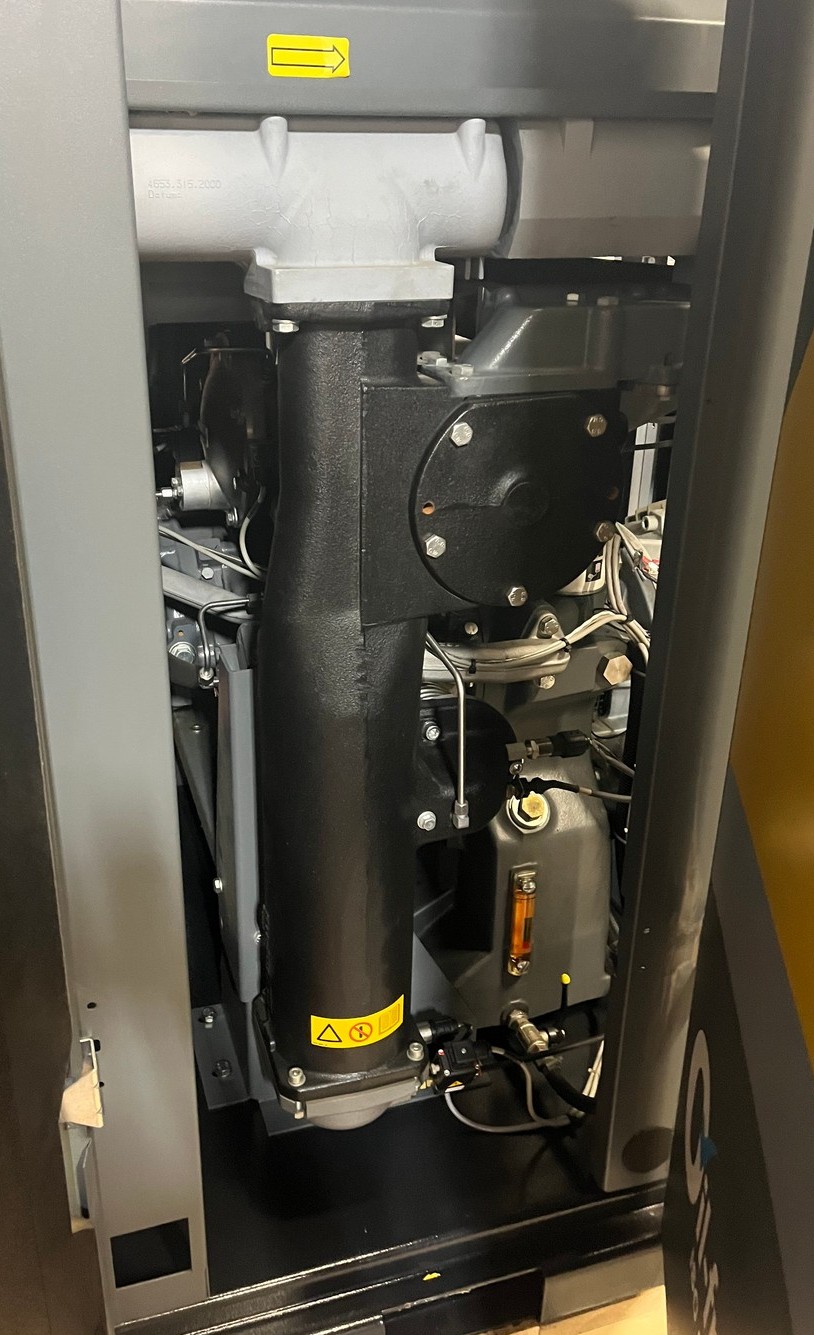

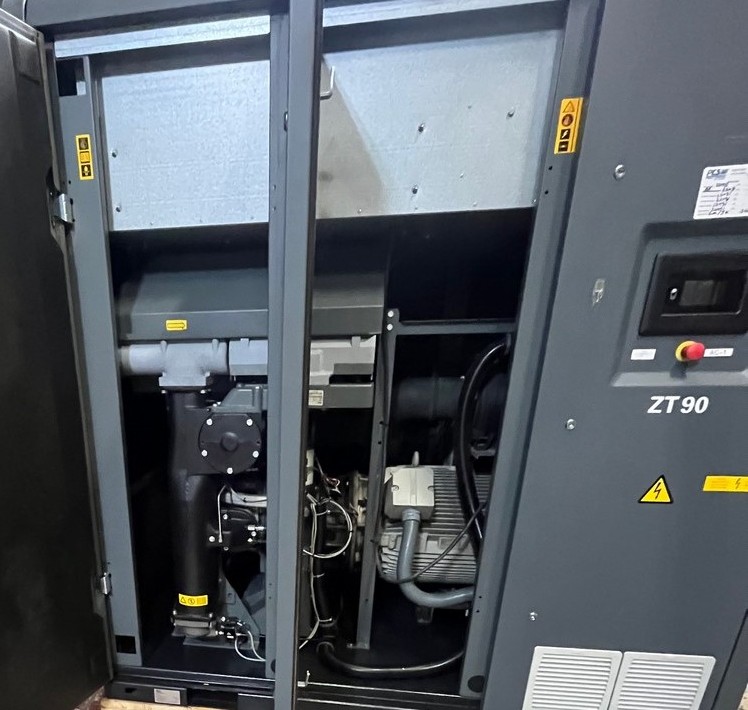

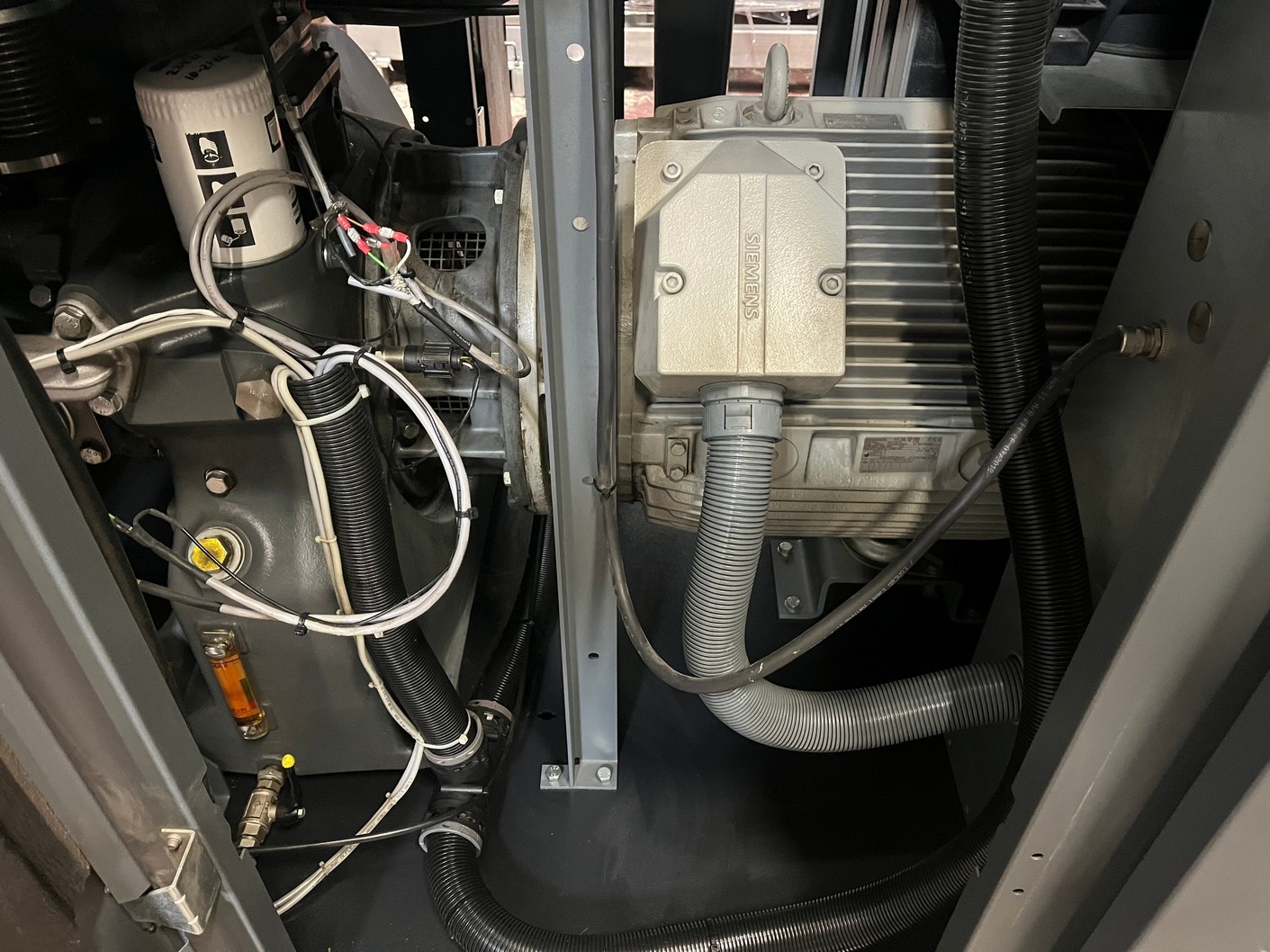

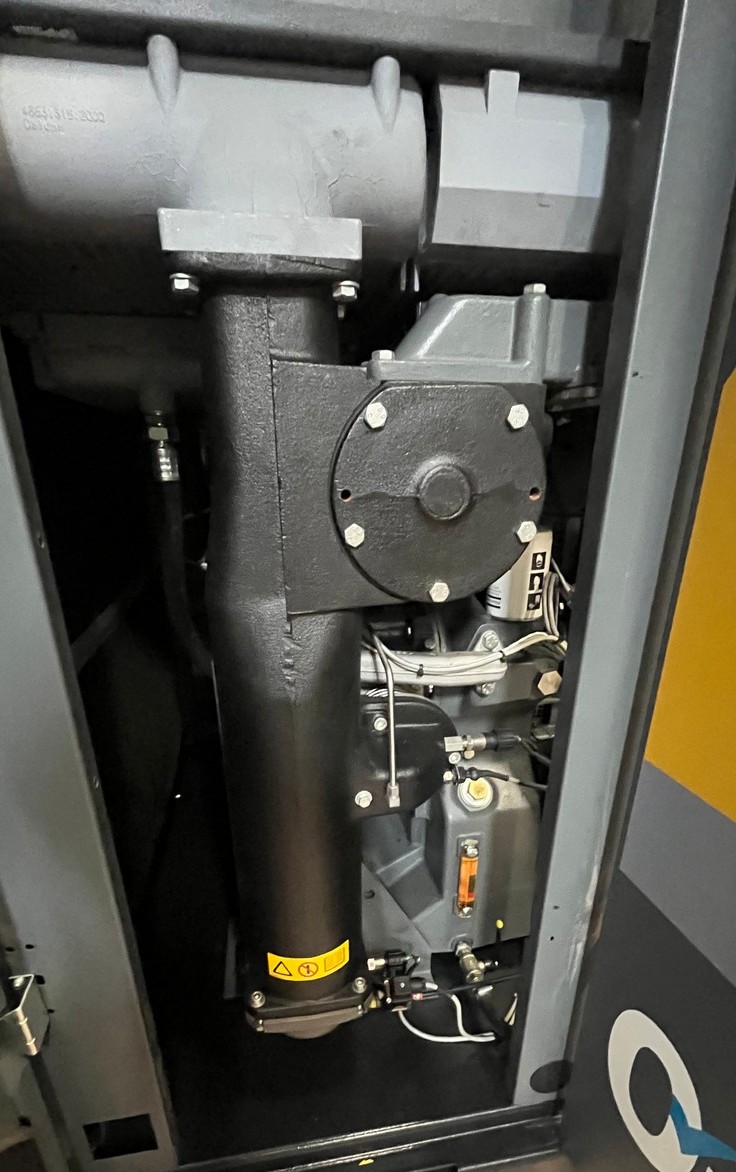

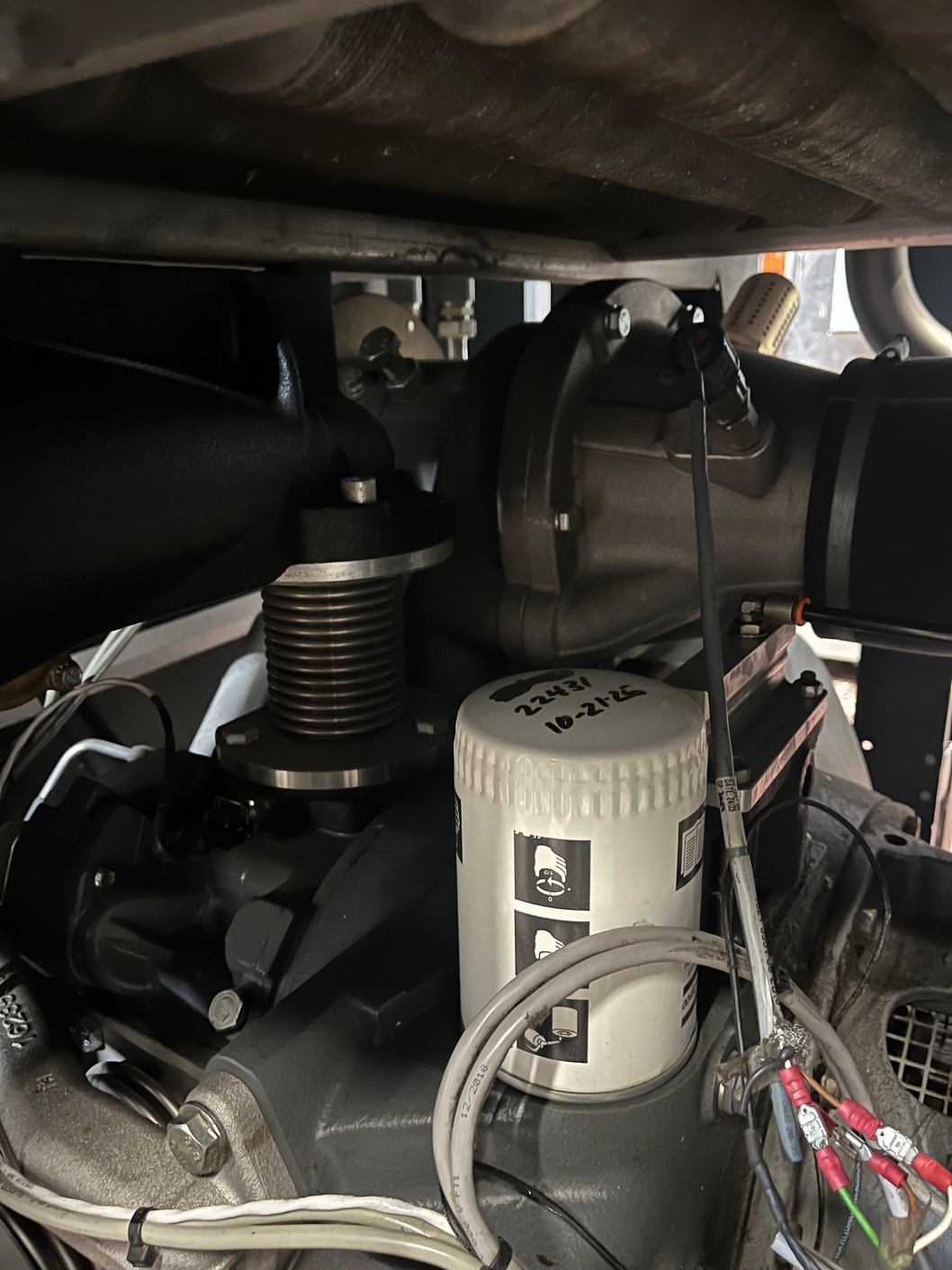

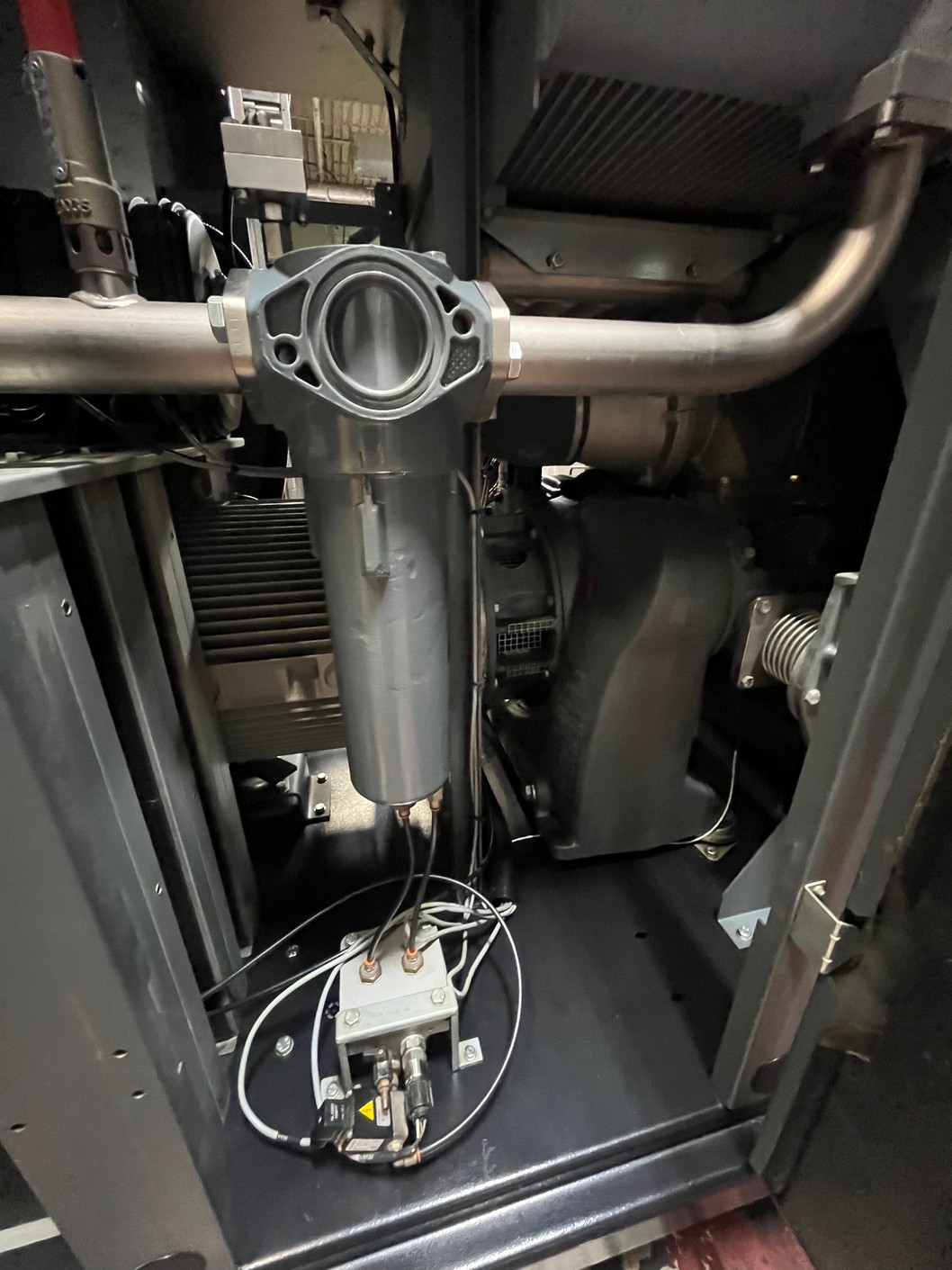

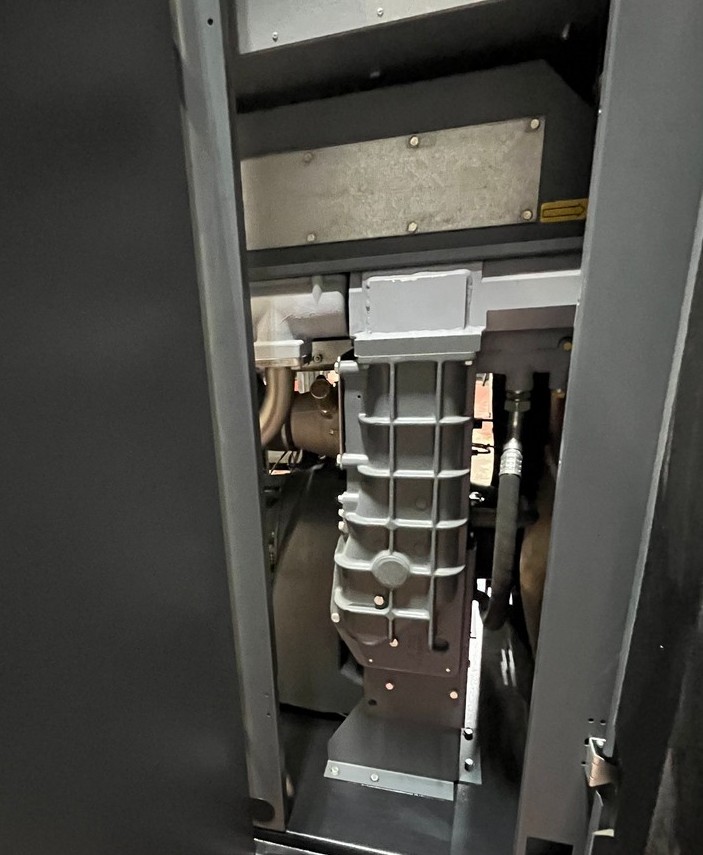

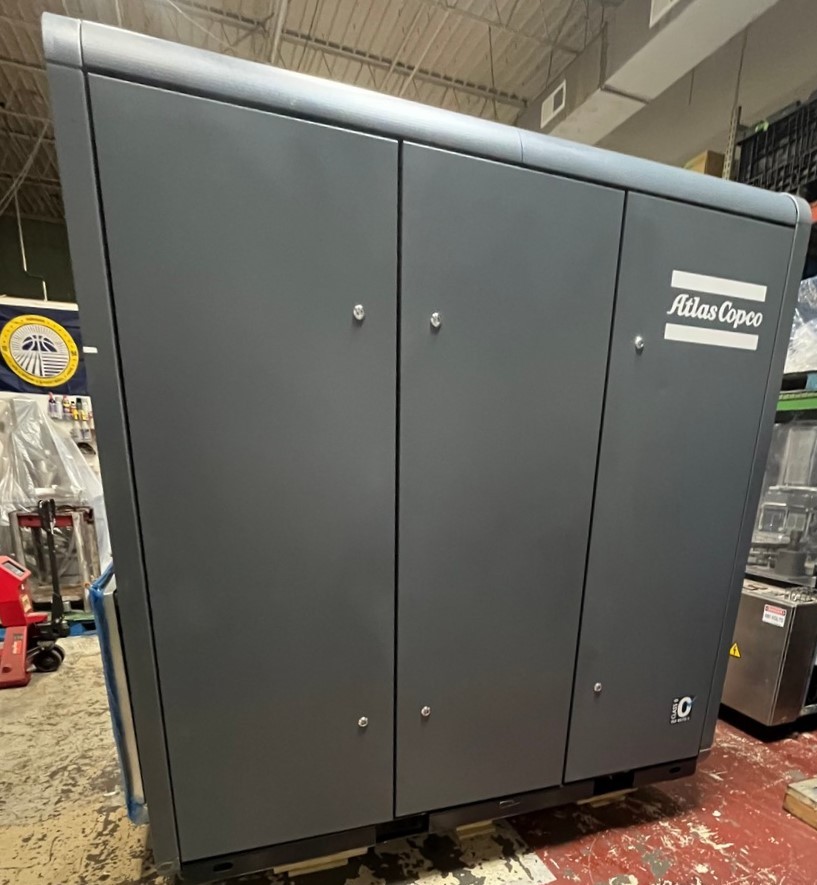

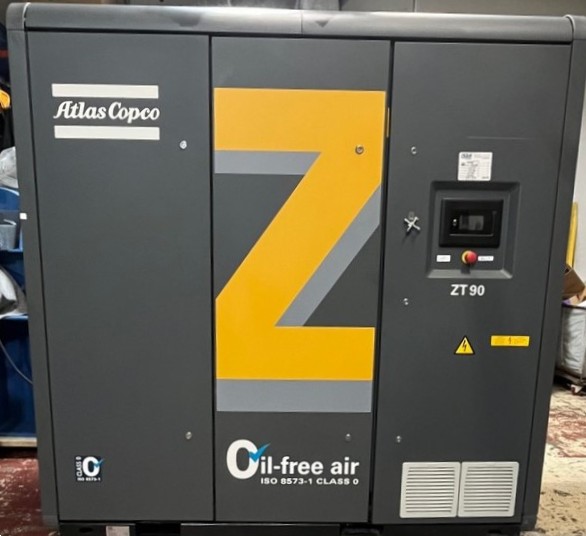

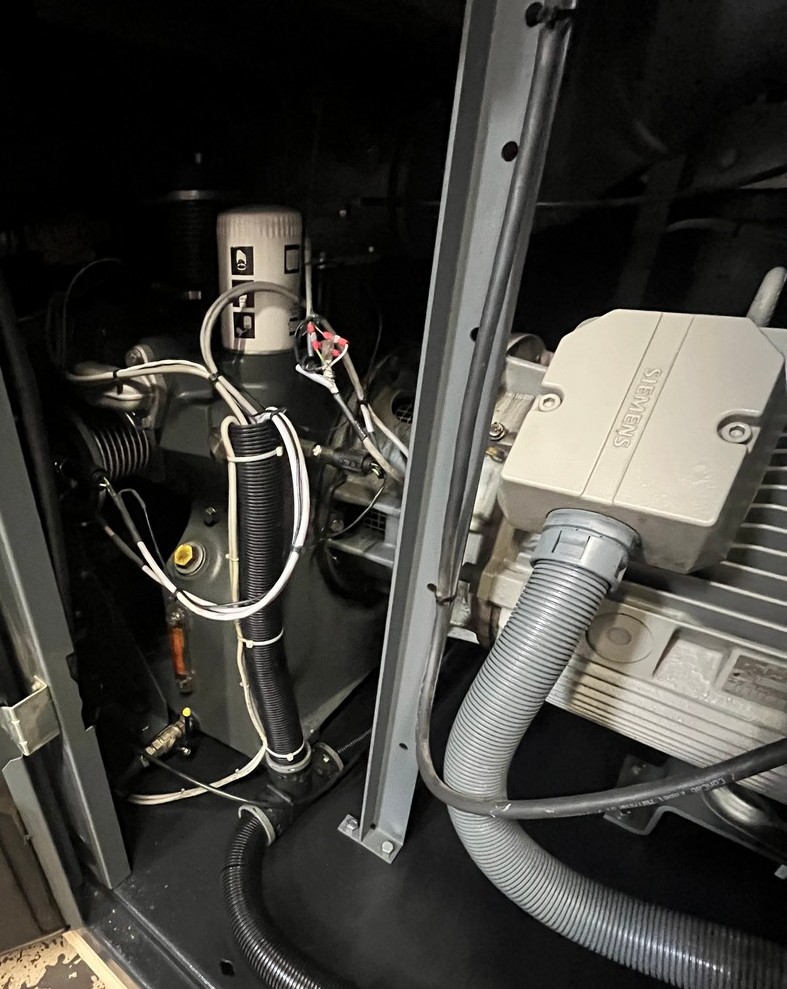

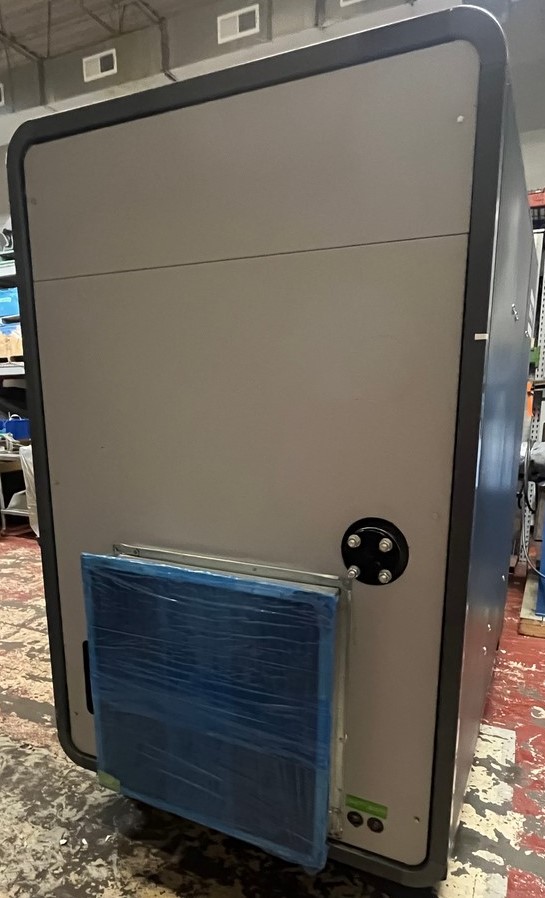

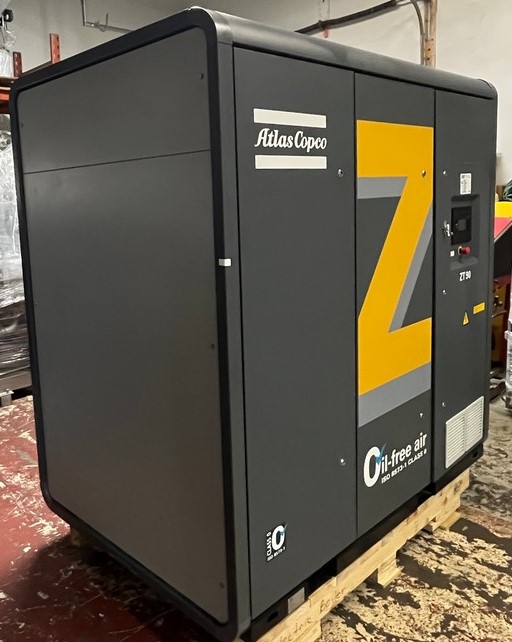

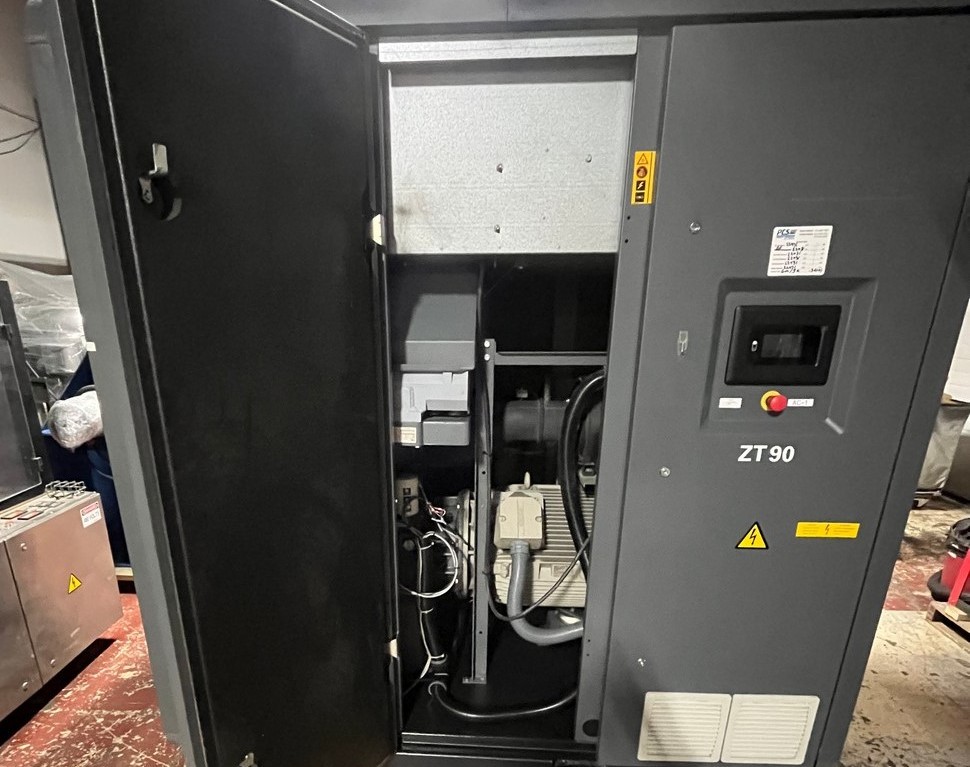

Atlas Copco ZT90 Oil-Free Rotary Screw Air Compressor

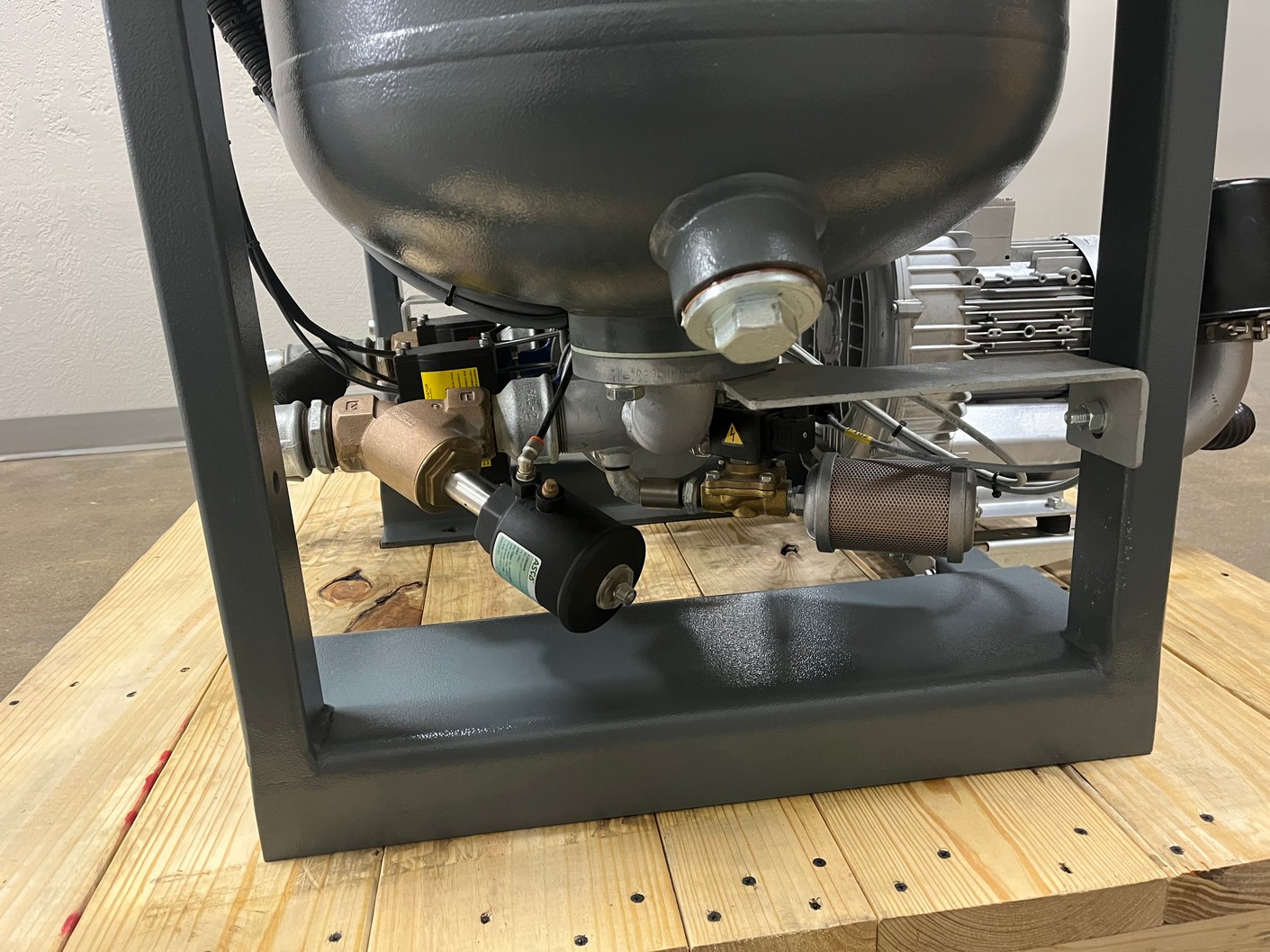

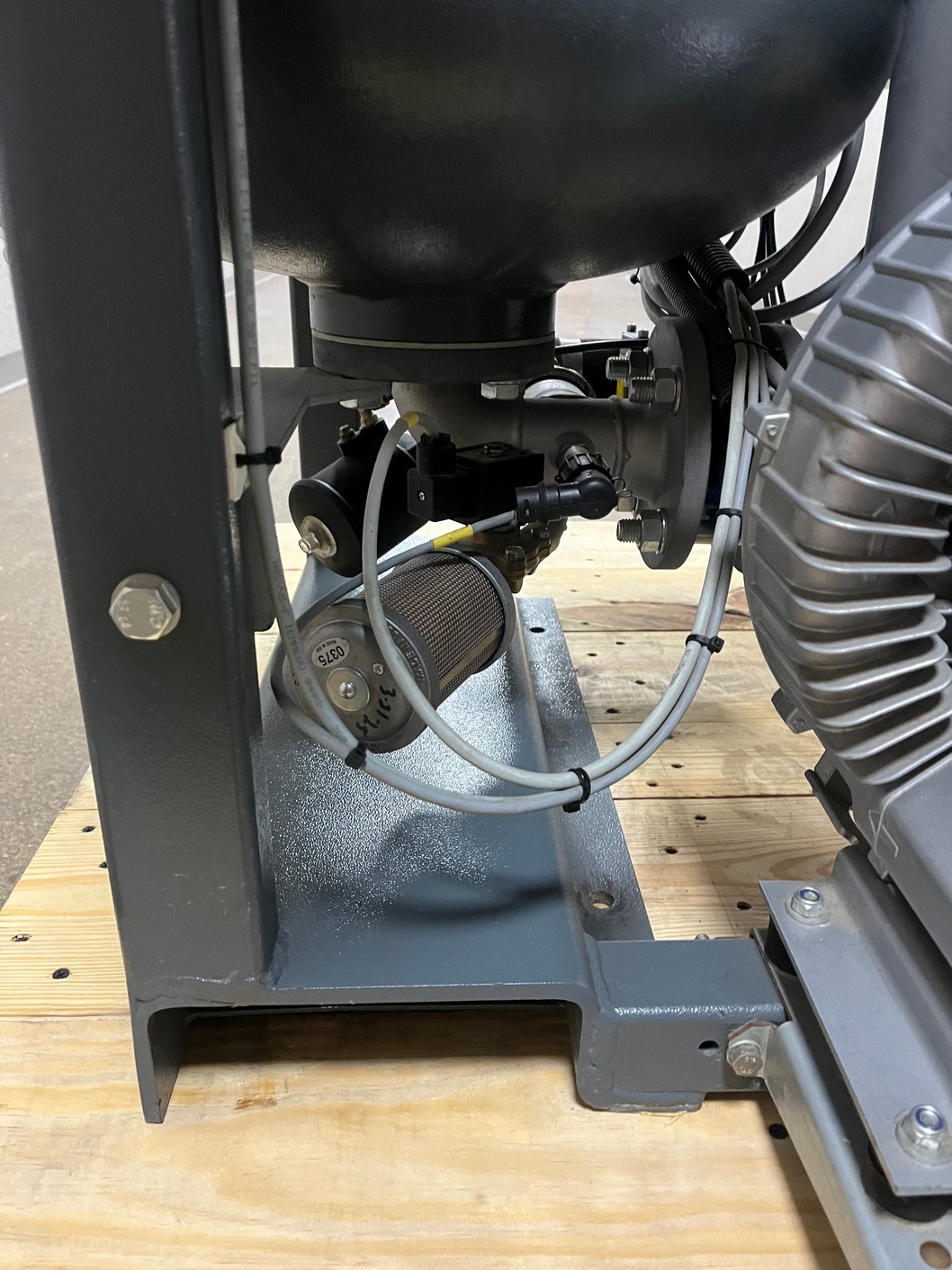

Atlas Copco BD300+ Heated Blower Purge Desiccant Air Dryer
1,065 gal. air storage tank

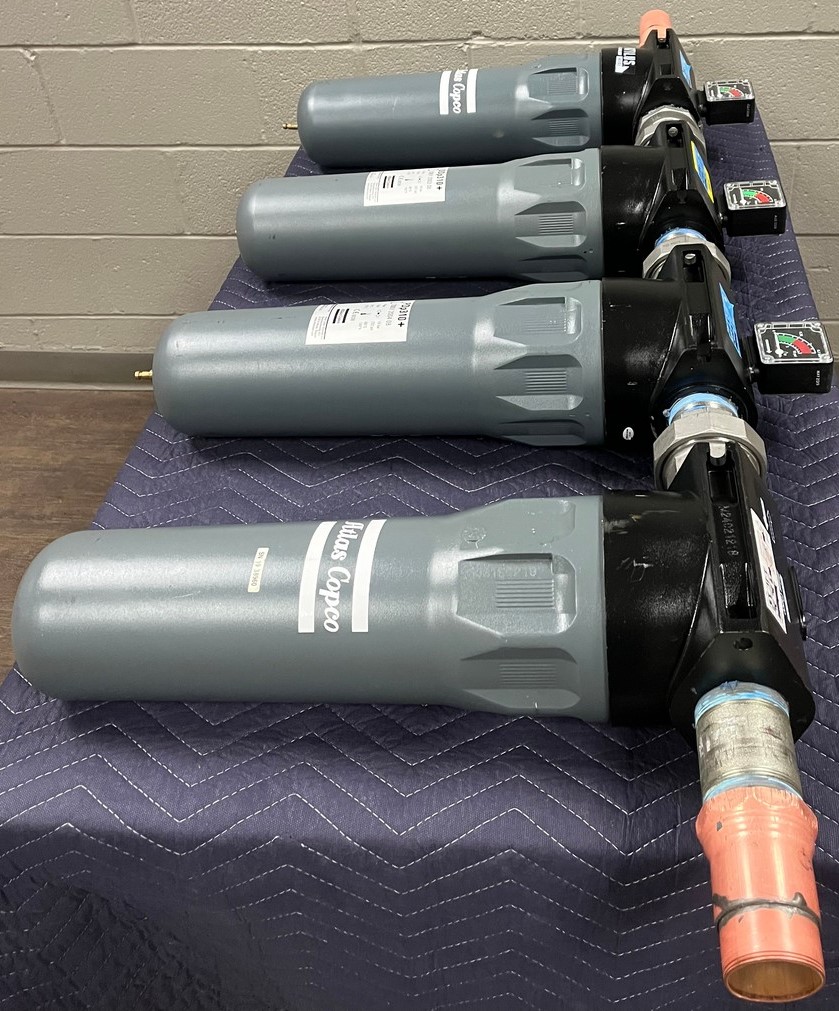

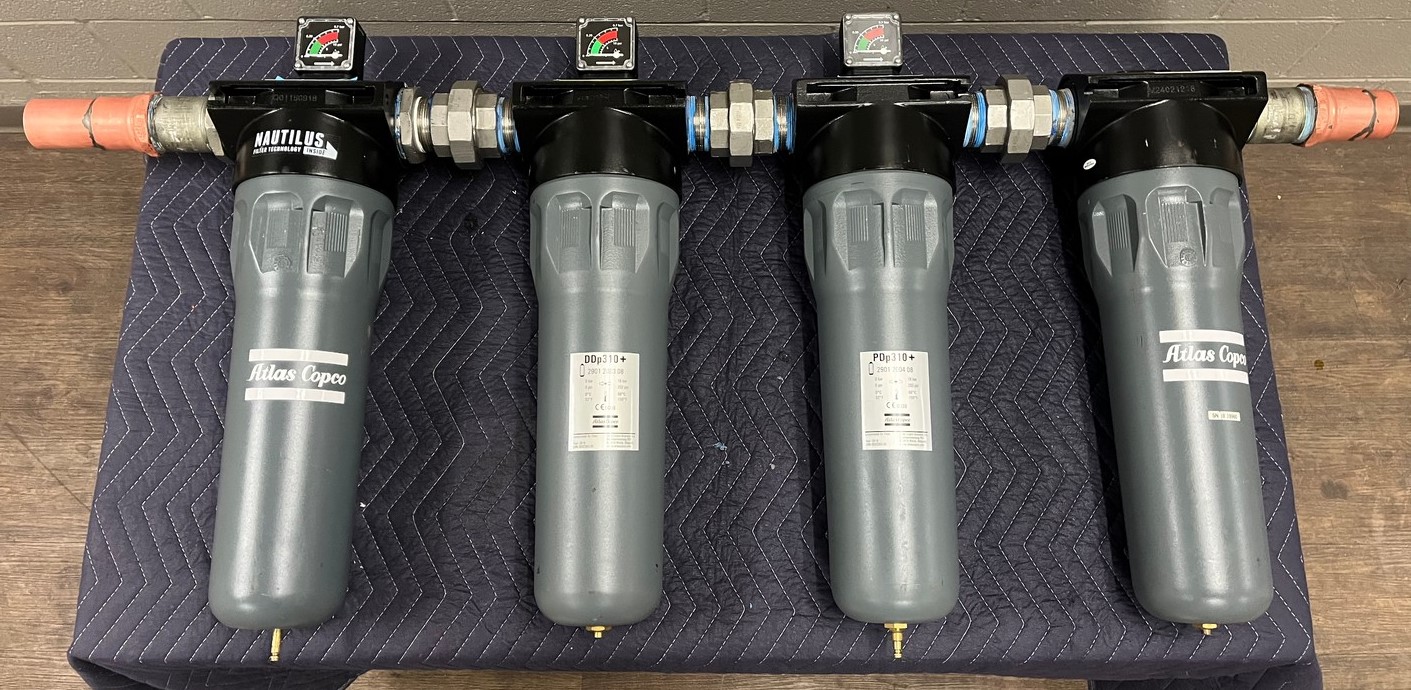

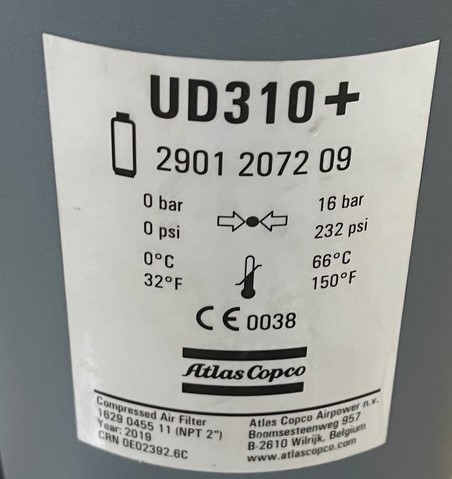

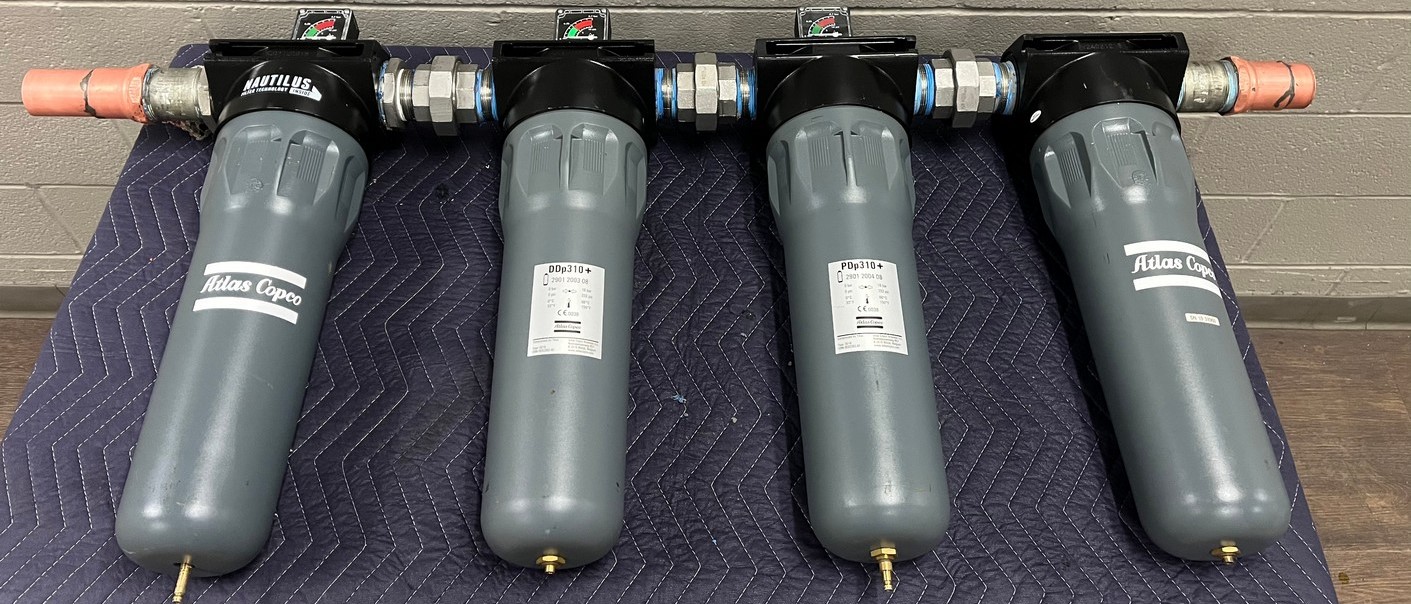

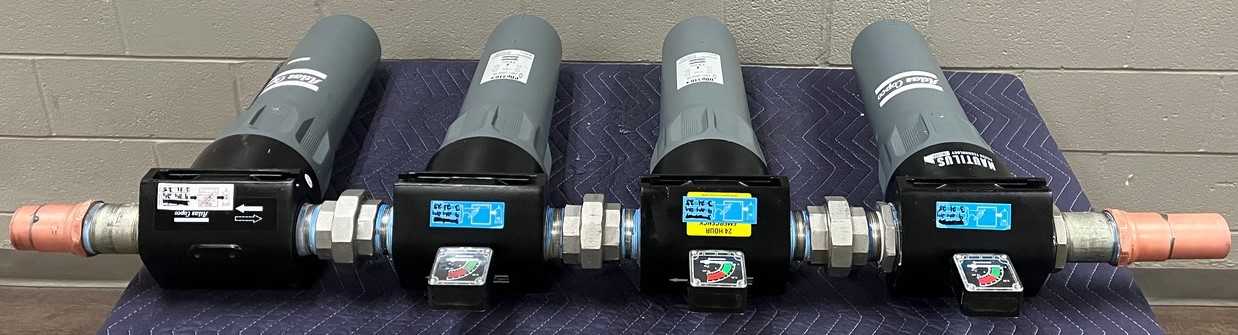

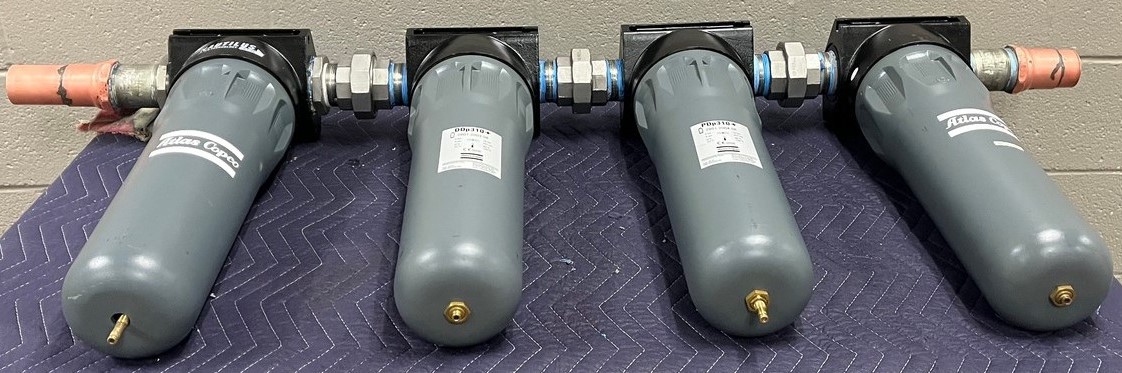

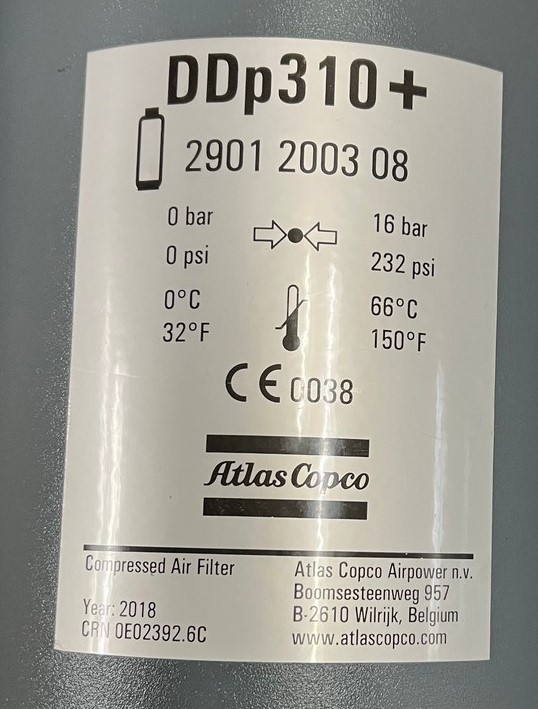

Filter bank (oil/liquids, course particulate, fine particulate, oil vapor)

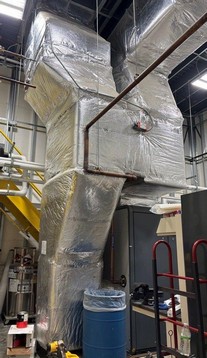

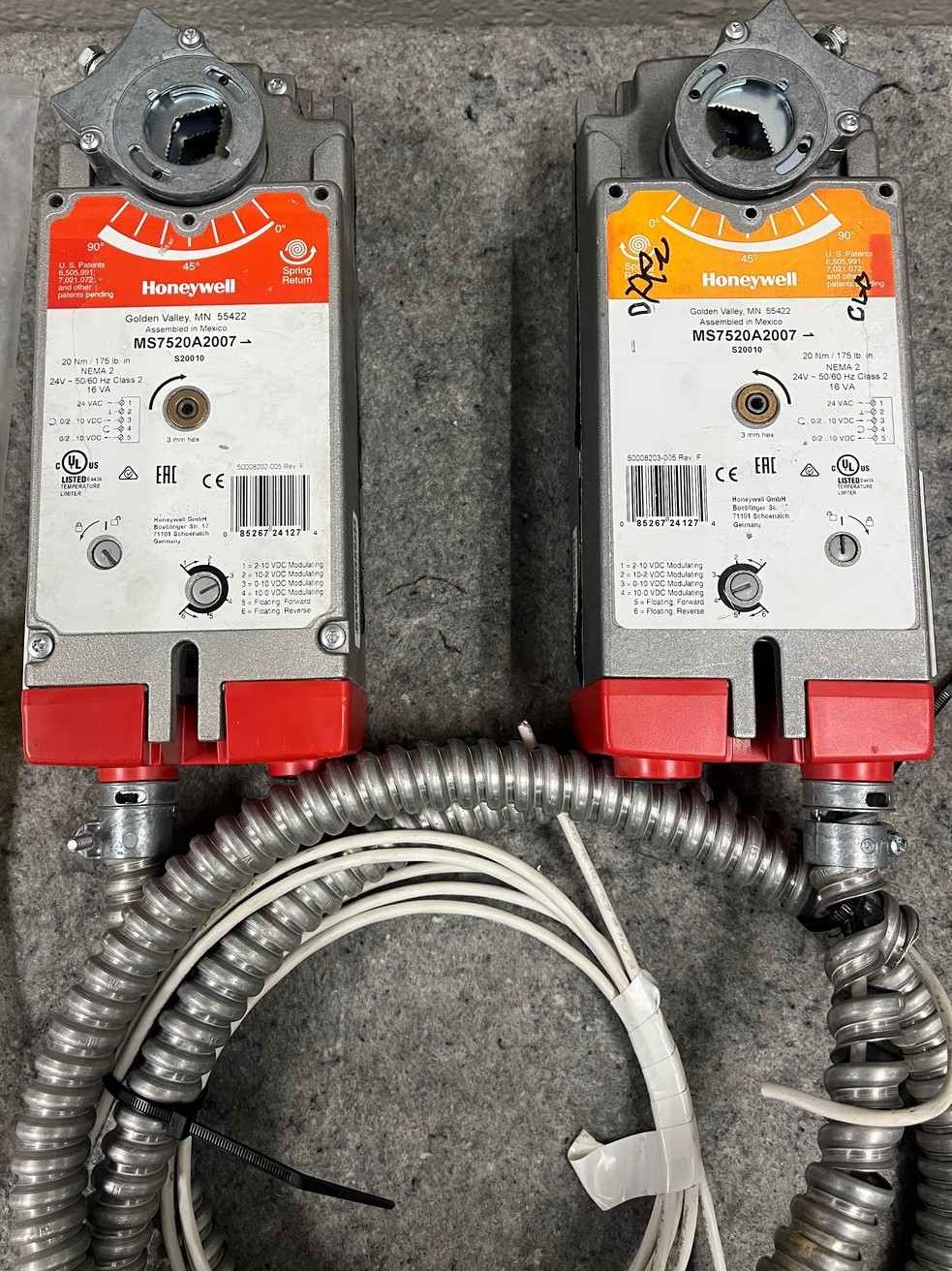

Intake, exhaust, air mixing ductwork and dampers
Complete industrial compressed air system

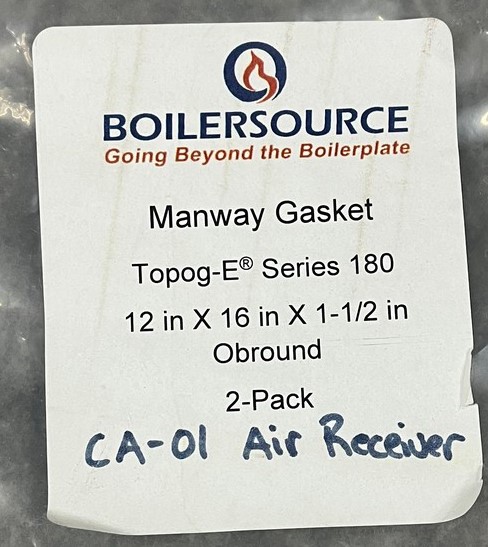

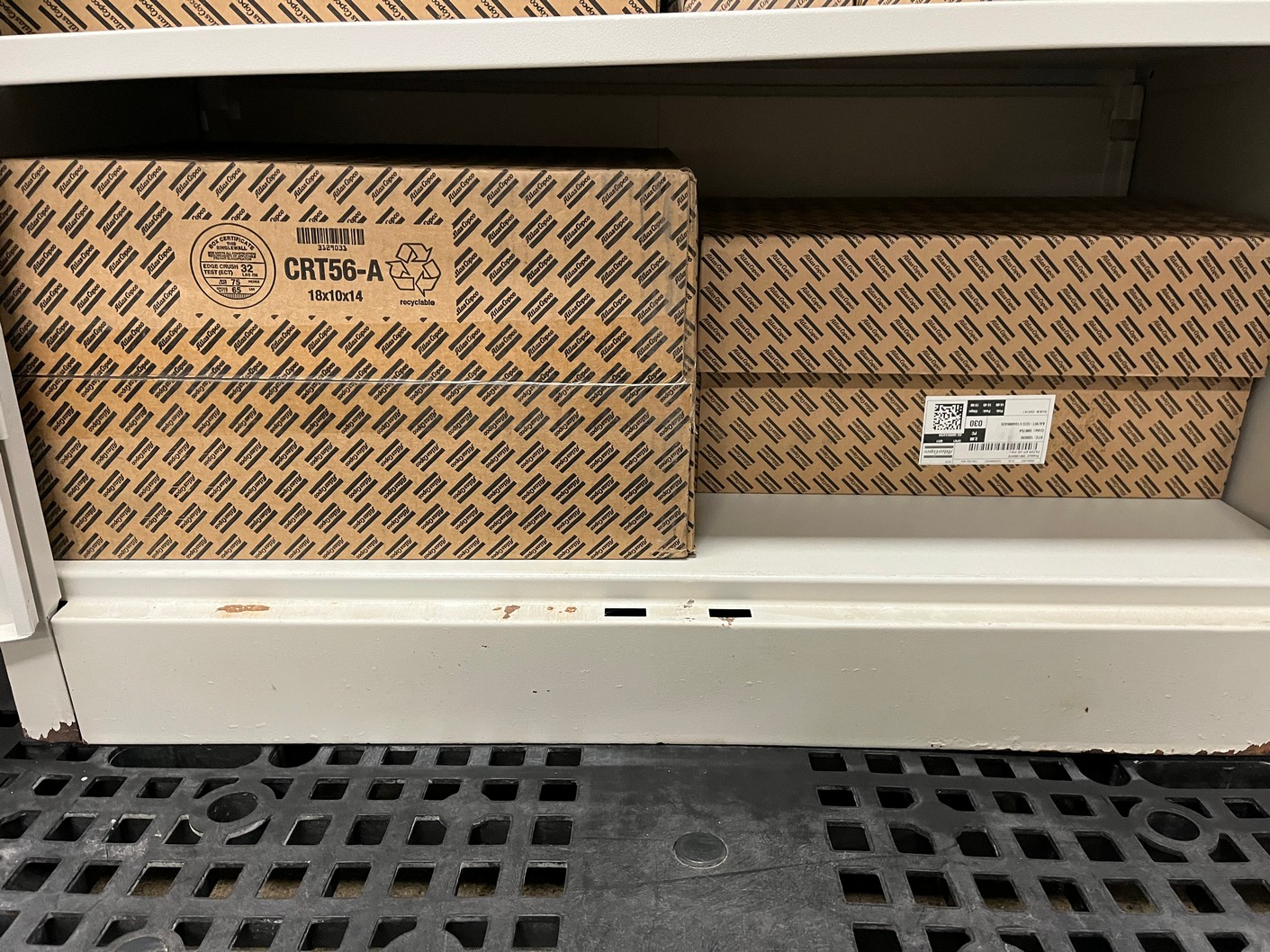

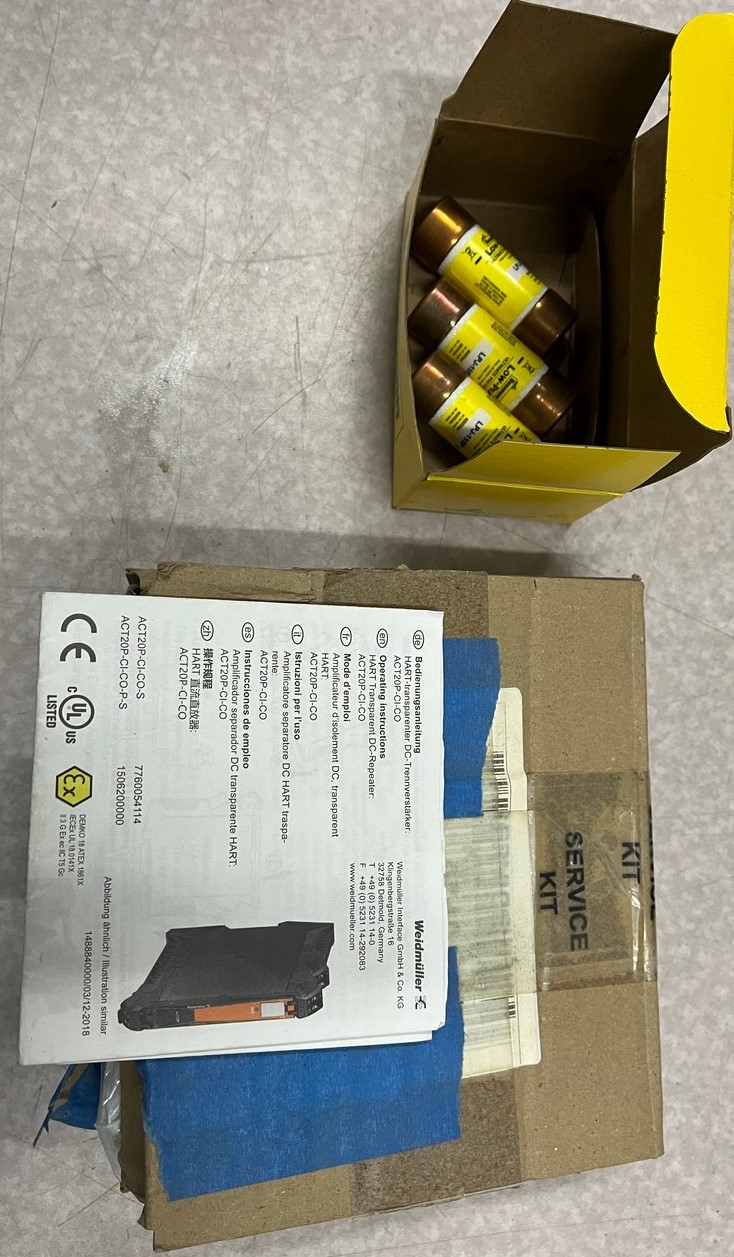

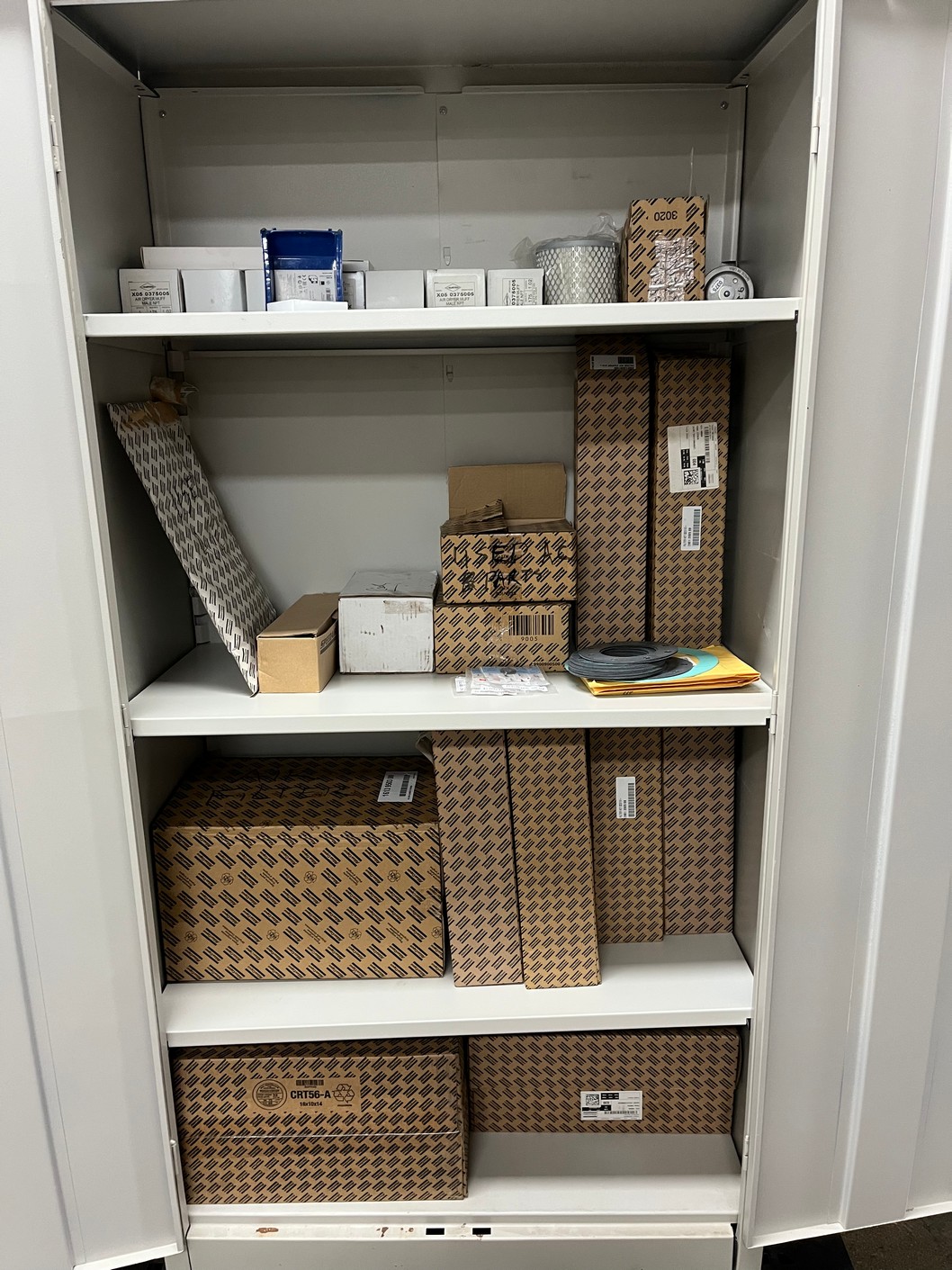

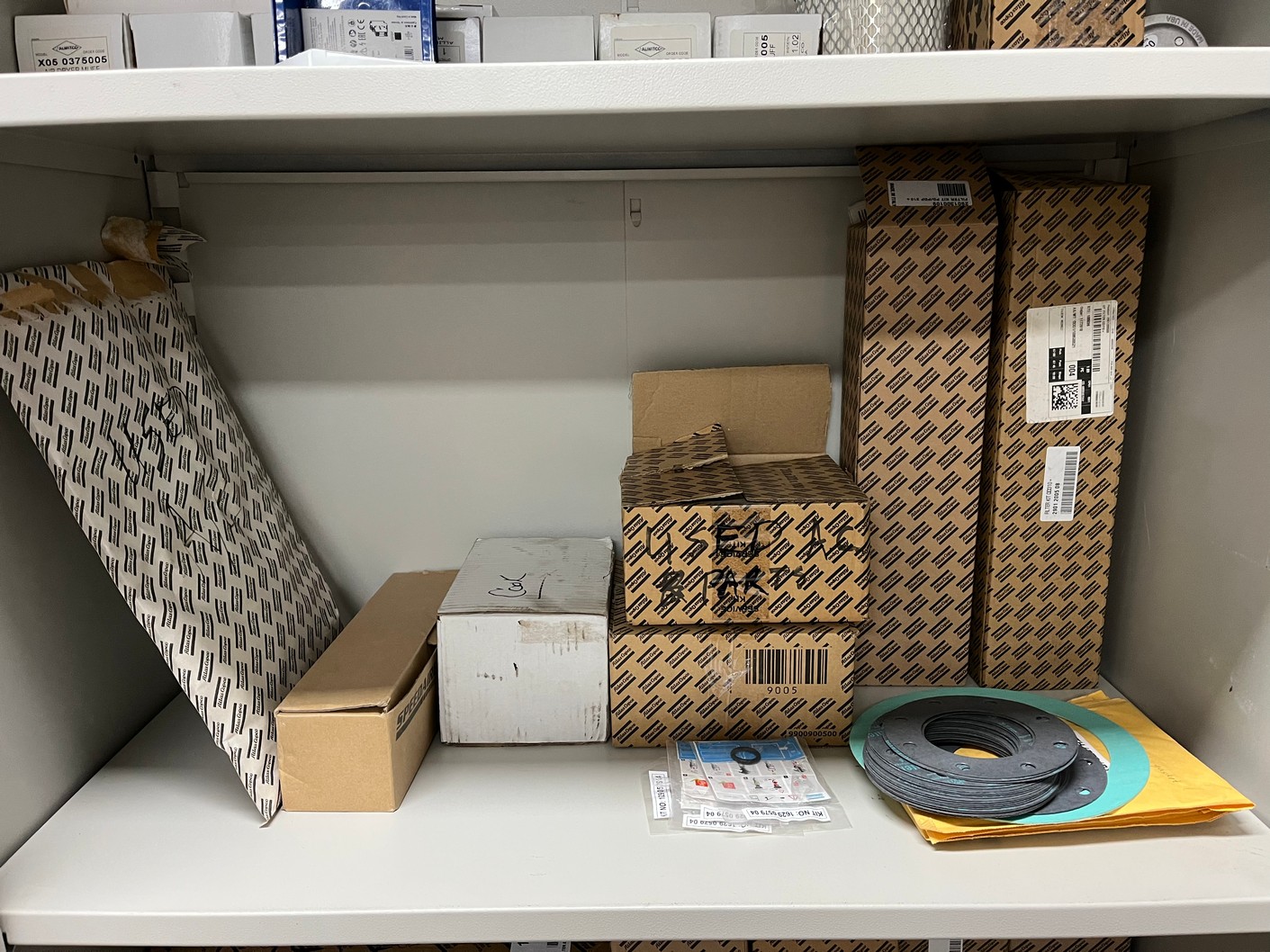

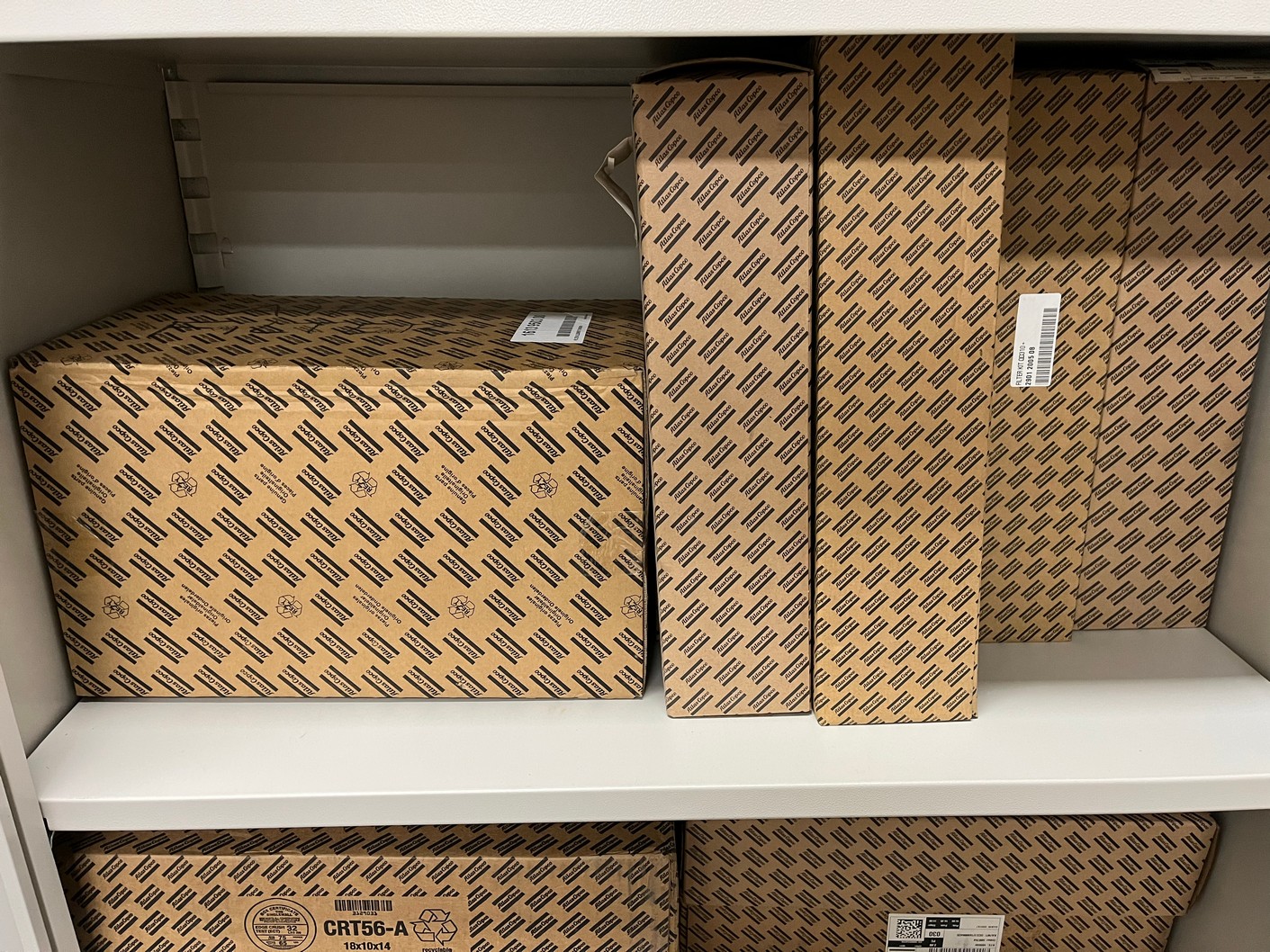

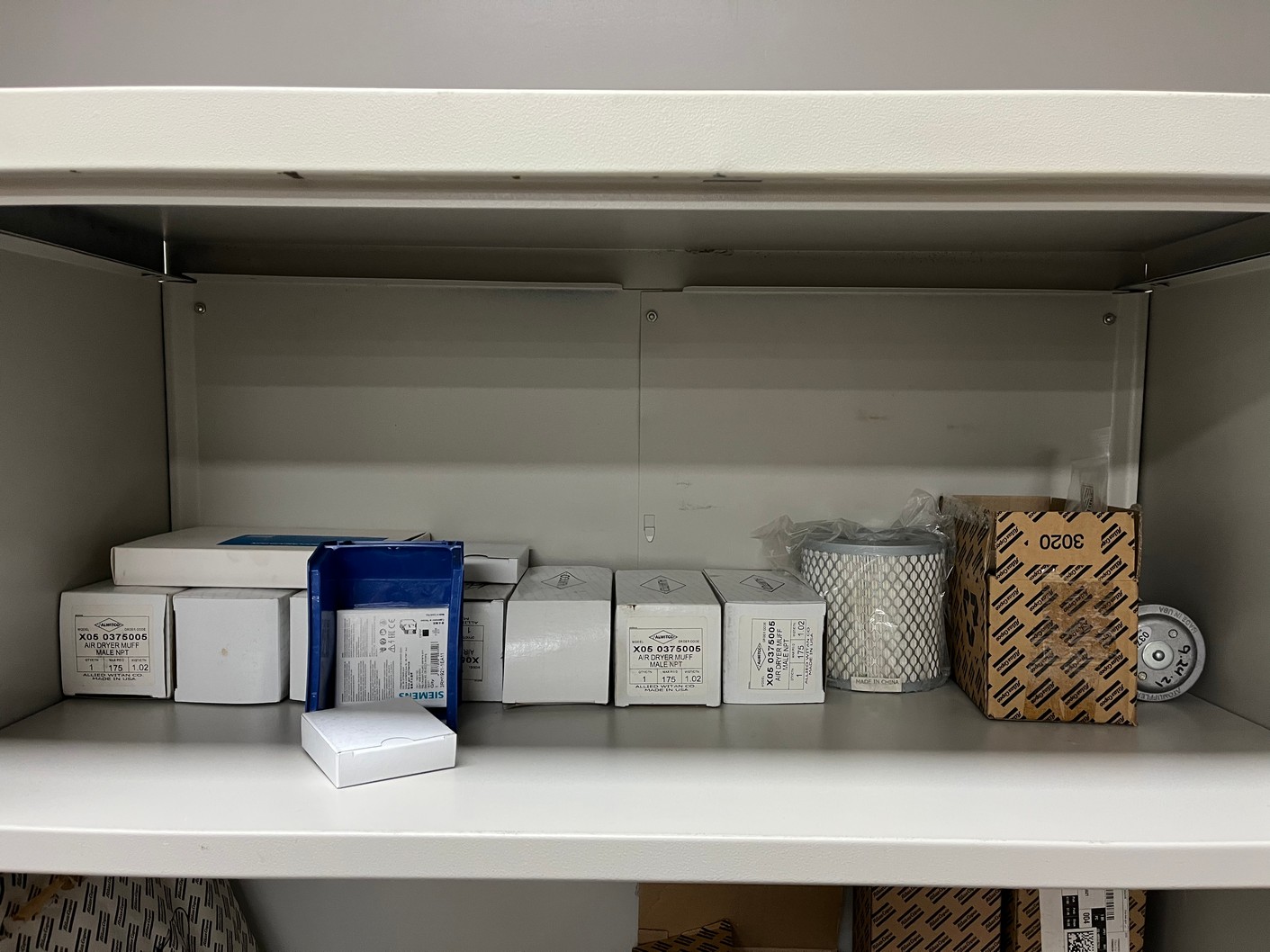

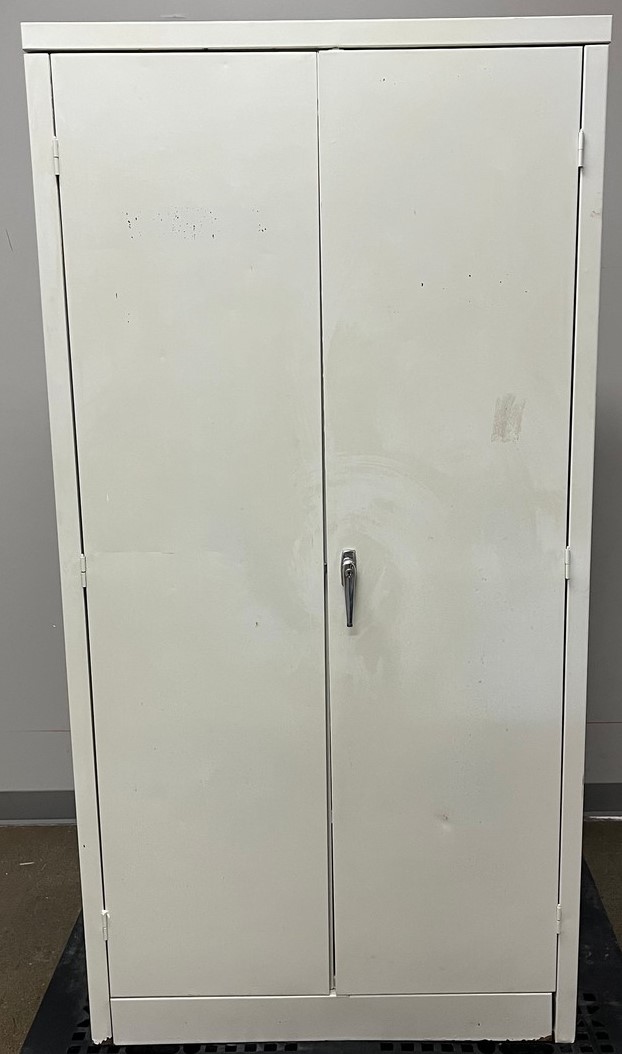

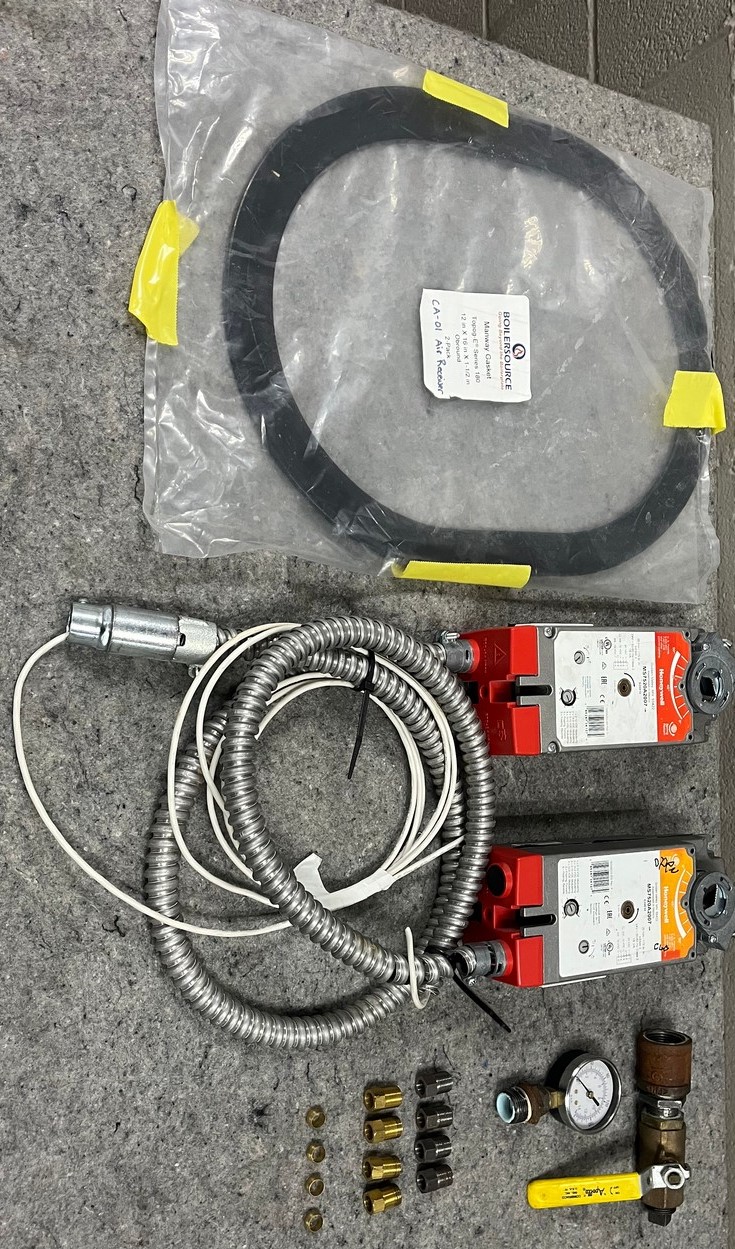

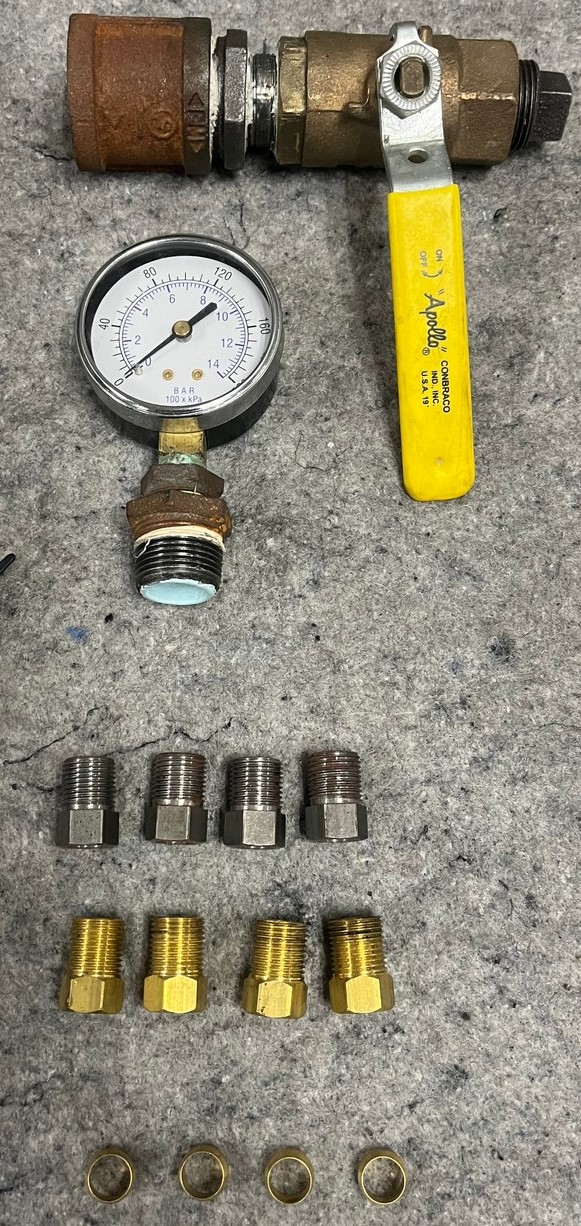

Spare parts cabinet

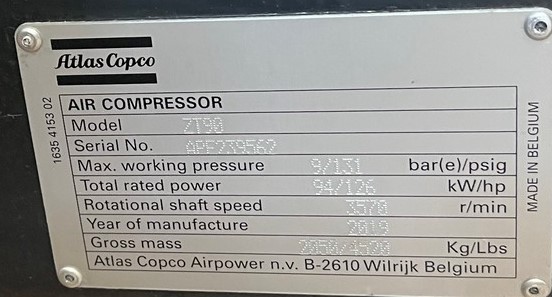

Compressor Specifications
Model: ZT90

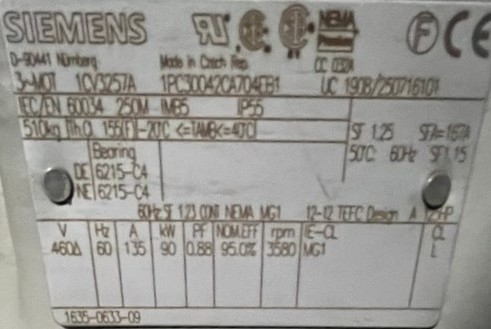

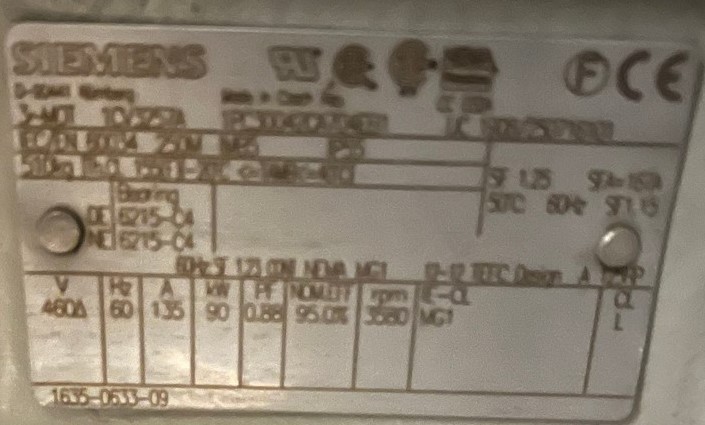

Motor Power: 90 kW (≈120 HP)
Compressor Type: Two-Stage Oil-Free Rotary Screw
Cooling: Air-Cooled
Air Delivery: approx. 157 – 497 CFM
Operating Pressure: approx. 60 – 150 PSI
Air Quality: ISO 8573-1 Class 0 Certified Oil-Free Air

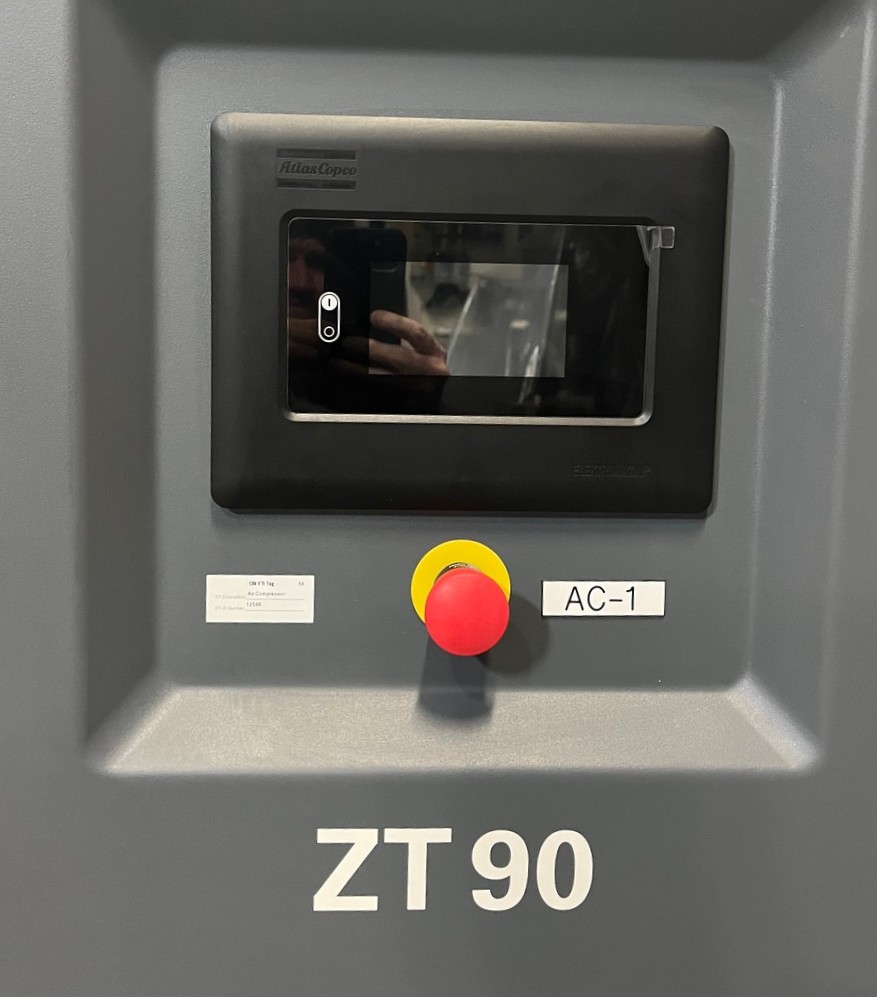

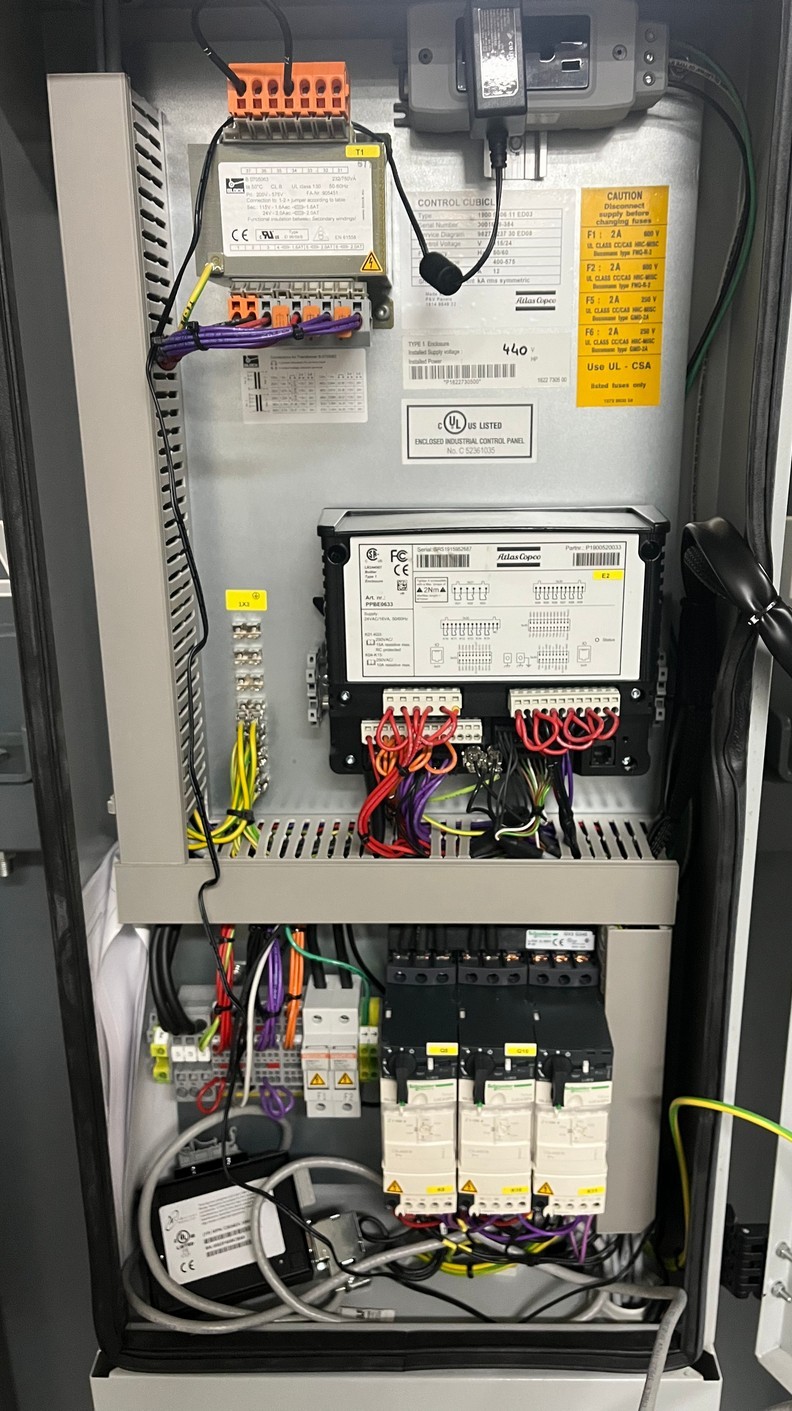

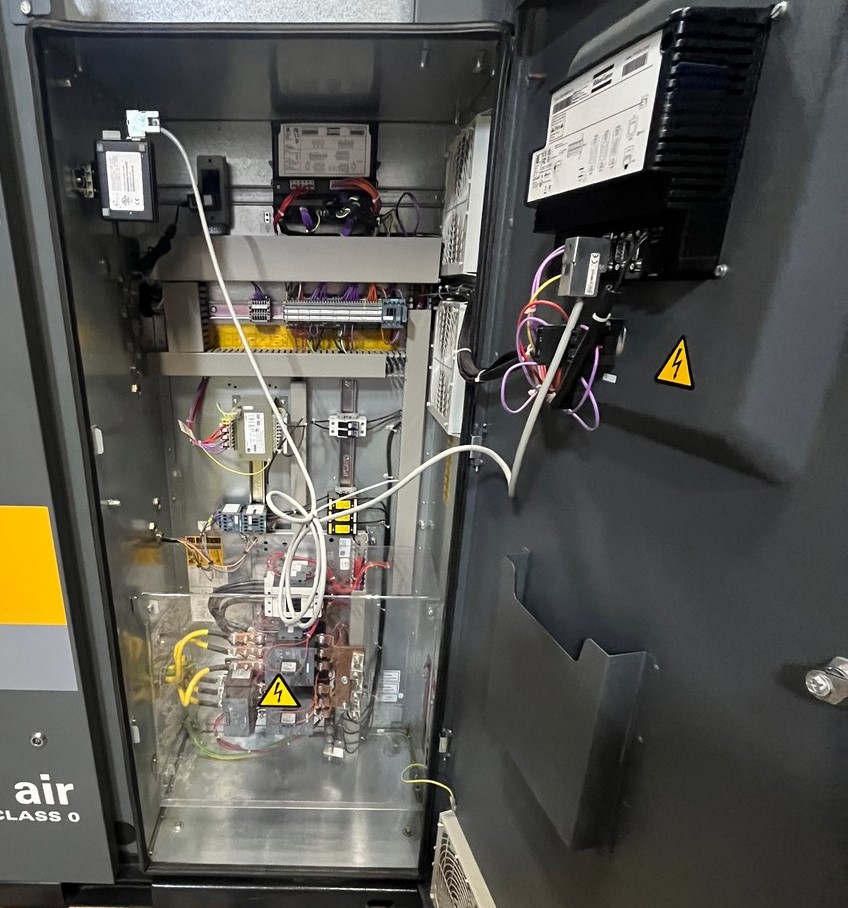

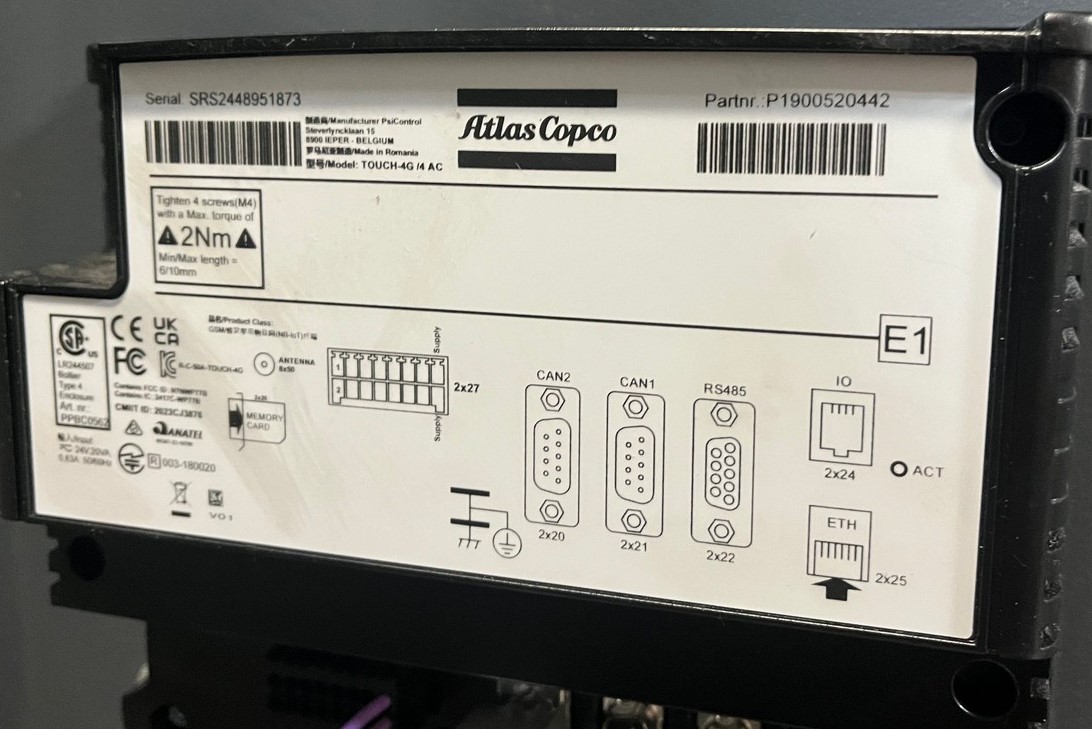

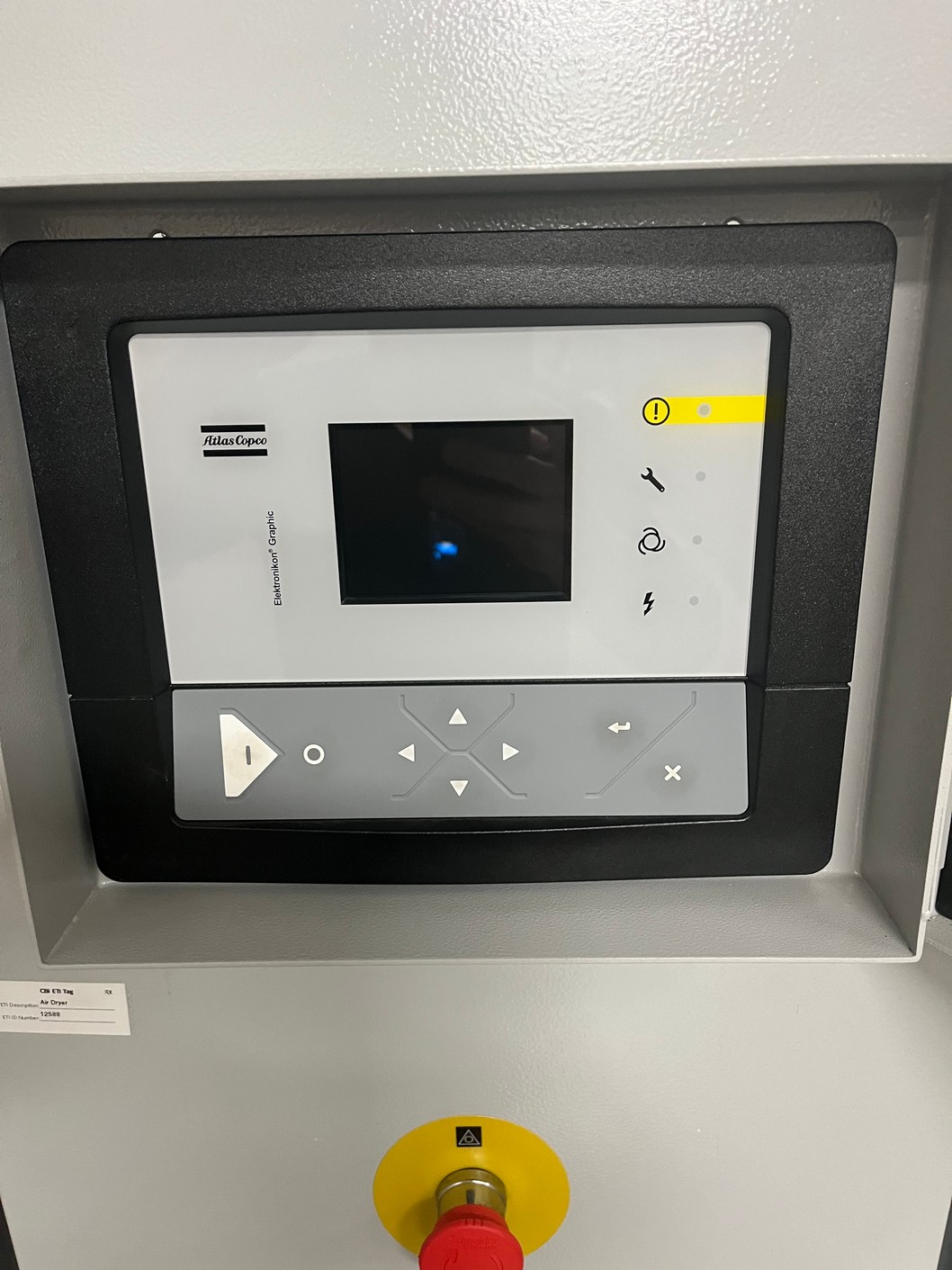

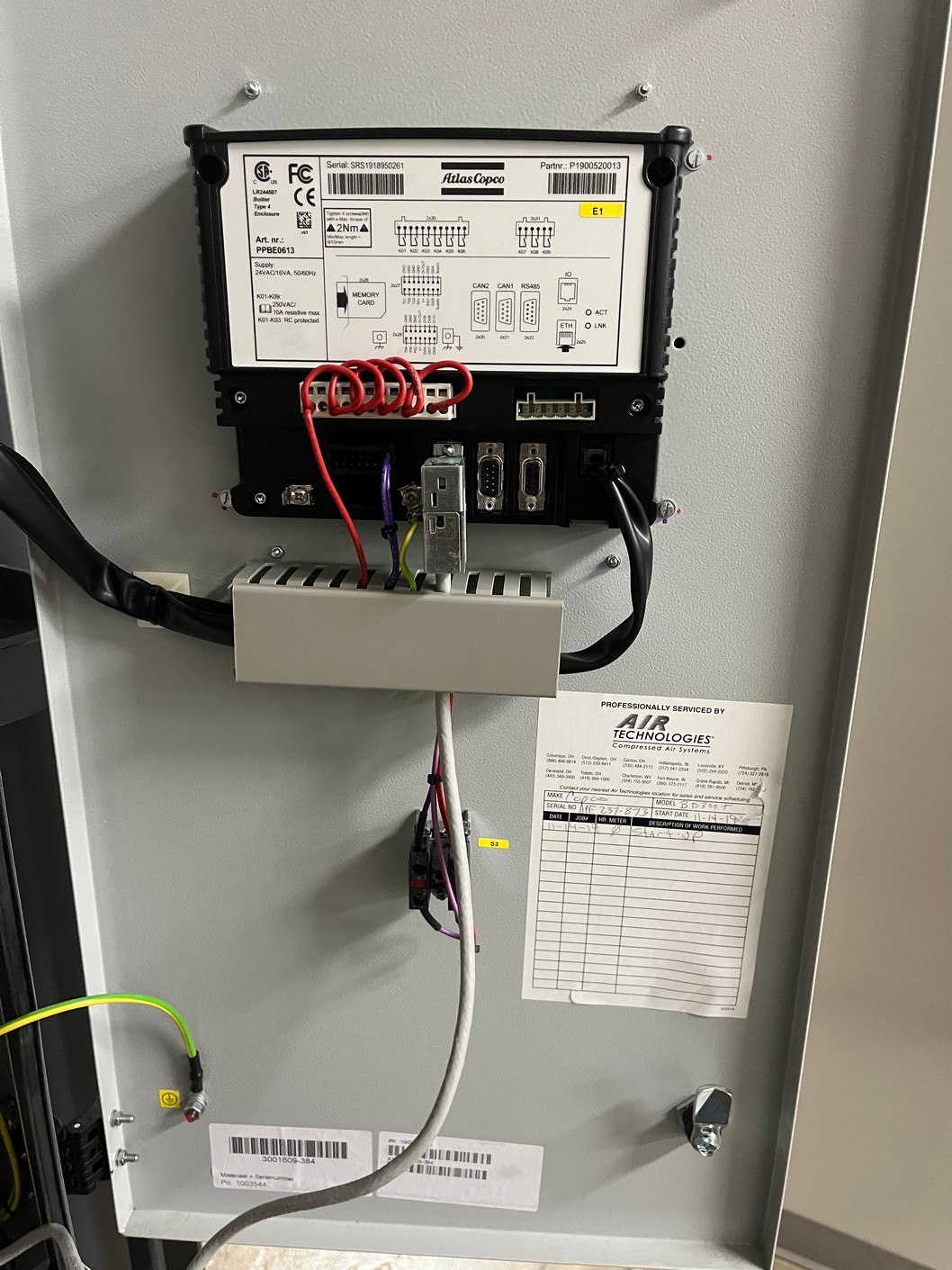

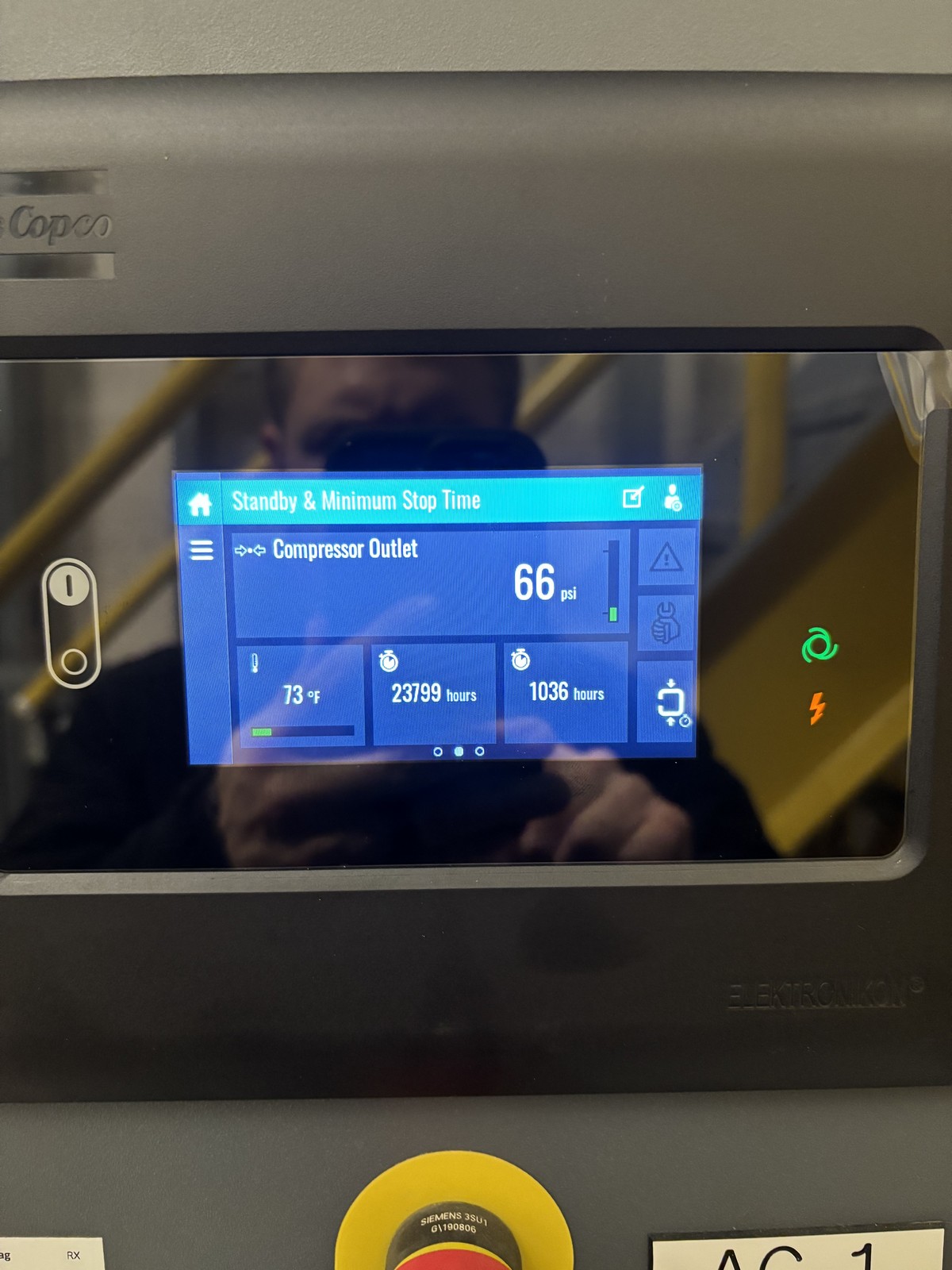

Controls: Atlas Copco Elektronikon controller
Atlas Copco ZT series compressors are designed for industries requiring 100% oil-free compressed air, including pharmaceutical, food & beverage, electronics, and manufacturing applications.

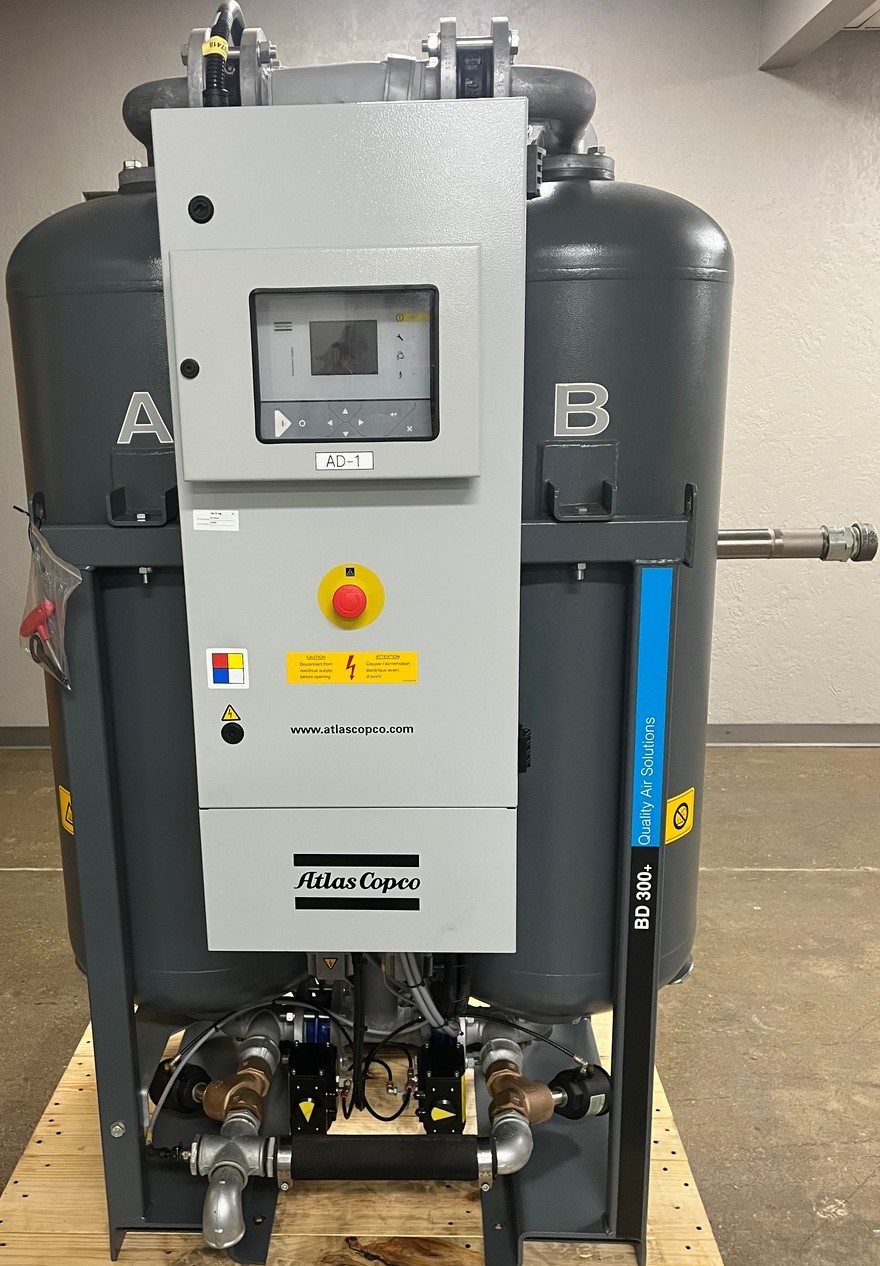

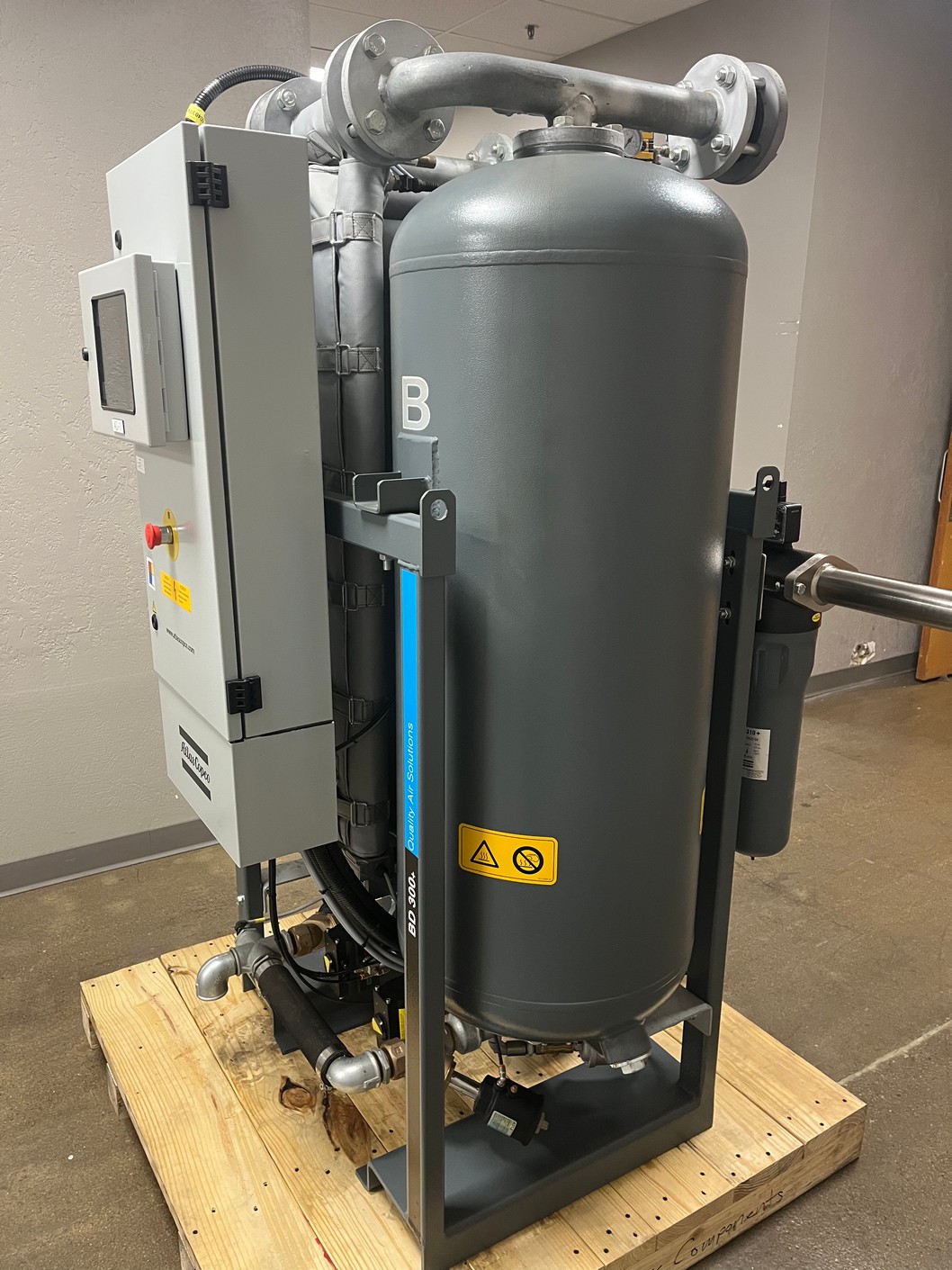

Air Dryer Specifications

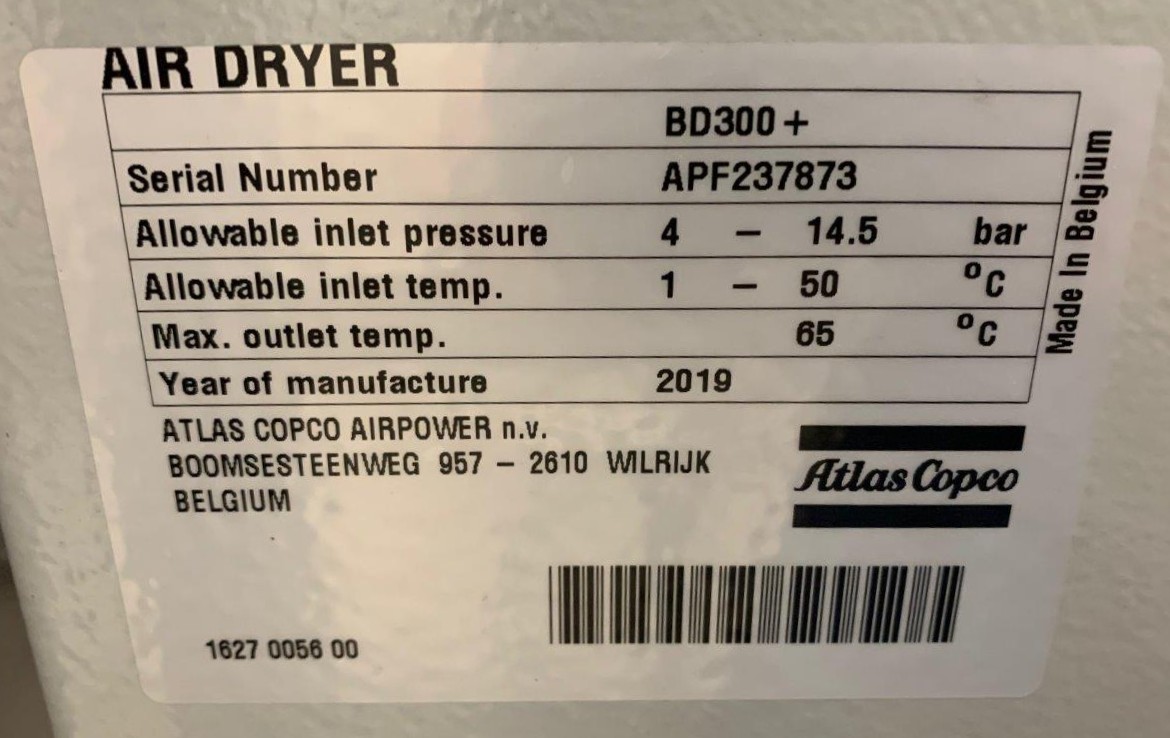

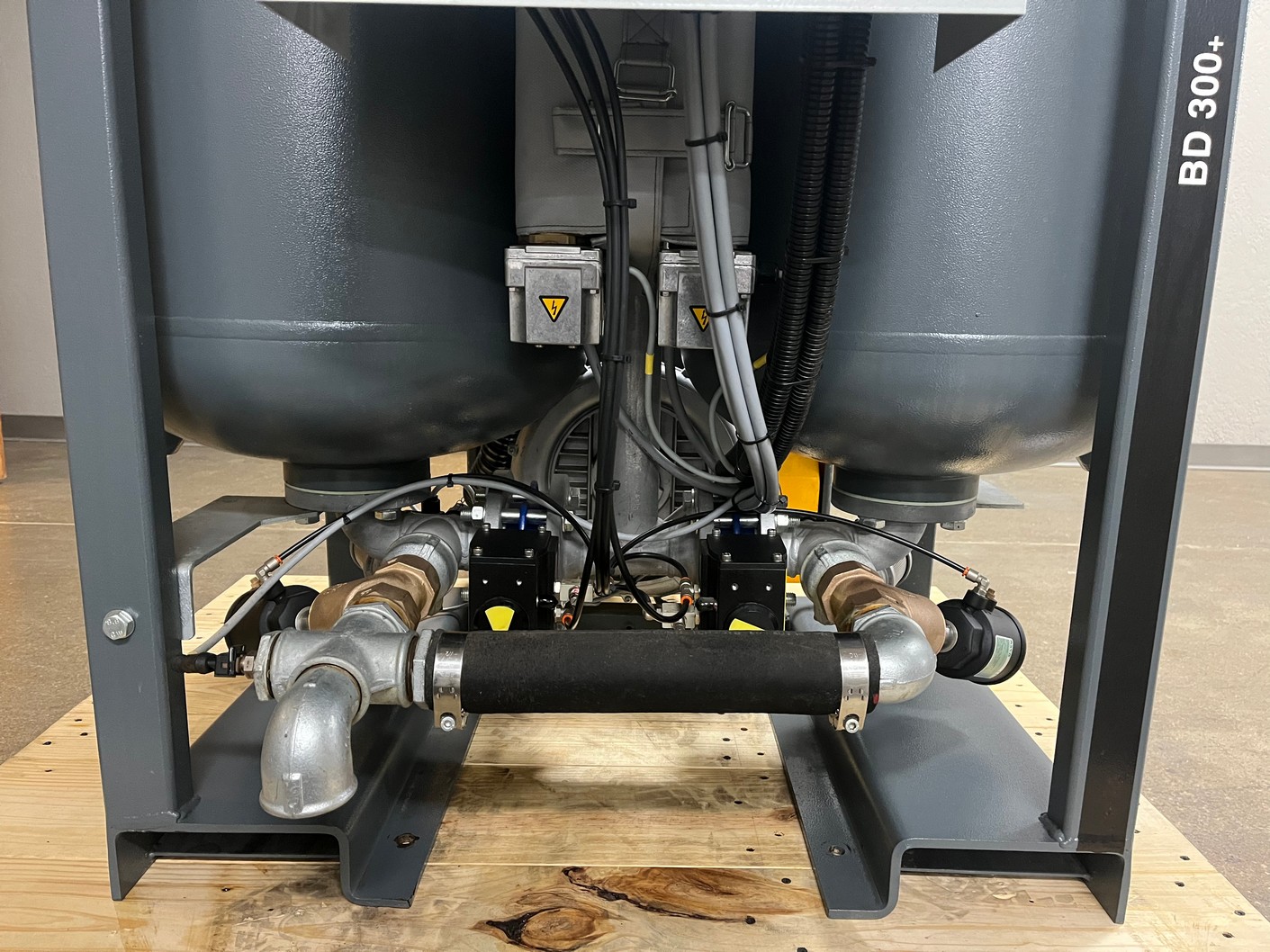

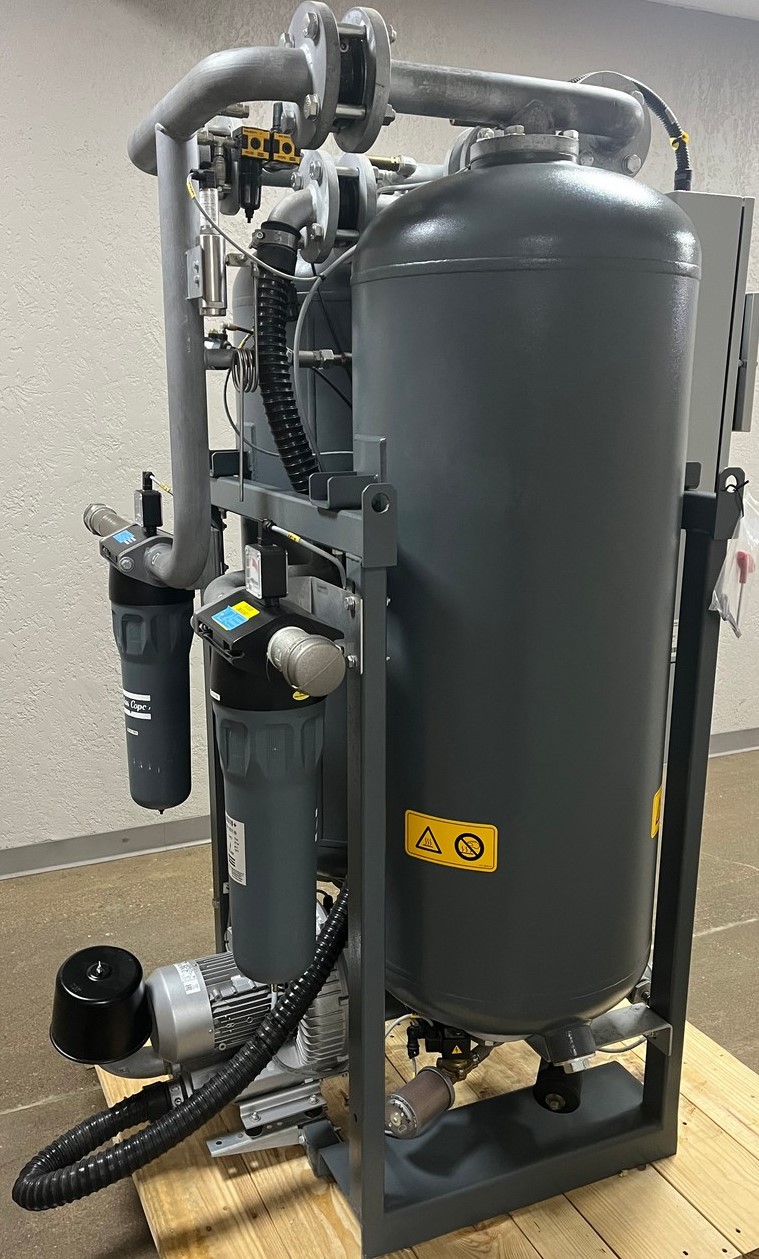

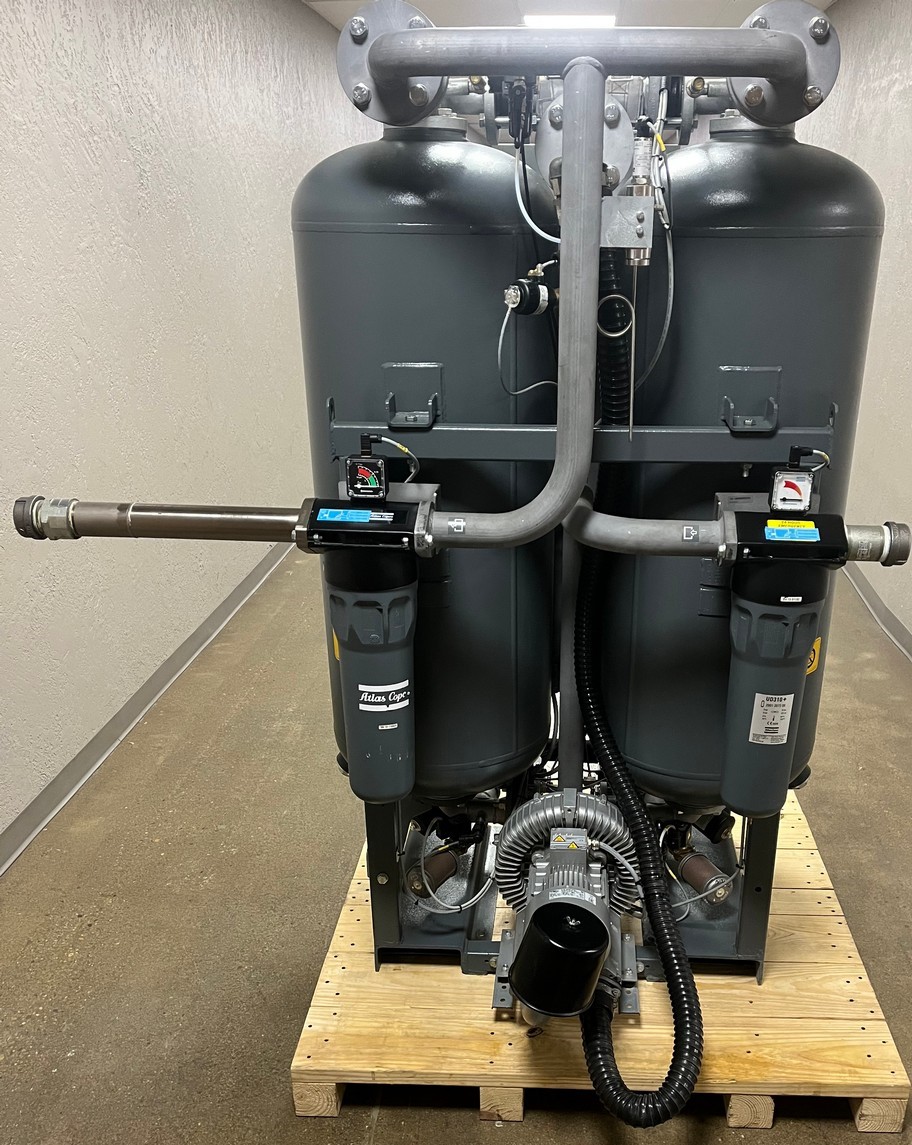

Model: BD300+
Type: Heated Blower Purge Desiccant Dryer
Capacity: approx. 600+ CFM (varies by pressure)
Pressure Dew Point: -40°F standard (optional -100°F)
Pressure Drop: approx. <2.9 PSI

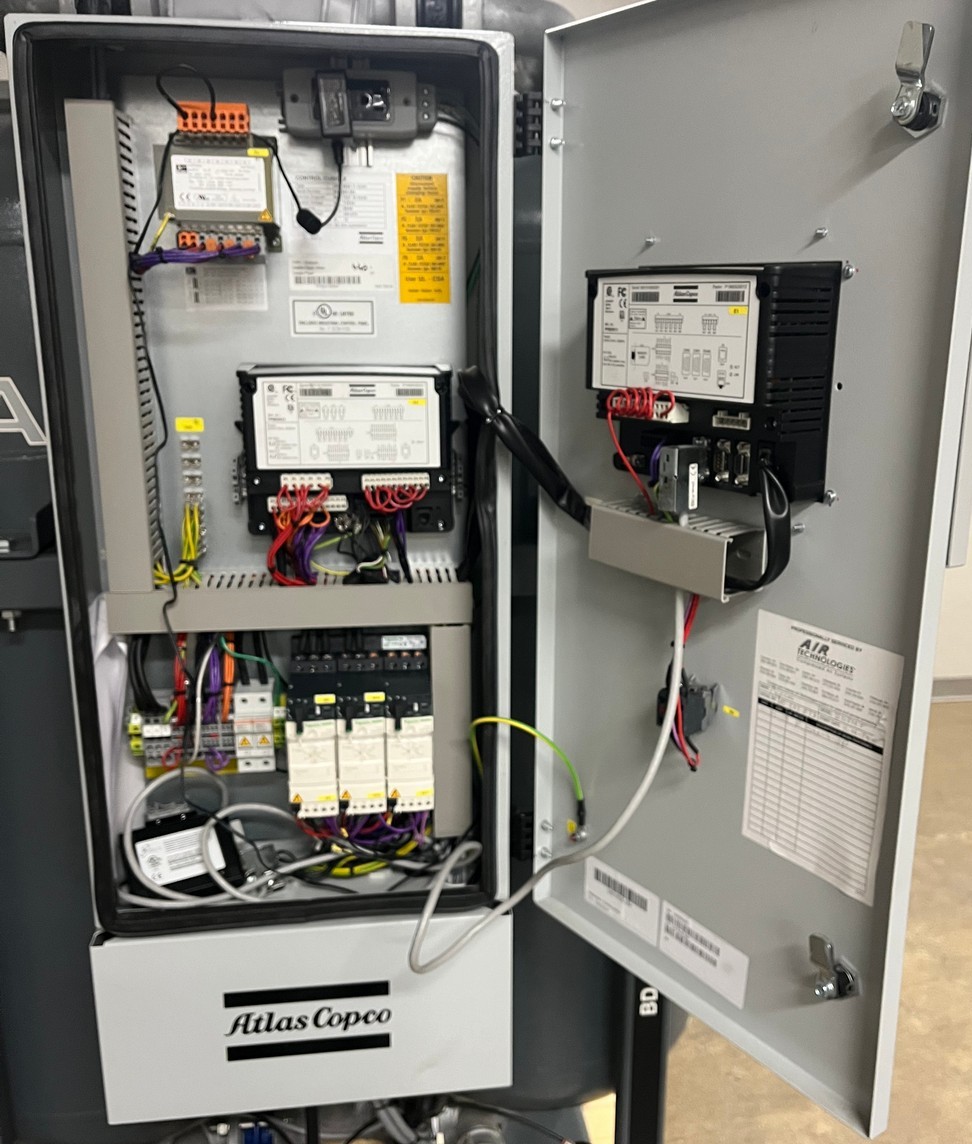

Control System: Atlas Copco electronic controls

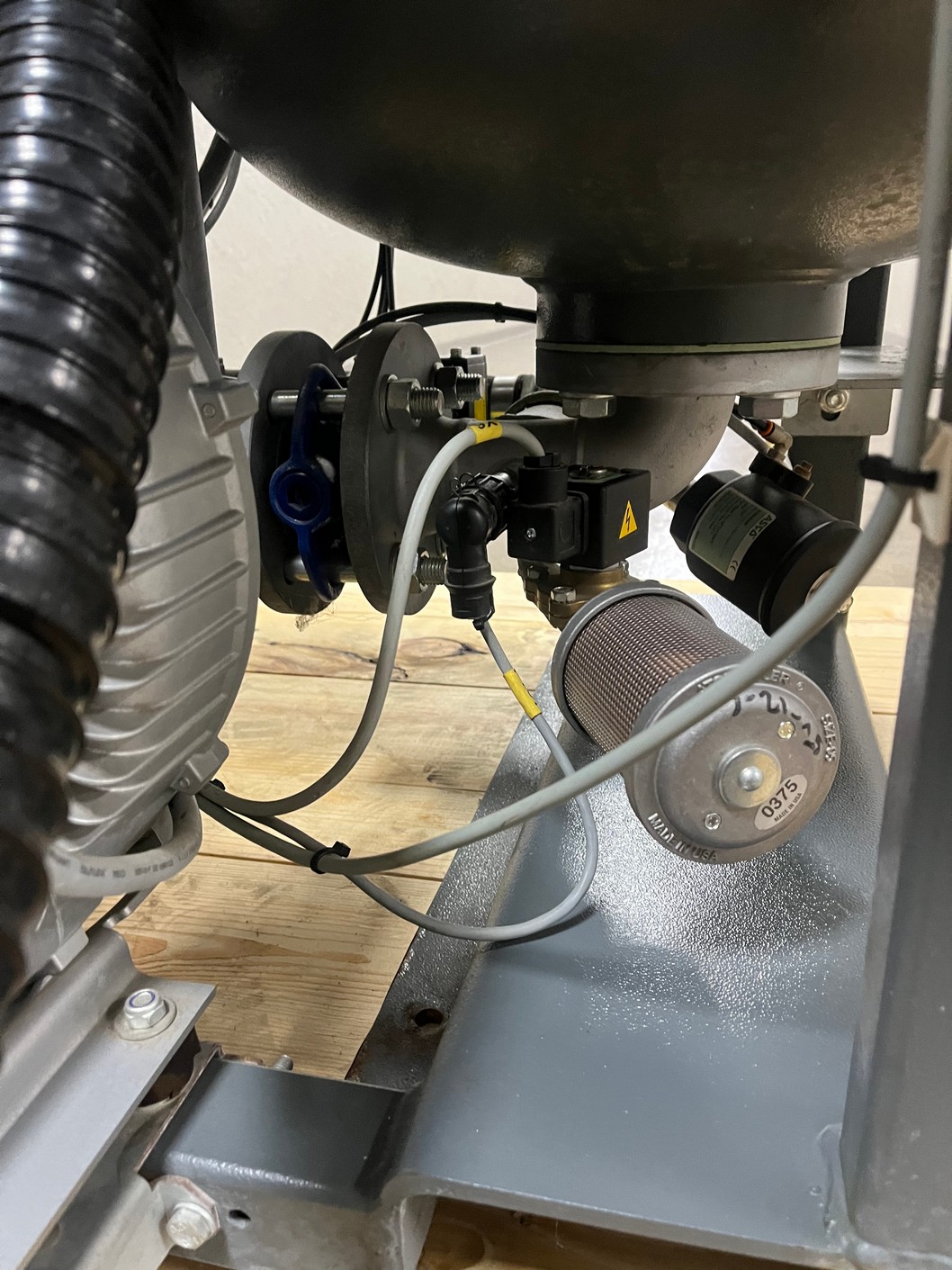

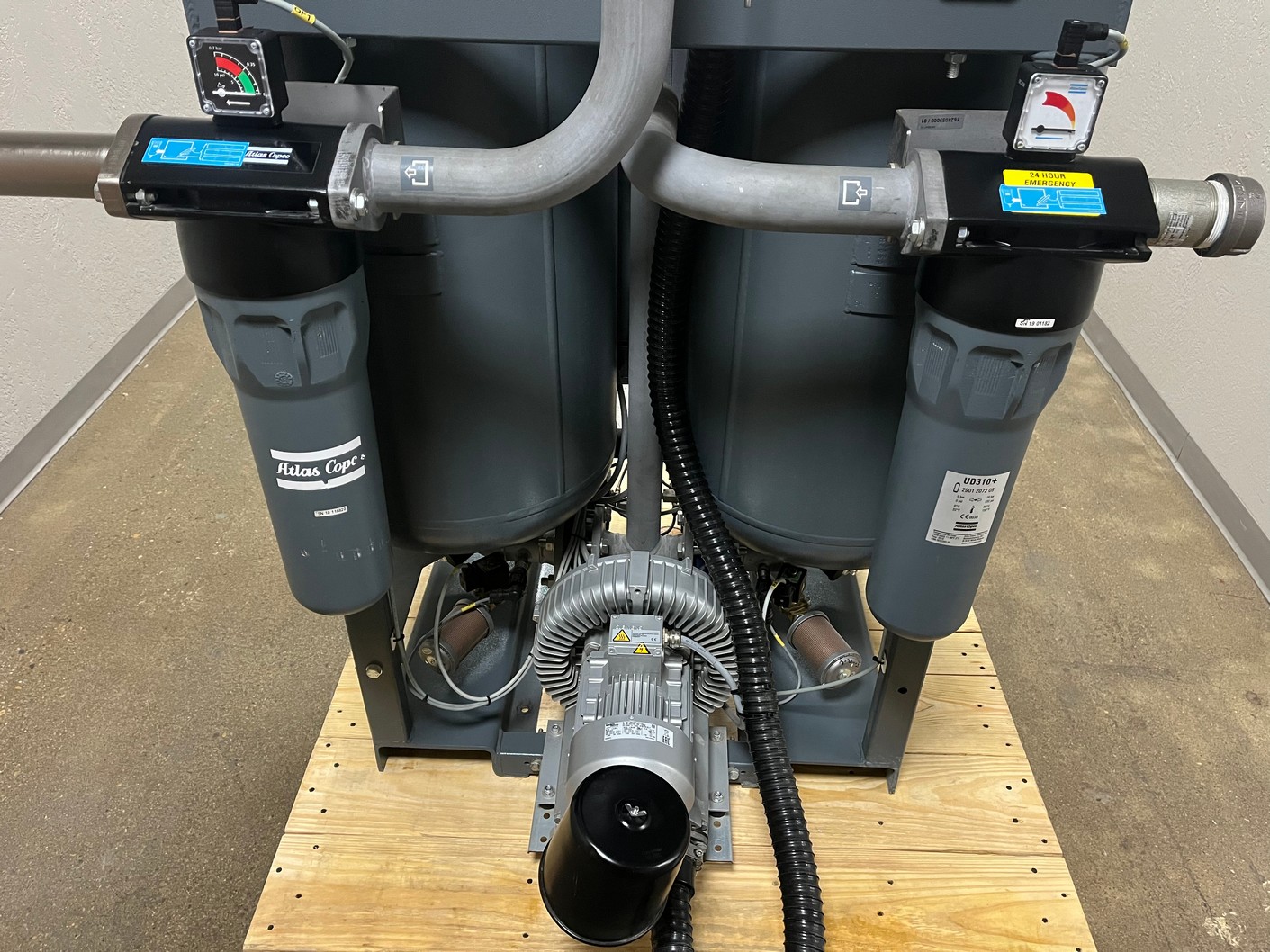

BD+ dryers use a blower-purge regeneration system, combining heated air from an external blower with minimal compressed air to efficiently regenerate the desiccant and maintain extremely dry air.

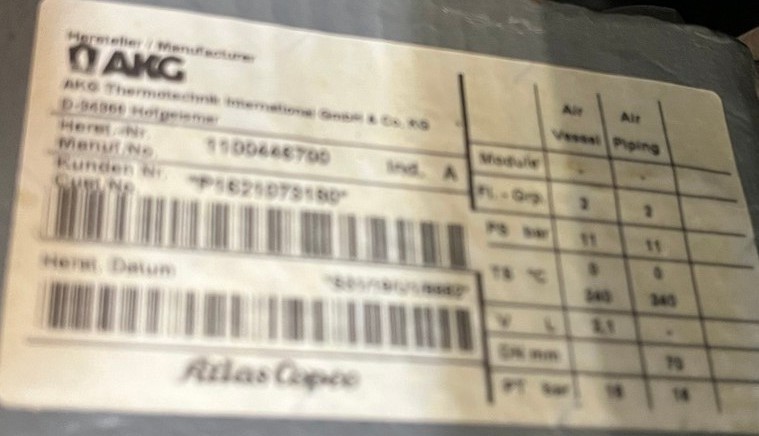

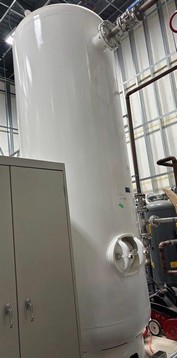

Receiver Tank
Capacity: 1,065 Gallon
Application: Compressed air storage and system pressure stabilization
System Benefits
Complete turnkey compressed air package
100% oil-free compressed air system
Extremely low moisture dew point for critical processes
Energy-efficient blower purge drying technology
Ideal for pharmaceutical, food processing, electronics, and industrial manufacturing
