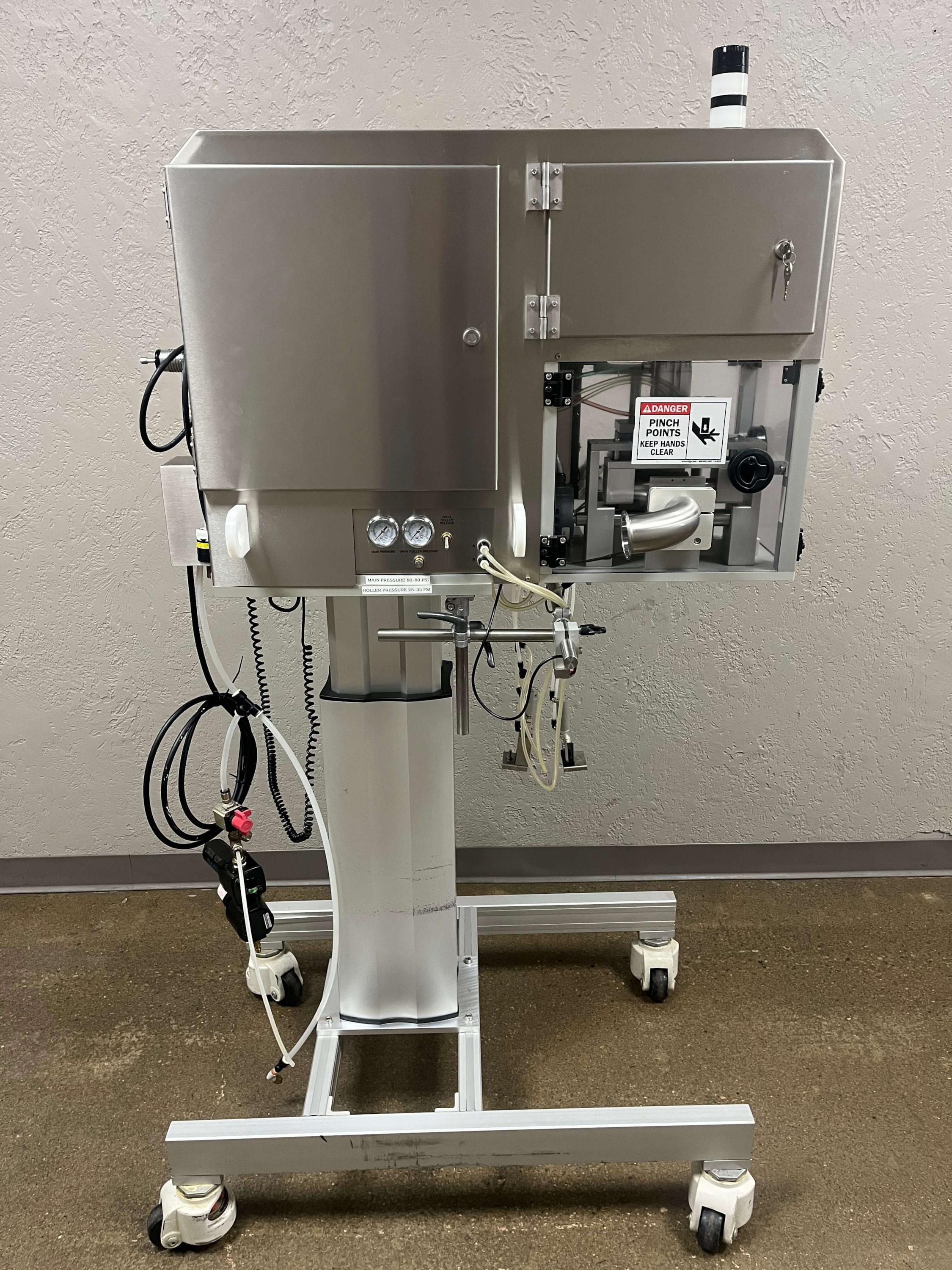

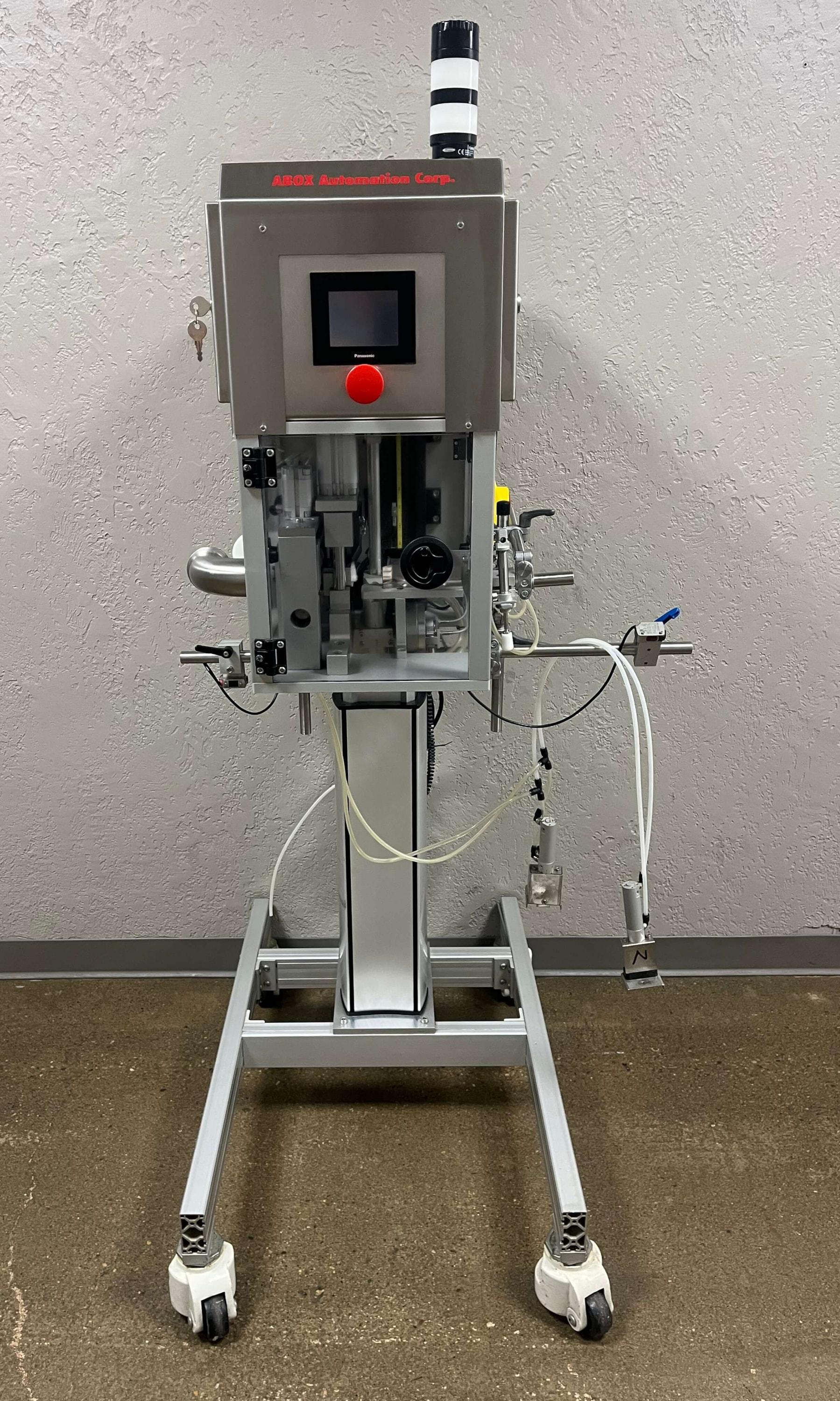

ABOX Automation CFX Cotton Inserter
Specifications:
Model: CFX Cotton Inserter
CFX-80 - 80 Bottles per minute
CFX-130 - 130 Bottles Per minute

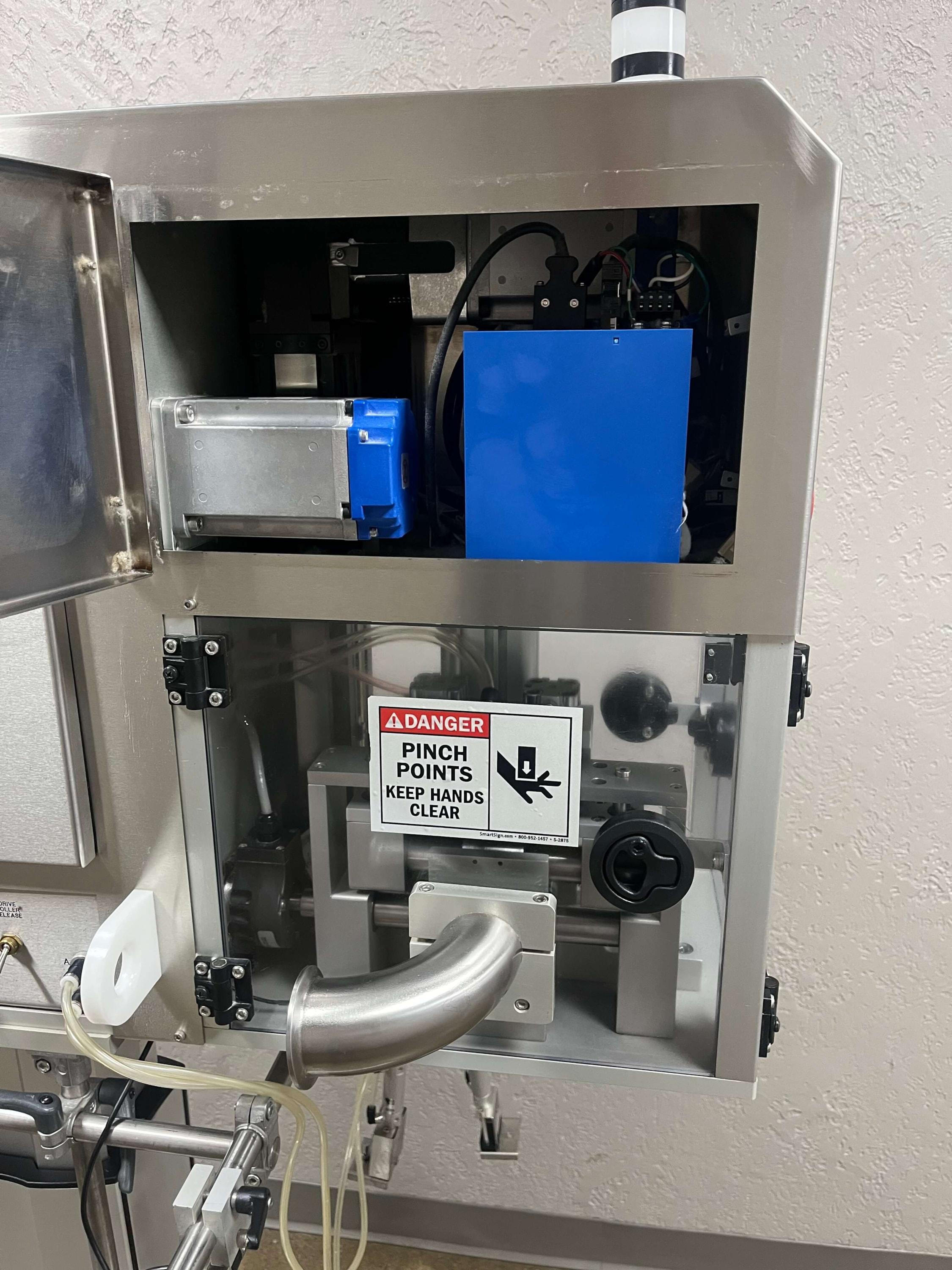

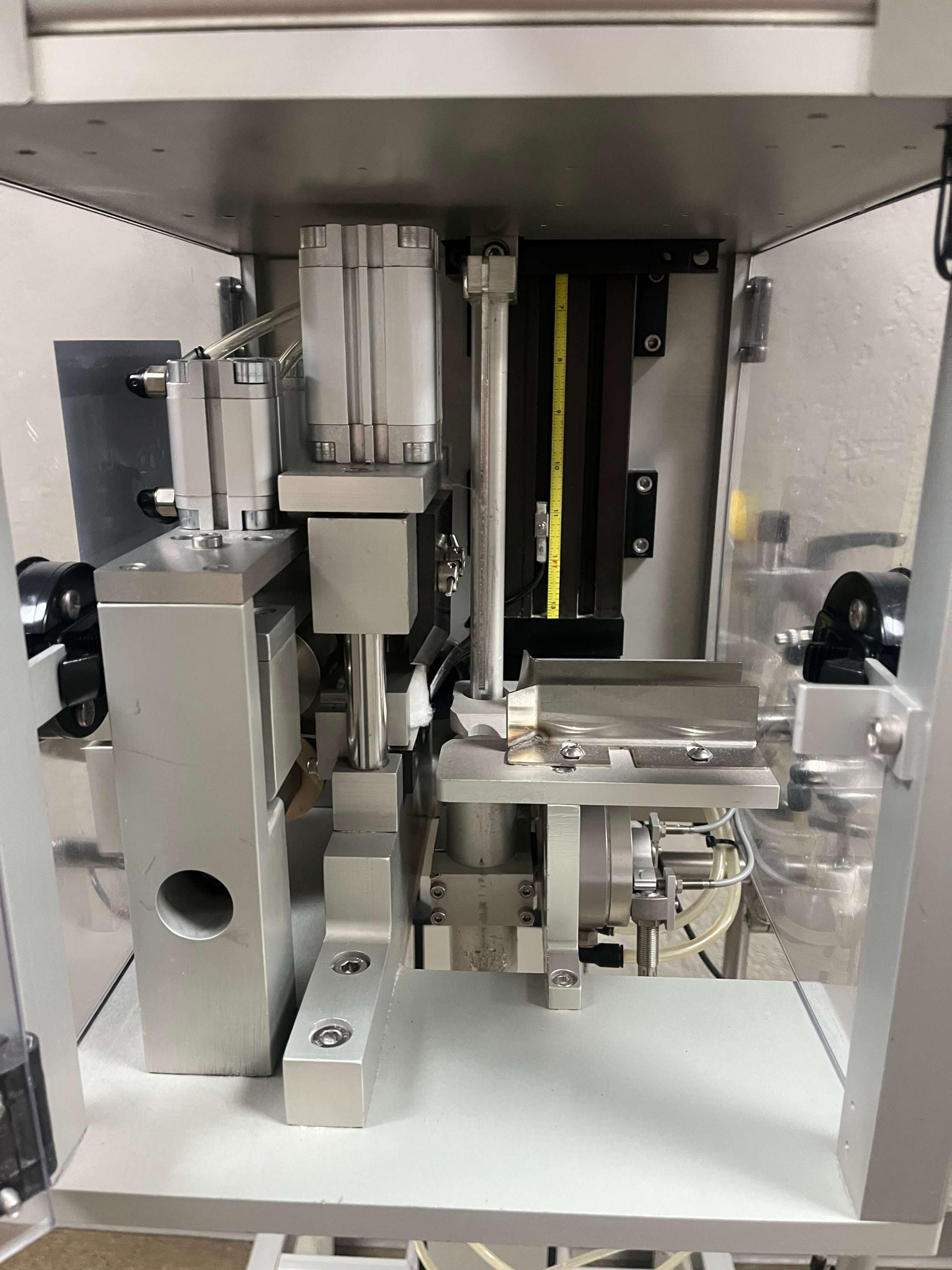

Servo Driven Plunger assembly for fast and accurate U-Folds
Pneumatically operated Guillotine Knife.
(No Product Tearing, Clean Cut Design)
Quick Change Strip Length Adjustment (NO TOOLS REQUIRED) Just enter the length and the program makes the necessary changes

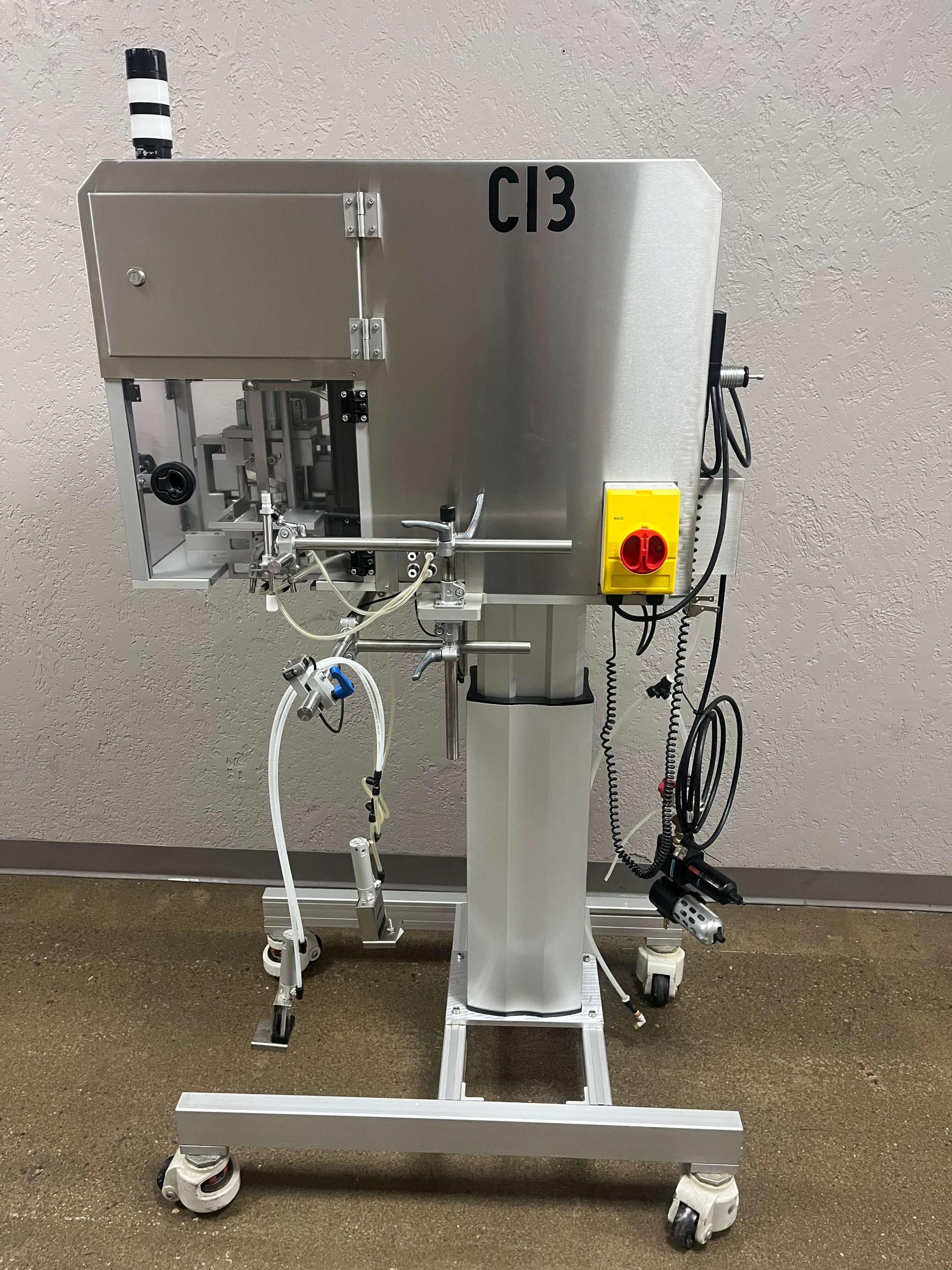

Motorized Telescoping Column for fast and easy bottle change over

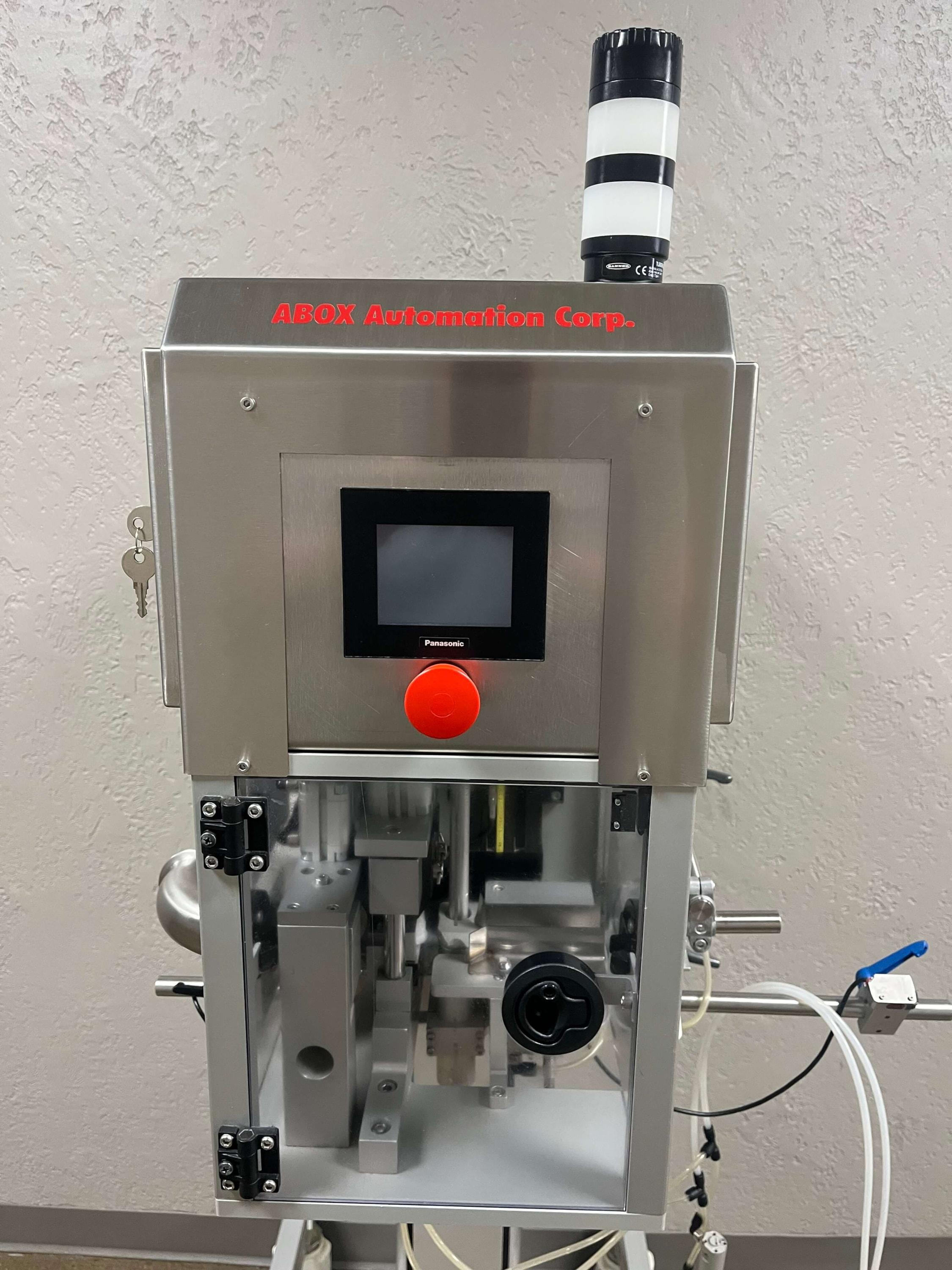

Color Touch Screen HMI
Quick Change Knife Cartridge
Small Footprint (Uses only 2 feet of the packaging line)
Easy set up
Fully Enclosed Design minimizes dust
Out of Material sensor
Pneumatically Pre-Loaded drive rollers for positive traction

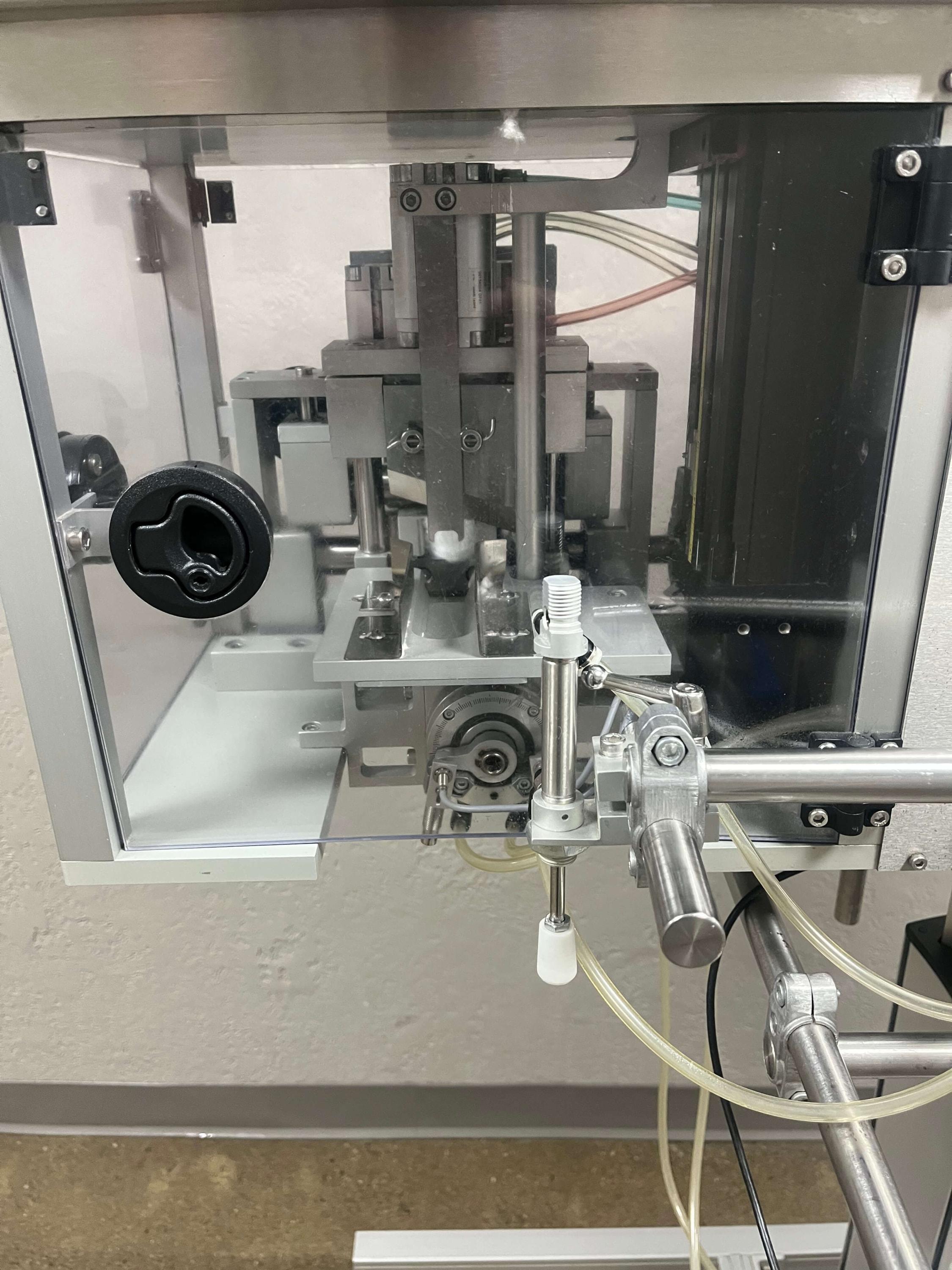

Pneumatic 2 position Turret for reliable “U-Folding”
FDA compliant materials including Hardened Stainless Steel Blades Clear Anodized Construction with all Stainless Steel Hardware and Covers
Interlock on all doors ensure machine shutdown when opened
Pneumatic Gating System for Precise Bottle indexing

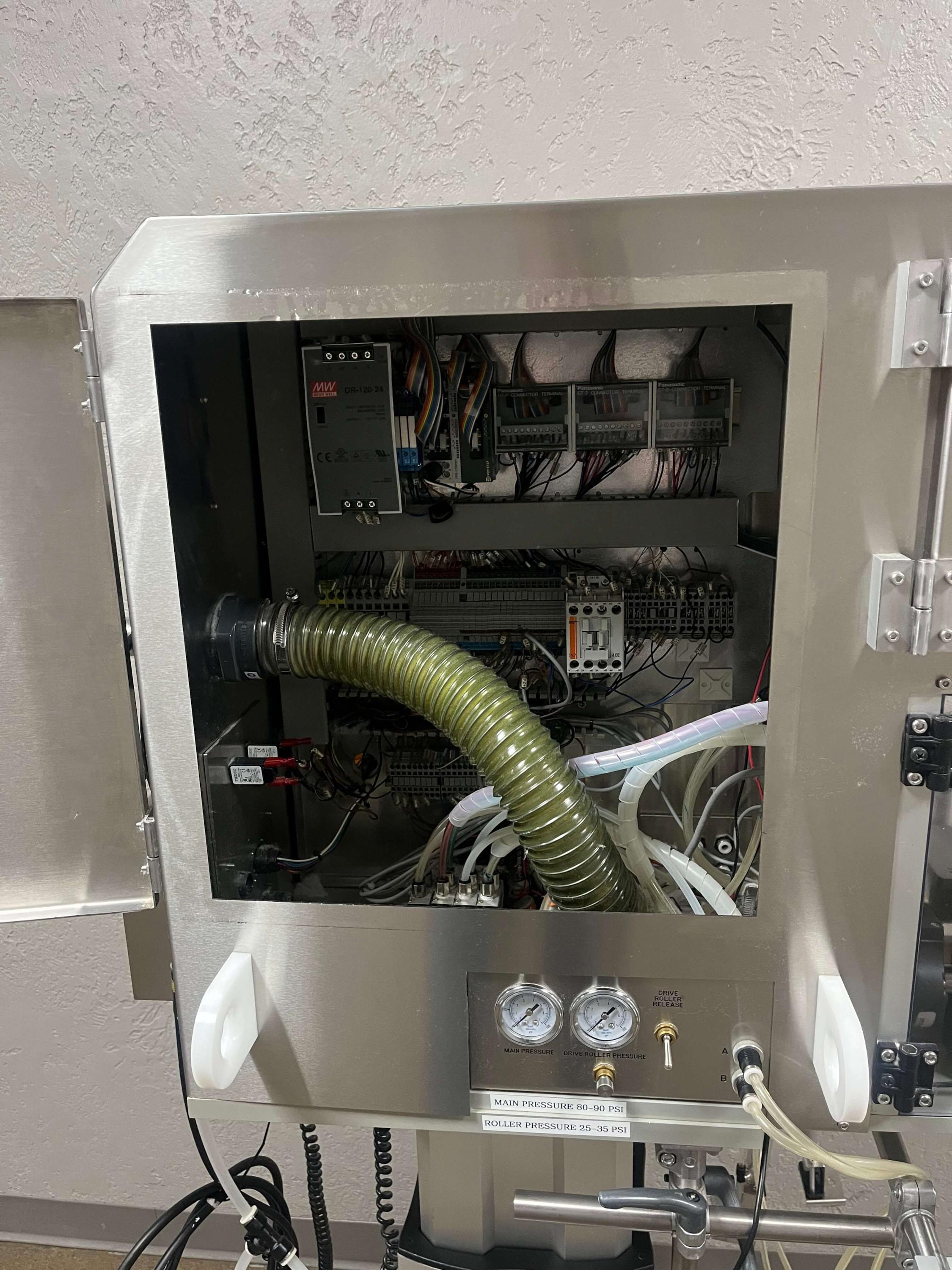

PLC Controlled
Operating Requirements:
Pneumatic: 70-90 psi
Electrical: 110 VAC (220 available)
Operating Speeds:
Up to 80 ppm (CFX-80) Up to 130 ppm (CFX-130)
Note: CFX-80 and CFX-130 are dimensionally the same
