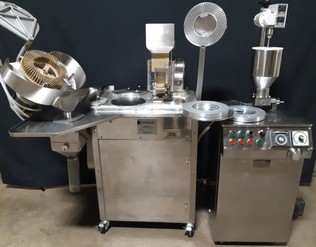

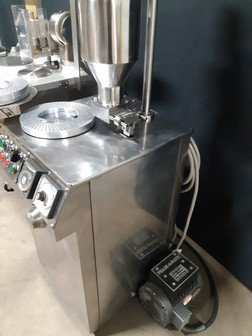

ELANCO Rotop-8 + Model-8S Liquid Capsule Filling Machines

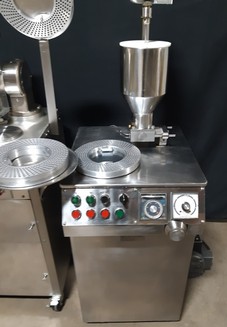

Rotop-8 Oil and Paste Filler for Two-Piece Hard Gelatin and HPMC Capsules
Manufacturer: ELANCO, Schaefer Technologies, Qualicaps
Model: 8
Serial Number: RT-013
Capsule Change Parts Available: Size 00 & 0
*Data taken from Manufacturer's Brochures
Production Capacity: Quantity filled per hour
size 1 ~ 5 35,000 ~ 40,000 capsules
size 0 30,000 ~ 35,000 capsules
Filled Weight:
size 1 ~ 5 100 ~ 480 mg/capsule
size 0 400 ~ 680 mg/capsule
Filling accuracy: Desired amount
(allowance) +- 1.5%
Electrical:
200 ~ 220 Volts, 3 phase
50 ~ 60 cycle, 1.2 KVA

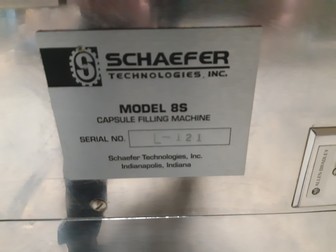

Schaefer Technologies Model 8S Capsule Filling Machine
Rectifier & Closing Unit ONLY - Powder fill is not included, dedicated for Liquid Fill Encapsulation
Manufacturer: Schaefer Technologies, Inc., ELANCO, Qualicaps
Model: 8S
Serial Number: L-121

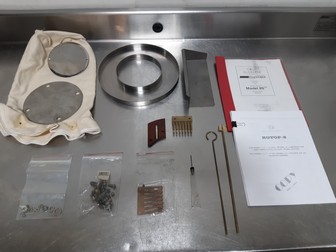

Capsule Change Parts Included: Size 00,0,1 and 3
Production Capacity: 12,000 to 15,000 capsule per hour depending on the capsule size and operator experience.
- Easy to operate, requires a minimum amount of floor space for convenient placement.
- The Model-8S is capable of capsule sizes ranging from size 000 through size 4, along with some DB capsule sizes.
- The reliable performance of the Model 8S is augmented by and internal, self-contained vacuum pump which requires no water.
- Automatic operation of the closing device can easily be accomplished by the connection of a 1/4 or 1/3 HP. air compressor to the air cylinder closing device.
Includes a Becker Vacuum Pump
Electrical: 208, 230 Voltage 3 Phase
